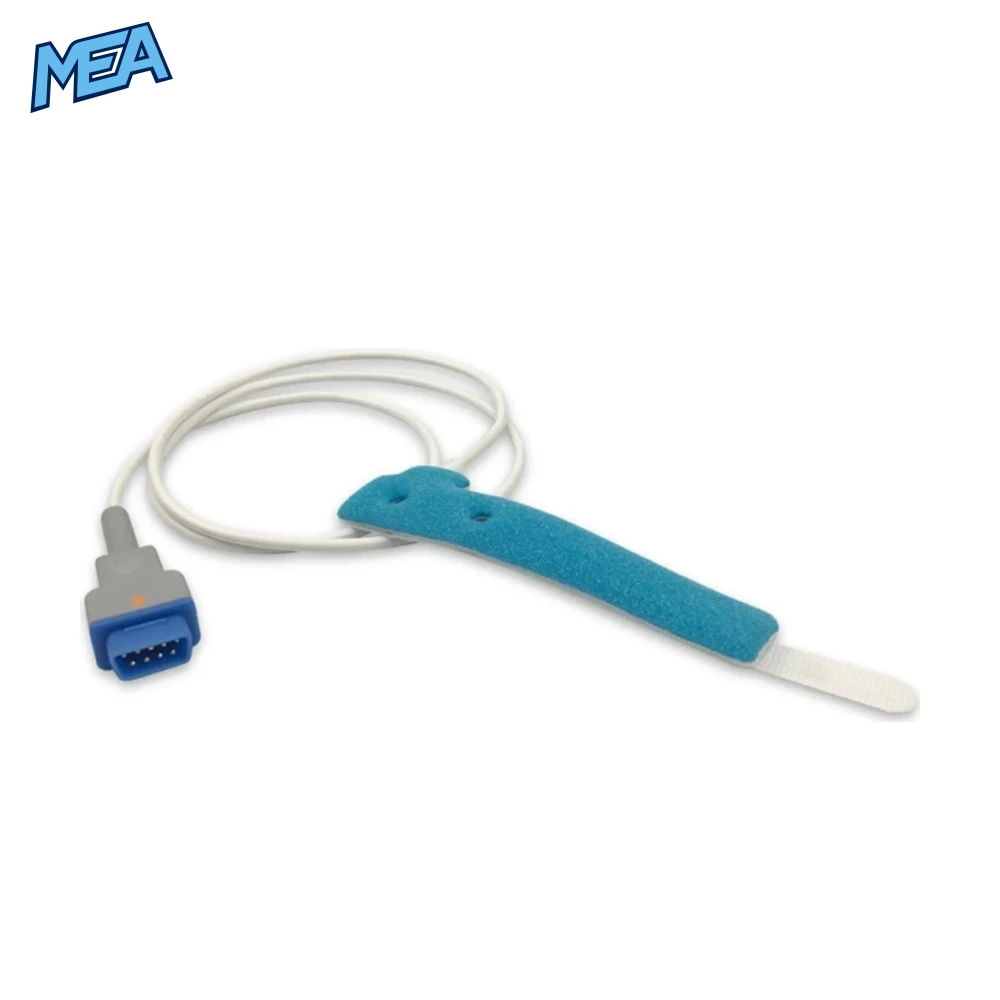

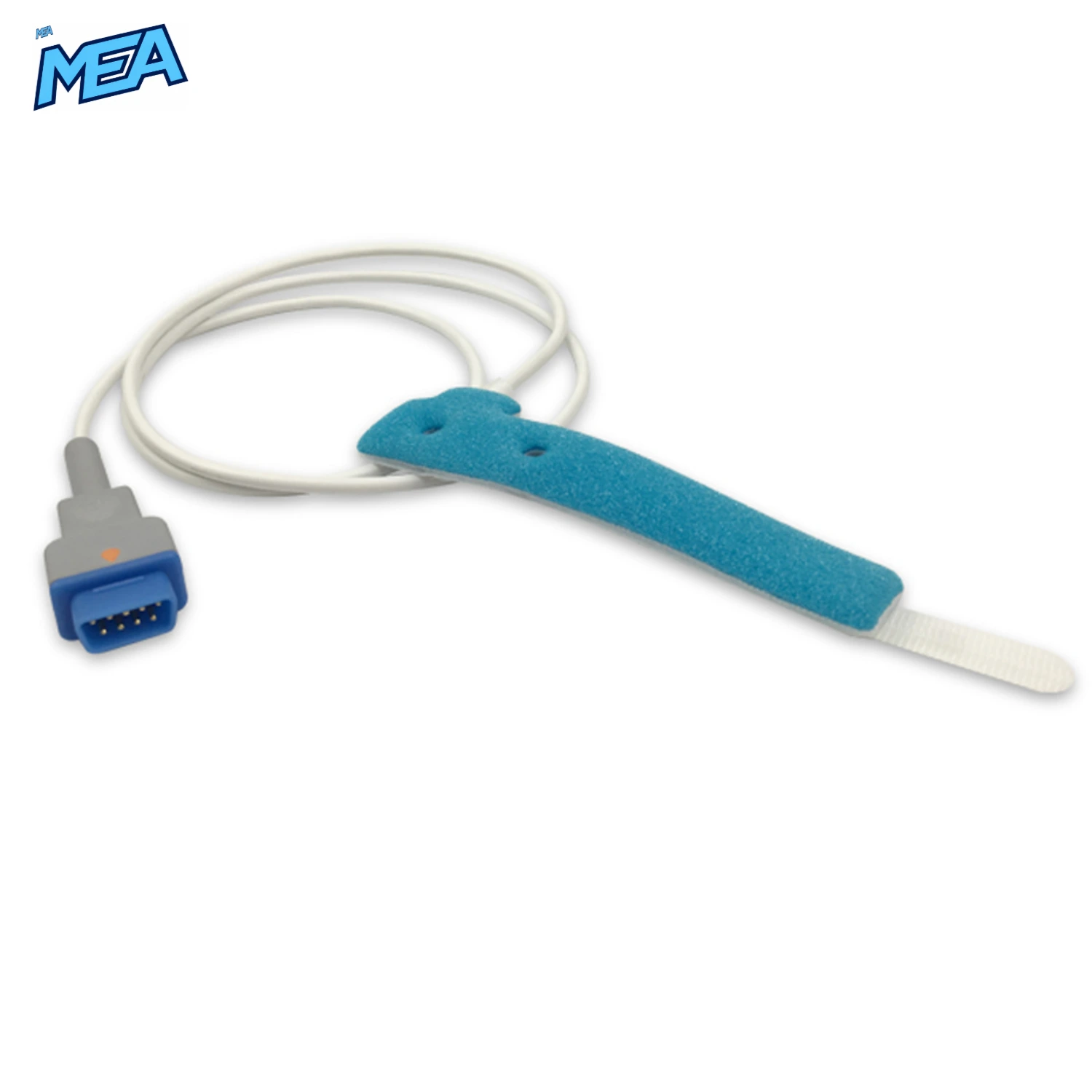

GE TruSignal TS-AP-10 Adult/Neonate Non-Adhesive Foam SpO2 Sensor 0.9m (Disposable Box of 24)

The GE TruSignal TS-AP-10 SpO2 sensor is a disposable, non-adhesive foam pulse oximetry sensor for adult and neonatal patients, built to the GE Healthcare TS-AP-10 reference specifications. It has a 0.9m cable and a 9-pin TruSignal connector, works with GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2 technology, and is supplied new in a box of 24 sensors.

Why Choose This TruSignal Foam SpO2 Sensor

• Gentle on fragile skin: The soft foam wrap fastens with a hook-and-loop strap instead of adhesive, so there is no tape to pull on delicate neonatal or compromised adult skin.
• Repositionable: The strap can be opened and re-fastened to check the site or move the sensor on the same patient.
• One sensor, two patient groups: Sized for adult and neonate application, reducing the number of sensor types you need to stock.
• Infection control: Single-patient-use design helps reduce cross-contamination risk between patients.
• Cost-effective supply: 24 sensors per box for wards, NICU, theatre and recovery.

Key Features of the TS-AP-10 Adult/Neonate Sensor

• Non-adhesive foam wrap sensor with hook-and-loop closure
• Patient size: Adult / Neonate
• SpO2 technology: GE TruSignal

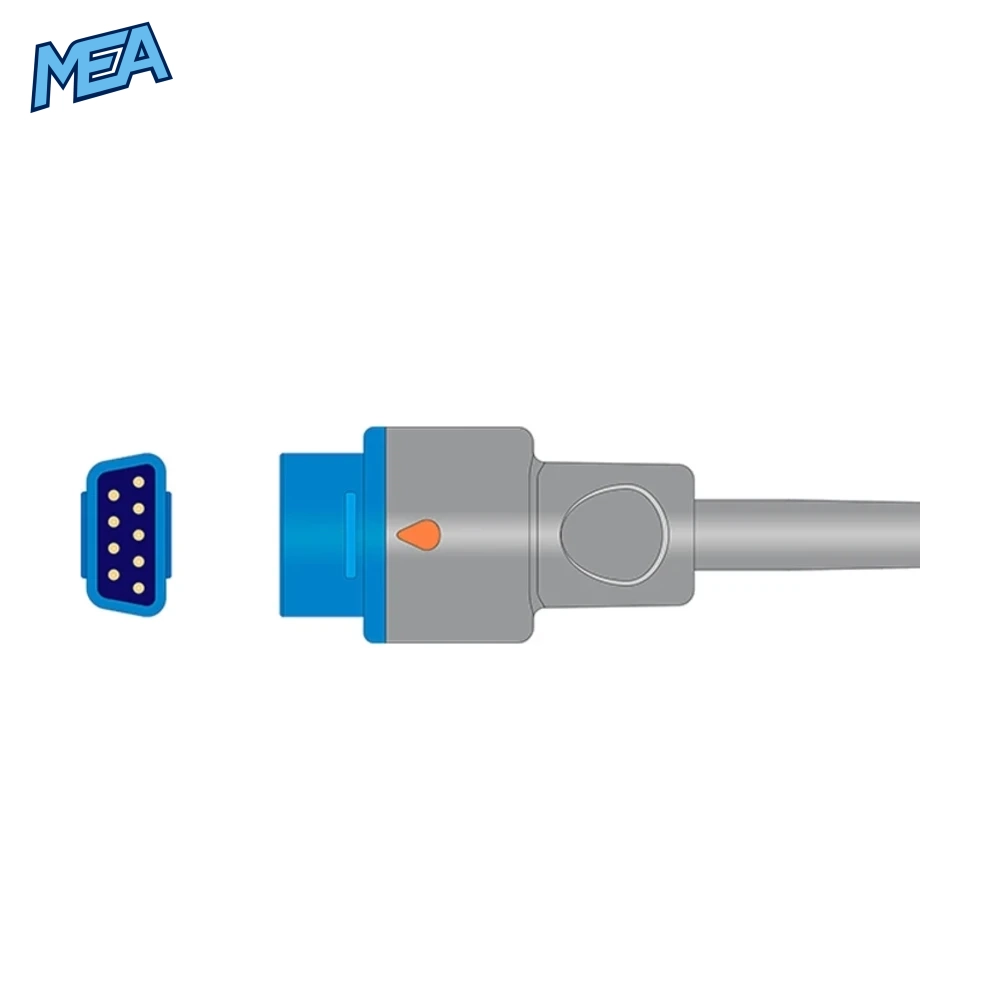

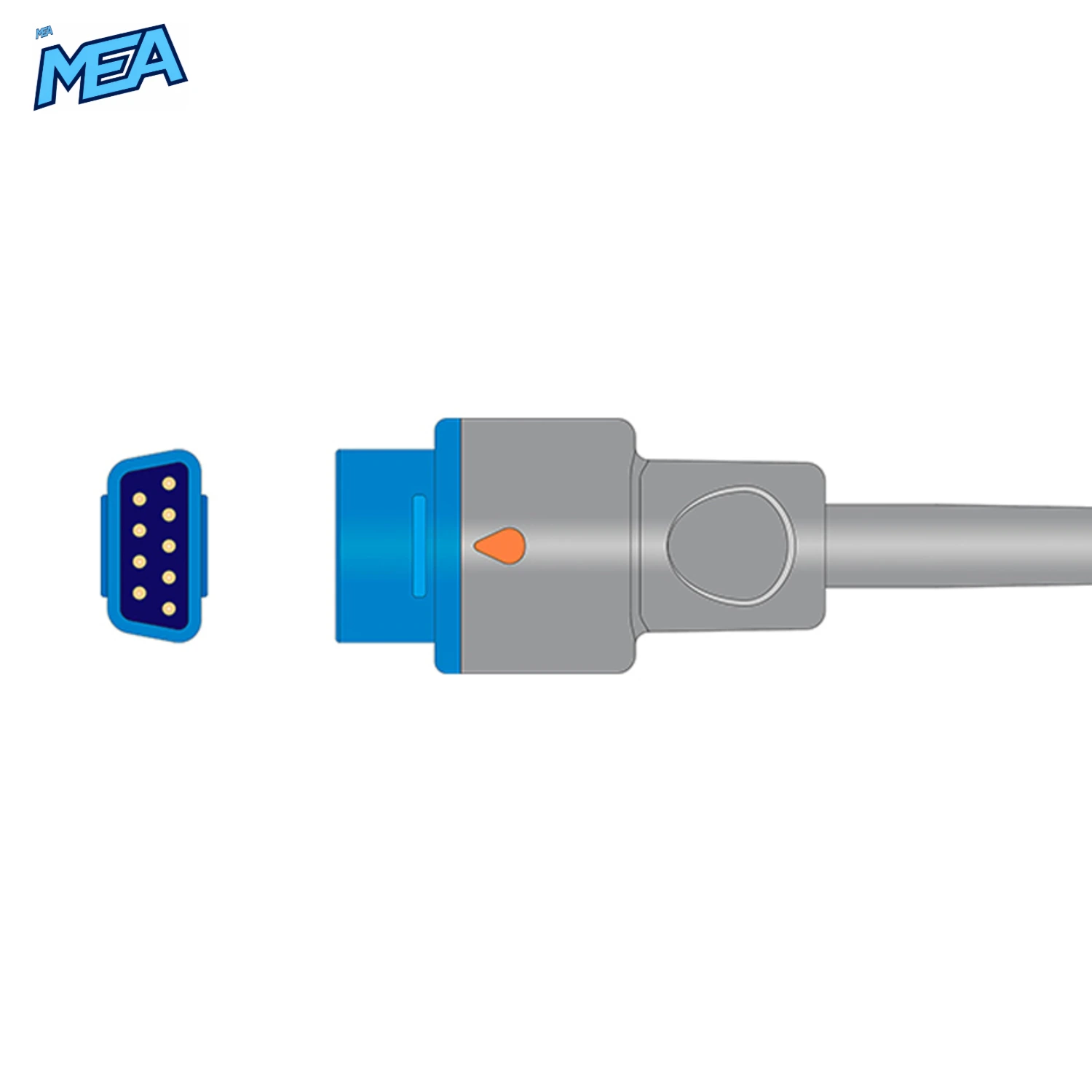

• 9-pin TruSignal connector
• 0.9m (approx. 3 ft) cable
• Disposable, single-patient use
• Condition: New

Technical Specifications

Cross-Reference Part Numbers

Works With These GE and Datex-Ohmeda Monitors

GE Healthcare

• CARESCAPE B650, CARESCAPE ONE, CARESCAPE Canvas, CARESCAPE V100
• B20, B20i, B40
• Aisys, Aisys CS2
• DINAMAP B125
• 259 Series

Datex-Ohmeda

• S/5 with E-series modules, S/5 with M-OSAT module, i4 with E-series modules
• AS/3 with M-OSAT module, CS/3 with M-OSAT module, E-PRESTN
• Cardiocap/5, TruSignal, TuffSat
• 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250

Always confirm your monitor’s SpO2 technology and connector before ordering. This sensor is for TruSignal-equipped systems only.

Use Cases

• Neonatal intensive care and special care nurseries where adhesive sensors are not suitable
• Adult patients with fragile, burned, oedematous or adhesive-sensitive skin
• Operating theatre, anaesthesia and recovery monitoring
• General ward spot-check and continuous pulse oximetry
• Biomedical engineering and hospital consumable stock

Application and Care

• Apply to a finger on adults or to the foot on neonates, in line with your clinical protocol, with the emitter and detector opposite each other.
• Fasten the strap snugly but not tightly, and check the site regularly.
• Connect the 9-pin plug to the monitor’s TruSignal SpO2 input or interconnect cable.
• Single-patient use only. Do not reprocess or sterilise. Dispose of according to facility waste procedures.

Frequently Asked Questions

What is the TS-AP-10 SpO2 sensor?

It is a disposable adult/neonate non-adhesive foam pulse oximetry sensor built to the GE Healthcare TS-AP-10 reference for TruSignal SpO2 technology. It has a 0.9m cable, a 9-pin connector and comes 24 to a box.

Which monitors does the TS-AP-10 sensor work with?

It works with GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2, including CARESCAPE B650, B40, B20, Aisys, DINAMAP B125, S/5 with E-series or M-OSAT modules, Cardiocap/5 and TuffSat.

What is the difference between a foam and an adhesive SpO2 sensor?

A foam sensor wraps around the site and closes with a hook-and-loop strap, so no adhesive touches the skin. It can be repositioned on the same patient and suits fragile or sensitive skin. An adhesive sensor sticks directly to the skin.

Can this sensor be used on both adults and neonates?

Yes. It is sized for adult and neonatal patients. It is normally applied to a finger on adults and to the foot on neonates, following your clinical protocol.

Is the TS-AP-10 foam sensor reusable?

No. It is a single-patient-use disposable sensor. It may be repositioned on the same patient, then disposed of after use.

How many sensors are in one box?

Each box contains 24 adult/neonate non-adhesive foam SpO2 sensors.

What connector and cable length does it have?

It has a 9-pin TruSignal connector and a 0.9m (approx. 3 ft) cable.
