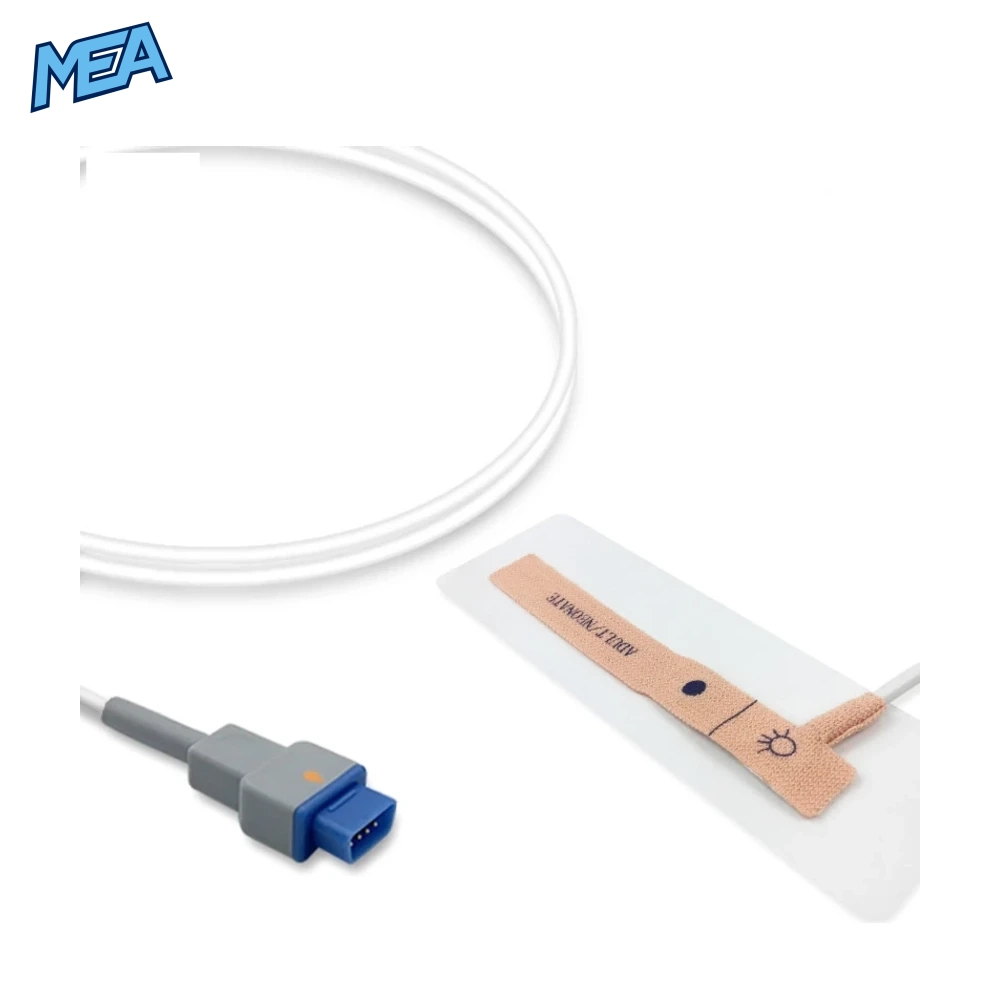

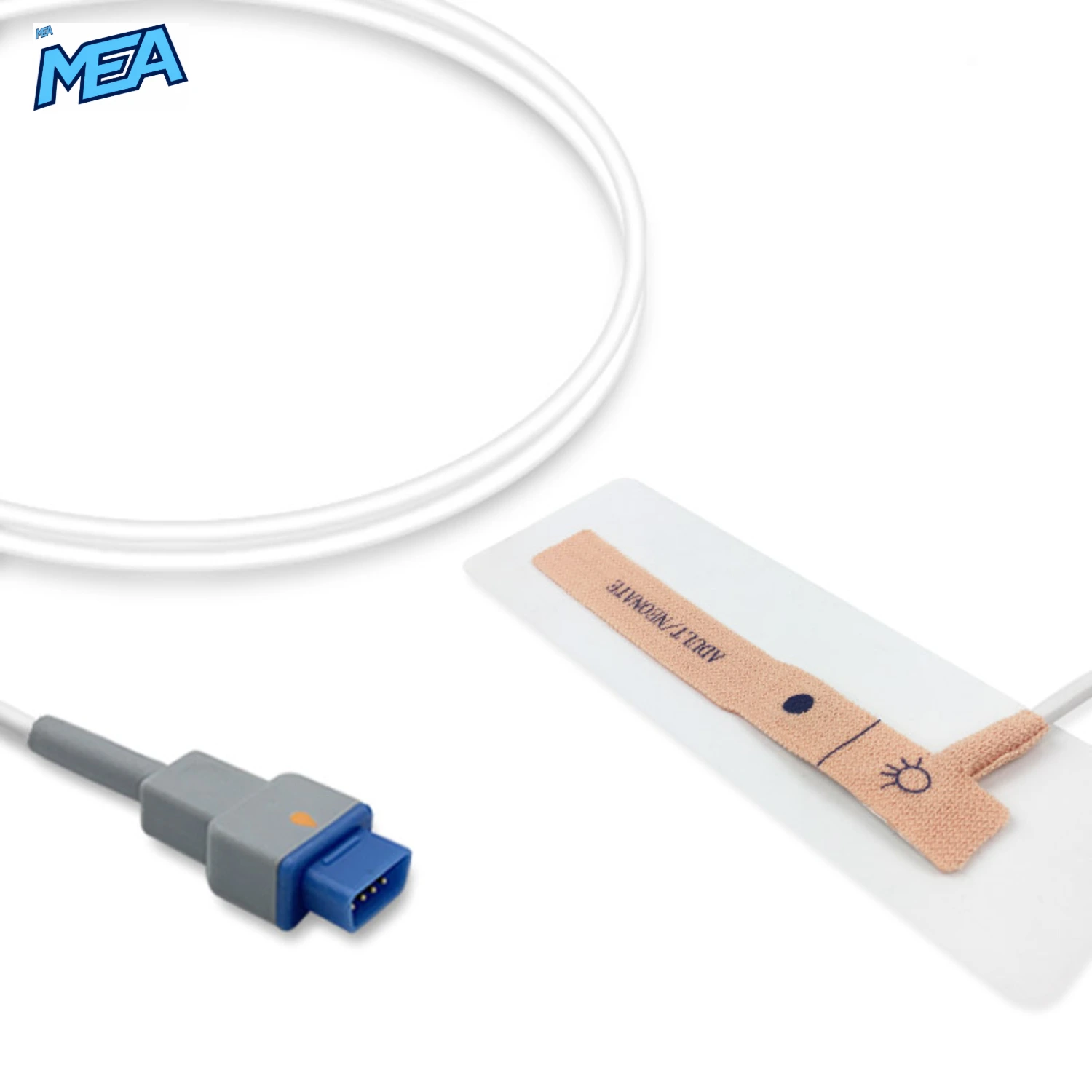

The TS-AF-25 SpO2 sensor is a disposable, single-patient-use adult/neonate non-woven adhesive pulse oximetry sensor built to the GE Healthcare TS-AF-25 reference specifications for TruSignal SpO2 technology.
It has a 0.9m (approx. 3 ft) cable, a 9-pin connector and is supplied new in a box of 24. One sensor design covers both adult and neonatal patients, giving continuous SpO2 and pulse-rate monitoring on GE Healthcare and Datex-Ohmeda monitors that use TruSignal.
Key Benefits of the TruSignal Adult/Neonate Adhesive SpO2 Sensor
- One sensor, two patient groups: The adult/neonate sizing lets wards and theatres stock a single disposable sensor for adult fingers and neonatal feet.
- Secure fit: The non-woven adhesive wrap holds the emitter and detector in line, which helps reduce motion artifact during long monitoring.
- Lower cross-contamination risk: Each sensor is used on one patient only, so no reprocessing is needed between patients.
- Consistent readings: Built to the GE TruSignal reference so SpO2 and pulse-rate values stay consistent on TruSignal-enabled monitors.
- Good value: A box of 24 covers NICU, ICU, OR and recovery use and lowers the cost per patient.
Features of the TS-AF-25 Disposable Pulse Oximetry Sensor
Sensor Design
- Adult/neonate non-woven adhesive (wrap-on) sensor with LED emitter and photodetector
- Soft, breathable non-woven fabric for extended wear
- “ADULT/NEONATE” size marking and emitter/detector position symbols printed on the sensor pad
- Disposable, single-patient-use construction
Cable and Connector
- 0.9m (approx. 3 ft) lightweight cable

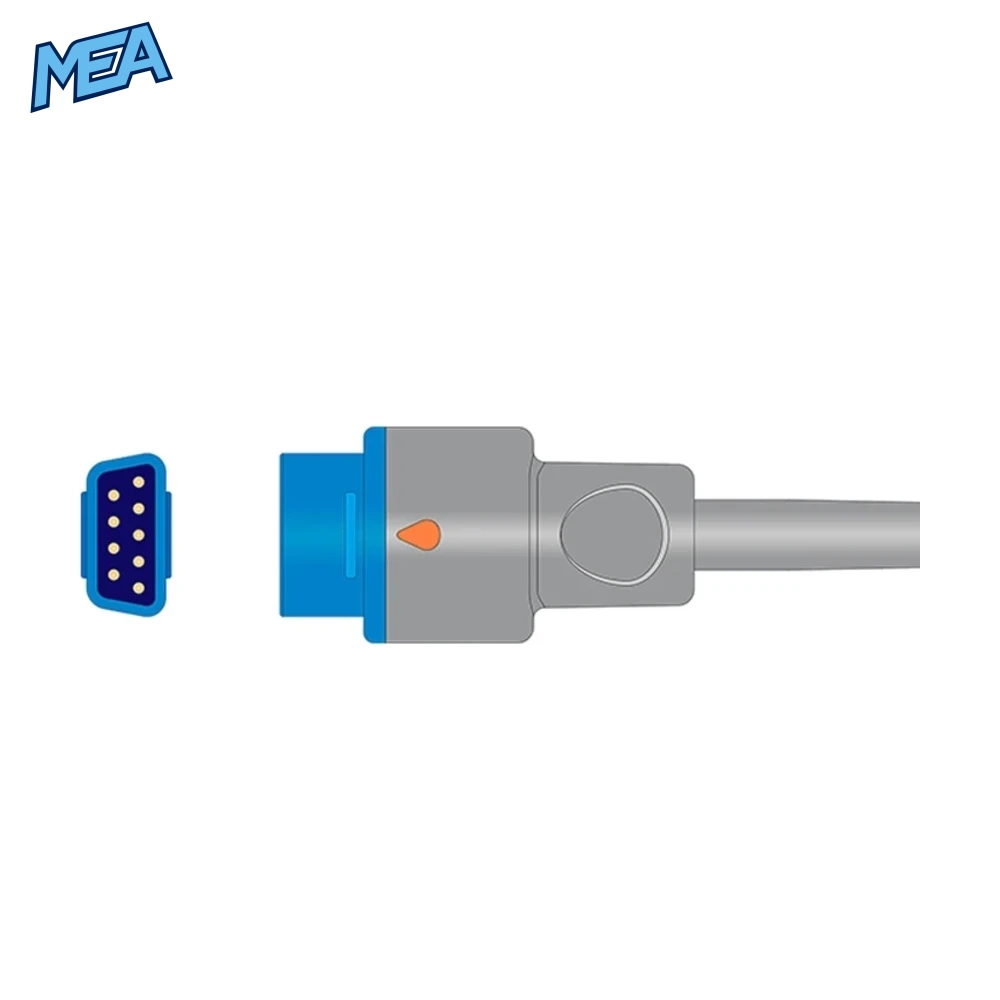

- 9-pin connector that plugs into a TruSignal SpO2 interface or extension cable
- Slim cable that puts less pull on the application site
TS-AF-25 SpO2 Sensor Specifications
| Specification | Detail |
|---|---|
| Reference Number | GE Healthcare TS-AF-25 |
| SpO2 Technology | GE TruSignal |
| Patient Size | Adult/Neonate |
| Sensor Type | Non-woven adhesive |
| Lifecycle | Disposable (single patient use) |
| Cable Length | 0.9m (approx. 3 ft) |
| Connector | 9-pin |
| Unit / Packaging | 24 sensors per box |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| GE Healthcare | TS-AF-25 |
| Datex Ohmeda | TS-AF-25, TS-AAW-10, TS-AAW-25 |
| Unimed | U543-117 |
Monitors That Work With This TruSignal Adhesive Sensor
GE Healthcare
259, Aisys, Aisys CS2, B20, B20i, B40, CARESCAPE B650, CARESCAPE ONE, CARESCAPE V100, CARESCAPE Canvas, DINAMAP B125
Datex-Ohmeda
3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250, AS/3 with M-OSAT module, Cardiocap/5, CS/3 with M-OSAT module, E-PRESTN, i4 with E-series modules, S/5 with E-series modules, S/5 with M-OSAT module, TruSignal, TuffSat
Always confirm the connector and SpO2 technology of your monitor or extension cable before ordering.
Clinical Use Cases
- NICU and special care nursery: Single-use neonatal SpO2 monitoring where infection control matters most.
- Operating theatre and anaesthesia: Continuous SpO2 monitoring on GE Aisys and CARESCAPE systems during surgery.
- ICU and critical care: Long-term adult monitoring where a secure adhesive fit is needed.
- PACU and recovery: Stable readings as patients wake and move.
- Emergency and isolation areas: Fast, hygienic single-use application for new admissions.
How to Apply the Adult/Neonate Adhesive SpO2 Sensor
- Choose a clean, dry site: a fingertip for adults, or the foot for neonates, as your clinical protocol directs.
- Line up the emitter and detector symbols on opposite sides of the site.
- Wrap the adhesive tab firmly but not tightly so blood flow is not restricted.
- Connect the 9-pin plug to the monitor or extension cable and check that the signal is stable.
- Check the site regularly and move the sensor as your facility’s protocol requires.
Frequently Asked Questions
What is the TS-AF-25 SpO2 sensor?
It is a disposable adult/neonate non-woven adhesive pulse oximetry sensor built to the GE Healthcare TS-AF-25 reference for TruSignal SpO2 technology. It has a 0.9m cable, a 9-pin connector and comes 24 to a box.
Which monitors does the TS-AF-25 sensor work with?
It works with GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2, including CARESCAPE B650, B40, B20, Aisys, DINAMAP B125, S/5 with E-series or M-OSAT modules, Cardiocap/5 and TuffSat.
Can the TS-AF-25 sensor be used on both adults and neonates?
Yes. It is sized for adult and neonatal patients. It is normally applied to a finger on adults and to the foot on neonates, following your clinical protocol.
Is the TS-AF-25 sensor reusable?
No. It is a single-patient-use disposable sensor. Dispose of it after use on one patient, following your facility’s clinical waste procedures.
How many sensors are in one box?
Each box contains 24 adult/neonate adhesive SpO2 sensors.
What cross-reference numbers match this sensor?
It matches GE Healthcare TS-AF-25, Datex-Ohmeda TS-AF-25, TS-AAW-10 and TS-AAW-25, and Unimed U543-117.
What connector and cable length does it have?
It has a 9-pin TruSignal connector and a 0.9m (approx. 3 ft) cable, which plugs into a TruSignal interface or extension cable.
