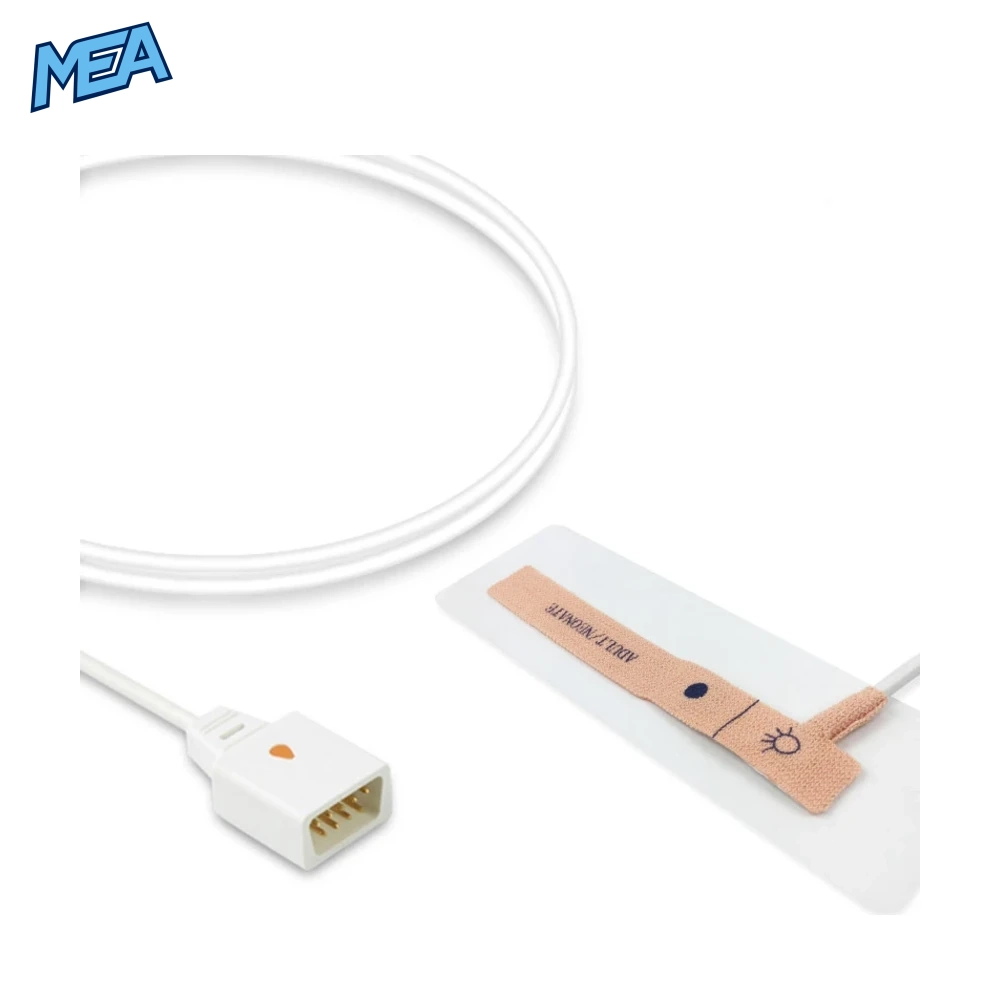

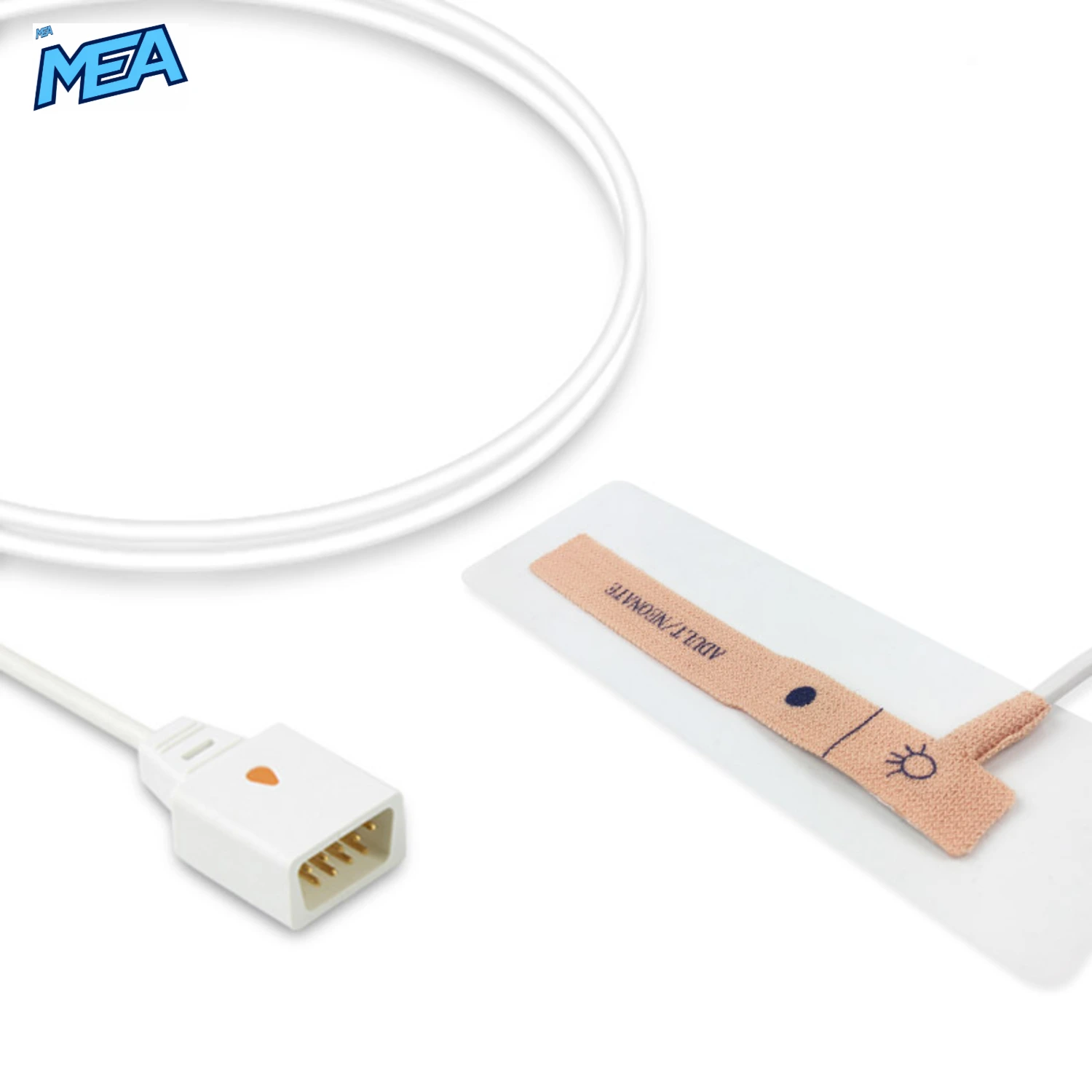

The Datex Ohmeda SAS-AF Adult/Neonate SpO2 sensor is a single-patient-use, non-woven adhesive pulse oximetry sensor built to the Datex Ohmeda SAS-AF (Adult/Neonate) reference specifications. It has a 0.9m (approx. 3 ft) cable with a 9-pin connector and measures oxygen saturation (SpO2) and pulse rate on Datex Ohmeda patient monitors that use Ohmeda SpO2 technology. Each box contains 24 new sensors.
Key Benefits of This Disposable Adult/Neonate SpO2 Sensor
- One sensor, two patient groups: The adult/neonate wrap design suits adult patients and neonates, so one box covers both ends of the patient range.
- Lower cross-contamination risk: One sensor per patient means no cleaning or reprocessing between patients.
- Secure fit for continuous monitoring: The soft non-woven adhesive wrap keeps the emitter and detector aligned, even with some patient movement.
- Gentle on delicate skin: The breathable non-woven material is comfortable for extended wear.
- Box of 24: Practical for NICU, theatres, recovery and emergency departments with high sensor turnover.
Features of the SAS-AF Adult/Neonate Adhesive Pulse Oximeter Sensor
- Built to the Datex Ohmeda SAS-AF (Adult/Neonate) reference for Ohmeda SpO2 technology
- Adult/Neonate patient size, marked on the sensor wrap
- Non-woven adhesive sensor body with printed emitter and detector placement markers
- 0.9m integrated cable connects to a Datex Ohmeda SpO2 extension cable

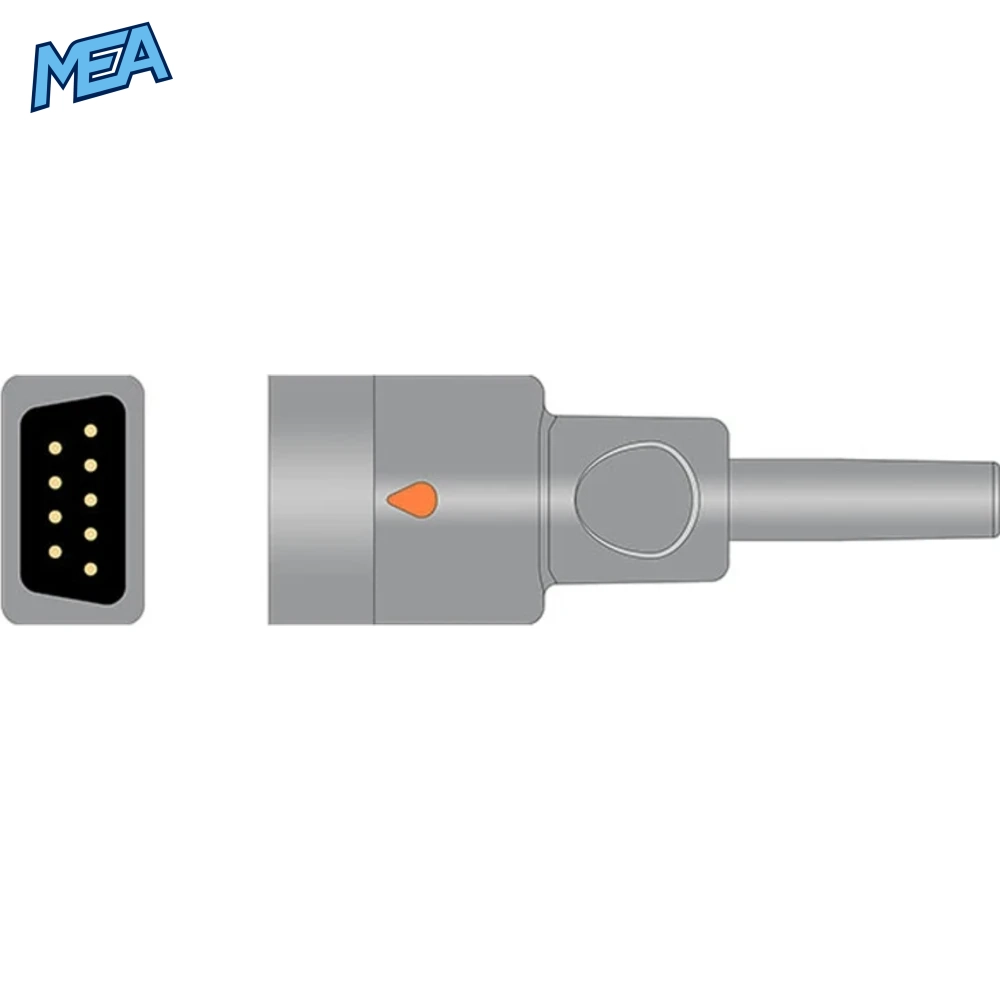

- 9-pin connector
- Single-patient use (disposable)
Datex Ohmeda SAS-AF Adult/Neonate SpO2 Sensor Specifications
| Specification | Detail |
|---|---|
| Reference / Part Number | Datex Ohmeda SAS-AF (Adult/Neonate) |
| Product | Disposable SpO2 Sensor |
| Patient Size | Adult/Neonate |
| Sensor Type | Non-woven Adhesive |
| SpO2 Technology | Datex Ohmeda |
| Cable Length | 0.9m (approx. 3 ft) |
| Connector | 9-pin |
| Lifecycle | Disposable, single-patient use |
| Packaging | 24 sensors per box |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| Datex Ohmeda | SAS-AF (Adult/Neonate) |
| Unimed | U543-09 |
Monitors This Datex Ohmeda Adhesive SpO2 Sensor Works With
Datex Ohmeda: AS/3, Capnomac Ultima, Cardiocap I, Cardiocap II, Cardiocap/5, CG/2S, CH-RS, CH/2S, CH/S, CS/3, Light Monitor, M-ESTPR module, Oscar II, OSP-200, Satellite, Satellite Plus II, Satellite Trans, S/5 System, Trans Plus and the Ultima (ULT-S) series.
Please check the SpO2 reference number or connector on your current sensor or extension cable before ordering.
Use Cases for Adult/Neonate Disposable Adhesive SpO2 Sensors
NICU and Special Care Nurseries
Continuous neonatal SpO2 monitoring where a soft, single-use wrap sensor supports infection control.
Operating Theatres and Anaesthesia
SpO2 monitoring during surgery on Datex Ohmeda AS/3, CS/3 and S/5 anaesthesia monitors.
ICU, PACU and Recovery
Extended adult monitoring where a secure adhesive sensor stays in place better than a clip.
Emergency and Isolation Areas
Fast application for new admissions and high-risk rooms where reusable sensors would need reprocessing.
How to Apply the Sensor
- Select a well-perfused site suited to the patient (for example an adult finger, or a neonate’s foot) and make sure it is clean and dry.
- Remove the backing liner and position the printed markers so the emitter and detector sit directly opposite each other.
- Wrap the adhesive tape around the site firmly but without restricting circulation.
- Connect the 9-pin connector to the monitor’s SpO2 extension cable.
- Check the site regularly and reposition the sensor as your facility’s protocol requires.
Frequently Asked Questions
What is the Datex Ohmeda SAS-AF Adult/Neonate SpO2 sensor?
It is a disposable non-woven adhesive SpO2 sensor built to the Datex Ohmeda SAS-AF (Adult/Neonate) reference. It is used for continuous pulse oximetry on Datex Ohmeda monitors that use Ohmeda SpO2 technology.
Who is this sensor sized for?
It is an Adult/Neonate size sensor, intended for adult patients and neonates. Pediatric and infant sizes are separate products.
How many sensors come in one box?
Each box contains 24 single-patient-use sensors.
What cable length and connector does it have?
The sensor has a 0.9m (about 3 ft) cable with a 9-pin connector.
Can this sensor be reused?
No. It is a single-patient-use disposable sensor and should be discarded after use on one patient.
Which monitors does it work with?
Datex Ohmeda models including Cardiocap/5, AS/3, CS/3, S/5, Satellite, Satellite Plus II, Oscar II, OSP-200, Light Monitor and Capnomac Ultima. See the full list above.
What other part number matches this sensor?
Unimed U543-09 is a cross-reference for the Datex Ohmeda SAS-AF (Adult/Neonate) sensor.
Related SpO2 Sensors
Need a different patient size or sensor style?
See the Datex Ohmeda SAS-AF Adult Adhesive SpO2 Sensor, the Datex Ohmeda SAS-AP Pediatric Adhesive SpO2 Sensor, the Datex Ohmeda SAS-AP Infant Adhesive SpO2 Sensor, the Datex Ohmeda OXY-F-DB Adult Hard Shell SpO2 Sensor and the Nellcor MAX-N Adult/Neonate Adhesive SpO2 Sensor.
