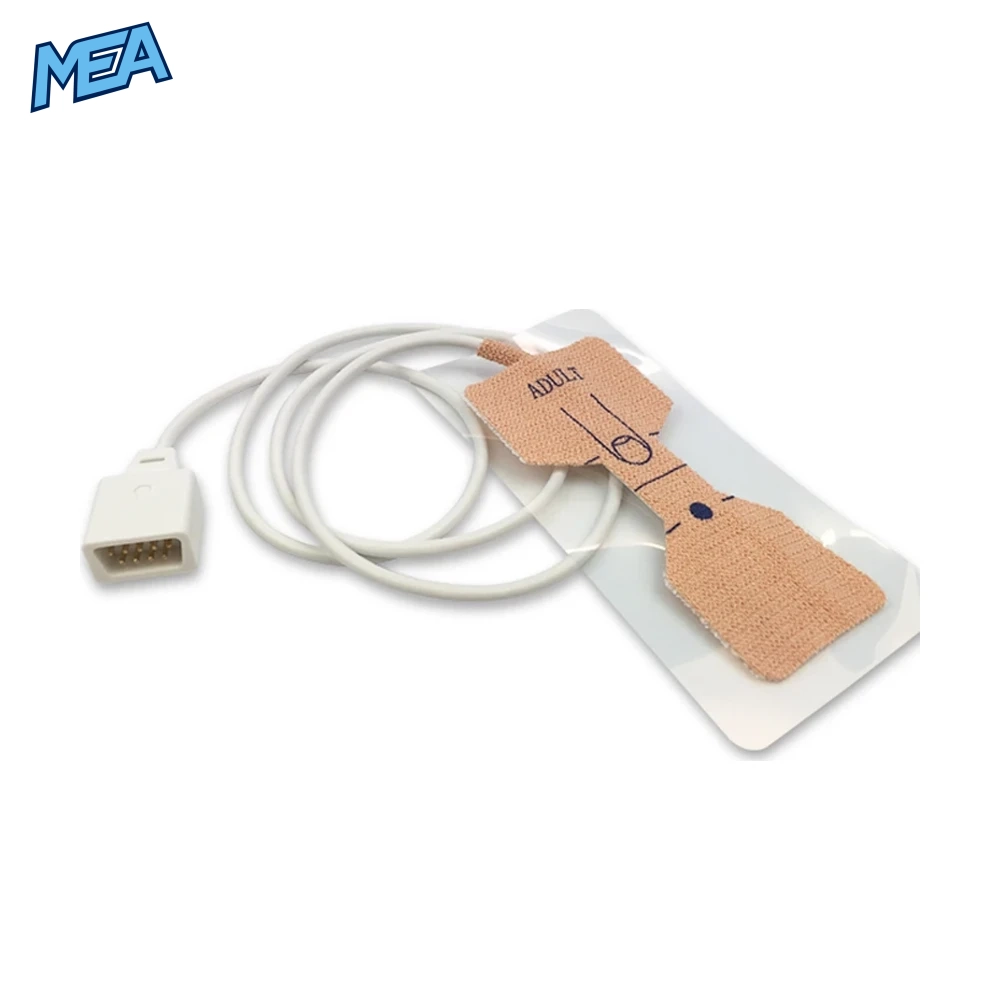

Datex Ohmeda SAS-AF Adult Non-Woven Adhesive SpO2 Sensor 0.9m (Disposable Box of 24)

The Datex Ohmeda SAS-AF SpO2 sensor is a single-patient-use, adult non-woven adhesive pulse oximetry sensor built to the Datex Ohmeda SAS-AF reference specifications.

It has a 0.9m (approx. 3 ft) cable with a 9-pin connector and measures oxygen saturation (SpO2) and pulse rate on Datex Ohmeda and GE patient monitors that use Ohmeda SpO2 technology. Each box contains 24 sensors.

Key Benefits of This Disposable Adult SpO2 Sensor

• Lower cross-contamination risk: One sensor per patient, so there is no cleaning or reprocessing between patients.
• Secure fit for continuous monitoring: The soft non-woven adhesive wrap holds the emitter and detector in place, even with some patient movement.
• Comfortable for longer wear: The breathable non-woven material is gentle on adult fingers during extended monitoring.
• Quick to apply: The printed finger guide on the wrap helps staff position the sensor correctly the first time.
• Box of 24: Useful for wards, theatres, recovery and emergency departments that go through a lot of sensors.

Features of the SAS-AF Non-Woven Adhesive Pulse Oximeter Sensor

• Built to the Datex Ohmeda SAS-AF reference for Ohmeda SpO2 technology
• Adult patient size, finger application
• Non-woven adhesive sensor body with a printed finger-placement guide
• 0.9m integrated cable connects to a Datex Ohmeda SpO2 extension cable

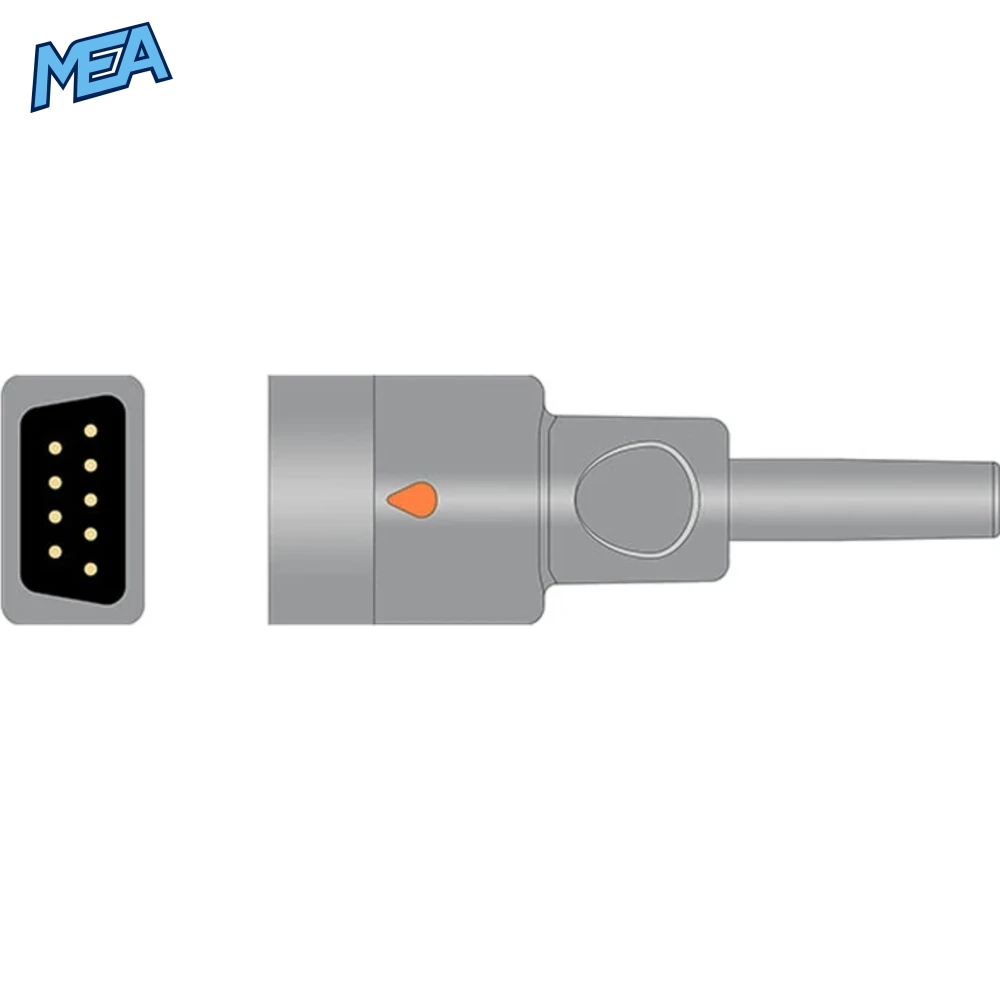

• 9-pin connector
• Single-patient use (disposable)

Datex Ohmeda SAS-AF SpO2 Sensor Specifications

Cross-Reference Part Numbers

Monitors This Datex Ohmeda Adhesive SpO2 Sensor Works With

Datex Ohmeda: AS/3, Capnomac Ultima, Cardiocap I, Cardiocap II, Cardiocap/5, CG/2S, CH-RS, CH/2S, CH/S, CS/3, Light Monitor, M-ESTPR module, Oscar II, OSP-200, Satellite, Satellite Plus II, Satellite Trans, S/5 System, Trans Plus and the Ultima (ULT-S) series.

Please check the SpO2 reference number or connector on your current sensor or extension cable before ordering.

Use Cases for Disposable Adult Adhesive SpO2 Sensors

Operating Theatres and Anaesthesia

Continuous SpO2 monitoring during surgery on Datex Ohmeda AS/3, CS/3 and S/5 anaesthesia monitors.

ICU, PACU and Recovery

Extended monitoring where a secure, single-use sensor helps with infection control.

Emergency and Transport

Quick application for new admissions and patients who move around, using Cardiocap and Satellite monitors.

Infection-Control Wards

Isolation rooms and high-risk areas where reusable sensors would otherwise need reprocessing.

How to Apply the Sensor

1. Choose a finger (usually the index or middle finger) and clean and dry the site.
2. Remove the backing liner and line up the finger with the printed guide.
3. Wrap the adhesive tabs around the finger so the emitter and detector face each other.
4. Connect the 9-pin connector to the monitor’s SpO2 extension cable.
5. Check the site regularly and move the sensor as your facility’s protocol requires.

Frequently Asked Questions

What is the Datex Ohmeda SAS-AF SpO2 sensor?

It is a disposable adult non-woven adhesive SpO2 sensor built to the Datex Ohmeda SAS-AF reference. It is used for continuous pulse oximetry on Datex Ohmeda and GE monitors that use Ohmeda SpO2 technology.

How many sensors come in one box?

Each box contains 24 single-patient-use sensors.

What cable length and connector does it have?

The sensor has a 0.9m (about 3 ft) cable with a 9-pin connector.

Can the SAS-AF sensor be reused?

No. It is a single-patient-use disposable sensor. Throw it away after use on one patient.

Which monitors does it work with?

Datex Ohmeda models including Cardiocap/5, AS/3, CS/3, S/5, Satellite, Satellite Plus II, Oscar II, OSP-200, Light Monitor and Capnomac Ultima. See the full list above.

What other part numbers match this sensor?

AMC PR-E600-1005N and Unimed U503-09 are cross-references for Datex Ohmeda SAS-AF.

Is this sensor for adults only?

Yes. It is sized for adult patients. Pediatric, infant and neonatal adhesive versions are separate products.
