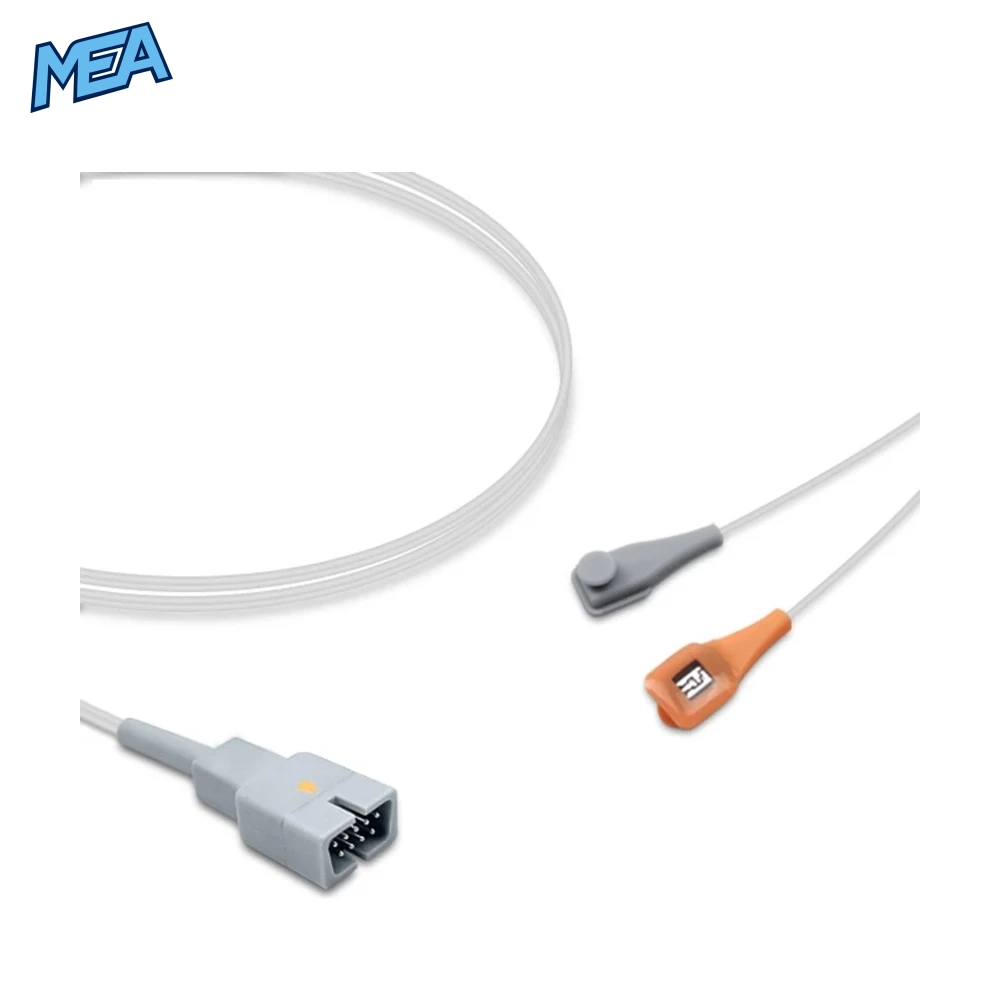

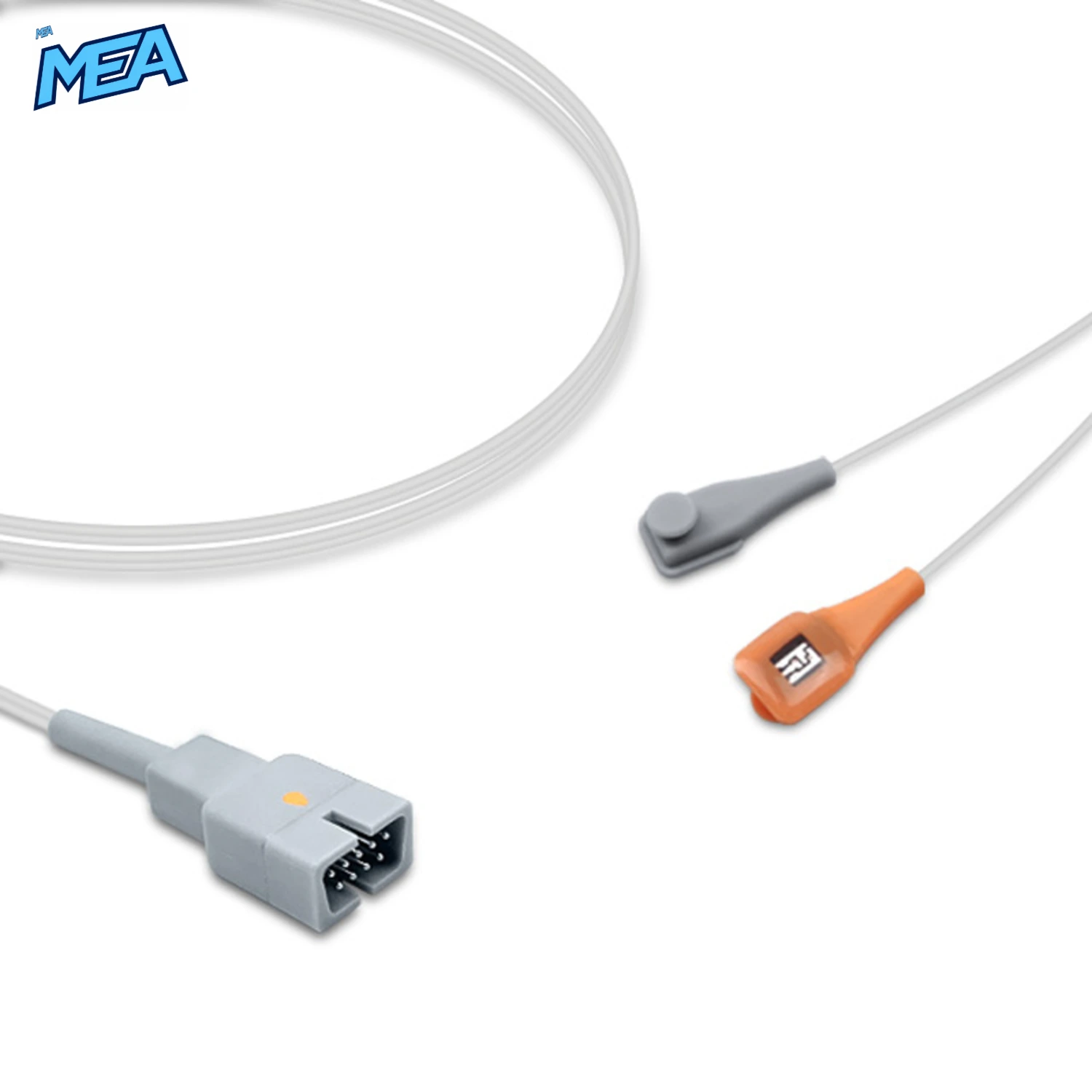

The Nellcor D-YS Multi-Y SpO2 Sensor is a new, reusable multi-site pulse oximetry sensor with a 3.0m cable and a 9-pin connector, built to the Nellcor D-YS (Non-OxiMax) reference specifications for monitors using Nellcor Oxismart SpO2 technology. Its flexible Y-shaped sensor head suits all patient sizes, from neonates to adults, and can be placed on a finger, toe, hand or foot using a wrap or clip attachment.
Key Benefits of the D-YS Multi-Y Pulse Oximeter Sensor
- One sensor for every patient size: A single all-sizes sensor covers neonate, infant, pediatric and adult monitoring, reducing the number of sensor types a department has to stock.
- Multi-site placement: The separate emitter and detector pads of the Y-design can be positioned on different application sites to suit the patient.
- Long 3.0m cable: The extended lead reaches from monitor to patient without a separate extension cable in most bedside layouts.
- Reusable design: Made for repeated use between patients when cleaned according to facility protocol, lowering cost per use versus single-patient sensors.
- 12-month warranty: Supplied new with a 12-month warranty.
Features
- Multi-Y (Y-type) reusable SpO2 sensor head
- Patient size: All Sizes
- SpO2 technology: Nellcor Oxismart (Non-OxiMax)

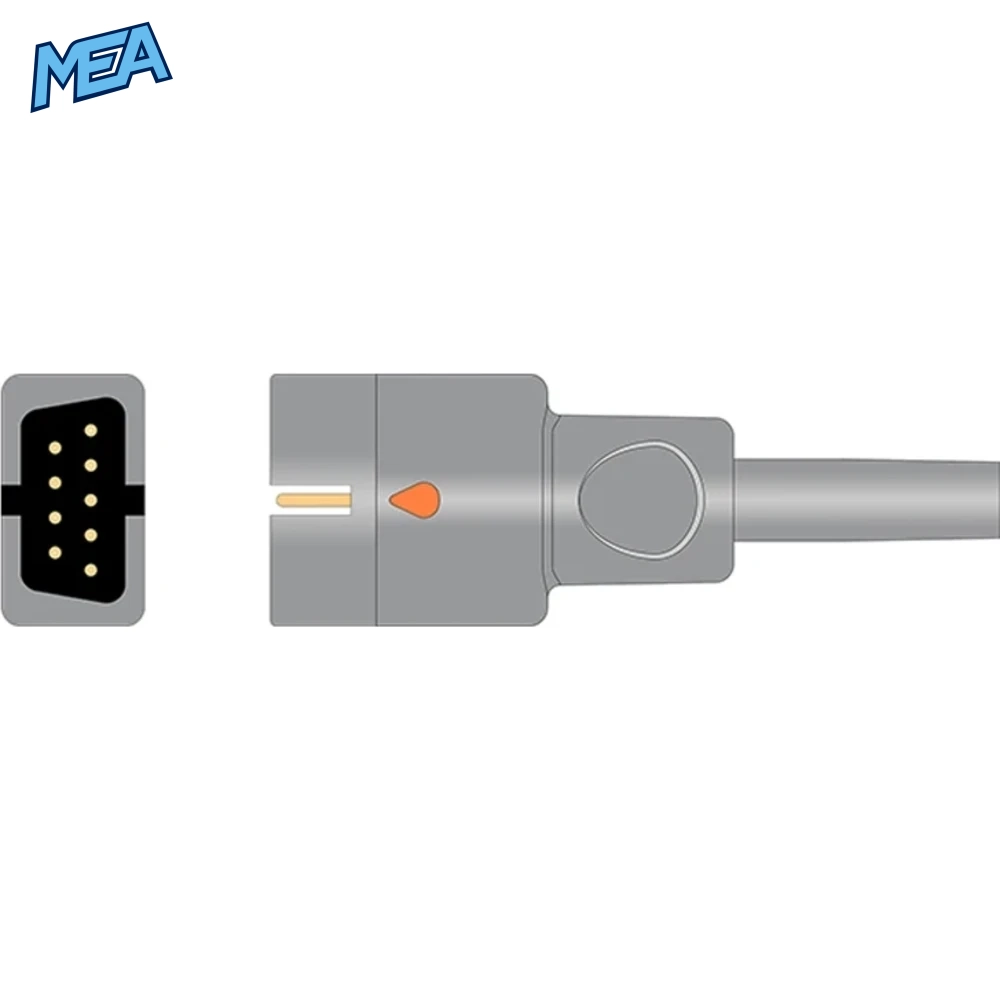

- 9-pin monitor connector
- Cable length: 3.0m (approx. 9.8 ft)
Technical Specifications
| Specification | Detail |
|---|---|
| Product | All Sizes Multi-Y SpO2 Sensor |
| Reference Model | Nellcor D-YS (Non-OxiMax, 3.0m) |
| SKU | NEL-ALLSIZE-MY-SPO2-NONOX-9PIN-3M |
| Sensor Type | Multi-Y |
| Patient Size | All Sizes (neonate, infant, pediatric, adult) |
| SpO2 Technology | Nellcor Oxismart (Non-OxiMax) |
| Connector | 9-Pin |
| Cable Length | 3.0m (approx. 9.8 ft) |
| Lifecycle | Reusable |
| Unit | 1 set per bag |
| Condition | New |
| Warranty | 12 Months |
Part Number Cross-Reference
| Brand | Reference Number |
|---|---|
| Nellcor | D-YS (Non-OxiMax, 3.0m) |
| Unimed | U810-01 |
| Praymed | PSF0010-L |
Works With These Patient Monitors and Oximeters
This Oxismart Multi-Y sensor works with the following equipment fitted with Nellcor Oxismart (Non-OxiMax) SpO2 and a 9-pin sensor port:
- Nellcor: N 3000, N 390, NPB 3930, NPB 75
- BCI: 3300, Mini Torr Plus
- Bionics: BPM-200
- Bistos: BT-720
- Colin: BP-88S
- Datascope: BeneVision TMS60, DPM6
- Datex Ohmeda: Vitalmax 800 Series (black, Nellcor SpO2)
- Edan: iM3, iM8, M9
- GE Healthcare: 511, 556, SOLAR Series
- Huntleigh: SC1000
- Ivy Biomedical: 405D
- Lumeon: Hand-held Oximeter
- Marquette: Dash 3000, PDM Module, Solar 8000M
- Mindray: BeneHeart D3, D6; BeneVision ePM 10, ePM 10 Neo, ePM 10M, ePM 12, ePM 12M, ePM 15, N1, N12, N12 Neo, N15, N15 Neo, N15 OR, N17, N17 Neo, N19, N22, TMS-6016, TMS30 / VS900, uMEC 10, uMEC 12, VS-600, VS-900, VS-900 Neo; MEC 1200, Passport, Spectrum
- Philips: M1350C, M1722A, M3927, M3929A, Merlin Systems
- Spacelabs: 90351-0/6, 90369, 91369
- Welch Allyn: Atlas (Nellcor SpO2)
Many monitors are sold with different SpO2 options. Please confirm your monitor uses Nellcor Oxismart (Non-OxiMax) SpO2 and a 9-pin sensor connector before ordering. For OxiMax monitors, choose the OxiMax version linked below.
Use Cases
- Continuous or spot-check oxygen saturation and pulse rate monitoring in hospitals and clinics
- Neonatal and pediatric wards where patient sizes vary widely
- Emergency, recovery and general wards needing one sensor for mixed patient groups
- Biomedical engineering departments stocking spare Nellcor Oxismart sensors
Application and Care

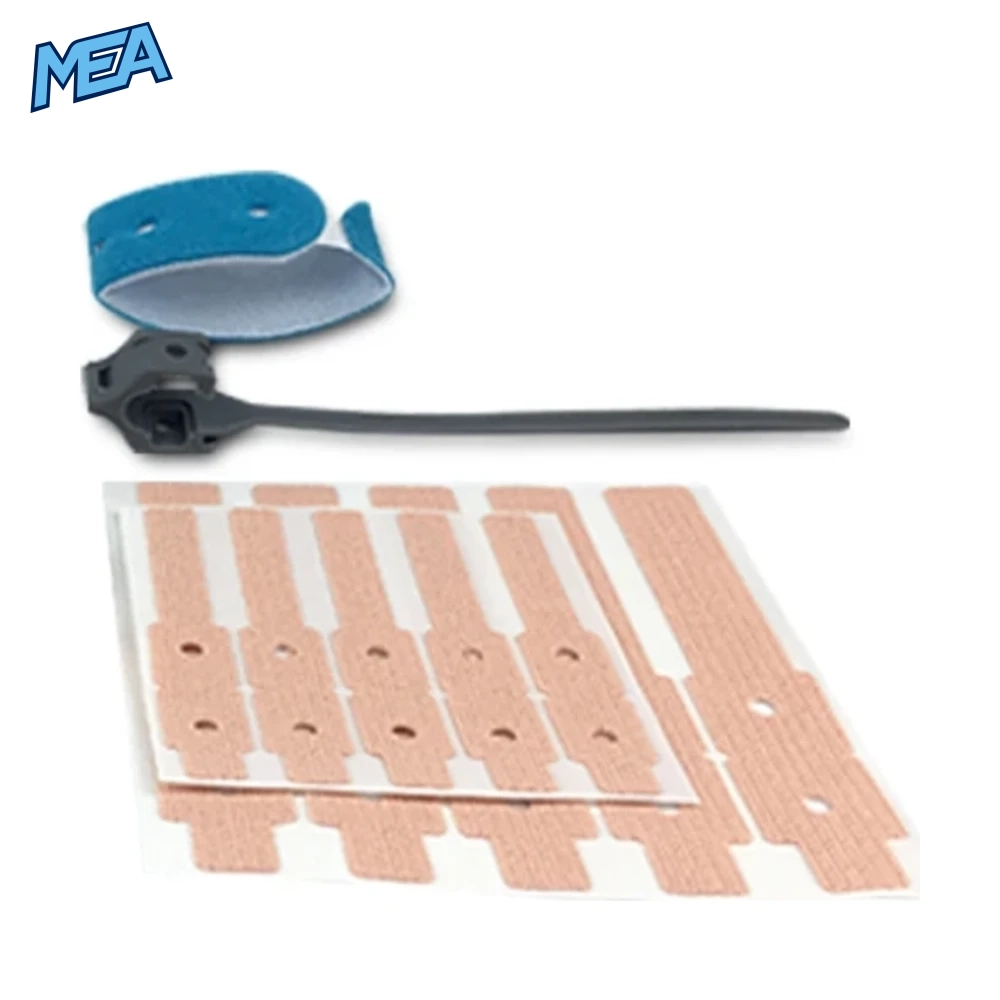

- Position the emitter and detector pads directly opposite each other on the chosen site and secure with a suitable wrap or clip.
- Check the application site regularly and reposition as required by clinical protocol.
- Wipe clean and disinfect between patients following your facility’s procedure; do not immerse or autoclave.
Frequently Asked Questions
What is the Nellcor D-YS Multi-Y SpO2 sensor used for?
It measures blood oxygen saturation (SpO2) and pulse rate. The Y-shaped design allows it to be applied to different sites and to patients of all sizes, from neonates to adults.
Is this sensor OxiMax or Non-OxiMax?
This is the Non-OxiMax version using Nellcor Oxismart technology. It is not intended for monitors that require OxiMax sensors.
What connector does it have?
It has a 9-pin connector that plugs into monitors and oximeters with a Nellcor Oxismart 9-pin SpO2 port.
How long is the cable?
The cable is 3.0 metres (approximately 9.8 feet) long.
Is the sensor reusable?
Yes. It is a reusable sensor designed to be cleaned and used again between patients.
What warranty is included?
The sensor is covered by a 12-month warranty.
