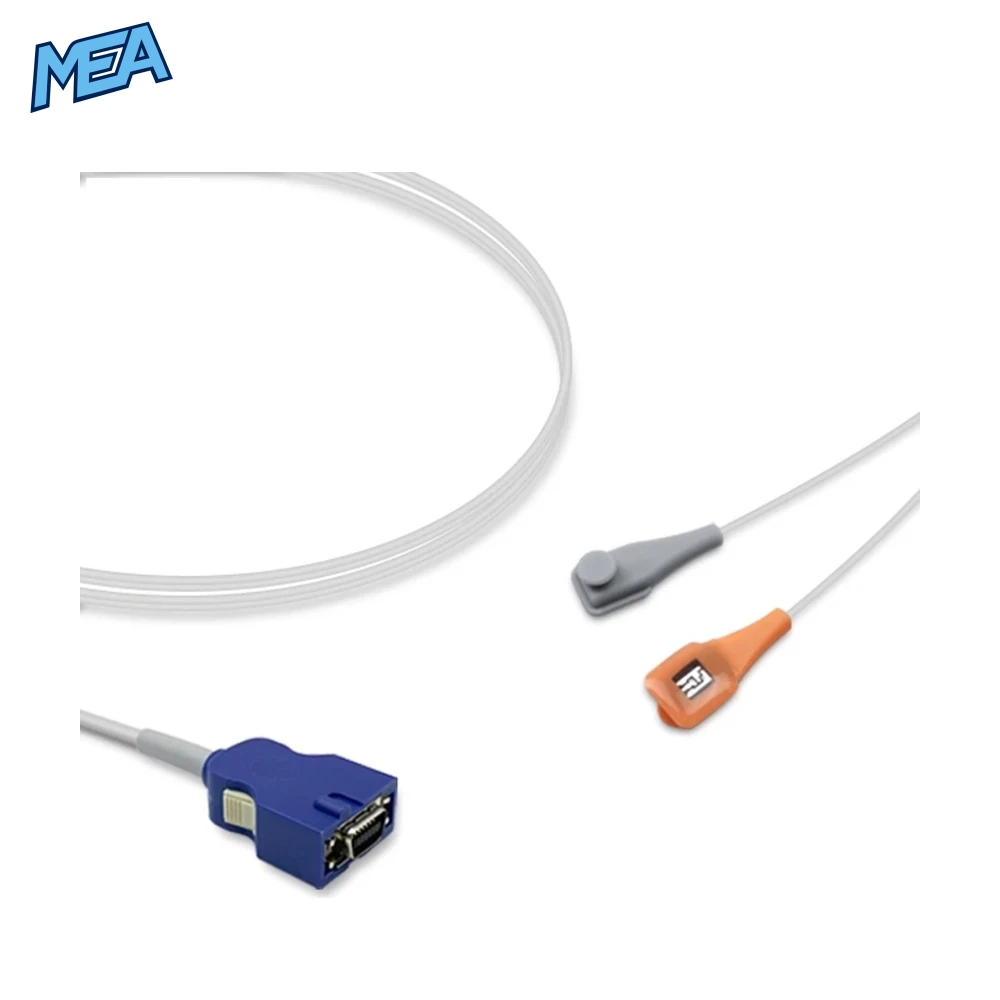

The Nellcor OxiMax Multi-Y SpO2 sensor is a reusable, all-sizes pulse oximetry sensor with a 3.0m cable and a 14-pin connector, built to the Nellcor OxiMax reference specifications. Its two-branch “Y” sensor head can be positioned on a finger, toe, hand or foot, so one sensor measures oxygen saturation (SpO2) and pulse rate on adult, pediatric, infant and neonatal patients. It is supplied new with a 12-month warranty.
Key Benefits of This Multi-Y Pulse Oximeter Sensor
- One sensor for every patient size the Multi-Y design covers neonates through to adults, reducing the number of sensor types you need to stock.
- Flexible site selection apply to a finger, toe, hand or foot using a wrap or adhesive tape to suit the patient.
- 3.0m cable reach extra length for bedside monitors, transport and theatre set-ups without an extension.
- Reusable and economical cleaned and disinfected between patients, lowering cost per use compared with single-patient sensors.
- Nellcor OxiMax technology works with monitors and oximeters that require OxiMax sensors.
Features of the Nellcor OxiMax 14-Pin SpO2 Sensor
- Multi-Y (two-branch) sensor head with separate emitter and detector
- All-sizes patient range: adult, pediatric, infant and neonate
- 14-pin Nellcor OxiMax style connector
- 3.0m (approx. 9.8 ft) cable
- Reusable design for multi-patient use
- 12-month warranty
Technical Specifications
| Specification | Detail |
|---|---|
| Product | All Sizes Multi-Y SpO2 Sensor |
| Brand Reference | Nellcor |
| SpO2 Technology | Nellcor OxiMax |
| Sensor Type | Multi-Y |
| Patient Size | All Sizes (adult, pediatric, infant, neonate) |
| Cable Length | 3.0m (approx. 9.8 ft) |
| Connector | 14-pin |
| Lifecycle | Reusable |
| Condition | New |
| Unit | 1 set per bag |
| Warranty | 12 Months |
| SKU | NEL-ALLSIZE-MY-SPO2-OXIMAX-14PIN-3M |
Part Number Cross-Reference
| Brand | Reference Number |
|---|---|
| Unimed | U810-70P |
| Praymed | PSF0001-L, PSF0117-L |
| Datrend | MCSS003XCMY30 |
Works With These Monitors and Oximeters
This OxiMax Multi-Y SpO2 probe works with equipment that requires Nellcor OxiMax sensors with a 14-pin connection, including:
- Nellcor: N-550, N-560, N-595, N-600, N-600x, N-3000, N-390, N-395, N-5500, N-5600 Plus, N-6000, NPB-290, NPB-295, PM100N, PM1000N, Symphony N-3000, Capnostream 20p, Capnostream 35
- GE Healthcare: Carescape B650, Carescape V100, Dinamap Pro 200, Pro 300, Pro 400, Pro 1000, ProCare 100/200/300/400, E-NSAT and M-NSAT modules, V300, 511
- Mindray / Datascope: Accutorr Plus, Accutorr V, Passport 2, Passport 2LT, Passport V, Passport XG, Spectrum, Spectrum OR, Trio, Duo, V12, V21, T8, EPM4 (with Nellcor/OxiMax option)
- Welch Allyn: Propaq CS, Spot Vital Signs, Spot Vital Signs LXi, 53STP, 1500
- Physio-Control: Lifepak 11, Lifepak 12, Lifepak 15, Lifepak 20, Lifepak 20e
- Zoll: E Series, M Series, R Series
- Nihon Kohden: BSM-2300, BSM-2304A, BSM-4100, BSM-4104A, BSM-4114A, BSM-5100
- Criticare/CSI: 506DNV3, 506DNVP3, 506LNV3, 506LNVP3, 506NV3, 506NVP3
- Colin: BP-88, BP-88S, BP-306, BP-508, BP-808, BP-S510, Press-Mate, T105NXM
- Others: Bitmos sat 800/801/805/816, Cardell 9403/9500HD, Datex Ohmeda Cardiocap/5, Digicare LW600, DRE Waveline, Edan elite V5/V6/V8 (OxiMax option), Fukuda Denshi Dynascope DS-7100, Invivo Escort II Prism, Ivy Biomedical 450C/700/CM5, Mediana YM1000/YM6000, Oridion Capnostream 20, Philips Prodigy/VS1, Respironics Alice 5
Always confirm the SpO2 technology and connector on your monitor before ordering.
Use Cases
- Continuous SpO2 monitoring in general wards, ICU, NICU and paediatric units
- Operating theatre, recovery and procedural sedation monitoring
- Emergency departments and patient transport with defibrillator/monitors
- Sleep studies and spot-check vital signs
- Biomedical engineering departments keeping one all-sizes sensor as a universal spare
Application and Care
- Choose a well-perfused site and align the emitter and detector directly opposite each other.

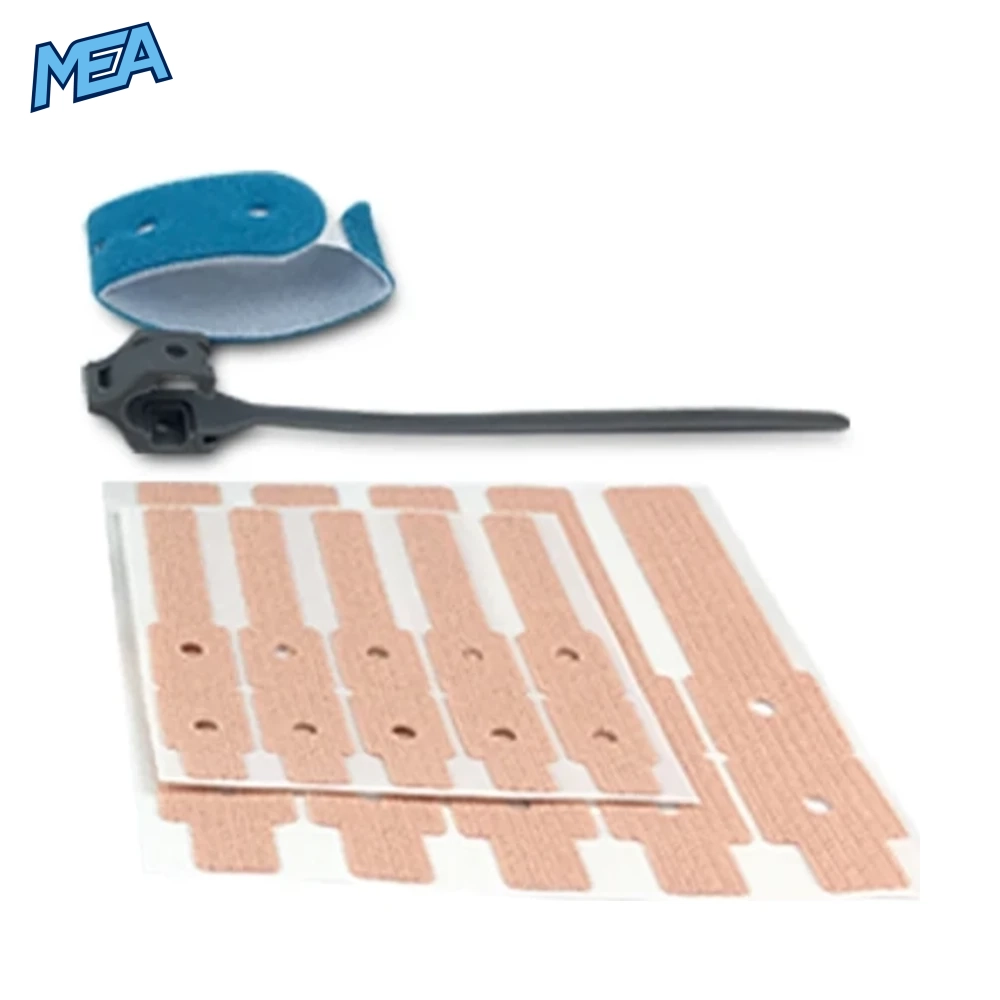

- Secure the Multi-Y sensor with a suitable wrap or tape; do not apply it too tightly.
- Check the site regularly and reposition as required by your clinical protocol.
- Clean and disinfect between patients according to your facility protocol. Do not immerse or autoclave.
Frequently Asked Questions
What is the Nellcor OxiMax Multi-Y SpO2 sensor used for?
It measures oxygen saturation (SpO2) and pulse rate on patients of all sizes when connected to a monitor or oximeter that uses Nellcor OxiMax technology.
What patient sizes can a Multi-Y sensor be used on?
It is an all-sizes sensor. The Y-shaped head can be applied to adult, pediatric, infant and neonatal patients by choosing an appropriate site and wrap.
What connector does this sensor have?

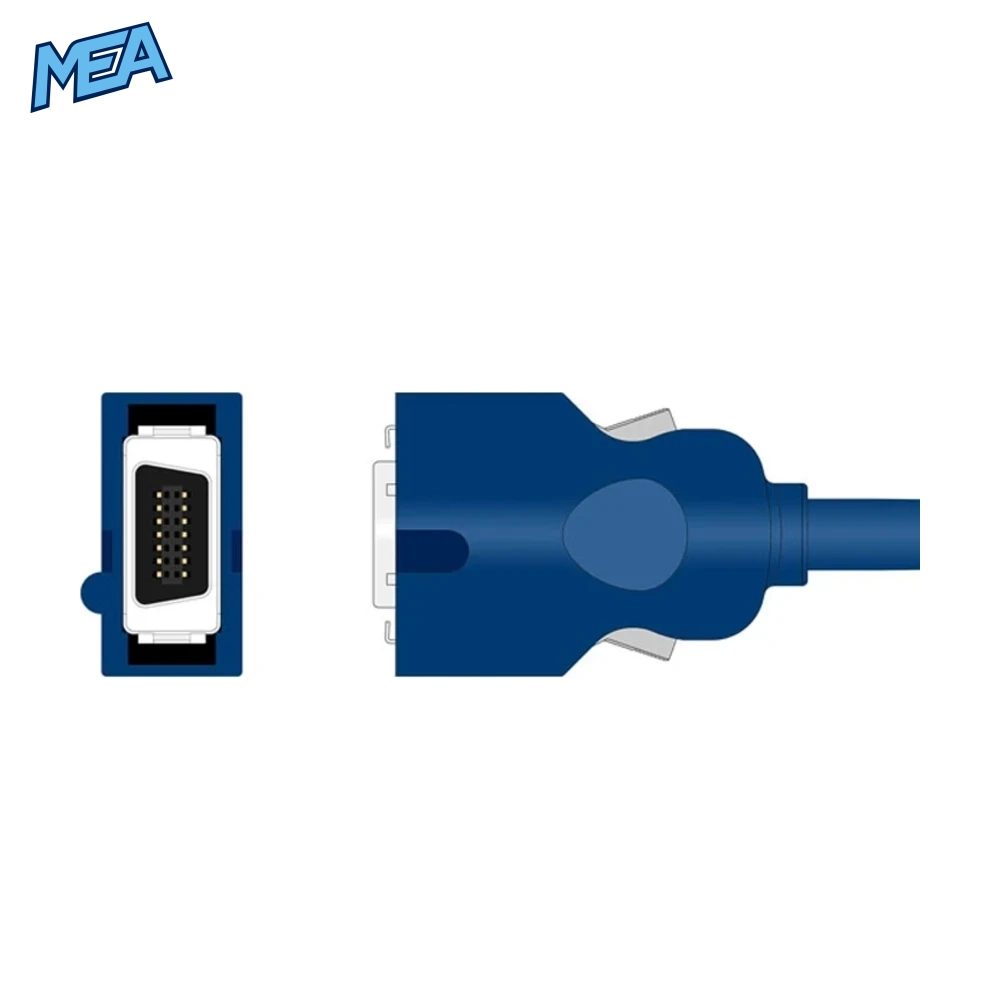

It has a 14-pin connector for Nellcor OxiMax SpO2 inputs.
How long is the cable?
The cable is 3.0 metres long, approximately 9.8 feet.
Is this the same as the 9-pin Nellcor D-YS Multi-Y sensor?
No. This model has a 14-pin connector, while the D-YS style sensor uses a 9-pin connector. Check the connector on your monitor or adapter cable before ordering.
Is this SpO2 sensor reusable?
Yes. It is a reusable sensor that can be cleaned and disinfected between patients according to your facility protocol.
What warranty is included?
The sensor is supplied new with a 12-month warranty.
