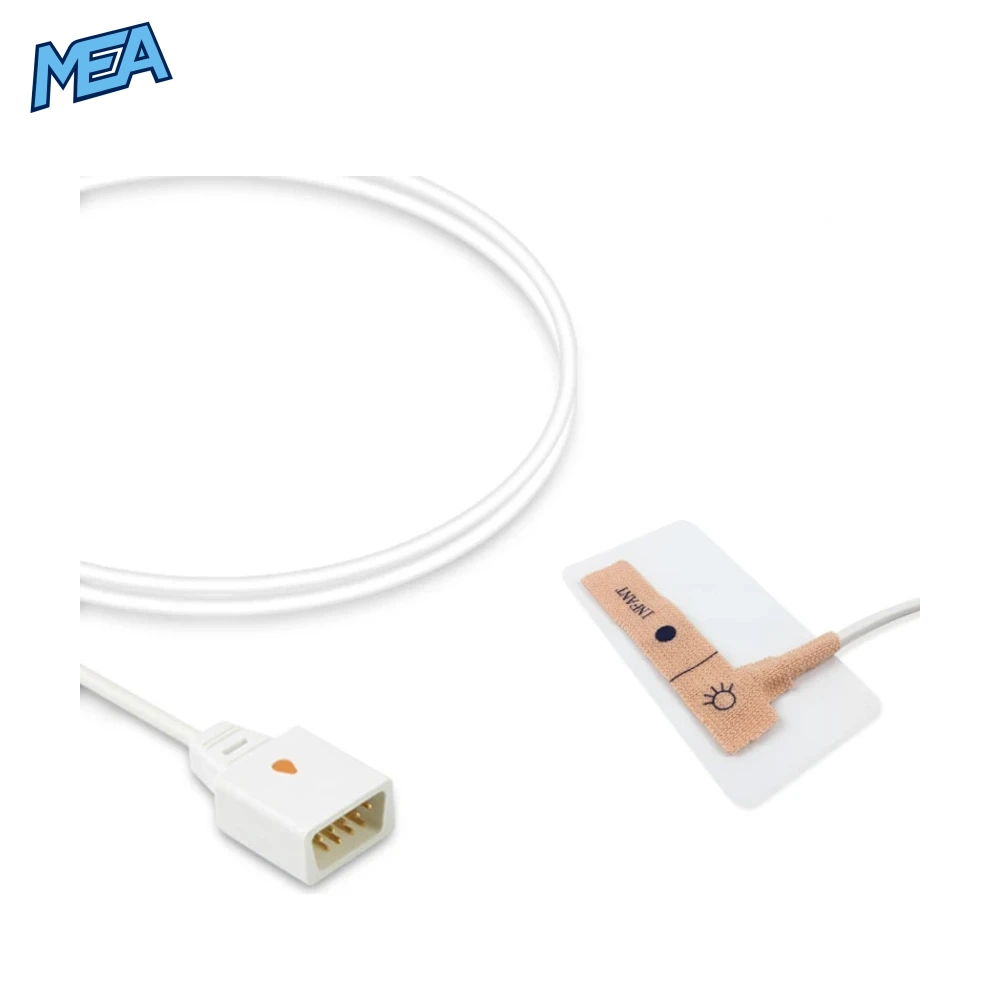

The Datex Ohmeda SAS-AP Infant SpO2 sensor is a single-patient-use, infant-size non-woven adhesive pulse oximetry sensor built to the Datex Ohmeda SAS-AP (Infant) reference specifications. It has a 0.9m (approx. 3 ft) integrated cable with a 9-pin connector and measures oxygen saturation (SpO2) and pulse rate on Datex Ohmeda and GE patient monitors that use Ohmeda SpO2 technology. Each box contains 24 sensors.
Key Benefits of This Disposable Infant SpO2 Sensor
- Sized for infants: The small adhesive wrap is made for tiny fingers and toes, giving a snug fit that helps keep SpO2 readings stable.
- Single-patient use: One sensor per infant means no cleaning or reprocessing and a lower risk of cross-contamination.
- Stays in place: The soft non-woven adhesive keeps the emitter and detector aligned when babies kick and wriggle.
- Gentle on delicate skin: Breathable non-woven material suits longer monitoring periods.
- Easy correct placement: The wrap is printed “INFANT” with emitter and detector markings, so staff can position it quickly.
- Box of 24: Cost-effective stock for nurseries, special care baby units and paediatric theatres.
Features of the SAS-AP Infant Adhesive Pulse Oximeter Sensor
- Built to the Datex Ohmeda SAS-AP (Infant) reference for Ohmeda SpO2 technology
- Infant patient size
- Non-woven adhesive sensor body with printed placement markings
- 0.9m integrated cable connects to a Datex Ohmeda SpO2 extension cable

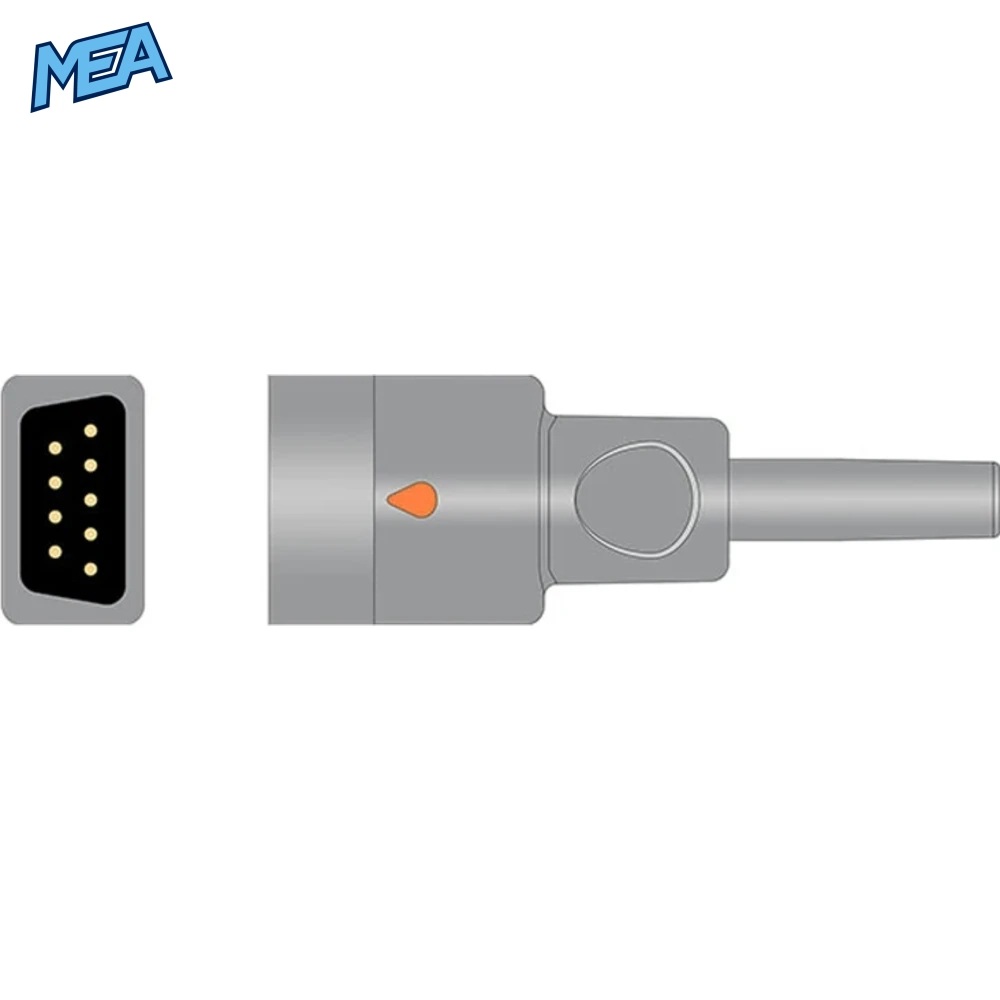

- 9-pin connector
- Single-patient use (disposable)
Datex Ohmeda SAS-AP Infant SpO2 Sensor Specifications
| Specification | Detail |
|---|---|
| Reference / Part Number | Datex Ohmeda SAS-AP (Infant) |
| Product | Disposable SpO2 Sensor |
| Patient Size | Infant |
| Sensor Type | Non-woven Adhesive |
| SpO2 Technology | Datex Ohmeda |
| Cable Length | 0.9m (approx. 3 ft) |
| Connector | 9-pin |
| Lifecycle | Disposable, single-patient use |
| Packaging | 24 sensors per box |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| Datex Ohmeda | SAS-AP (Infant) |
| Unimed | U533-09 |
Monitors This Datex Ohmeda Infant SpO2 Sensor Works With
Datex Ohmeda: AS/3, Capnomac Ultima, Cardiocap I, Cardiocap II, Cardiocap/5, CG/2S, CH-RS, CH/2S, CH/S, CS/3, Light Monitor, M-ESTPR module, Oscar II, OSP-200, SAF-F, Satellite, Satellite Plus II, Satellite Trans, S/5 System, Trans Plus and the Ultima (ULT-S) series.
Please check the SpO2 reference number or connector on your current sensor or extension cable before ordering.
Use Cases for Disposable Infant Adhesive SpO2 Sensors
Nursery and Special Care Baby Units
Continuous SpO2 and pulse rate monitoring for infants, where single-use sensors support infection control.
Paediatric Surgery and Anaesthesia
Intra-operative oximetry for infants on Datex Ohmeda AS/3, CS/3 and S/5 anaesthesia monitors.
Recovery and PACU
Secure post-operative monitoring while infants wake from anaesthesia.
Emergency and Transport
Quick application for infant admissions and transfers on Cardiocap and Satellite monitors.
How to Apply the Sensor
- Choose a site suitable for infant size (typically a finger or toe) and make sure it is clean and dry.
- Remove the backing liner.
- Wrap the adhesive around the site so the emitter and detector face each other.
- Connect the 9-pin connector to the monitor’s SpO2 extension cable.
- Check the site regularly and move the sensor as your facility’s protocol requires.
Frequently Asked Questions
What is the Datex Ohmeda SAS-AP Infant SpO2 sensor?
It is a disposable infant non-woven adhesive SpO2 sensor built to the Datex Ohmeda SAS-AP (Infant) reference. It is used for continuous pulse oximetry in infants on Datex Ohmeda and GE monitors that use Ohmeda SpO2 technology.
How many sensors come in one box?
Each box contains 24 single-patient-use sensors.
What cable length and connector does it have?
The sensor has a 0.9m (about 3 ft) cable with a 9-pin connector that plugs into a Datex Ohmeda SpO2 extension cable.
Can this sensor be reused?
No. It is a single-patient-use disposable sensor. Dispose of it after use on one patient.
Which monitors does it work with?
Datex Ohmeda models including Cardiocap/5, AS/3, CS/3, S/5, Satellite, Satellite Plus II, Oscar II, OSP-200, Light Monitor and Capnomac Ultima. See the full list above.
What other part number matches this sensor?
Unimed U533-09 is a cross-reference for the Datex Ohmeda SAS-AP (Infant) sensor.
Are other sizes available in this range?
Yes. Datex Ohmeda disposable adhesive sensors also come in pediatric and adult sizes. Choose the size that matches your patient.
