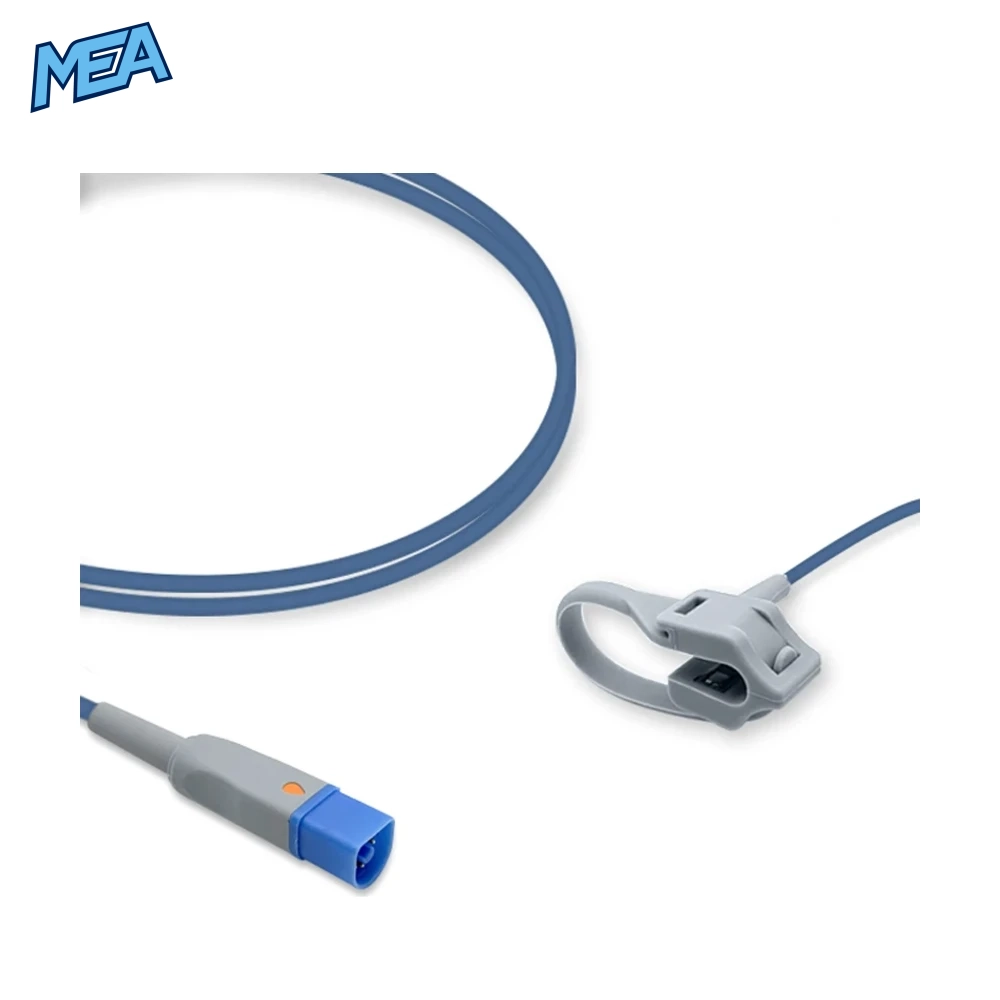

The Philips Masimo SET neonate wrap SpO2 sensor is a reusable pulse oximetry sensor with a 3.0m cable and an 8-pin Philips connector, built for Philips patient monitors fitted with Masimo SET technology. Its soft wrap design secures around a newborn’s foot or hand to measure oxygen saturation (SpO2) and pulse rate continuously. It is supplied new, one sensor per bag, with a 12-month warranty.
Key Benefits of This Neonatal Wrap SpO2 Sensor
- Made for neonates: A flexible wrap that conforms to very small feet and hands without rigid clip pressure.
- Direct connection: The 3.0m one-piece cable plugs straight into the monitor’s SpO2 port, giving generous reach around incubators and cots.
- Reusable and economical: Can be cleaned and reused between patients, lowering cost per use versus single-patient adhesive sensors.
- Masimo SET signal path: Built to the Masimo SET reference specifications for Philips monitors configured with that SpO2 technology.
- Peace of mind:
Features of the Philips Neonate Wrap Pulse Oximeter Sensor
- Sensor type: wrap style for neonatal patients
- Cable length: 3.0m (approx. 9.8 ft)

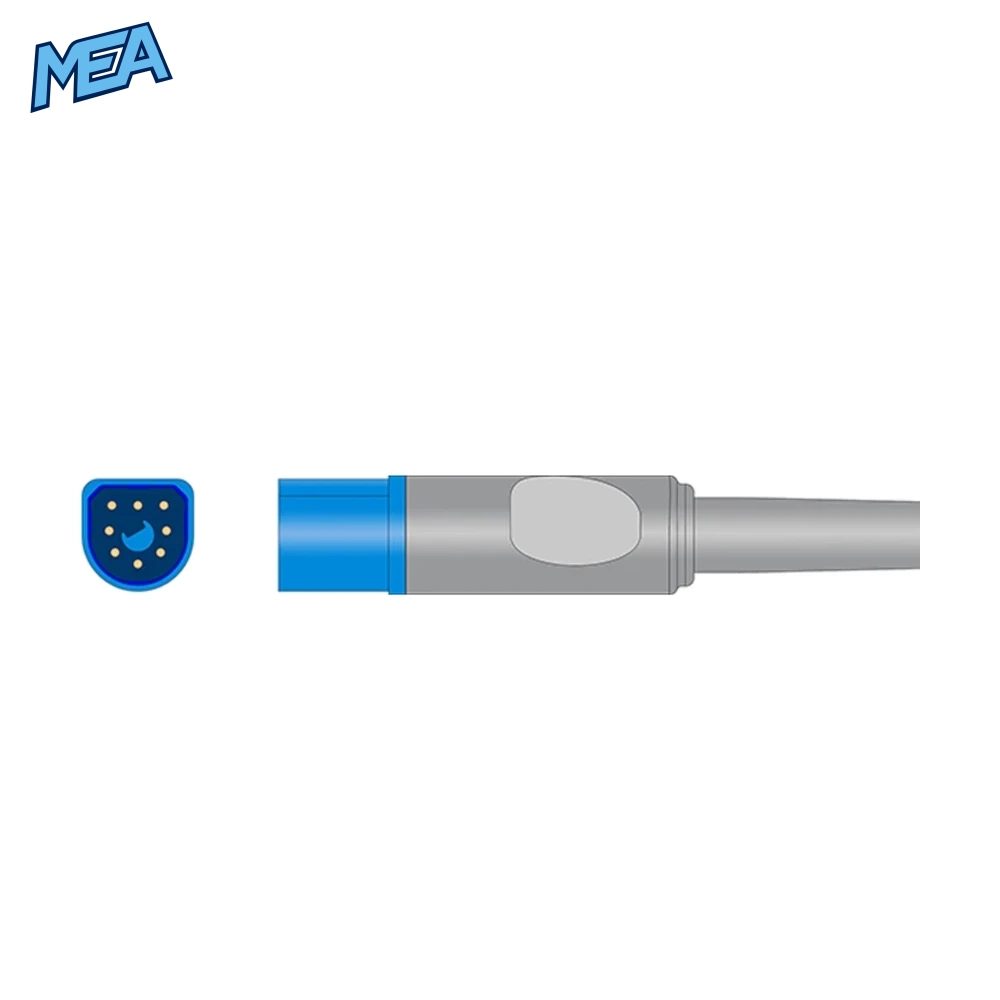

- Monitor-end connector: Philips 8-pin
- SpO2 technology: Masimo SET
- Lifecycle: reusable
- Packaging: 1 piece per bag
Technical Specifications
| Specification | Detail |
|---|---|
| Product | Neonate Wrap SpO2 Sensor for Philips monitors |
| SKU | PHI-MSET-SPO2-NEOWRAP-3M |
| Patient Size | Neonate |
| Sensor Type | Wrap |
| SpO2 Technology | Masimo SET |
| Connector | Philips 8-pin |
| Cable Length | 3.0m (9.8 ft) |
| Lifecycle | Reusable |
| Condition | New |
| Unit | 1 pc per bag |
| Warranty | 12 Months |
Part Number Cross-Reference
| Brand | Reference Number |
|---|---|
| Unimed | U310-91M, U310-91MR |
| Praymed | PSE0197-L |
Works With These Philips Monitors
- Philips IntelliVue MP40
- Philips IntelliVue MX700 (Masimo Rainbow SpO2 configuration)
- Philips SureSigns VS4
This sensor is for Philips monitors with Masimo SET SpO2. It is not intended for Philips FAST or Nellcor-configured SpO2 ports. Please confirm your monitor’s SpO2 technology before ordering.
Use Cases
- Continuous SpO2 monitoring in NICU and special care nurseries
- Newborn observation in maternity and postnatal wards
- Neonatal transport and emergency department monitoring
- Replacement or spare sensor for biomedical engineering departments
Application and Care
- Wrap the sensor around the foot or hand so the emitter and detector sit opposite each other; secure snugly without restricting circulation.
- Check the site regularly and reposition per your facility protocol.
- Wipe clean with an approved disinfectant between patients. Do not immerse, autoclave or soak the connector.
- Inspect the cable and sensor pads for damage before each use.
Frequently Asked Questions
Which monitors does this neonate wrap SpO2 sensor work with?
It works with Philips IntelliVue MP40, IntelliVue MX700 with Masimo Rainbow SpO2, and SureSigns VS4 monitors that use Masimo SET technology.
Is this sensor reusable?
Yes. It is a reusable wrap sensor that can be cleaned and used on multiple patients.
How long is the cable?
The cable is 3.0 metres (about 9.8 feet) and connects directly to the monitor with no extension cable needed.
Will it work on a Philips monitor with FAST SpO2?
No. This model is for Masimo SET-equipped Philips monitors. For FAST SpO2 monitors choose the Philips M1193AL neonate wrap sensor instead.
What is the patient size range?
It is designed for neonatal patients, with the wrap applied to the foot or hand.
Does it come with a warranty?
Yes, the sensor is new and covered by a 12-month warranty.
Related SpO2 Sensors
Need a different size or style?
See the Philips Masimo SET Adult Hard Shell SpO2 Sensor 3.0m, the Philips Masimo SET Adult Soft Tip SpO2 Sensor 3.0m, the Adult Ear Clip SpO2 Sensor for Philips Masimo SET, the Philips M1193AL Neonate Wrap SpO2 Sensor 3.0m for FAST monitors, or the Masimo RD SET Neonate Wrap SpO2 Sensor 1.0m.
