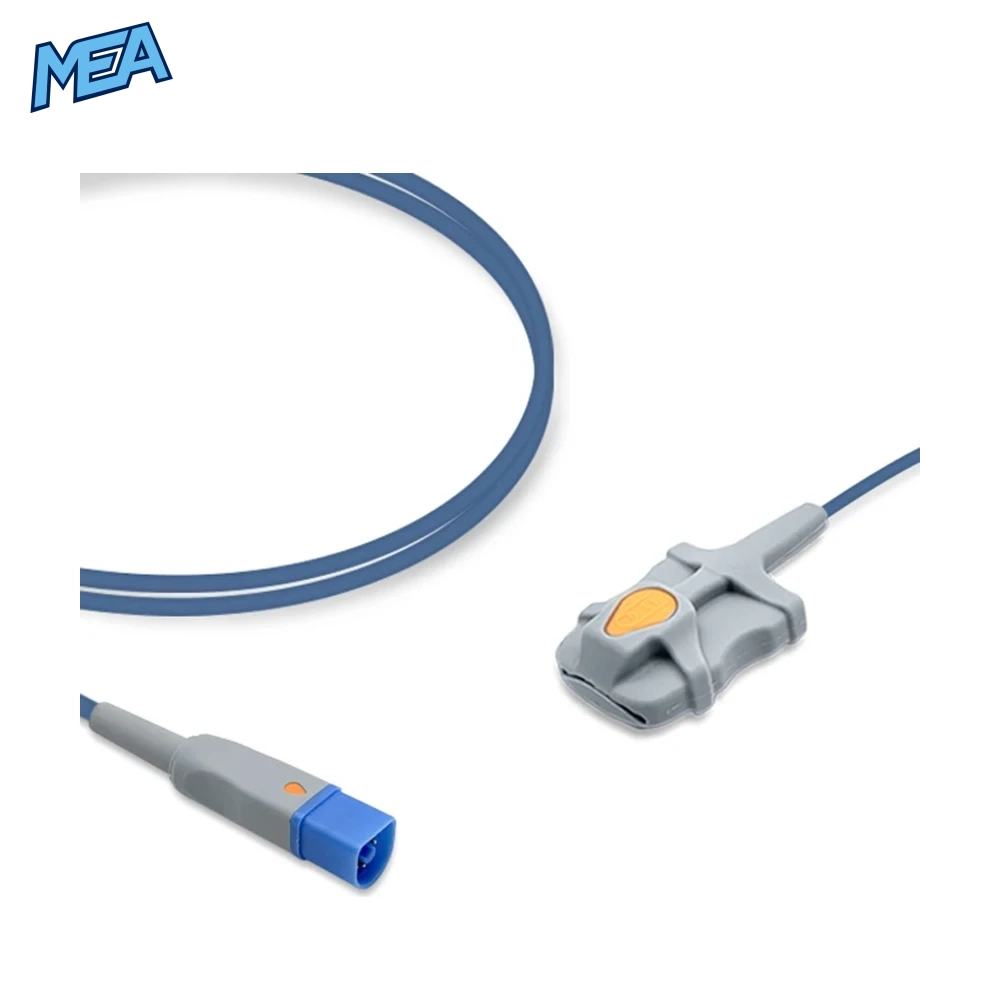

The Philips Masimo SET soft tip SpO2 sensor is a reusable adult silicone finger sensor for Philips patient monitors fitted with Masimo SET pulse oximetry, including the IntelliVue MP40, IntelliVue MX700 (Masimo Rainbow) and SureSigns VS4. It measures oxygen saturation (SpO2) and pulse rate non-invasively through a 3.0 m (9.8 ft) cable that ends in a Philips-style 8-pin connector.
Key Benefits of This Philips Masimo SET Soft Tip SpO2 Sensor
- Masimo SET signal processing: Designed for dependable SpO2 readings during patient motion and low perfusion on supported Philips monitors.
- Soft silicone comfort: The flexible soft tip sleeve conforms to the finger with gentle, even pressure, making it well suited to long monitoring sessions.
- Reusable and cost-effective: Cleanable between patients, lowering the cost per reading compared with single-use adhesive sensors.
- Long 3.0 m cable: Extra reach between bedside and monitor without an extension cable.
- Direct connection: The Philips-style connector plugs straight into the Masimo SET SpO2 port of supported monitors.
- Quality assured:
Features of the Adult Soft Tip Finger Sensor
One-Piece Silicone Soft Tip
The enclosed silicone sleeve has no hinge or spring, so it applies low, uniform pressure around the fingertip and reduces pressure points during continuous adult monitoring.
Stable Optical Alignment
The emitter and detector are moulded into the sleeve, keeping them aligned across the nail bed for consistent SpO2 and pulse-rate signals.
Sealed, Wipe-Clean Surface
The smooth silicone body is easy to wipe down between patients, supporting routine infection-control workflows.
Flexible Shielded Cable
The 3.0 m cable is built for repeated flexing and daily handling in busy clinical areas.
Specifications: Philips Masimo SET Soft Tip SpO2 Sensor
| Specification | Detail |
|---|---|
| Product | Adult Soft Tip SpO2 Sensor (Finger) |
| Monitor Brand | Philips |
| SpO2 Technology | Masimo SET |
| Patient Size | Adult |
| Sensor Type | Soft Tip (silicone) |
| Cable Length | 3.0 m (9.8 ft) |

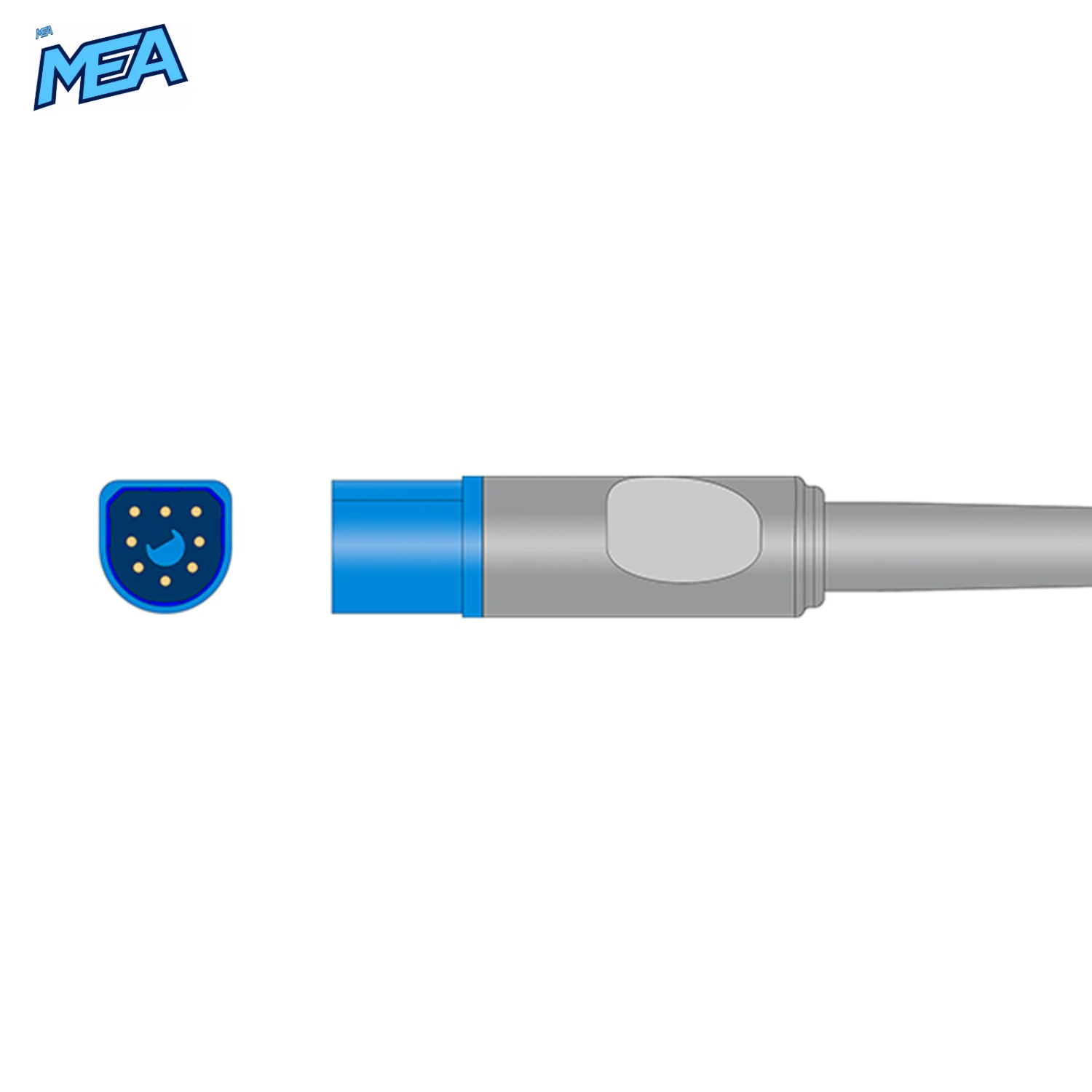

| Connector | Philips-style 8-pin connector |
| Lifecycle | Reusable |
| Package | 1 pc per bag |
| Warranty | 12 Months |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| Masimo | LNC-MP |
| Philips | M1020-61100 |
| Unimed | U410NS-91M, U410S-91M, U410S-91MR |
Works With These Philips Monitors
- Philips IntelliVue MP40
- Philips IntelliVue MX700 (Masimo Rainbow)
- Philips SureSigns VS4
Please confirm that your monitor uses a Masimo SET SpO2 input before ordering. Philips monitors fitted with Philips FAST SpO2 require a FAST sensor instead.
Use Cases for an Adult Reusable Soft Tip SpO2 Sensor
- Continuous SpO2 monitoring in ICU, high-dependency and step-down units
- Extended monitoring where patient comfort matters, such as overnight or long-stay care
- Post-anaesthesia recovery (PACU) and procedural sedation
- Emergency department and in-hospital transport monitoring
- Replacing worn reusable finger sensors on existing Philips Masimo SET monitors
Application and Care
- Slide an adult finger fully into the soft tip so the fingertip touches the end of the sleeve, with the cable running along the back of the hand.
- Avoid fingers with nail polish, artificial nails or restricted circulation.
- Change the measurement site regularly during long-term monitoring.
- Clean and disinfect between patients according to your facility’s infection-control protocol; wipe the surfaces rather than soaking the sensor.
Frequently Asked Questions
Which monitors does this Philips Masimo SET soft tip SpO2 sensor work with?
It works with Philips monitors fitted with Masimo SET pulse oximetry, including the IntelliVue MP40, IntelliVue MX700 (Masimo Rainbow) and SureSigns VS4.
What is the difference between a soft tip and a hard shell SpO2 sensor?
A soft tip sensor is a one-piece silicone sleeve that applies gentle, even pressure and suits longer monitoring, while a hard shell sensor is a spring-loaded clip that is quicker to place for spot checks.
Will it work on a Philips monitor with FAST SpO2?
No. This sensor is designed for the Masimo SET SpO2 input. Monitors using Philips FAST SpO2 need a FAST-technology sensor such as the M1191BL.
Is this SpO2 sensor reusable?
Yes. It is a reusable adult soft tip sensor that can be cleaned and used on multiple adult patients.
How long is the cable?
The cable is 3.0 m (approximately 9.8 ft) long.
What part numbers does it cross-reference?
It cross-references Masimo LNC-MP, Philips M1020-61100 and Unimed U410NS-91M, U410S-91M and U410S-91MR.
Is the sensor new, and does it carry a warranty?
Yes.
