GE TruSignal TS-SE-3 Neonate Wrap SpO2 Sensor 1.0m (9 Pin Reusable New)

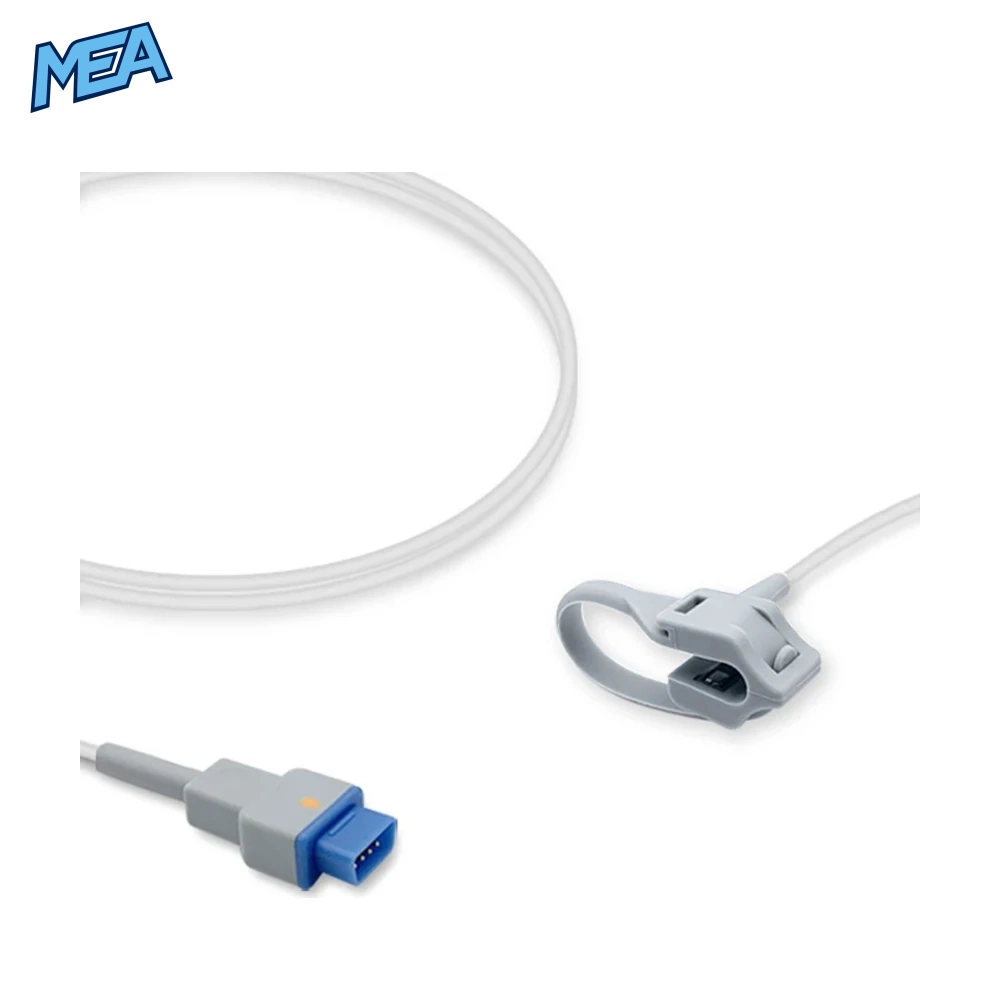

The GE TruSignal TS-SE-3 Neonate Wrap SpO2 Sensor is a new, reusable pulse oximetry sensor with a 1.0m cable and a 9-pin connector, built to the GE Healthcare TS-SE-3 reference specification. It uses a soft wrap-style sensor head for neonatal patients and works with GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2 technology. It is a replacement sensor, not a GE-manufactured original.

Key Benefits of This Neonatal TruSignal SpO2 Sensor

• Designed for neonates: Flexible wrap secures gently around a small foot or hand where clip sensors do not fit.
• Reusable: Can be cleaned and used again between patients, lowering cost per use versus single-patient adhesive sensors.
• Direct connection: 9-pin TruSignal connector plugs into matching GE and Datex-Ohmeda SpO2 inputs and interconnect cables.
• Short 1.0m lead: Reduces cable clutter in incubators, cots and transport settings.
• 12-month warranty

Features

• Patient size: Neonate
• Sensor style: Wrap
• SpO2 technology: GE TruSignal
• Cable length: 1.0m (approx. 3.3 ft)
• Connector: 9-pin
• Lifecycle: Reusable
• Supplied as 1 piece per bag

TS-SE-3 Neonate Wrap SpO2 Sensor Specifications

Part Number Cross-Reference

Works With These Monitors

Datex-Ohmeda

• 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250
• AS/3 with M-OSAT module, CS/3 with M-OSAT module, S/5 with M-OSAT module
• S/5 with E-series modules, i4 with E-series modules, E-PRESTN
• Cardiocap/5, TruSignal, TuffSat

GE Healthcare

• Aisys, Aisys CS2
• B20, B20i, B40, DINAMAP B125
• CARESCAPE B650, CARESCAPE ONE, CARESCAPE V100, CARESCAPE Canvas

Always confirm that your monitor or module is configured for TruSignal SpO2 and uses a 9-pin sensor connection before ordering.

Use Cases

• Neonatal intensive care and special care nurseries
• Labour, delivery and postnatal wards
• Neonatal anaesthesia and recovery
• Patient transport and spot-check monitoring of newborns
• Biomedical engineering departments stocking replacement sensors

Application and Care

• Wrap the sensor around the application site so the emitter and detector sit opposite each other; do not over-tighten.
• Check the site regularly and reposition as required by your clinical protocol.
• Clean and disinfect between patients according to your facility’s policy; do not autoclave or immerse the connector.
• Inspect the cable and sensor for damage before each use.

Frequently Asked Questions

What is the GE TS-SE-3 SpO2 sensor used for?

It is a reusable wrap-style pulse oximetry sensor used to measure oxygen saturation and pulse rate in neonates on monitors with GE TruSignal SpO2 technology.

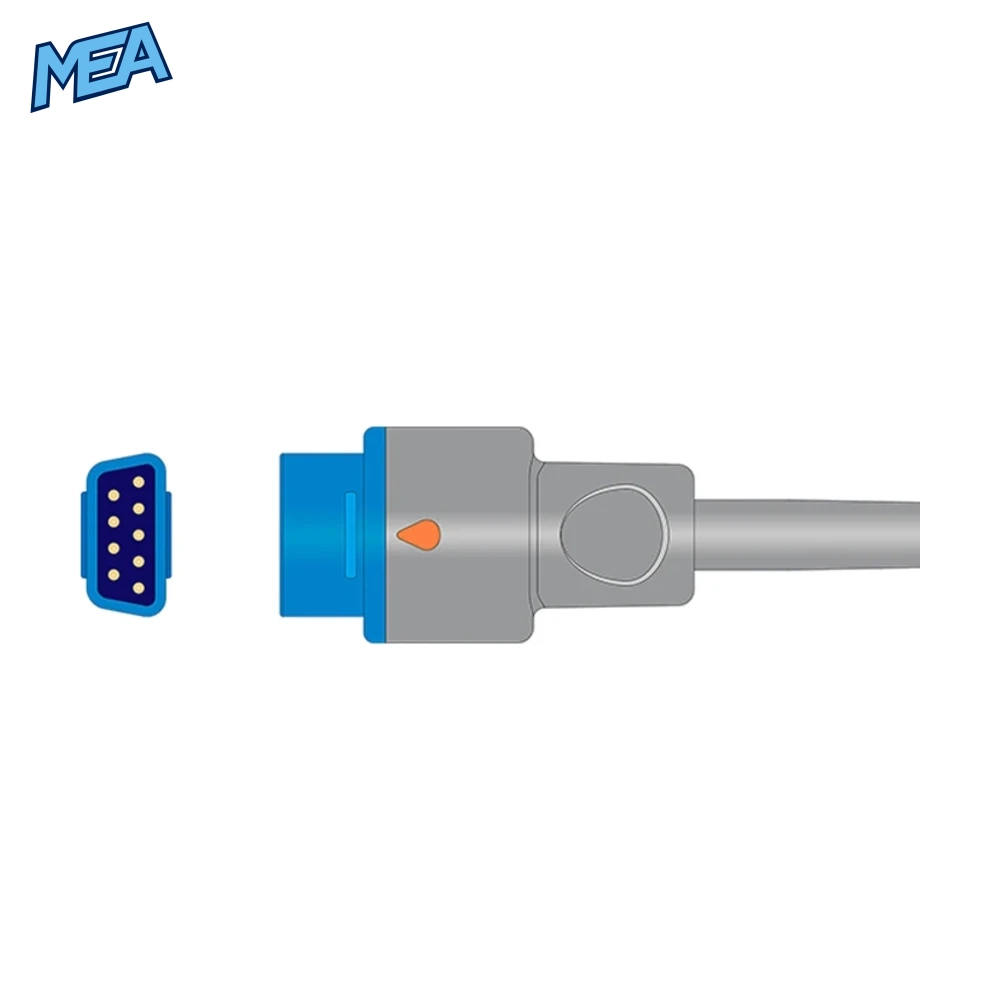

How long is the cable and what connector does it have?

The cable is 1.0m long and ends in a 9-pin TruSignal connector.

Which monitors does it work with?

It works with Datex-Ohmeda monitors such as the 3800, 3900, Cardiocap/5, S/5 and TuffSat, and GE Healthcare systems including CARESCAPE B650, CARESCAPE V100, B20, B40, DINAMAP B125 and Aisys, when fitted with TruSignal SpO2.

Can the sensor be reused?

Yes. It is a reusable sensor and can be cleaned and disinfected between patients.

Does it come with a warranty?

Yes, it is covered by a 12-month warranty.
