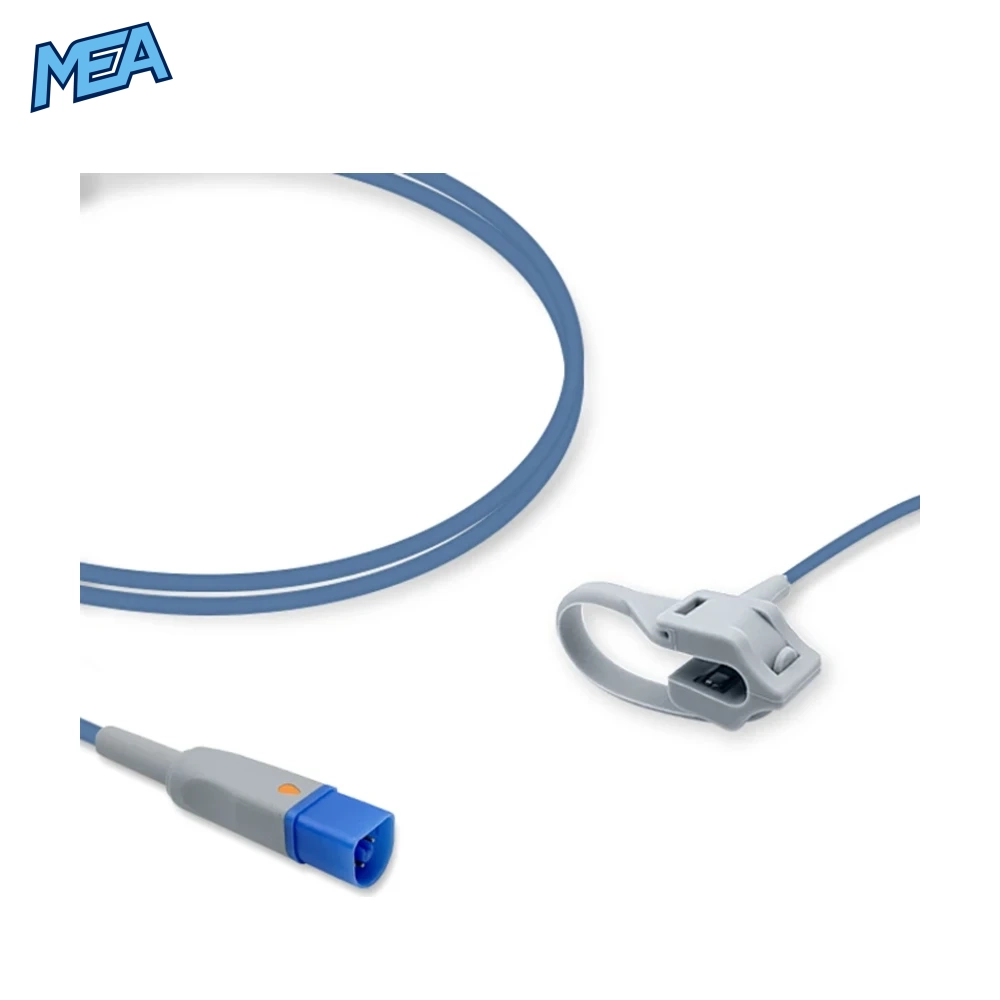

Philips M1193B Neonate Wrap SpO2 Sensor 1.0m (FAST 8-Pin Reusable New)

The Philips M1193B neonate wrap SpO2 sensor is a reusable pulse oximetry probe with a soft wrap-style attachment and a 1.0m cable ending in a Philips FAST 8-pin connector. It is built to the Philips M1193B reference specifications for continuous oxygen saturation (SpO2) and pulse rate monitoring on newborn patients connected to Philips IntelliVue, SureSigns, HeartStart and Avalon systems.

Key Benefits of This Neonatal SpO2 Wrap Sensor

• Gentle on fragile skin: The flexible wrap secures around a neonate’s hand or foot without the pressure of a rigid clip.
• Reusable and cost-effective: One sensor serves many patients with proper cleaning, lowering the cost per monitoring session compared with single-use adhesive probes.
• Plug-and-play on Philips FAST SpO2 monitors: The 8-pin connector mates directly with Philips SpO2 inputs and extension cables.
• Short 1.0m cable: Reduces loose cable in incubators and warmers, keeping the NICU bedside tidy.
• Backed by a 12-month warranty.

Features of the M1193B Neonate Pulse Oximeter Probe

• Wrap-style sensor head designed for neonatal hand and foot placement
• Philips FAST SpO2 technology support

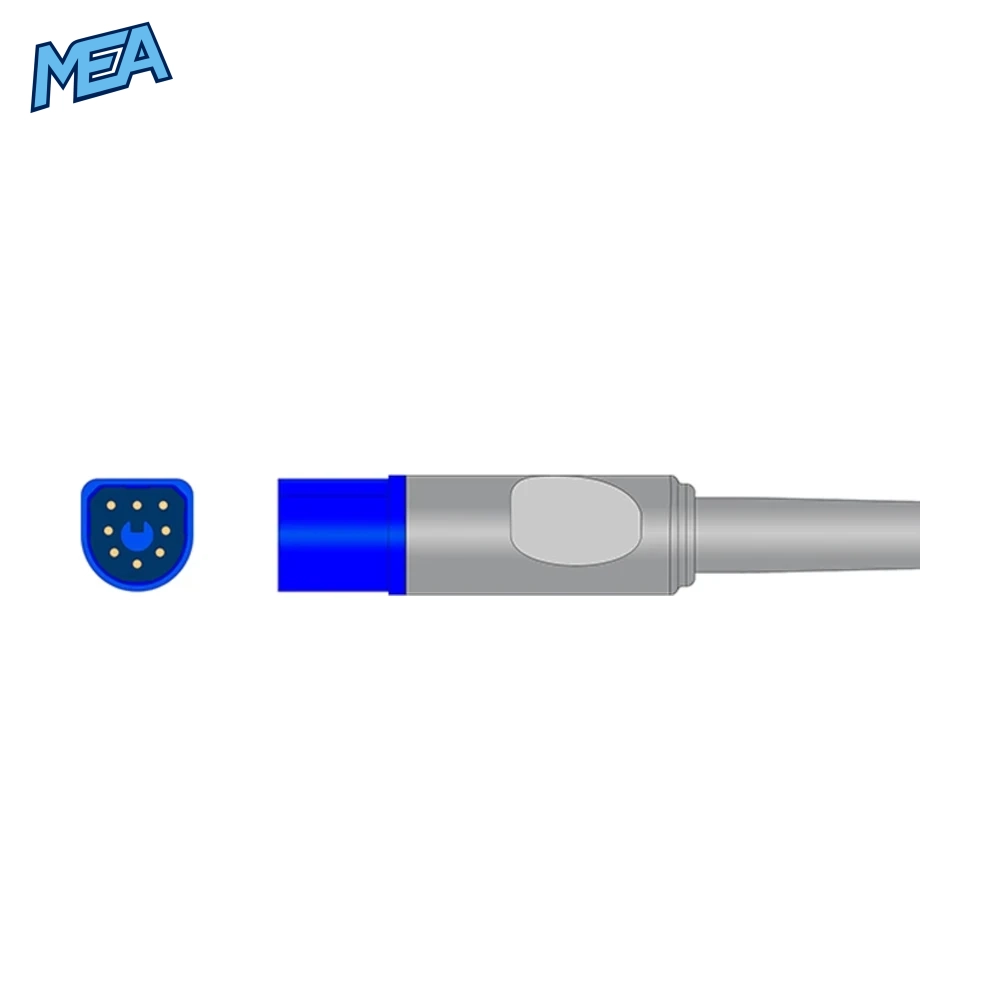

• Philips 8-pin D-style connector (blue)
• 1.0m (3.3 ft) patient cable
• Reusable, latex-conscious design suited to repeated use

Philips M1193B Neonate SpO2 Sensor Specifications

Cross-Reference

Works With These Patient Monitors

Philips IntelliVue Monitors

IntelliVue MP2, MP5, MP5SC, MP5T, MP20, MP20 Junior, MP30, MP40, MP50, MP60, MP70, MP80, MP90, MX100, MX400, MX430, MX450, MX500, MX550, MX600, MX700, MX800, X2, X3, XG50; IntelliVue TRx 4841A / 4851A telemetry; M3001A / M3002A measurement servers.

Philips SureSigns, Avalon and HeartStart

SureSigns VM1, VM4, VM6, VM8, VS2, VS2+, VS3, VS4, VSi; Avalon FM20, FM30, FM40, FM50; HeartStart MRx, XL, XLT, MPx, 4000; M3/M4 (M3046A); Viridia 24C and Series 50XM.

Other Monitors

Goldway G40, Mindray V12 and Solaris NT2A / NT2C (Philips FAST SpO2 input).

Always confirm your monitor’s SpO2 connector and technology before ordering.

Use Cases for the Neonatal Wrap SpO2 Sensor

• Neonatal intensive care units (NICU) and special care nurseries
• Labour and delivery / maternity wards
• Neonatal transport and retrieval teams
• Paediatric hospitals and emergency departments
• Biomedical engineering departments stocking Philips spares

Application and Care

• Position the optical components opposite each other across the neonate’s hand or foot, then close the wrap snugly without restricting circulation.
• Check and rotate the sensor site regularly according to your facility’s protocol.
• Clean between patients with a mild disinfectant wipe; do not immerse or autoclave the sensor.
• Inspect the cable and connector for damage before each use.

Frequently Asked Questions

What is the Philips M1193B SpO2 sensor used for?

It is a reusable neonatal wrap sensor that measures blood oxygen saturation (SpO2) and pulse rate on newborns connected to Philips FAST SpO2 monitors.

How long is the cable on this neonate wrap SpO2 sensor?

The cable is 1.0m (about 3.3 ft). For longer runs, see the 3.0m M1193AL version linked below or use a Philips SpO2 extension cable.

What connector does this sensor use?

It uses the Philips 8-pin connector and supports Philips FAST SpO2 technology.

Is this SpO2 sensor reusable?

Yes. It is designed for repeated use and can be cleaned between patients following the care instructions above.

Which patients is the M1193B wrap sensor suitable for?

It is sized for neonates and is applied around the hand or foot.

Is the sensor new, and does it include a warranty?

Yes. The sensor is supplied brand new with a 12-month warranty.
