The Philips reusable SpO2 sensor is an 8-pin oxygen saturation probe engineered for Philips and HP patient monitoring systems that use the D-connect 8-pin SpO2 interface.
Available in five connector-matched configurations M1196A, M1191BL, M1193A, M1192A and M1194A this reusable sensor is designed to deliver dependable SpO2 and pulse-rate readings across adult, pediatric and neonatal patients.
Key Benefits
- Fits the Philips/HP 8-pin SpO2 sensor interface
- Five model options covering adult, pediatric and neonatal patients
- Reusable design helps lower the ongoing cost of SpO2 monitoring
- Durable medical-grade PVC cable built for repeated clinical use
- Clip, soft glove, wrap and ear-clip styles suited to different care settings
- 3C-certified for quality and safety compliance
Available Sensor Models

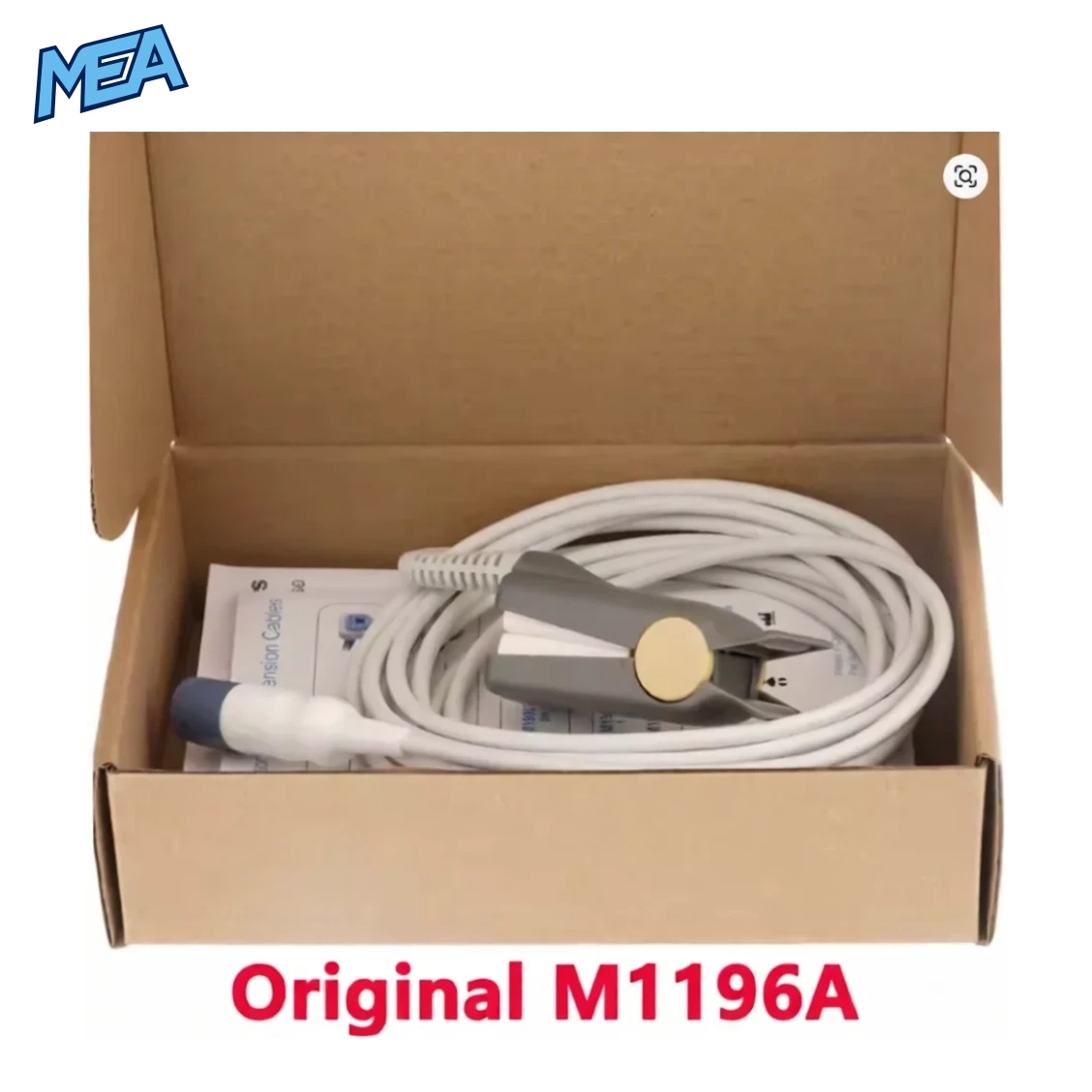

M1196A : Adult Finger Clip SpO2 Sensor
A reusable clip-style sensor for adult patients, designed for quick attachment and removal during spot-check or continuous monitoring.

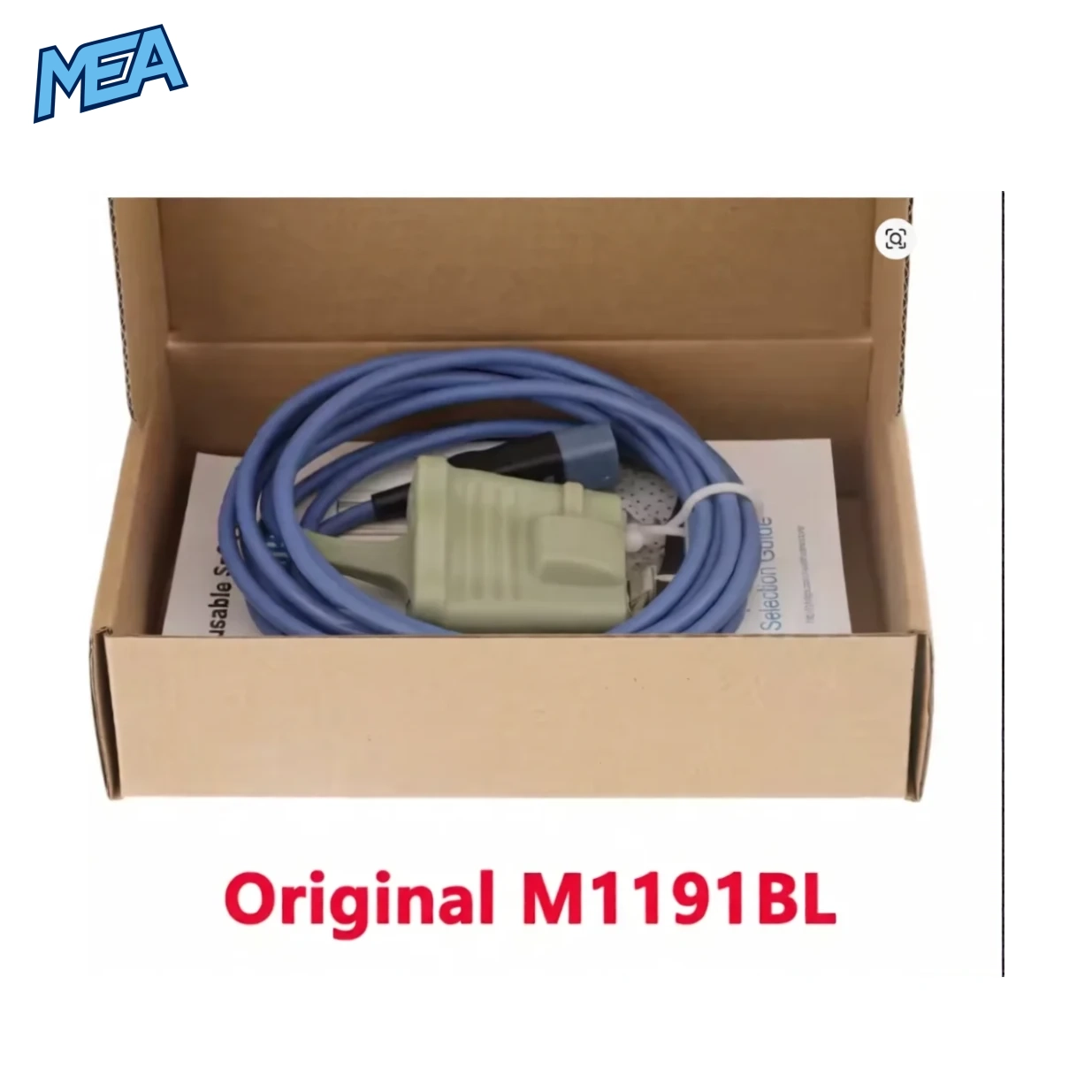

M1191BL : Adult Soft Glove SpO2 Sensor (Long Cable)
A soft, glove-style adult sensor supplied with a long cable, giving patients more freedom of movement during extended monitoring.

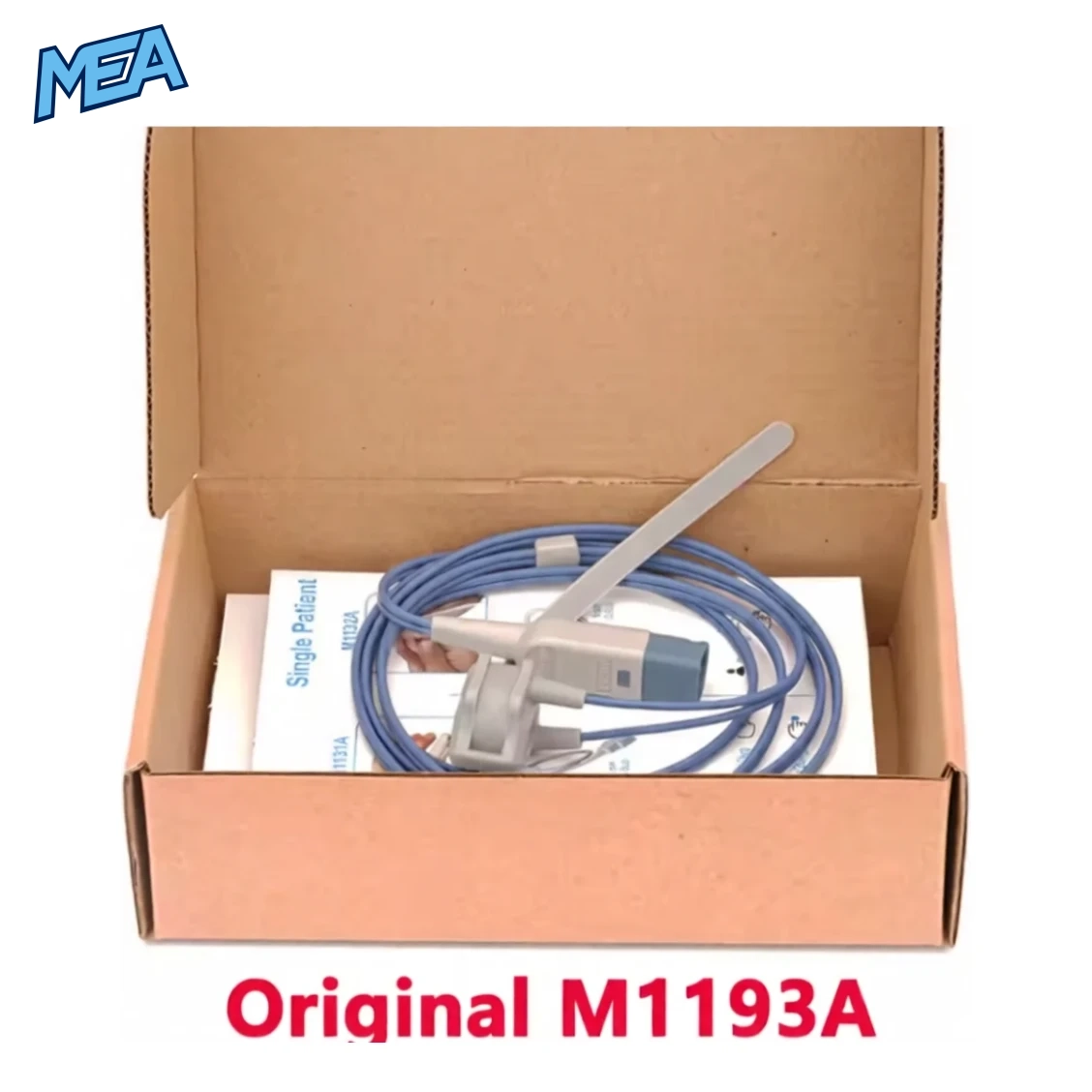

M1193A : Neonatal Hand/Foot Wrap SpO2 Sensor
A soft wrap sensor sized for neonatal hands or feet, designed for gentle, secure placement on small and sensitive skin.

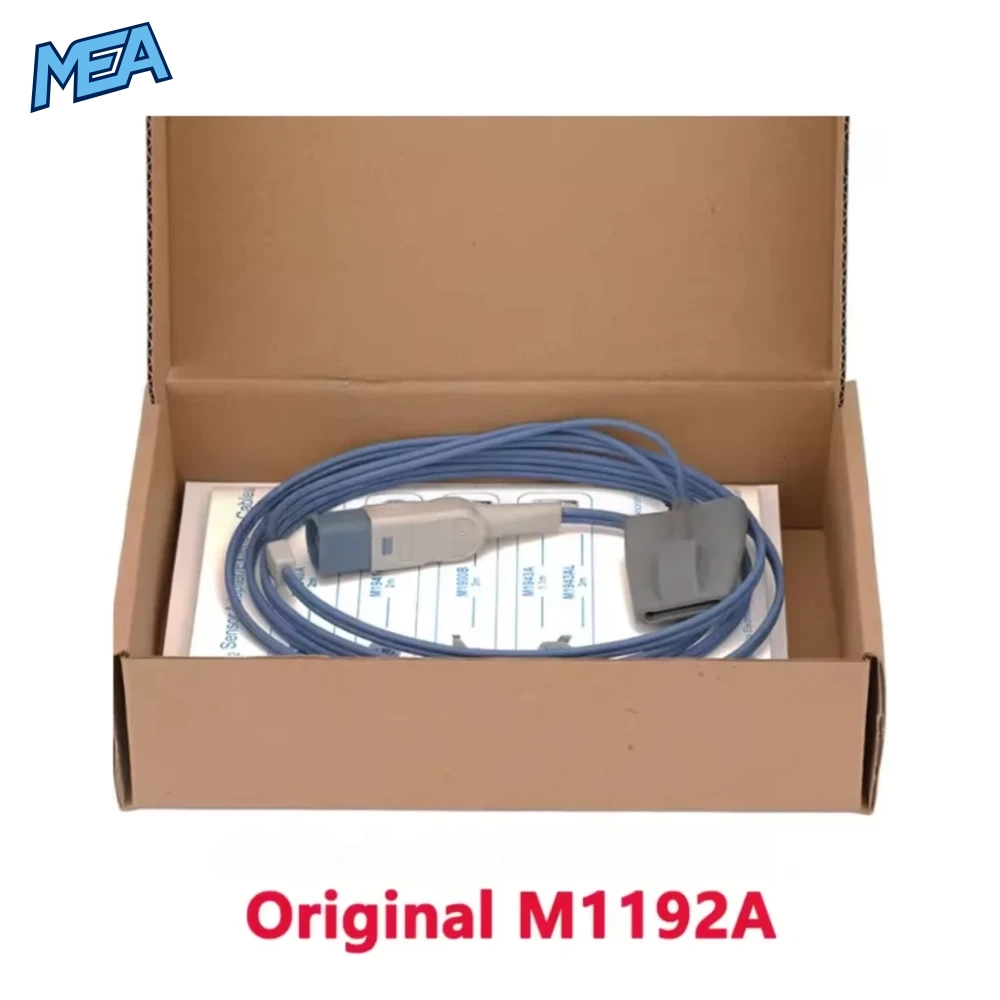

M1192A : Pediatric/Small Adult Soft SpO2 Sensor
A soft glove-style sensor sized for pediatric and small adult fingers, balancing comfort with measurement accuracy.

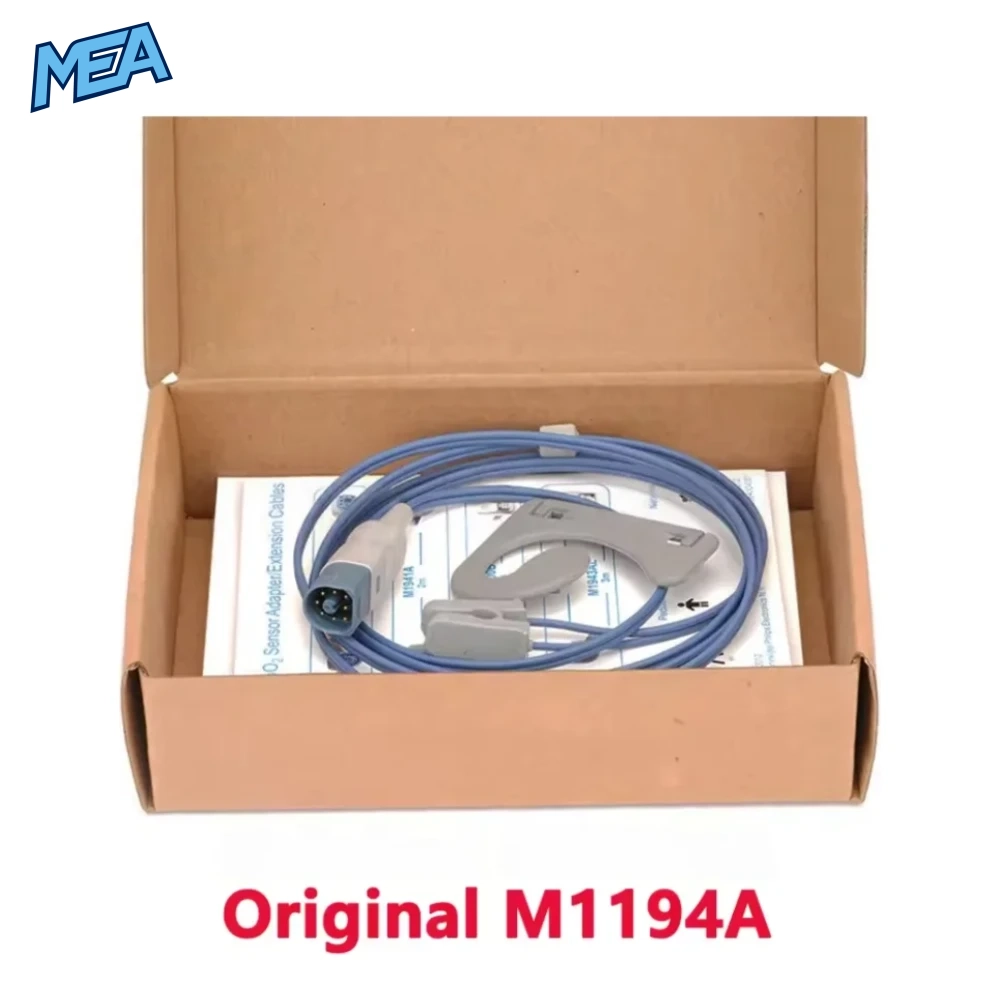

M1194A : Adult/Pediatric Ear Clip SpO2 Sensor
An ear-clip sensor suited to adult and pediatric patients, offering an alternative attachment site when finger placement is not practical.
Suitable Patient Monitors
This 8-pin SpO2 sensor is designed for Philips and HP patient monitors that accept the matching 8-pin D-connect SpO2 input, including selected Philips/HP M-series bedside monitors and other patient monitoring systems using the same 8-pin SpO2 connector.
Always confirm your monitor’s SpO2 port type before ordering.
Technical Specifications
| Model Numbers | M1196A, M1191BL, M1193A, M1192A, M1194A |
| Connector Type | 8-Pin D-Connect |
| Â Brand | Philips / HP |
| Material | Medical-grade PVC |
| Application Site | Finger, Ear, or Hand/Foot (model-dependent) |
| Patient Types | Adult, Pediatric, Neonate |
| Sensor Type | Reusable |
| Certification | 3C |
| Condition | New |
| Quantity | 1 sensor per order |
Applications
Hospital & Clinical Monitoring
Suited to wards, recovery rooms and outpatient clinics needing continuous or spot-check SpO2 monitoring.
Emergency & Transport Care
Reusable construction supports repeated use in ambulance and emergency-response settings.
Home & Aged Care Monitoring
A cost-effective reusable option for long-term home or aged-care SpO2 monitoring under clinical supervision.
What’s Included
- 1 × Philips 8-pin reusable SpO2 sensor (model as selected)
Related Products
Complete your patient-monitoring setup with our Reusable 8-Pin SpO2 Sensor for Philips M3/M4/MP20/MP30, Masimo-Fits These Reusable SpO2 Sensor, Nellcor Pediatric Clip SpO2 Sensor, and the Philips Suresigns VS4 Patient Monitor.
Frequently Asked Questions
Which Philips monitors is this SpO2 sensor fits?
It is designed for Philips and HP patient monitors using the matching 8-pin D-connect SpO2 input. Please check your monitor’s SpO2 port before ordering.
What is the difference between the M1196A, M1191BL, M1193A, M1192A and M1194A models?
Each model uses a different attachment style and patient size: M1196A is an adult finger clip, M1191BL is an adult soft glove sensor with a long cable, M1193A is a neonatal hand/foot wrap, M1192A is a pediatric/small adult soft sensor, and M1194A is an adult/pediatric ear clip.
Is this sensor reusable?
Yes. This is a reusable SpO2 sensor designed for repeated use when cleaned and maintained according to standard infection-control procedures.
What condition is this sensor supplied in?
This sensor is supplied new.
Can this sensor be used on children and newborns?
Yes. The M1193A (neonatal wrap) and M1192A (pediatric/small adult) models are sized specifically for younger patients.
Order Your Philips SpO2 Sensor
Choose the model that matches your Philips 8-pin SpO2 monitor and patient type, and enjoy reliable, reusable oxygen saturation monitoring backed by our Australia-wide shipping.
