GE TruSignal TS-SP-D Pediatric Soft Tip SpO2 Sensor 1.0m (9Pin Reusable New)

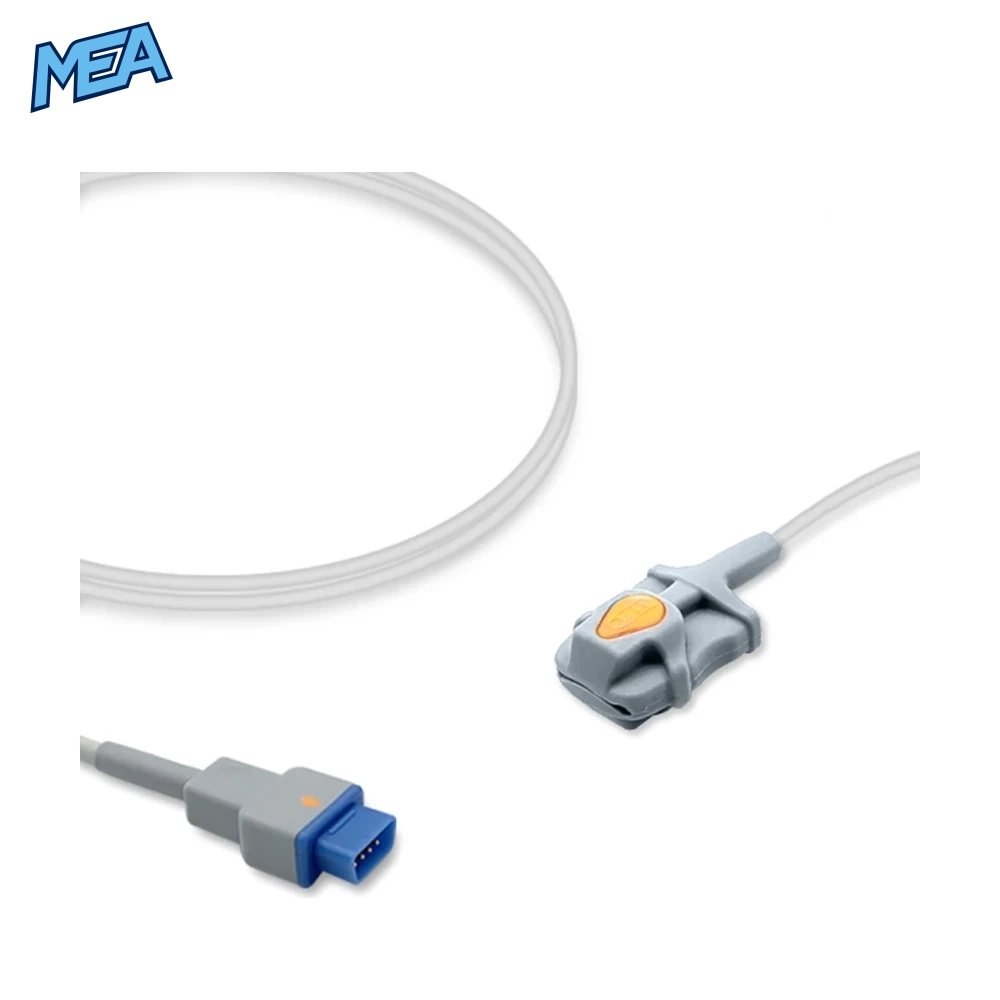

The GE TruSignal TS-SP-D Pediatric Soft Tip SpO2 Sensor is a new, reusable pulse oximetry finger sensor with a 1.0m cable and 9-pin connector, built to the GE Healthcare TS-SP-D reference specifications. It measures oxygen saturation (SpO2) and pulse rate in pediatric patients and works with GE Healthcare and Datex-Ohmeda patient monitors that use GE TruSignal SpO2 technology.

Key Benefits of This Pediatric TruSignal SpO2 Sensor

• Sized for children: The soft silicone tip is shaped for pediatric fingers, giving a secure, comfortable fit without the pressure of a spring clip.
• Reusable design: Cleanable between patients, lowering cost per use compared with single-patient adhesive sensors.
• Direct connection: The 9-pin connector plugs into TruSignal SpO2 inputs and interconnect cables with no adapter.
• Short 1.0m lead: Keeps cable clutter down at the bedside, in transport and in recovery areas.
• 12-month warranty for confident purchasing.

Features of the Soft Tip Pediatric Finger Sensor

• Patient size: Pediatric
• Sensor style: Soft Tip (flexible silicone boot)
• SpO2 technology: GE TruSignal
• Cable length: 1.0m (approx. 3.3 ft)

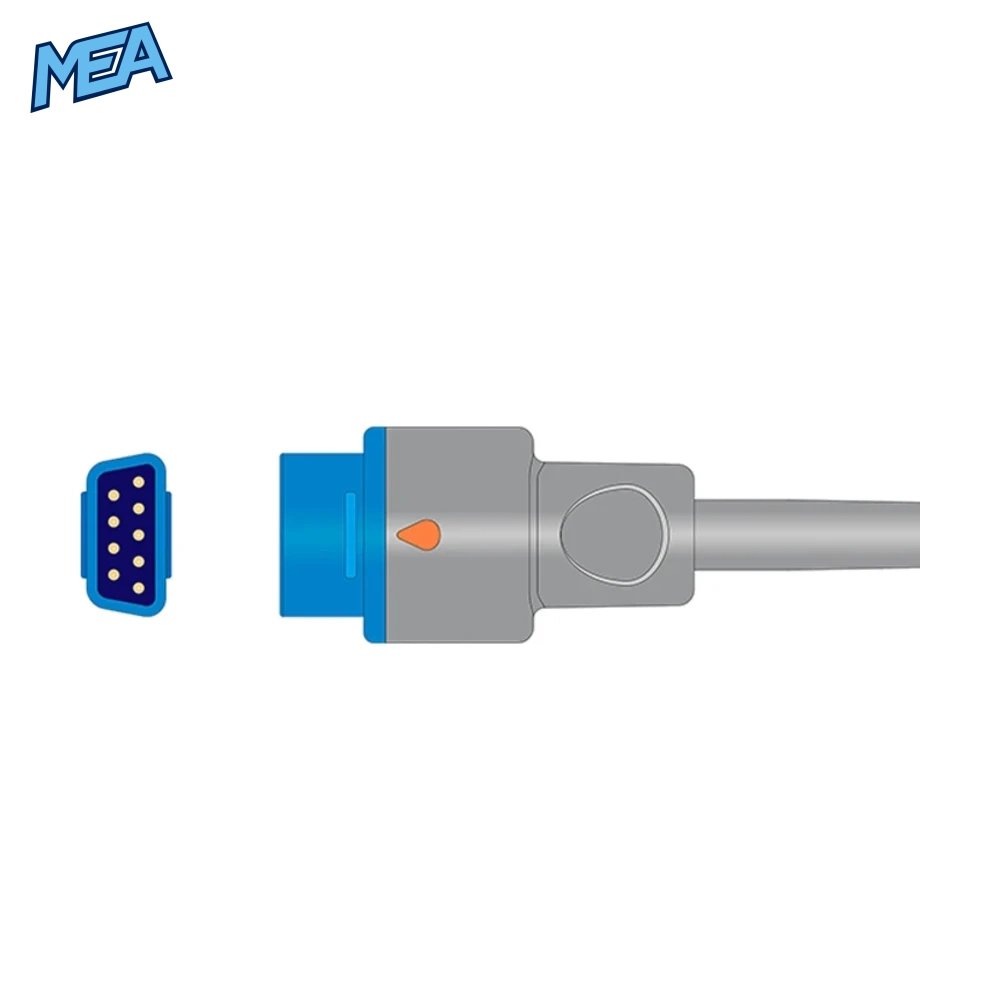

• Connector: 9-pin
• Lifecycle: Reusable
• Condition: New

Technical Specifications

Part Number Cross-Reference

Works With These Patient Monitors

GE Healthcare

• CARESCAPE B650, CARESCAPE ONE, CARESCAPE V100, CARESCAPE Canvas
• B20, B20i, B40
• Aisys, Aisys CS2
• DINAMAP B125
• 259

Datex-Ohmeda

• TruSignal, TuffSat
• 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250
• AS/3, CS/3 and S/5 with M-OSAT module
• S/5 and i4 with E-series modules, E-PRESTN
• Cardiocap/5

Always confirm that your monitor is configured with GE TruSignal SpO2 technology and a 9-pin sensor input before ordering.

Use Cases

• Continuous SpO2 and pulse rate monitoring in pediatric wards and PICU
• Anesthesia and post-anesthesia care for children
• Emergency departments and patient transport
• Spot-check measurements in clinics and outpatient settings
• Biomedical engineering spares for GE and Datex-Ohmeda monitor fleets

Application and Care

• Slide the soft tip over a clean, dry finger with the light emitter above the nail.
• Route the cable along the back of the hand and check the site regularly during long monitoring periods.
• Wipe the sensor and cable with a facility-approved disinfectant between patients. Do not autoclave or immerse the connector.
• Inspect the silicone tip and cable for wear before each use.

Frequently Asked Questions

What is the GE TS-SP-D SpO2 sensor used for?

It is a pediatric finger sensor used to measure blood oxygen saturation and pulse rate on GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2 technology.

Is this sensor reusable?

Yes. It is a reusable soft tip sensor that can be cleaned and disinfected between patients.

How long is the cable and what connector does it have?

The cable is 1.0m (about 3.3 ft) long and ends in a 9-pin connector for TruSignal sensor inputs.

What is the difference between a soft tip and a hard shell pediatric sensor?

A soft tip sensor uses a flexible silicone boot that slides over the finger, which is gentler for longer monitoring. A hard shell sensor uses a spring-loaded clip that is quicker to apply for spot checks.

Will it work with a Nellcor or Masimo SpO2 module?

No. This sensor is for GE TruSignal technology only. Monitors fitted with Nellcor or Masimo modules need a sensor made for that technology.
