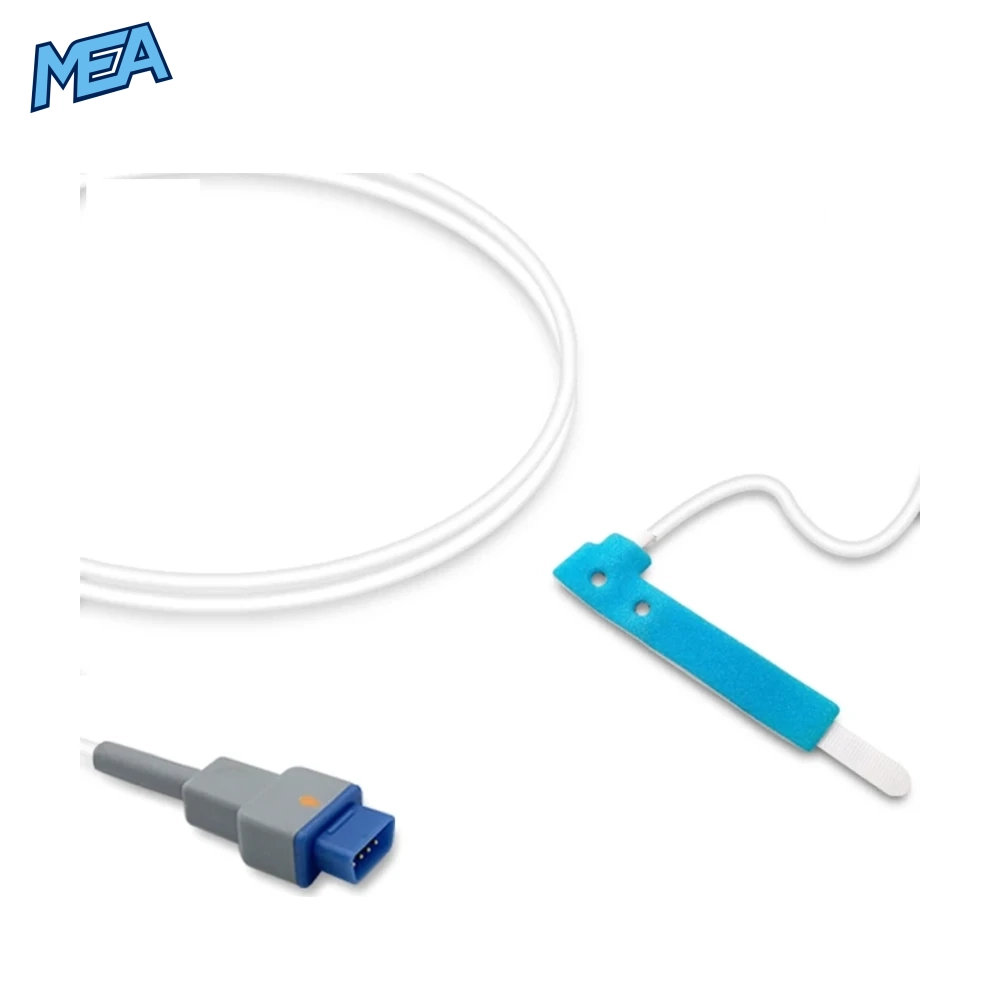

The GE TruSignal TS-PAW-10 SpO2 sensor is a disposable, non-adhesive foam pulse oximetry sensor for pediatric and infant patients, built to the GE Healthcare TS-PAW-10 / TS-PAW-25 reference specifications. It has a 0.9m cable and a 9-pin TruSignal connector, works with GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2 technology, and is supplied new in a box of 24 sensors.
Why Choose This TruSignal Pediatric Foam SpO2 Sensor
- Kind to young skin: The soft foam wrap fastens with a hook-and-loop strap instead of adhesive, so there is no tape to pull on delicate pediatric or infant skin.
- Repositionable: The strap can be opened and re-fastened to check the site or move the sensor on the same patient.
- One sensor, two patient groups: Sized for pediatric and infant application, reducing the number of sensor types you need to stock.
- Infection control: Single-patient-use design helps reduce cross-contamination risk between patients.
- Cost-effective supply: 24 sensors per box for paediatric wards, PICU, theatre and recovery.
Key Features of the TS-PAW-10 Pediatric/Infant Sensor
- Non-adhesive foam wrap sensor with hook-and-loop closure
- Patient size: Pediatric / Infant
- SpO2 technology: GE TruSignal

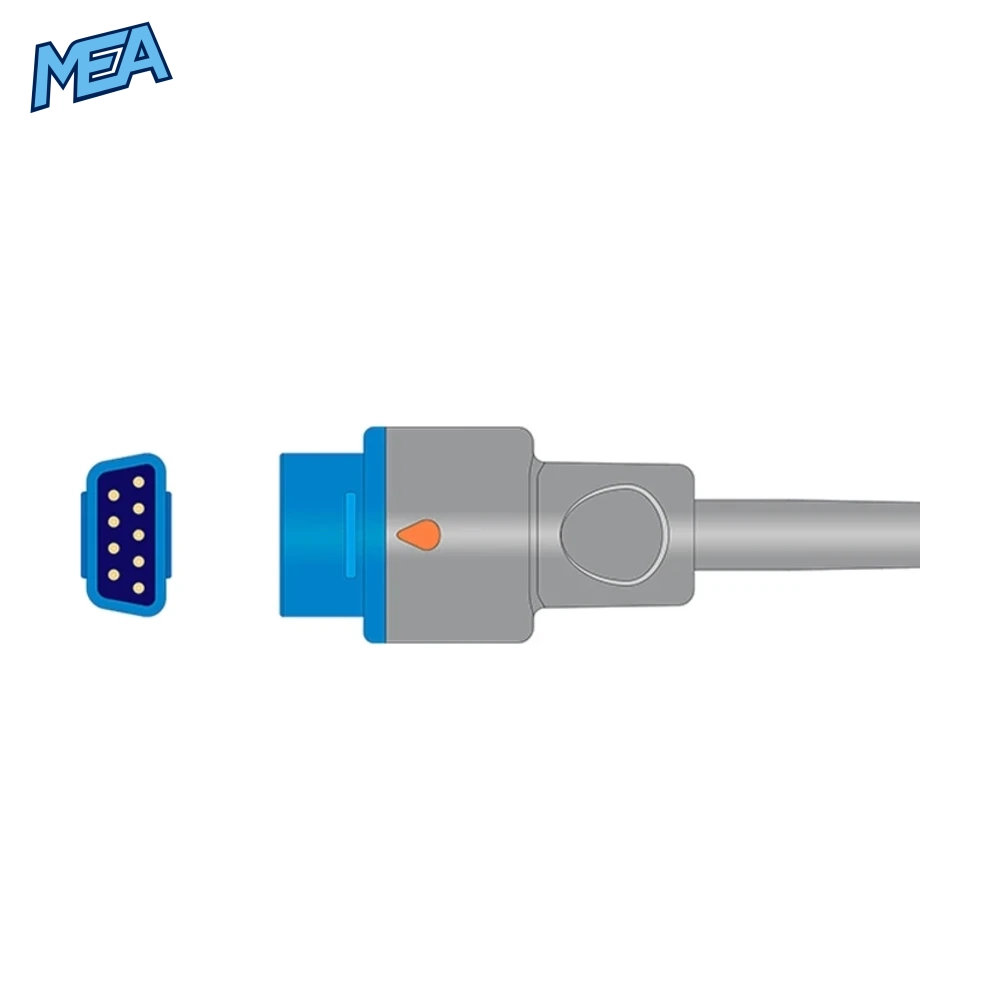

- 9-pin TruSignal connector
- 0.9m (approx. 3 ft) cable
- Disposable, single-patient use
- Condition: New
Technical Specifications
| Specification | Detail |
|---|---|
| Product | Pediatric/Infant Non-Adhesive Foam SpO2 Sensor |
| Reference Part Number | GE Healthcare TS-PAW-10, TS-PAW-25 |
| SKU | DO-TSPAW10-PEDINF-FOAM-9PIN-0.9M |
| SpO2 Technology | GE TruSignal |
| Patient Size | Pediatric / Infant |
| Sensor Type | Non-adhesive foam wrap |
| Connector | 9-pin TruSignal |
| Cable Length | 0.9m (approx. 3 ft) |
| Lifecycle | Disposable (single-patient use) |
| Pack Size | 24 sensors per box |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| GE Healthcare | TS-PAW-10, TS-PAW-25 |
| Unimed | N533-117 |
Works With These GE and Datex-Ohmeda Monitors
GE Healthcare
- CARESCAPE B650, CARESCAPE ONE, CARESCAPE Canvas, CARESCAPE V100
- B20, B20i, B40
- Aisys, Aisys CS2
- DINAMAP B125
- 259 Series
Datex-Ohmeda
- S/5 with E-series modules, S/5 with M-OSAT module, i4 with E-series modules
- AS/3 with M-OSAT module, CS/3 with M-OSAT module, E-PRESTN
- Cardiocap/5, TruSignal, TuffSat
- 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250
Always confirm your monitor’s SpO2 technology and connector before ordering. This sensor is for TruSignal-equipped systems only.
Use Cases
- Paediatric wards and paediatric intensive care where adhesive sensors are not suitable
- Infants and children with fragile, sensitive or adhesive-reactive skin
- Operating theatre, anaesthesia and recovery monitoring
- Emergency department spot-check and continuous pulse oximetry
- Biomedical engineering and hospital consumable stock
Application and Care
- Apply to the site specified by your clinical protocol for the patient’s size, with the emitter and detector opposite each other.
- Fasten the strap snugly but not tightly, and check the site regularly.
- Connect the 9-pin plug to the monitor’s TruSignal SpO2 input or interconnect cable.
- Single-patient use only. Do not reprocess or sterilise. Dispose of according to facility waste procedures.
Frequently Asked Questions
What is the TS-PAW-10 SpO2 sensor?
It is a disposable pediatric/infant non-adhesive foam pulse oximetry sensor built to the GE Healthcare TS-PAW-10 reference for TruSignal SpO2 technology. It has a 0.9m cable, a 9-pin connector and comes 24 to a box.
Which monitors does the TS-PAW-10 sensor work with?
It works with GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2, including CARESCAPE B650, B40, B20, Aisys, DINAMAP B125, S/5 with E-series or M-OSAT modules, Cardiocap/5 and TuffSat.
Why use a non-adhesive foam SpO2 sensor on children?
A foam sensor wraps around the site and closes with a hook-and-loop strap, so no adhesive touches the skin. It can be repositioned on the same patient and suits the delicate skin of infants and children.
What patient sizes is this sensor for?
It is sized for pediatric and infant patients. For adults and neonates, choose the adult/neonate version of the TruSignal foam sensor.
Is the TS-PAW-10 foam sensor reusable?
No. It is a single-patient-use disposable sensor. It may be repositioned on the same patient, then disposed of after use.
How many sensors are in one box?
Each box contains 24 pediatric/infant non-adhesive foam SpO2 sensors.
What connector and cable length does it have?
It has a 9-pin TruSignal connector and a 0.9m (approx. 3 ft) cable.
