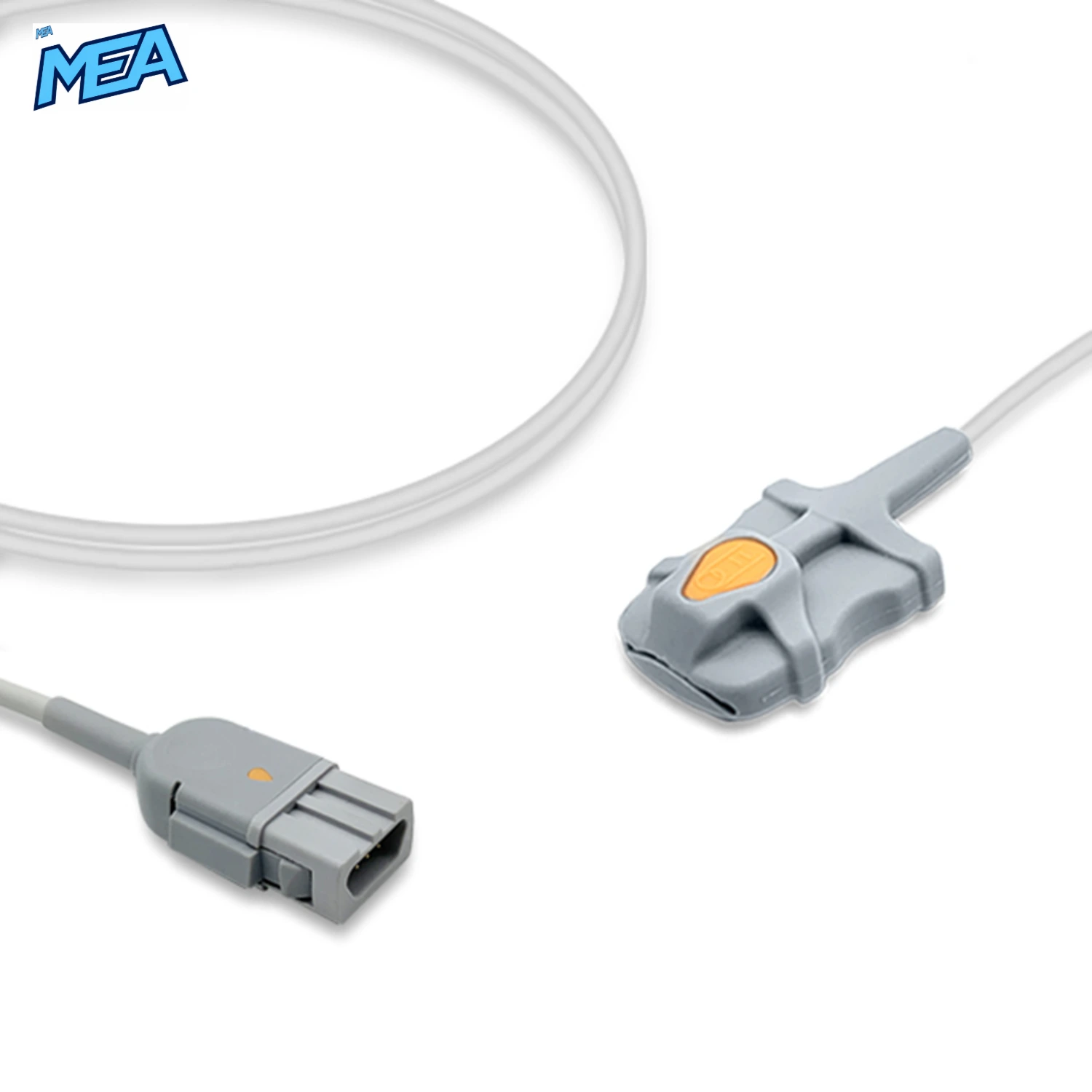

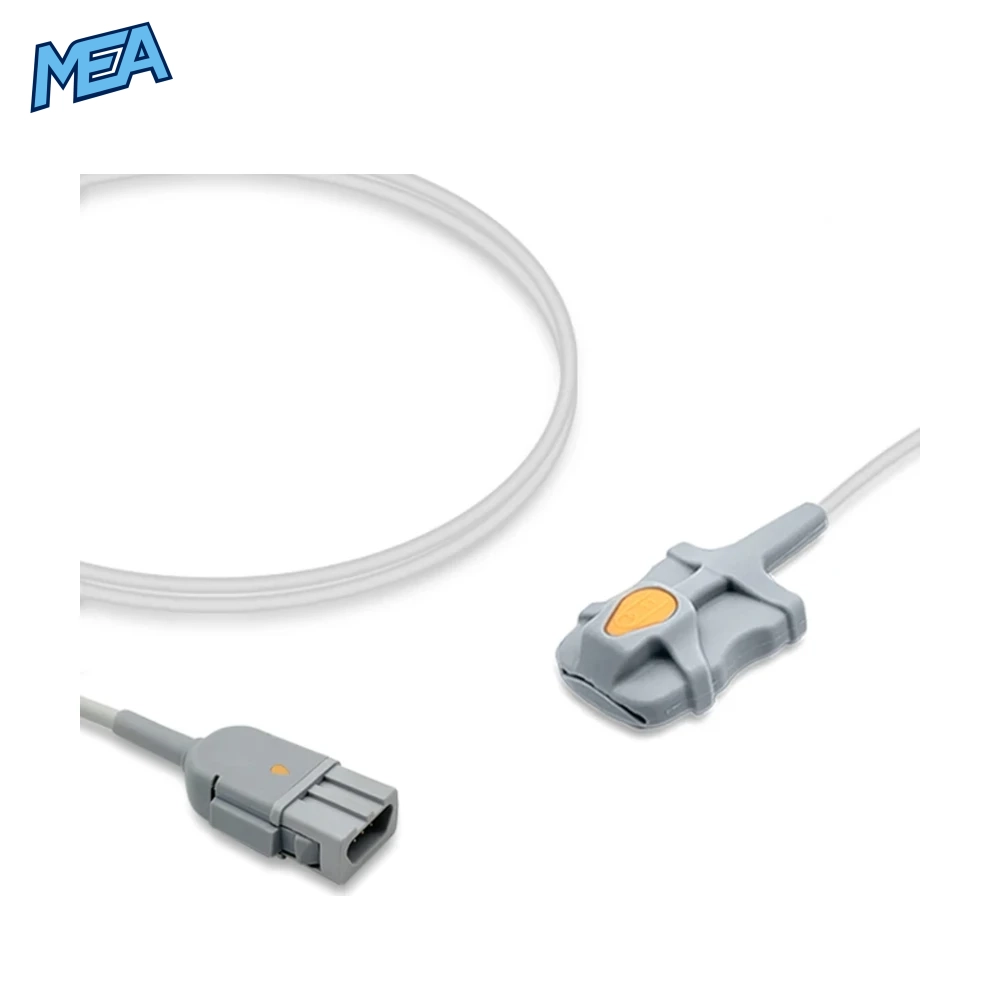

The GE TruSignal TS-SA3-MC Adult Soft Tip SpO2 Sensor is a new, reusable pulse oximetry finger sensor built to the GE Healthcare TS-SA3-MC reference specifications. It has a soft silicone finger tip, a 3.0m (9.8 ft) cable and a 9-pin connector, and works with GE TruSignal technology on Datex Ohmeda TruSat, TruSat ED and TruSat TD pulse oximeters for adult oxygen saturation (SpO2) and pulse rate monitoring.
Key Benefits of This TruSignal Adult Soft Tip Sensor
- Comfortable for long monitoring: The flexible soft tip sleeve spreads pressure evenly around the finger, making it suited to extended or continuous monitoring.
- Reusable and economical: Designed for multi-patient use with cleaning between patients, reducing cost per use versus single-use sensors.
- Long 3.0m reach: The 3.0m cable gives freedom to position the monitor away from the bed.

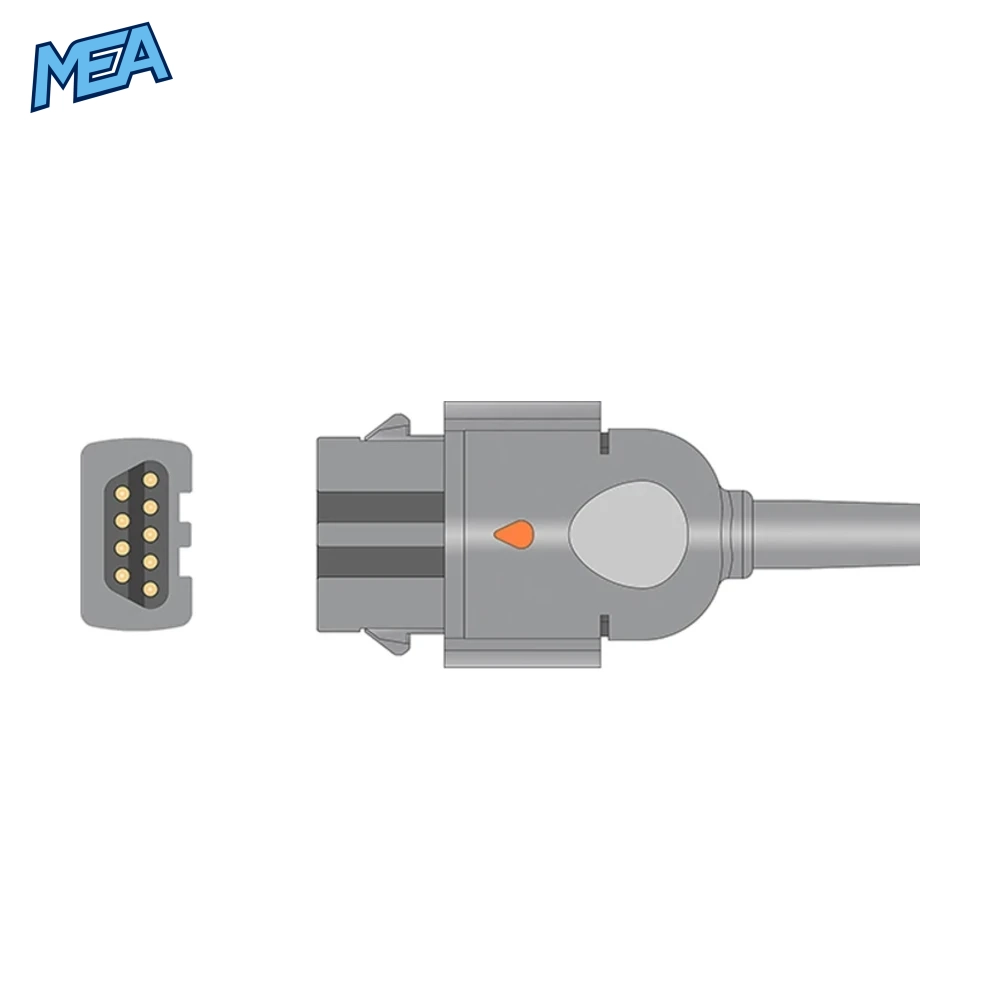

- Direct fit: 9-pin connector made for GE TruSignal SpO2 inputs.
- Backed by warranty: Supplied new with a 12-month warranty.
Features
- Adult soft tip (silicone boot) finger sensor
- GE TruSignal SpO2 technology
- 3.0m (9.8 ft) cable length
- 9-pin connector
- Reusable lifecycle
- Packed 1 piece per bag
Technical Specifications
| Specification | Detail |
|---|---|
| Reference Part Number | GE Healthcare TS-SA3-MC |
| Product Type | Reusable SpO2 Sensor |
| Sensor Type | Soft Tip (finger) |
| Patient Size | Adult |
| SpO2 Technology | GE TruSignal |
| Cable Length | 3.0m (9.8 ft) |
| Connector | 9-pin |
| Lifecycle | Reusable |
| Condition | New |
| Unit | 1 pc per bag |
| Warranty | 12 Months |
| SKU | DO-TSSA3MC-SPO2-ST-9P-3M |
Part Number Cross-Reference
| Brand | Reference Number |
|---|---|
| GE Healthcare | TS-SA3-MC |
| Unimed | U410S-60 |
| Praymed | PSC0127-L |
Works With These Pulse Oximeters
- Datex Ohmeda TruSat
- Datex Ohmeda TruSat ED
- Datex Ohmeda TruSat TD
Please confirm your monitor uses GE TruSignal SpO2 technology and a matching 9-pin sensor input before ordering.
Use Cases
- Continuous adult SpO2 monitoring in hospital wards, ICU and recovery
- Spot-check oximetry in clinics and day surgery
- Replacement or spare sensor for biomedical engineering departments
- Patients who find hard shell finger clips uncomfortable during long monitoring
Application and Care
- Slide the soft tip over a clean adult finger with the cable running along the back of the hand.
- Remove nail polish and keep the site still for the most stable reading.
- Check and move the sensor site regularly during long monitoring.
- Wipe clean and disinfect between patients according to your facility protocol. Do not autoclave or immerse the connector.
Frequently Asked Questions
What is the GE TS-SA3-MC SpO2 sensor?
TS-SA3-MC is the GE Healthcare reference number for an adult reusable soft tip finger sensor using TruSignal SpO2 technology. This sensor is built to that reference specification with a 3.0m cable and 9-pin connector.
Which monitors does this sensor work with?
It works with Datex Ohmeda TruSat, TruSat ED and TruSat TD pulse oximeters that use GE TruSignal technology.
What is the difference between a soft tip and a hard shell SpO2 sensor?
A soft tip sensor uses a flexible silicone sleeve that surrounds the finger for comfort over long periods. A hard shell sensor uses a spring-loaded clip that is quicker to apply for spot checks.
How long is the cable?
The cable is 3.0 metres (about 9.8 feet) long.
Is the sensor reusable and what warranty applies?
Yes, it is reusable across multiple patients when cleaned between uses, and it is covered by a 12-month warranty.
Related SpO2 Sensors
Need a different style or length?
See the GE TruSignal TS-F4-MC Adult Hard Shell SpO2 Sensor 3.0m, the GE TruSignal Adult Ear Clip SpO2 Sensor 1.0m, the GE TruSignal TS-W4-MC Neonate Wrap SpO2 Sensor 3.0m, the GE TruSignal Adult Hard Shell SpO2 Sensor 4.0m and the GE OxyTip+ Adult Soft Tip SpO2 Sensor 1.0m.
