The GE TruSignal Neonate Wrap SpO2 Sensor (TS-W4-MC reference) is a reusable wrap-style pulse oximetry sensor with a 3.0 m (9.8 ft) cable and a 9-pin connector, built to the GE Healthcare TS-W4-MC / Ohmeda OXY-W4-MC reference specifications for continuous SpO2 and pulse-rate monitoring of neonates on Datex-Ohmeda TruSat pulse oximeters.
Key Benefits of This TruSignal Neonatal SpO2 Wrap Sensor
- Gentle wrap design for newborns a soft, flexible strap holds the sensor around a neonate’s foot or hand without a rigid clip.
- Reusable and cost-effective can be cleaned and reused, reducing spend on single-use neonatal probes.
- TruSignal SpO2 technology matched to GE TruSignal oximetry for stable readings on TruSat monitors.
- 3.0 m (9.8 ft) cable reaches from incubator or warmer to the monitor without an extension cable.
- Direct connection the keyed 9-pin connector plugs straight into TruSat units; no adapter cable needed.
Features of the GE TS-W4-MC Neonate Wrap Sensor

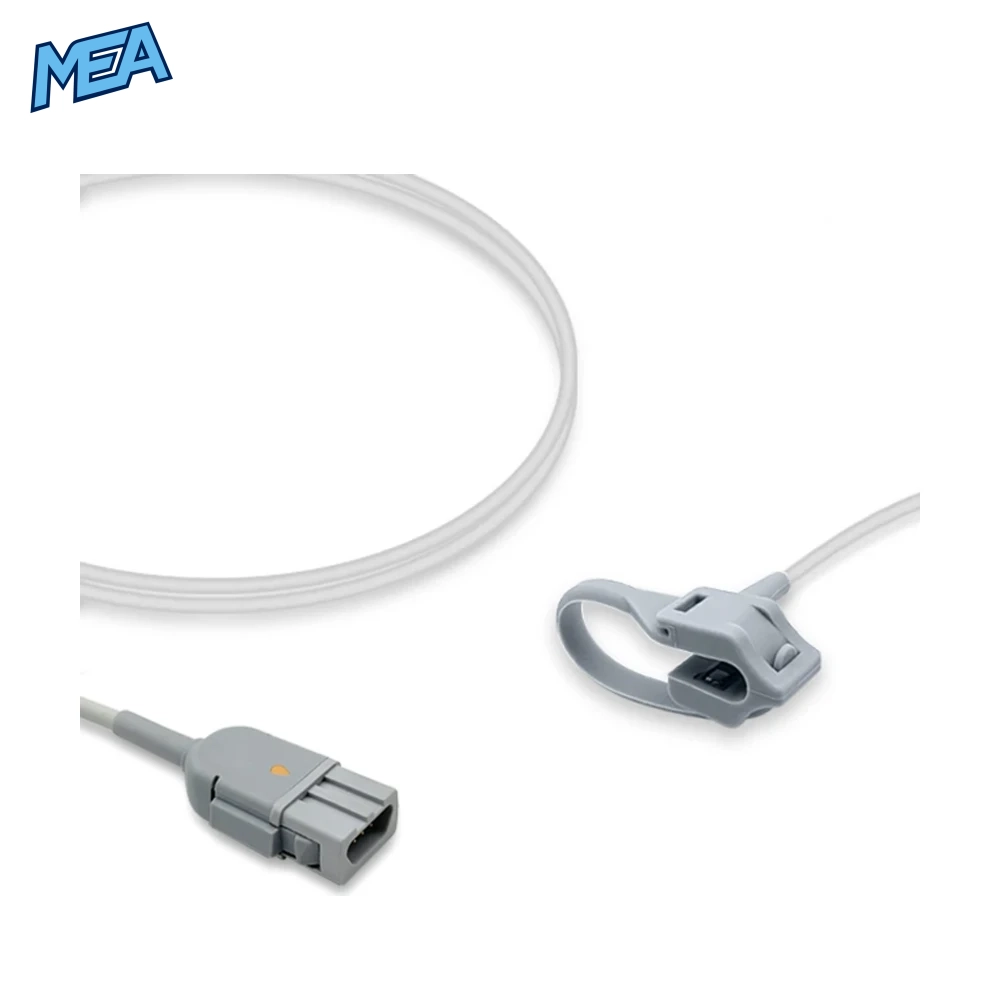

Soft Adjustable Wrap Strap
The looped strap positions the emitter and detector on opposite sides of the site and adjusts to small limbs, supporting accurate readings with minimal pressure on delicate neonatal skin.

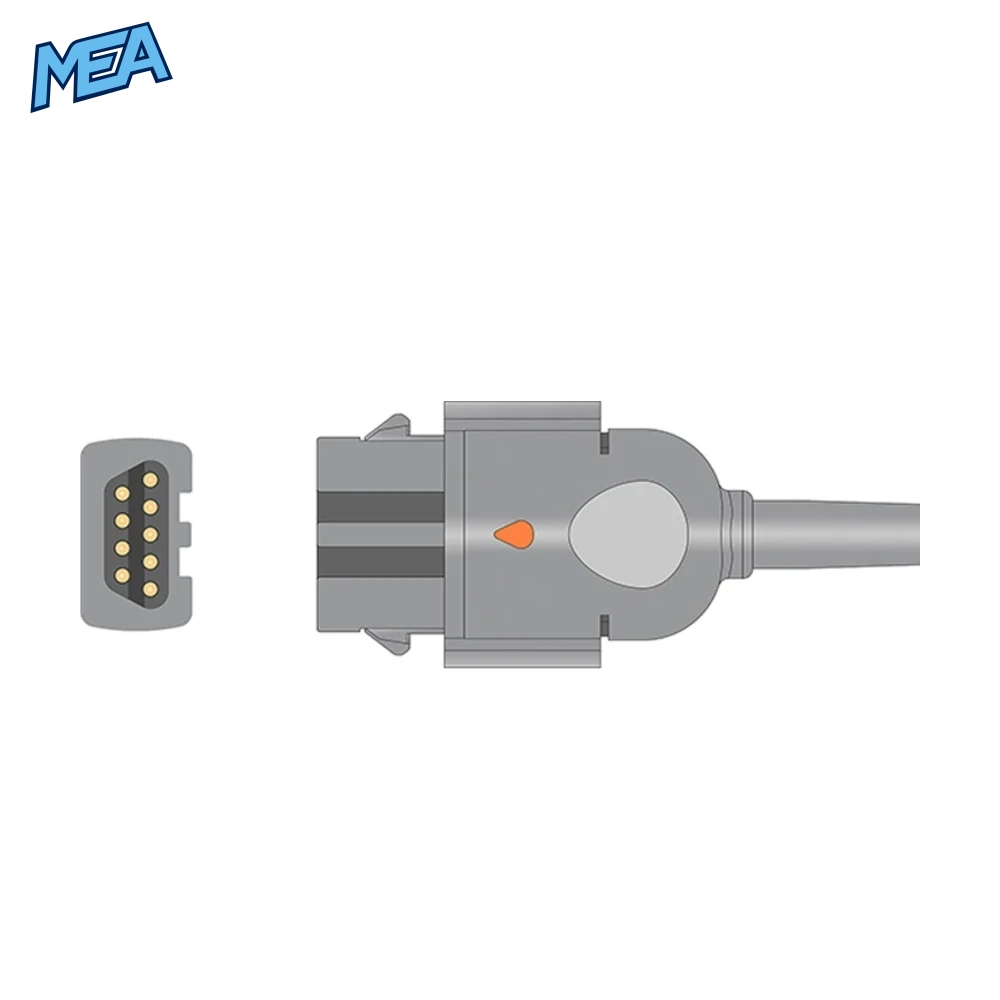

Keyed 9-Pin TruSignal Connector
A grey moulded connector with 9 gold-plated pins and side locking tabs gives a firm, repeatable connection to Datex-Ohmeda TruSat pulse oximeters.
Flexible Medical-Grade Cable
The light-grey 3.0 m cable is soft and tangle-resistant, and stands up to routine wipe-down cleaning in NICU and nursery settings.
GE TruSignal Neonate SpO2 Sensor Specifications
| Product | Neonate Wrap SpO2 Sensor |
|---|---|
| Reference Model | GE Healthcare TS-W4-MC |
| SpO2 Technology | GE TruSignal |
| Patient Size | Neonate |
| Sensor Type | Wrap |
| Cable Length | 3.0 m (9.8 ft) |
| Connector | 9-pin TruSignal connector |
| Lifecycle | Reusable |
| Package | 1 sensor per bag |
| Warranty | 12 months |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| GE Healthcare | TS-W4-MC |
| Ohmeda | OXY-W4-MC |
| Unimed | U310-60 |
Monitors This TruSignal Neonatal Sensor Works With
| Brand | Models |
|---|---|
| Datex-Ohmeda | TruSat, TruSat ED, TruSat TD |
Always confirm your monitor model and the TS-W4-MC / OXY-W4-MC reference before ordering.
Use Cases for a Reusable Neonate Wrap SpO2 Sensor
- Neonatal intensive care units (NICU) and special care nurseries
- Maternity, labour and delivery wards
- Neonatal transport and retrieval
- Paediatric wards monitoring newborn patients
- Biomedical engineering spares and replacement stock
Care and Cleaning
- Wipe the sensor, strap and cable with a mild hospital-grade disinfectant or 70% isopropyl alcohol between patients.
- Do not immerse the sensor or connector in liquid, and do not autoclave.
- Check the application site regularly and reposition the wrap as per your clinical protocol.
- Inspect before each use and replace if the strap, optical window or cable is damaged.
Frequently Asked Questions
What is the GE TS-W4-MC SpO2 sensor?
TS-W4-MC is the GE Healthcare reference for a reusable neonatal wrap TruSignal SpO2 sensor. This sensor is built to that reference, with a 3.0 m cable and 9-pin connector.
Which monitors does this neonate wrap sensor work with?
It is listed for Datex-Ohmeda TruSat, TruSat ED and TruSat TD pulse oximeters that use TruSignal technology.
Is this the same as Ohmeda OXY-W4-MC?
Yes. OXY-W4-MC is the Ohmeda cross-reference for the same neonatal wrap sensor, and Unimed U310-60 is another matching reference.
Where is a neonate wrap SpO2 sensor applied?
It is typically wrapped around a newborn’s foot or hand so the emitter and detector sit opposite each other across the site.
Is the sensor reusable?
Yes. It is designed to be cleaned and disinfected between patients.
How is it different from the TS-F4-MC sensor?
TS-F4-MC is an adult hard shell finger clip; TS-W4-MC is a neonatal wrap. Both use TruSignal technology and the same 9-pin connector.
Is the condition new?
Yes. Each sensor is supplied brand new, individually bagged, with a 12-month warranty.
