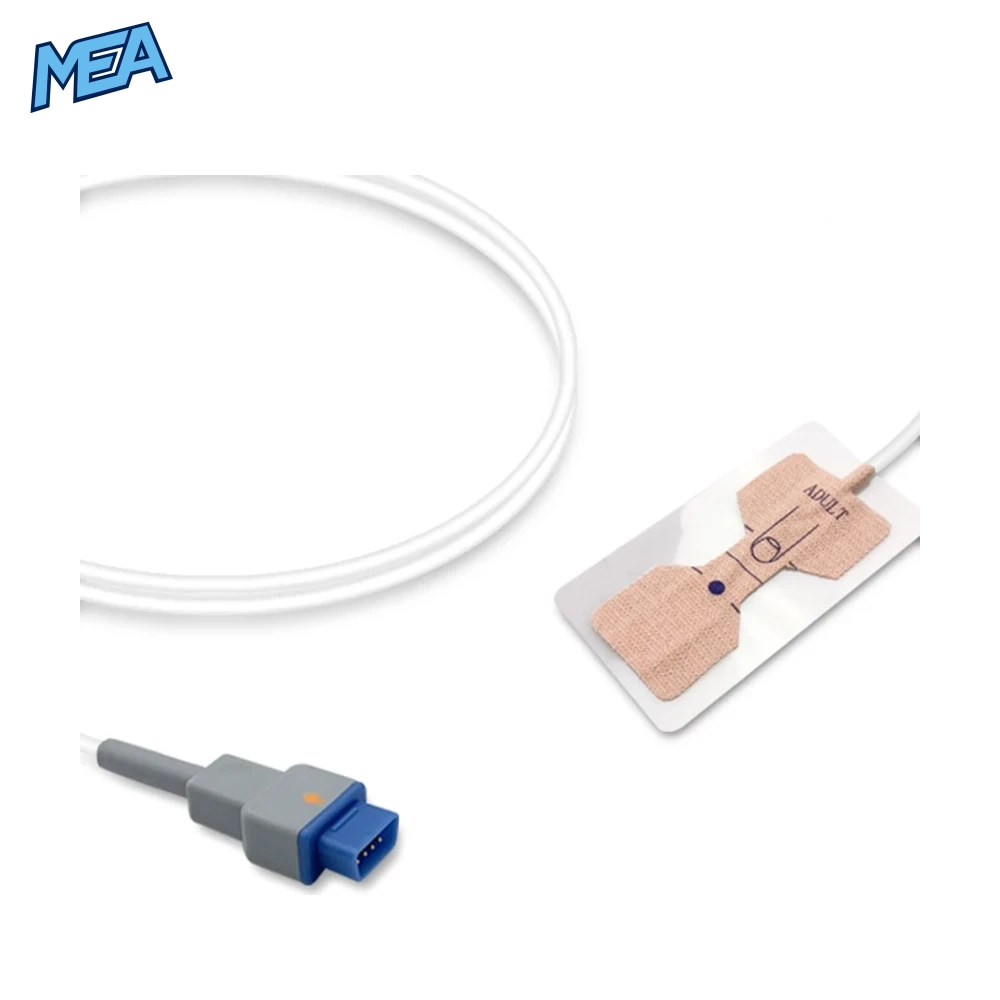

The TS-AAW-10 SpO2 sensor is a single-patient-use, adult non-woven adhesive pulse oximetry sensor built to the GE Healthcare TS-AAW-10 reference specifications for TruSignal SpO2 technology.
It has a 0.9m (approx. 3 ft) cable, a 9-pin connector and comes in a box of 24. It is made for continuous SpO2 and pulse-rate monitoring on GE Healthcare and Datex-Ohmeda monitors that use TruSignal.
Key Benefits of the TruSignal Adult Adhesive SpO2 Sensor
- Stays in place: The non-woven adhesive wrap holds the sensor on the finger, which cuts down on motion artifact and false alarms during long monitoring.
- Lower cross-contamination risk: Each sensor is used on one patient only, so reprocessing between patients is not needed.
- Accurate readings: Built to the GE TruSignal reference so SpO2 and pulse-rate readings stay consistent on TruSignal-enabled monitors.
- Comfortable for long wear: The soft, breathable non-woven material is gentle on skin during extended use.
- Good value: A box of 24 covers ICU, OR, PACU and ward use, and lowers the cost per patient.
Features of the TS-AAW-10 Disposable Pulse Oximetry Sensor
Sensor Design
- Adult non-woven adhesive (wrap-on) sensor with LED emitter and photodetector
- Latex-free, single-patient-use construction
- Printed patient-size marking on the sensor pad for fast identification
Cable and Connector
- 0.9m (approx. 3 ft) cable

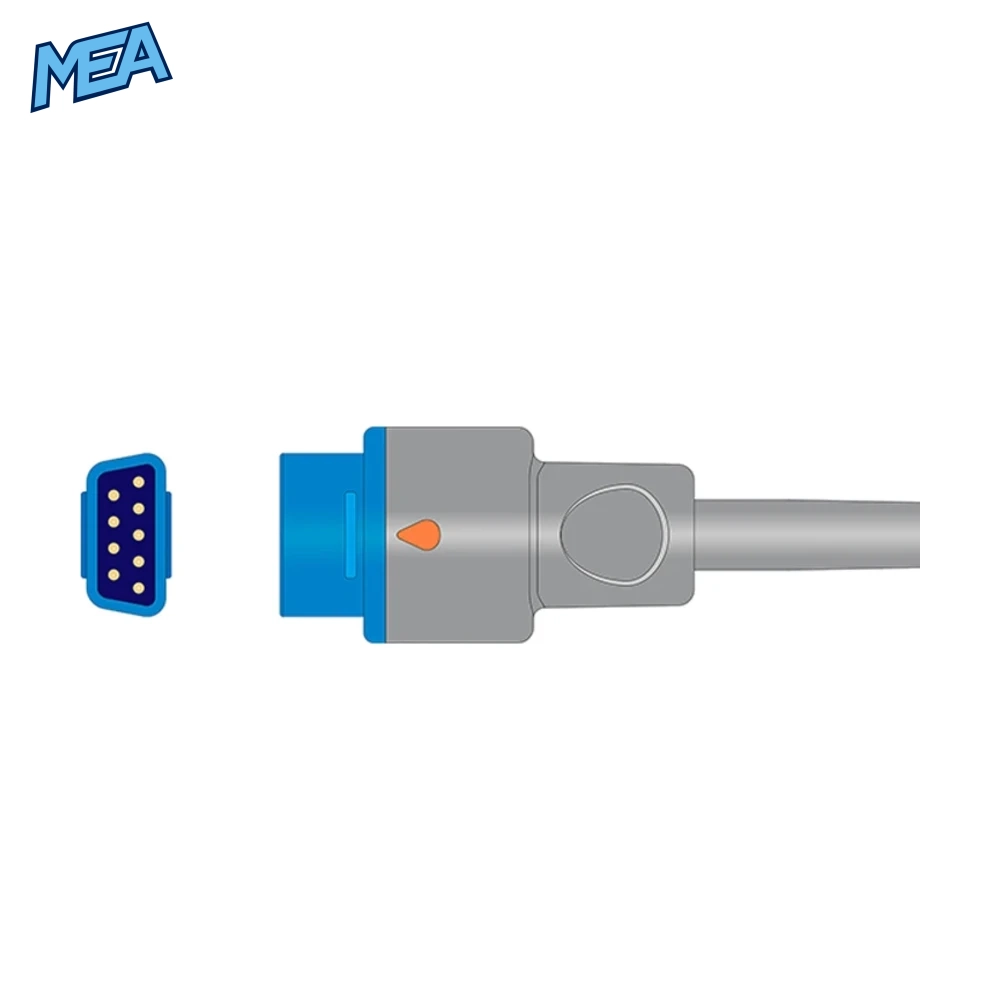

- 9-pin connector that plugs into a TruSignal SpO2 interface or extension cable
- Lightweight cable that puts less pull on the application site
TS-AAW-10 SpO2 Sensor Specifications
| Specification | Detail |
|---|---|
| Reference Number | GE Healthcare TS-AAW-10 |
| SpO2 Technology | GE TruSignal |
| Patient Size | Adult |
| Sensor Type | Non-woven adhesive |
| Lifecycle | Disposable (single patient use) |
| Cable Length | 0.9m (approx. 3 ft) |
| Connector | 9-pin |
| Unit / Packaging | 24 sensors per box |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| GE Healthcare | TS-AAW-10 |
| Datex Ohmeda | TS-AP-10, TS-AP-25, S503-1170, U503-117 |
| Unimed | U503-117 |
Monitors That Work With This TruSignal Adhesive Sensor
GE Healthcare
259, Aisys, Aisys CS2, B20, B20i, B40, CARESCAPE B650, CARESCAPE ONE, CARESCAPE V100, CARESCAPE Canvas, DINAMAP B125
Datex-Ohmeda
3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250, AS/3 with M-OSAT module, Cardiocap/5, CS/3 with M-OSAT module, E-PRESTN, i4 with E-series modules, S/5 with E-series modules, S/5 with M-OSAT module, TruSignal, TuffSat
Always confirm the connector and SpO2 technology of your monitor or extension cable before ordering.
Clinical Use Cases
- Operating room and anesthesia: Continuous SpO2 monitoring on GE Aisys and CARESCAPE systems during surgery.
- ICU and critical care: Long-term adult monitoring where a secure adhesive fit matters.
- PACU and recovery: Reliable readings as patients wake up and move around.
- Emergency department: Quick, hygienic single-use application for new admissions.
- Infection-control areas: Isolation rooms where reusable sensors are not a good fit.
How to Apply the Adult Adhesive SpO2 Sensor
- Choose a clean, dry adult fingertip (the index, middle or ring finger is best).
- Line up the emitter and detector on opposite sides of the finger, with the emitter over the nail bed.
- Wrap the adhesive tabs firmly but not too tightly so blood flow is not restricted.
- Connect the 9-pin plug to the monitor or extension cable and check that the signal is stable.
- Check the site regularly and move the sensor as your facility’s protocol requires.
Frequently Asked Questions
What is the TS-AAW-10 SpO2 sensor?
It is a disposable adult non-woven adhesive pulse oximetry sensor built to the GE Healthcare TS-AAW-10 reference for TruSignal SpO2 technology. It has a 0.9m cable and comes 24 to a box.
Which monitors does the TS-AAW-10 sensor work with?
It works with GE Healthcare and Datex-Ohmeda monitors that use TruSignal SpO2, including CARESCAPE B650, B40, B20, Aisys, DINAMAP B125, S/5 with E-series or M-OSAT modules, Cardiocap/5 and TuffSat.
Can the TS-AAW-10 sensor be reused?
No. It is a single-patient-use disposable sensor. Throw it away after use on one patient, following your facility’s clinical waste procedures.
How many sensors are in one box?
Each box contains 24 adult adhesive SpO2 sensors.
What cross-reference numbers match this sensor?
It matches GE Healthcare TS-AAW-10, Datex-Ohmeda TS-AP-10, TS-AP-25 and S503-1170, and Unimed U503-117.
Is this sensor suitable for pediatric or neonatal patients?
No. This model is sized for adults. Use a pediatric, infant or neonatal TruSignal sensor for smaller patients.
Is the sensor latex-free?
Yes. It uses latex-free, non-woven adhesive material for patient comfort and safety.
Related SpO2 Sensors
Looking for more SpO2 accessories?

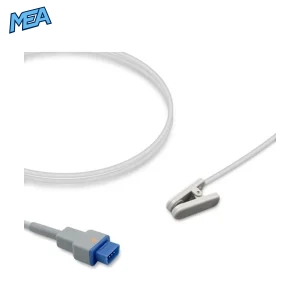

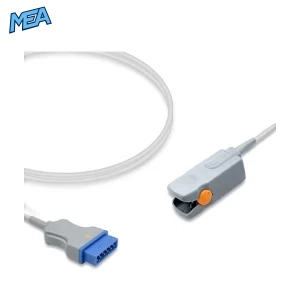

See the GE TruSignal Adult Ear Clip SpO2 Sensor 1.0m, the reusable GE TS-F-D Adult Hard Shell SpO2 Sensor, the GE OxyTip+ Adult Hard Shell SpO2 Sensor, the disposable Nellcor MAX-N Adult/Neonate Adhesive SpO2 Sensor and the Nihon Kohden Adult Non-Woven Adhesive SpO2 Sensor.
