GE OXY-SE-3 Neonate Wrap SpO2 Sensor 1.0m (OxyTip+ 8 Pin Reusable New)

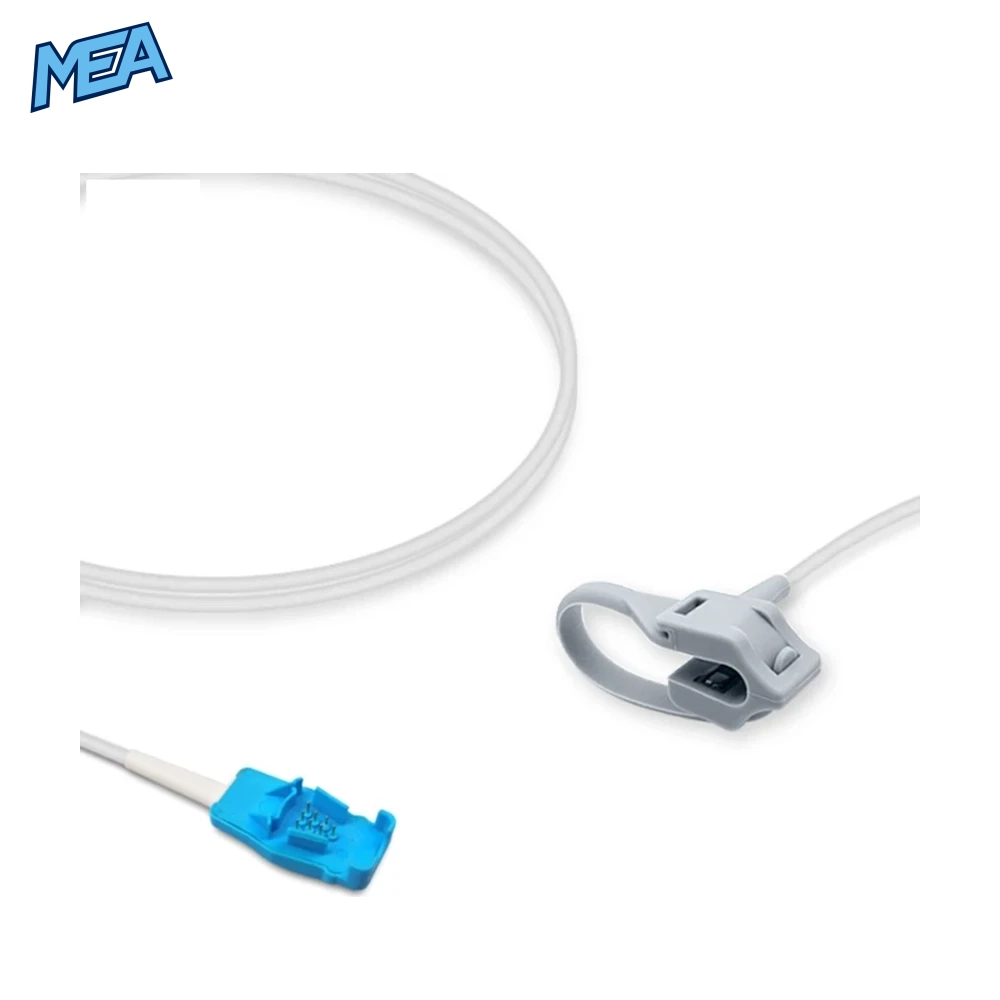

The GE OXY-SE-3 Neonate Wrap SpO2 Sensor is a new, reusable neonatal pulse oximetry sensor with a 1.0 m cable and an 8 pin connector, built to the GE Healthcare / Datex Ohmeda OXY-SE-3 reference specifications. Its soft strap wraps around a newborn’s foot or hand and works with GE OxyTip+ technology monitors to measure blood oxygen saturation (SpO2) and pulse rate.

Key Benefits of the OXY-SE-3 Neonatal Pulse Oximeter Sensor

• Made for the smallest patients: The wrap style holds the optics gently against a neonate’s foot or hand, where clip sensors are too large.
• Secure, low-pressure fit: The adjustable strap keeps the emitter and detector aligned without tight clamping on delicate skin.
• Reusable design: Wipe-clean construction lowers the cost per patient compared with single-use adhesive sensors.
• Direct fit: The 8 pin OxyTip+ connector plugs into the matching GE and Datex Ohmeda interconnect cable or monitor port.
• 12 month warranty for peace of mind.

Features

• Neonate wrap sensor style with soft, flexible strap
• GE OxyTip+ SpO2 technology
• 1.0 m (approx. 3.3 ft) flexible cable
• 8 pin connector
• Reusable, wipe-clean design

Technical Specifications

Part Number Cross-Reference

Works With These GE and Datex Ohmeda Monitors

Datex Ohmeda

• 3755, 37xx Series, 3800, 3900, 3900P, 4700, 5250, Biox 3700
• AS/3 with M-OSAT module, CS/3 with M-OSAT module, S/5 with M-OSAT module
• Cardiocap AS/3 (N-XOSAT), Cardiocap S/5, Cardiocap/5
• S/5 and i4 with E-series modules, E-PRESTN
• TruSat, TruSat TD, TruSignal, TuffSat

GE Healthcare

• Aisys, Aisys CS2
• Carescape B650, Carescape V100
• 259 Series

Always confirm your monitor’s SpO2 technology and connector before ordering.

Use Cases

• Continuous SpO2 monitoring in neonatal intensive care and special care nurseries
• Newborn observation in delivery suites and postnatal wards
• Neonatal anaesthesia, recovery and transport
• Spot checks in paediatric clinics using GE OxyTip+ monitors

Application and Care

• Wrap the sensor around the outer side of the foot or the palm so the emitter and detector sit directly opposite each other.
• Fasten the strap snugly but not tightly; circulation beyond the sensor must stay unrestricted.
• Inspect the skin and move the sensor to a new site regularly, following your facility’s protocol.
• Clean with a soft cloth and a mild disinfectant between patients. Do not soak, autoclave or immerse the connector.

Frequently Asked Questions

What is the GE OXY-SE-3 neonate wrap SpO2 sensor used for?

It measures blood oxygen saturation and pulse rate on newborn patients, wrapping around the foot or hand, on GE Healthcare and Datex Ohmeda monitors that use OxyTip+ technology.

Which monitors does the OXY-SE-3 neonatal sensor work with?

It works with Datex Ohmeda 3800, 3900, 3900P, TruSat, TuffSat, Cardiocap/5 and S/5 systems, plus GE Aisys, Aisys CS2, Carescape B650 and Carescape V100, among the models listed above.

How long is the cable and what connector does it have?

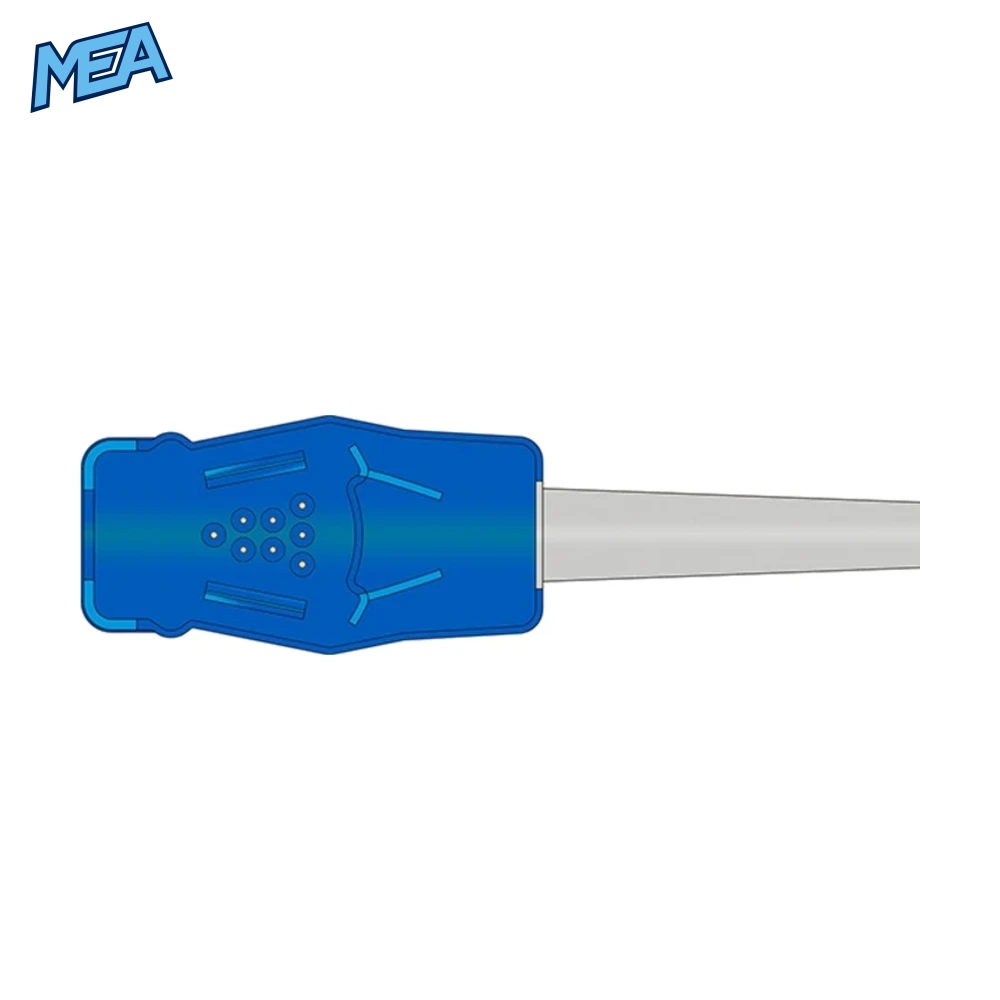

The cable is 1.0 metre (about 3.3 feet) long and ends in an 8 pin OxyTip+ connector.

Where do you place a neonate wrap SpO2 sensor?

It is usually wrapped around the outer side of the foot or across the palm of the hand, with the light emitter and detector aligned opposite each other.

Can this neonatal SpO2 sensor be reused?

Yes. It is a reusable sensor that can be wiped clean and disinfected between patients.

Related SpO2 Sensors

Need a different style?

See the GE TruSignal TS-SE-3 Neonate Wrap SpO2 Sensor 1.0m, the Datex Ohmeda OXY-W4-N Neonate Wrap SpO2 Sensor 3.0m, the GE OxyTip+ Adult Hard Shell SpO2 Sensor 1.0m, the GE OxyTip+ Adult Soft Tip SpO2 Sensor 1.0m or the GE OXY-AP Pediatric Adhesive SpO2 Sensor.
