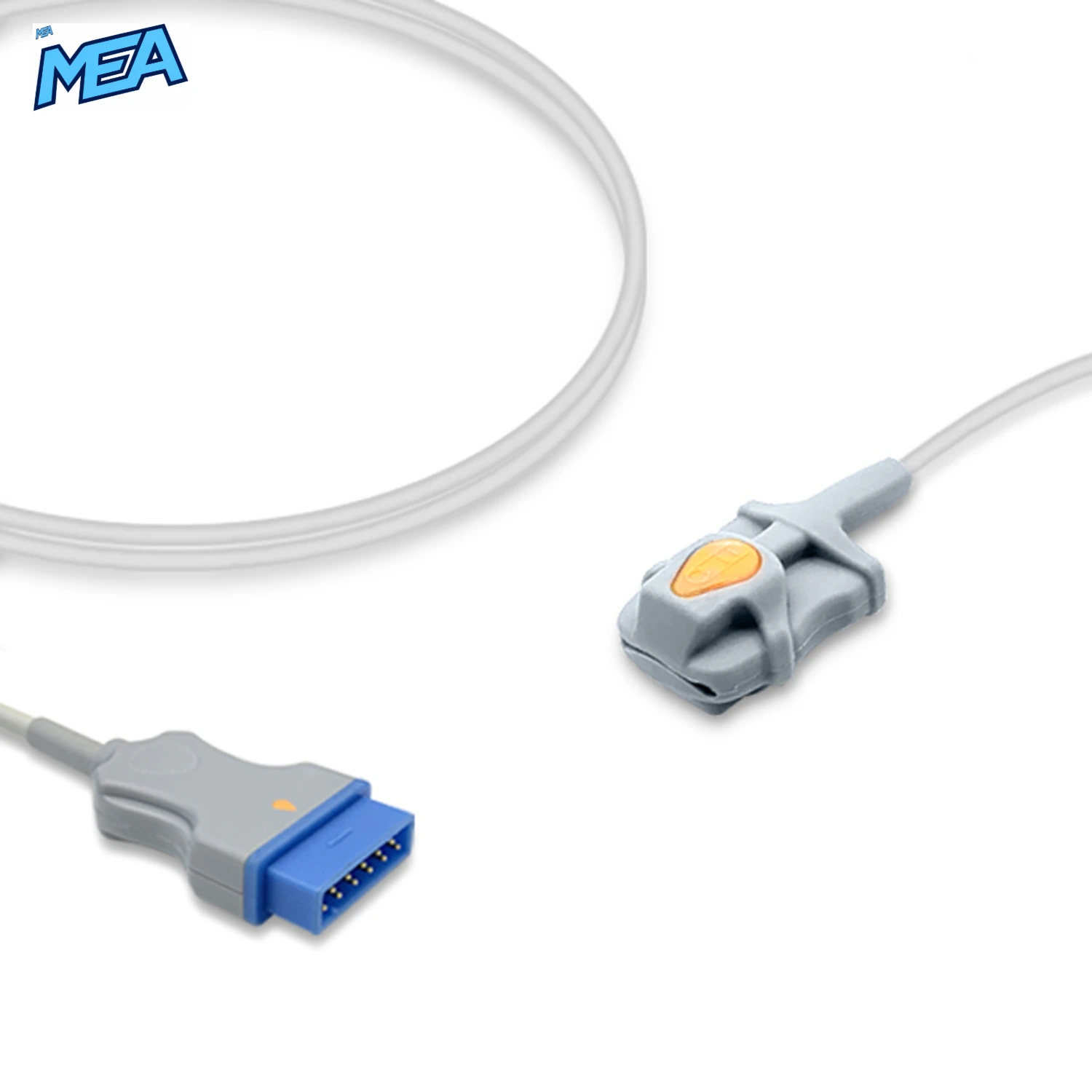

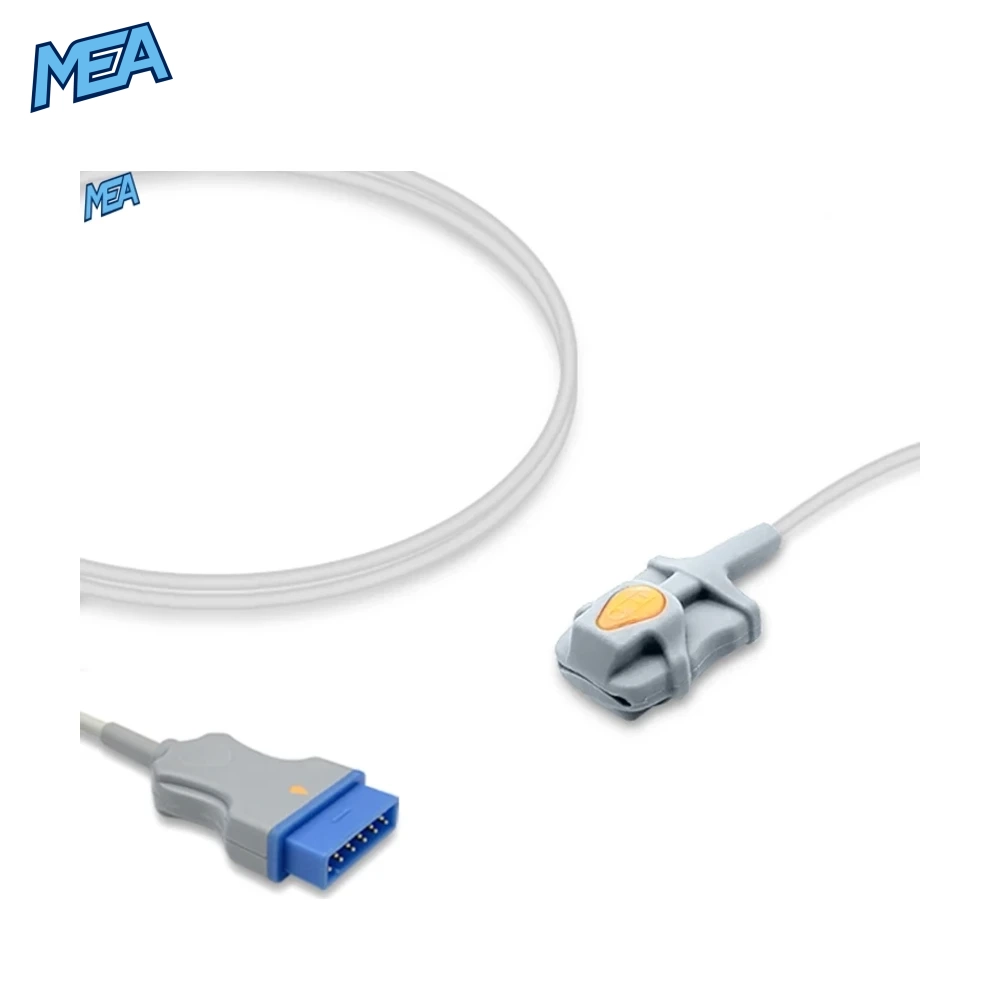

GE Healthcare Pediatric Soft Tip SpO2 Sensor 3.0m (Masimo SET Technology 11-Pin Reusable New)

The GE Healthcare Pediatric Soft Tip SpO2 Sensor 3.0m is a new, reusable pulse oximetry finger sensor with a flexible silicone soft tip sized for pediatric patients. It has a 3.0 metre cable and an 11-pin connector, and it works with GE Healthcare, Marquette, Datascope and Bitmos patient monitors that use Masimo SET SpO2 technology. Part number: SS-015RB-PS30.

Key Benefits of This Pediatric SpO2 Finger Sensor

• Gentle on small fingers: The one-piece silicone soft tip holds its position without the spring pressure of a clip sensor, which suits longer monitoring sessions on children.
• Reusable design: Wipe clean between patients and use again, lowering the cost per use compared with single-use adhesive sensors.
• Long 3.0m cable: Connects directly to the monitor with room to position the patient comfortably, with no extension cable required on supported monitors.
• Masimo SET technology match: Built to the Masimo SET reference specifications used by the supported GE Healthcare monitor configurations.
• Supplied new: Covered by a 6-month warranty.

Features

• Pediatric size silicone soft tip finger sensor
• 3.0m (approx. 9.8 ft) one-piece cable
• 11-pin monitor connector
• SpO2 technology: Masimo SET
• Reusable sensor with a smooth surface that is easy to wipe down

Technical Specifications

Cross-Reference Part Numbers

Works With These Patient Monitors

This pediatric soft tip SpO2 sensor is intended for monitors fitted with Masimo SET SpO2 technology. Please confirm the SpO2 technology and connector of your monitor before ordering.

• GE Healthcare: 128, 250, 250cx, 259, 259 Fetal Monitor, B125, B40, Carescape B450, Carescape B650, Carescape B850, Carescape V100, Carescape V100 with Masimo technology, Dash Series, Dinamap ProCare with Masimo, Pro 1000, Pro 300V2, ProCare 300, ProCare Auscultatory 400, ProSeries V2, SOLAR Series, TRAM 450SL, V300
• Marquette: 8000, Eagle 1000, CardioLab, Dash 2000, Dash 2500, Dash 3000, Dash 4000, Dash 5000, Eagle, i/9500 (Tram 451N5/851N5), MAC-Lab, PDM Module, Procare B40, Smk SMV, SOLAR, Solar 7000, Solar 8000, Solar 8000M, Tram 451, TRAM Modular, x50SL Series
• Datascope: Accutor V, Accutorr 3, Accutorr 7, Accutorr Plus, DPM4, DPM6, DPM7, EPM4, MEC 12, MPM, Passport 2LT, Passport XG, PM 6800, T8, V12, V21, VS 800
• Bitmos: sat 800, sat 801, sat 805, sat 816, satPuls

Use Cases

• Continuous SpO2 and pulse rate monitoring of pediatric patients in wards, emergency and recovery areas
• Spot-check oxygen saturation readings in clinics and outpatient departments
• Replacement of a worn or damaged pediatric finger sensor on a GE Healthcare Masimo SET monitor
• Spare sensor stock for biomedical engineering and clinical equipment teams

Application and Care

• Slide the soft tip over a clean, dry finger so the emitter and detector sit opposite each other across the nail bed.
• Route the cable along the hand and check the site regularly, moving the sensor to another finger during long monitoring periods.
• Clean between patients by wiping with a soft cloth and 70% isopropyl alcohol. Do not autoclave or immerse the connector.
• Inspect the cable and sensor pad before each use and replace the sensor if damage is visible.

Frequently Asked Questions

Which SpO2 technology does this pediatric sensor use?

It is built for Masimo SET SpO2 technology. It will not read correctly on a GE Healthcare monitor configured for Nellcor OxiMax, Nellcor Oxismart or GE TruSignal technology.

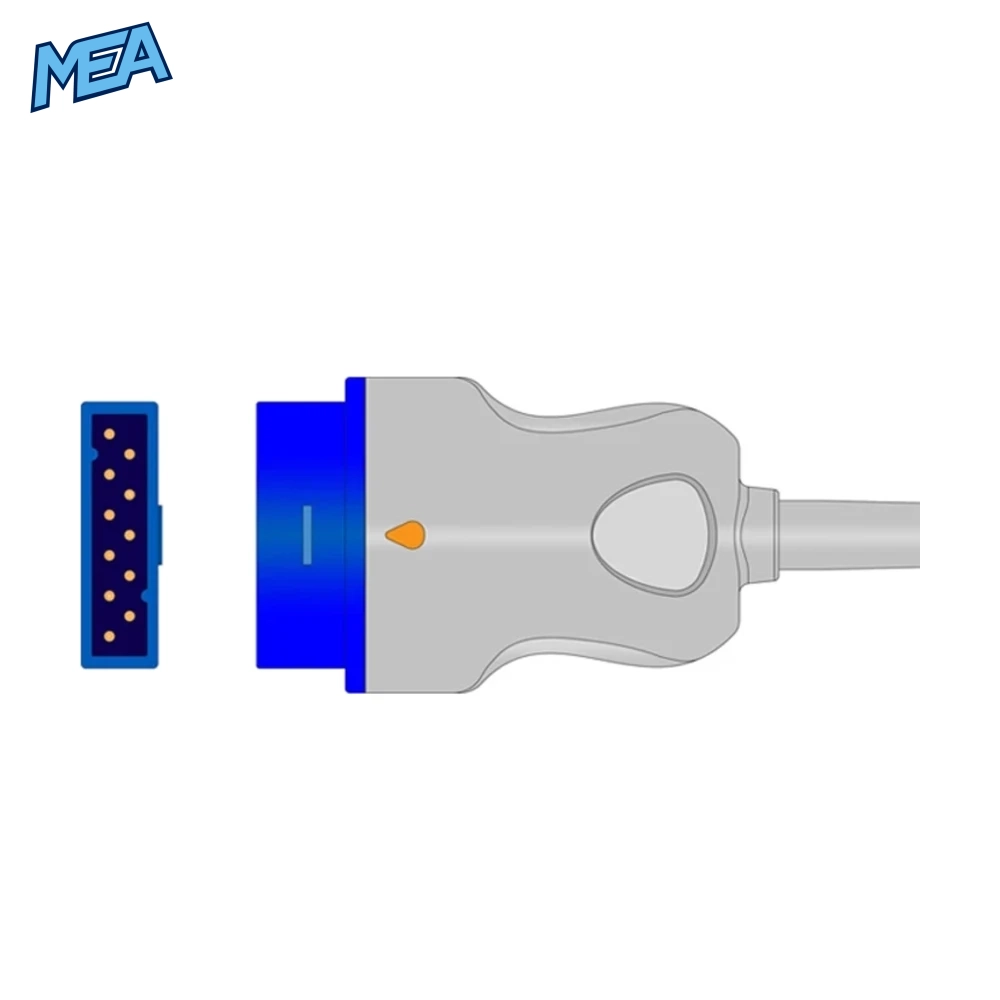

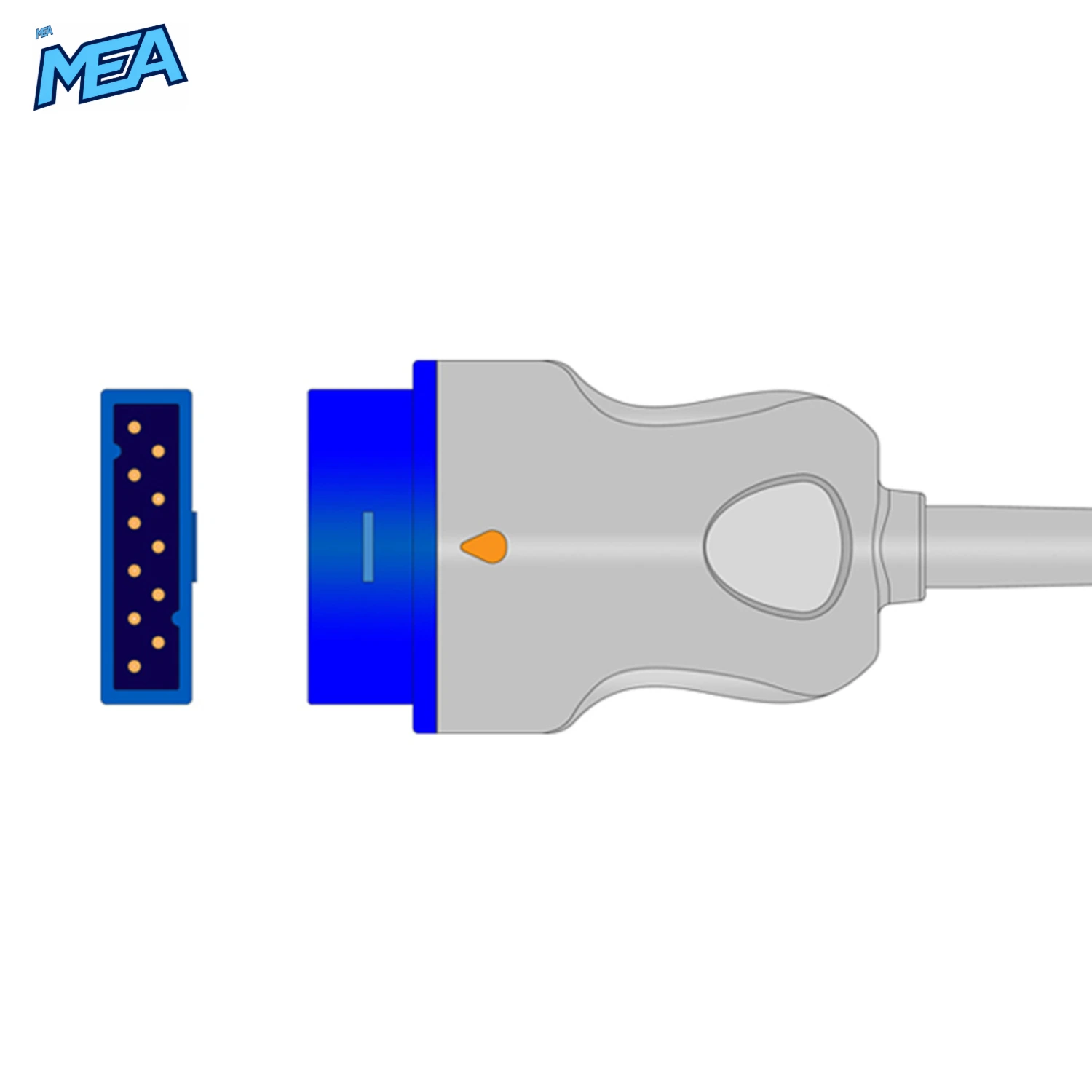

What connector does the sensor have?

The sensor ends in an 11-pin connector that plugs into the SpO2 port of supported GE Healthcare, Marquette, Datascope and Bitmos monitors.

How long is the cable?

The cable is 3.0 metres (about 9.8 feet) long.

Is this SpO2 sensor reusable?

Yes. It is a reusable sensor that can be wiped clean and used on multiple patients.

Is the sensor new or refurbished?

It is supplied new and includes a 6-month warranty.

What is the difference between a soft tip and a hard shell SpO2 sensor?

A soft tip sensor is a flexible silicone sleeve that slips over the finger, while a hard shell sensor is a spring-loaded clip. Soft tip sensors are often chosen for children and for longer monitoring periods because they apply less pressure.
