Philips M1193A Neonate Wrap SpO2 Sensor 2.0m (FAST 8 Pin Reusable New)

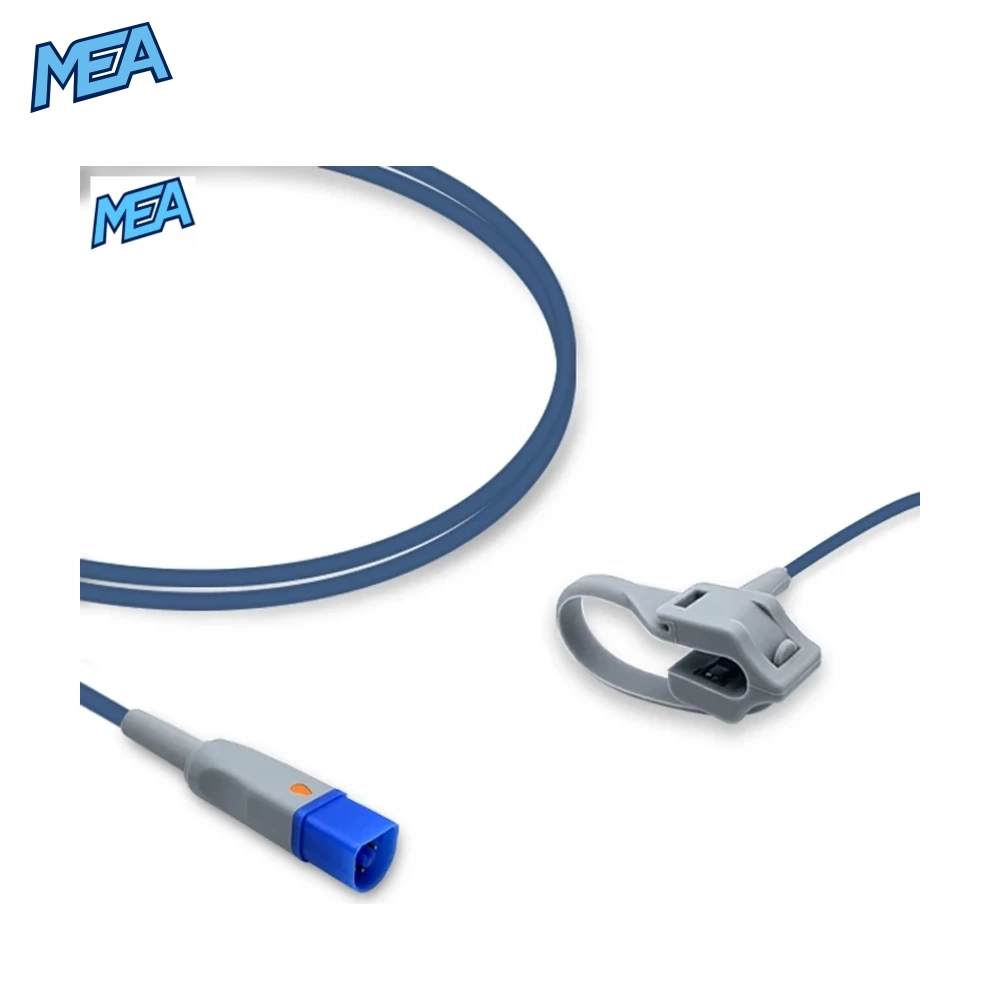

The Philips M1193A neonate wrap SpO2 sensor is a reusable pulse oximetry sensor with a 2.0m cable and an 8-pin connector, built to the Philips M1193A reference specifications. It measures blood oxygen saturation (SpO2) and pulse rate in neonatal patients on patient monitors that use Philips FAST SpO2 technology, including IntelliVue, SureSigns, HeartStart and Avalon systems.

Key Benefits of This Neonatal Wrap SpO2 Sensor

• Sized for neonates: A soft wrap-style sensor that secures around a small hand or foot instead of clipping onto a finger.
• Reusable design: Can be cleaned and used again between patients, lowering the cost per use compared with single-use sensors.

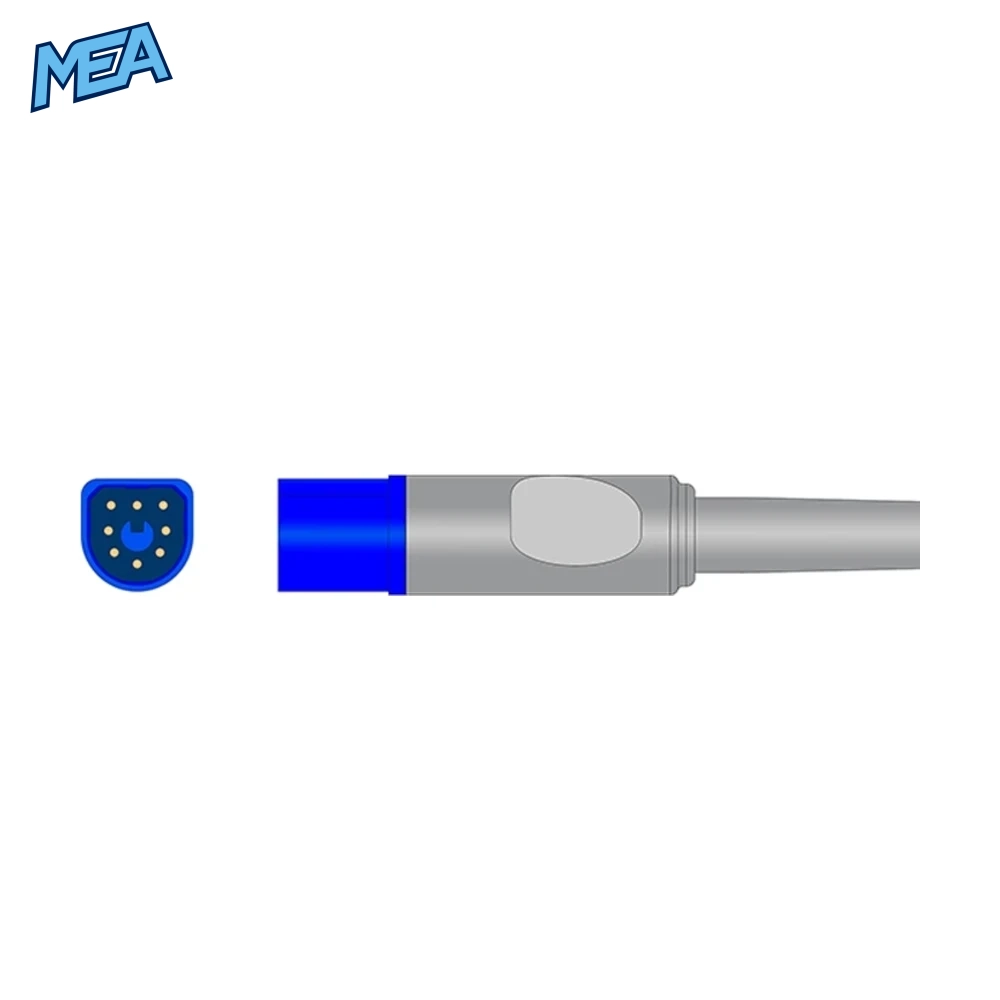

• Direct connection: The 8-pin plug fits the SpO2 input of Philips FAST monitors and matching SpO2 extension cables.
• Practical 2.0m cable: Enough reach between cot or incubator and the monitor without excess slack.
• Peace of mind:

Features

• Patient size: Neonate
• Sensor style: Wrap
• SpO2 technology: Philips FAST
• Connector: 8-pin
• Cable length: 2.0m (about 6.6 ft)
• Lifecycle: Reusable
• Pack size: 1 piece per bag

Philips M1193A SpO2 Sensor Specifications

Part Number Cross-Reference

Works With These Patient Monitors

Philips

• IntelliVue: MP20, MP20 Junior, MP30, MP40, MP50, MP60, MP70, MP80, MP90, MP5SC, MP5T, MP2 (M8102A), MP5 (M8105A), MX100, MX400, MX430, MX450, MX500, MX550, MX600, MX700, MX800, X2 (M3002A), X3, XG50, TRx (M4841A, 4851A)
• SureSigns: VM1, VM4, VM6, VM8, VS2, VS2+, VS3, VS4, VSi
• HeartStart defibrillators: MRx, MPx, XL, XLT, HeartStart 4000, Heartstream XL, Codemaster 100
• Avalon fetal monitors: FM20, FM30, FM40, FM50
• Modules and earlier systems: M1020A, M1020B, M1350A, M1350C, M3000A, M3001A, M3046A (M3, M4), M3500B, M3535A, M3536A, M4735A, M8001A to M8010A, C1, C3, Viridia 24C, Agilent Series 50XM

Other Brands

• Goldway G40
• Mindray V12
• Solaris NT2A, NT2C

Please confirm your monitor model and SpO2 connector before ordering.

Use Cases

• Neonatal intensive care (NICU) and special care nurseries
• Maternity and postnatal wards
• Operating theatres and recovery areas treating newborns
• Neonatal transport and emergency care
• Biomedical departments keeping spare sensors for Philips FAST monitors

Application and Care

• Wrap the sensor around the application site so the light emitter and detector sit opposite each other, snug but not tight.
• Check the site regularly and reposition the sensor as directed by your clinical protocol.
• Clean and disinfect the sensor between patients following your facility protocol; do not immerse the connector or autoclave the sensor.
• Inspect the cable and sensor for damage before each use.

Frequently Asked Questions

What is the Philips M1193A neonate wrap SpO2 sensor used for?

It is a reusable wrap sensor that measures blood oxygen saturation and pulse rate in neonatal patients on monitors using Philips FAST SpO2 technology.

Which monitors does this M1193A SpO2 sensor work with?

It works with Philips IntelliVue MP and MX series, SureSigns VM and VS series, HeartStart MRx and XL, and Avalon FM20 to FM50 monitors, plus Goldway G40, Mindray V12 and Solaris NT2A/NT2C.

How long is the cable and what connector does it have?

The cable is 2.0m (about 6.6 ft) long and ends in an 8-pin connector that plugs into the SpO2 input or an SpO2 extension cable.

Is this neonatal SpO2 sensor reusable?

Yes. It is a reusable sensor that can be cleaned and disinfected between patients according to your facility protocol.

Why use a wrap sensor for neonates?

A newborn’s fingers are too small for a finger clip. A wrap sensor secures gently around a small hand or foot, keeping the optics aligned for a stable reading.

Is this sensor new and certified?

Yes.
