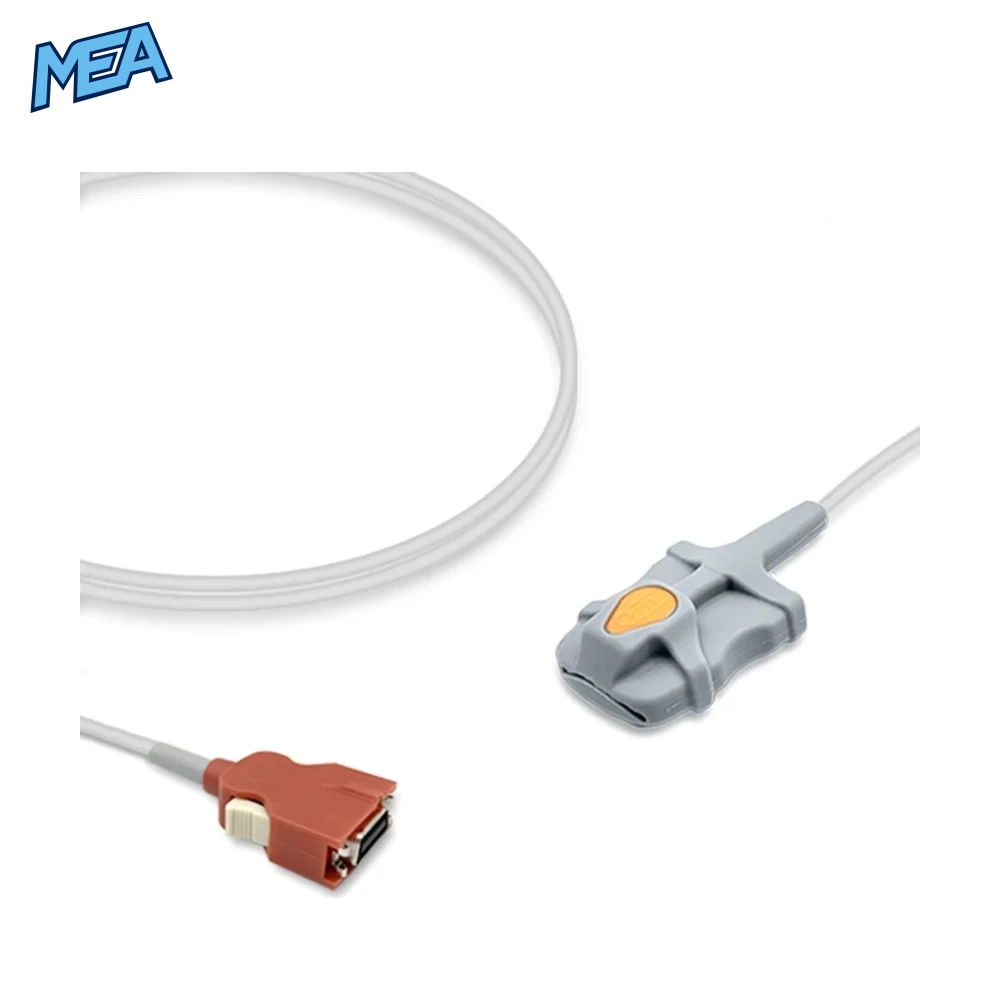

The Masimo 2644 DBI-DC12 SpO2 sensor is a reusable adult soft tip pulse oximetry sensor with a 3.6 m (approx. 11.8 ft) cable and a red 20-pin Rainbow connector. It is built to the Masimo 2644 (Red DBI-DC12) reference specifications and works with Masimo Rainbow monitors such as the Radical-7, Rad-97, Rad-57 and Pronto, plus the Zoll X Series, Physio-Control Lifepak 15 and Comen K12 Pro, for continuous SpO2 and pulse rate monitoring.
Why Choose This Adult Soft Tip Rainbow SpO2 Sensor
- Soft, flexible finger tip gentle, even pressure for comfortable monitoring over long periods.
- Extra-long 3.6 m cable more reach from bedside to monitor, ideal for ICU, theatre and transport.
- Rainbow 20-pin red connector direct connection to Masimo Rainbow-platform devices and patient cables.
- Reusable design lower cost per patient compared with single-use sensors.
- Quality backed
Key Features of the DBI-DC12 Reusable SpO2 Sensor
Soft Tip Finger Sensor for Adults
The flexible soft tip wraps the finger without a rigid clip, reducing pressure points and helping to lower motion artefact in awake or restless adult patients.
Long Cable for Flexible Positioning
A 3.6 m lead lets clinicians position the monitor away from the bed, reducing cable strain and making patient repositioning easier.
Masimo Rainbow Connector

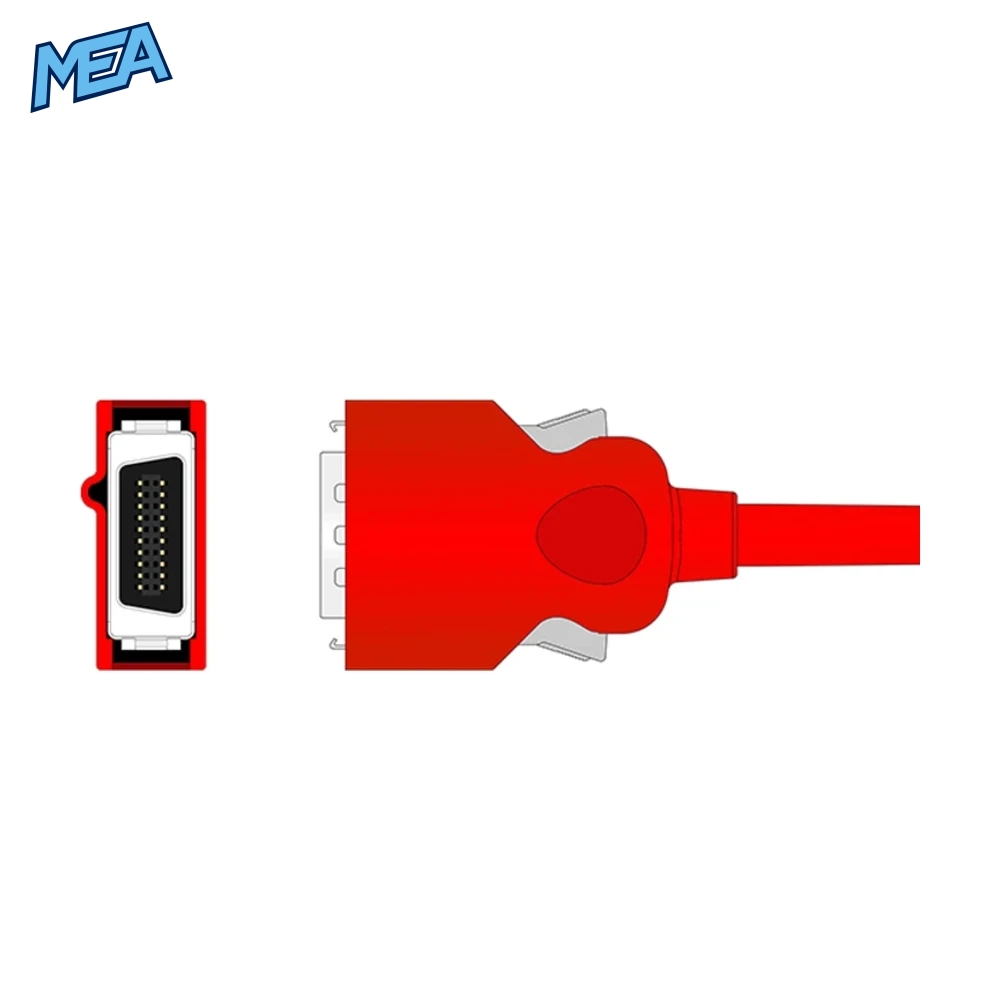

The red DCI-style 20-pin plug matches the Masimo Rainbow interface used on Radical-7, Rad-97 and Rad-57 devices.
Masimo 2644 SpO2 Sensor Specifications
| Specification | Detail |
|---|---|
| Product Name | Adult Soft Tip SpO2 Sensor 3.6m |
| Reference Part Number | Masimo 2644 (Red DBI-DC12) |
| Patient Size | Adult |
| Sensor Type | Soft Tip (finger) |
| SpO2 Technology | Masimo Rainbow |
| Connector | Red 20-pin Rainbow connector |
| Cable Length | 3.6 m (approx. 11.8 ft) |
| Lifecycle | Reusable |
| Unit | 1 pc per bag |
| Warranty | 12 Months |
| Condition | New |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| Masimo | 2644 (Red DBI-DC12) |
| Unimed | U411S-87 |
Monitors That Work With This SpO2 Sensor
- Masimo: Pronto, Pronto 7, Pronto with Next Generation SpHb, Rad 5, Rad 5v, Rad 8, Rad-8, Rad 57, Rad 57c, Rad 57cm, Rad 57m, Rad 87, Rad 97, Rad 97 NIBP, Rad 97 with NomoLine Capnography, Radical 7, Radical-7, Radical (20 pin)
- Zoll: X Series
- Physio-Control: Lifepak 15
- Comen: K12 Pro
Always confirm your monitor model and connector before ordering.
Clinical Use Cases
- Intensive care units and high-dependency wards
- Operating theatres and post-anaesthesia recovery
- Emergency departments and EMS/defibrillator monitoring (Zoll X Series, Lifepak 15)
- Spot-check and continuous monitoring with Masimo Pronto and Rad-series devices
Care and Maintenance
- Wipe the sensor and cable with a soft cloth dampened with 70% isopropyl alcohol; allow to dry before use.
- Do not immerse, autoclave or sterilise with steam.
- Avoid sharp bends or pulling on the cable; hold the connector when disconnecting.
- Inspect before each use and replace if the cable or tip is damaged.
Frequently Asked Questions
What is the Masimo 2644 DBI-DC12 SpO2 sensor?
It is a reusable adult soft tip finger sensor with a 3.6 m cable and red 20-pin Rainbow connector, built to the Masimo 2644 (Red DBI-DC12) reference for SpO2 and pulse rate monitoring.
Which monitors does this SpO2 sensor work with?
It works with Masimo Radical-7, Rad-97, Rad-57, Rad-87, Rad-8, Rad-5 and Pronto devices, the Zoll X Series, Physio-Control Lifepak 15 and Comen K12 Pro.
How is DBI-DC12 different from DBI-DC8?
Both share the same Masimo Rainbow soft tip design; the DC12 version has the longer 3.6 m (approx. 12 ft) cable, while the DC8 version has a shorter cable.
Is this sensor reusable?
Yes. It is designed for repeated use on multiple adult patients when cleaned between uses.
Is the sensor new?
Yes, every unit is supplied brand new, individually bagged, with a 12-month warranty.
Related SpO2 Sensors
Explore more sensors for Masimo monitors: Masimo 2054 Adult Hard Shell SpO2 Sensor 3.6m (Rainbow), Masimo DBI-DC8 Adult Soft Tip SpO2 Sensor 3.0m, Masimo 2652 Adult Soft Tip SpO2 Sensor 3.0m, Masimo 2053 Adult Hard Shell SpO2 Sensor 1.0m and Masimo 1396 DCSC Adult Hard Shell SpO2 Sensor 1.0m.
