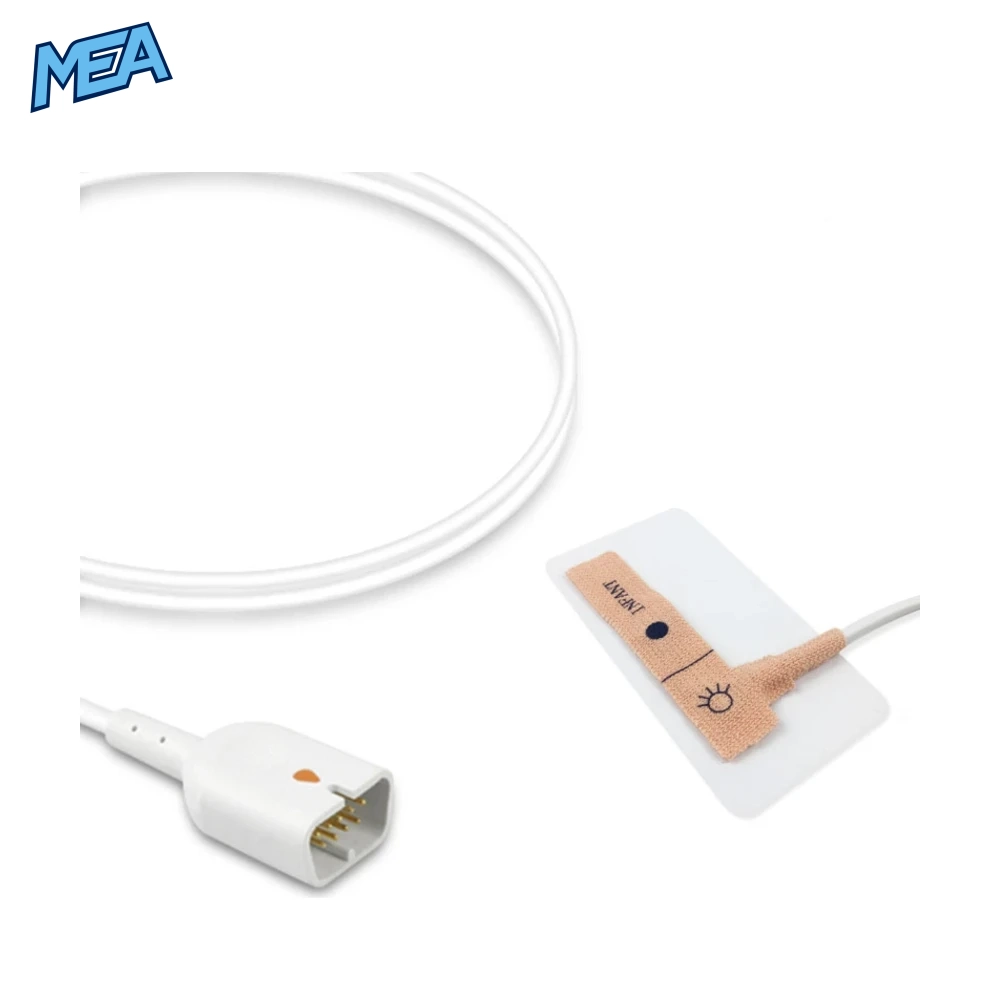

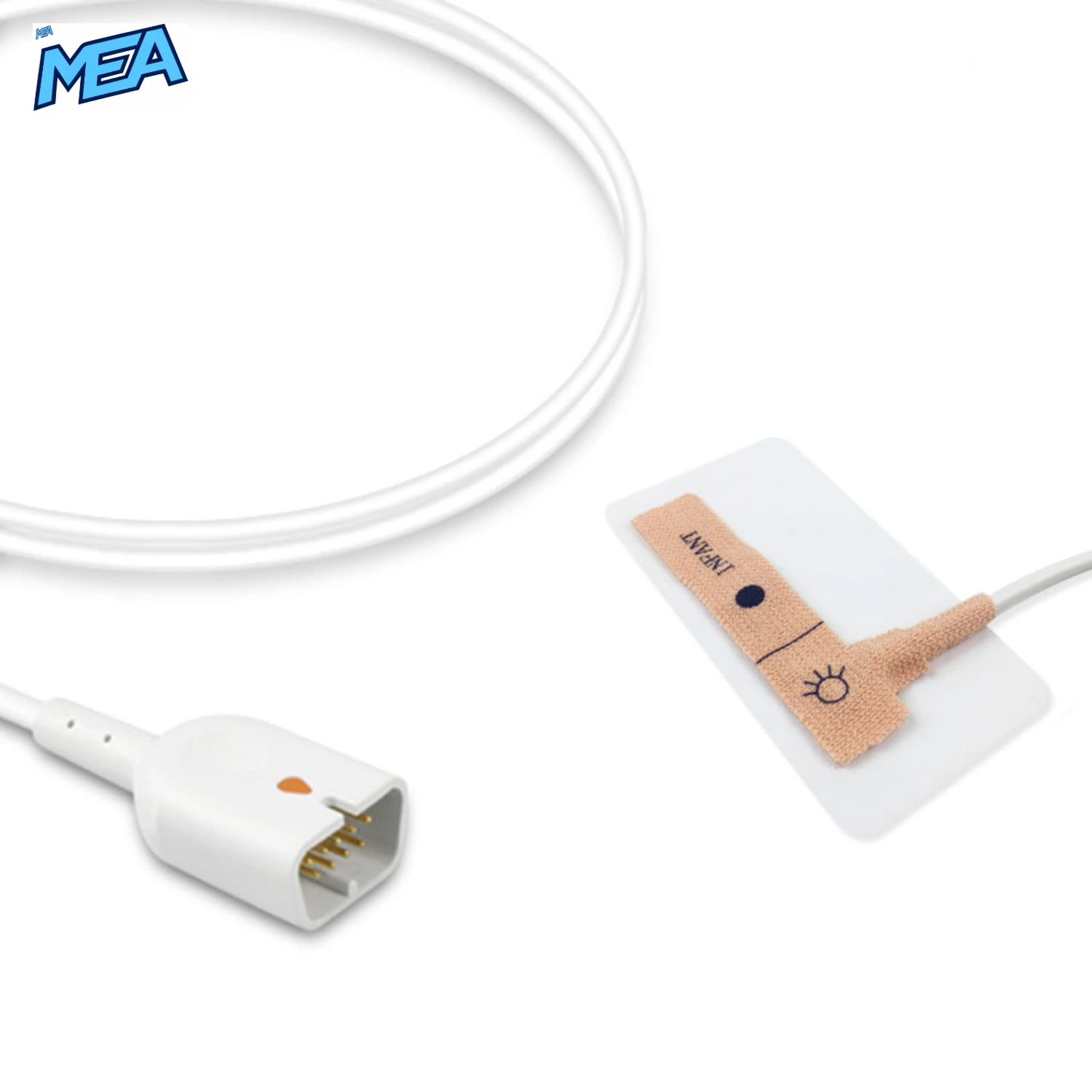

The Nihon Kohden TL-274T Infant SpO2 Sensor is a disposable, non-woven adhesive pulse oximetry sensor with a 0.9m cable and 9-pin connector, built to the Nihon Kohden TL-274T reference specifications. It measures oxygen saturation (SpO2) and pulse rate in infant patients and works with Nihon Kohden Life Scope and BSM series patient monitors. Supplied new in a box of 24 sensors.
Note: this sensor is built to the Nihon Kohden TL-274T reference specifications.
Key Benefits of This Infant Adhesive SpO2 Sensor
- Sized for infants: A small adhesive wrap designed specifically for infant application sites.
- Gentle non-woven material: Soft, breathable fabric tape conforms to small digits and feet.
- Disposable hygiene: Disposable design supports infection-control protocols by removing the need to reprocess sensors between patients.
- Direct connection: 9-pin plug built to the Nihon Kohden SpO2 interface specification.
- Value pack: 24 sensors per box for NICU, paediatric ward and theatre stock.
Features
- Infant patient size, clearly marked “INFANT” on the sensor tape
- Non-woven adhesive wrap sensor style
- 0.9m (approx. 3 ft) cable length

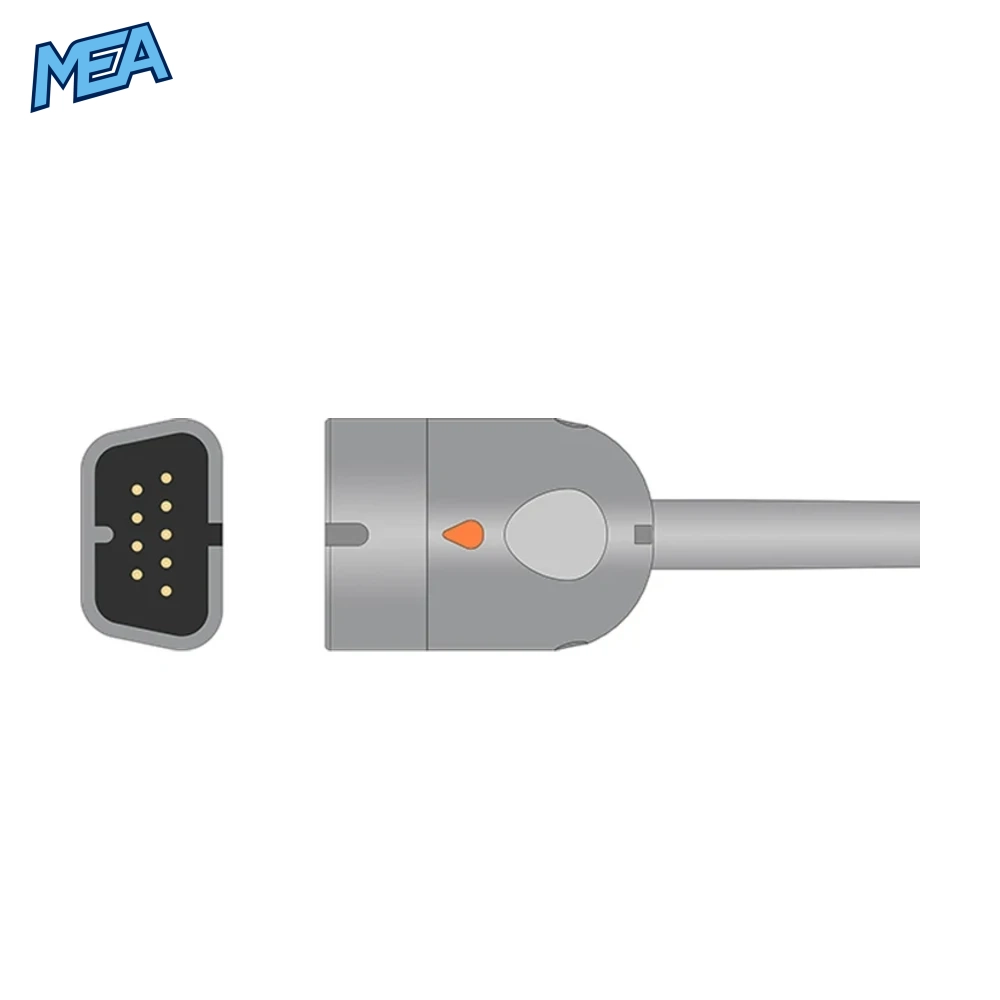

- 9-pin monitor connector
- Nihon Kohden SpO2 technology
- Emitter and detector alignment markings printed on the tape
Technical Specifications
| Specification | Detail |
|---|---|
| Reference Model | Nihon Kohden TL-274T (0.9m) |
| Product Type | SpO2 sensor (pulse oximetry) |
| Patient Size | Infant |
| Sensor Type | Non-woven adhesive |
| Lifecycle | Disposable |
| Cable Length | 0.9m |
| Connector | 9-pin |
| SpO2 Technology | Nihon Kohden |
| Pack Quantity | 24 pcs per box |
| Condition | New |
Part Number Cross-Reference
| Brand | Reference Number |
|---|---|
| Nihon Kohden | TL-274T (0.9m), TL-274T3, P203D, P203H |
| Envitec | DI-2203-5, DI-2203-5S |
| Unimed | U533-16 |
Works With These Patient Monitors
Nihon Kohden
- Life Scope I (BSM-2300, BSM-2301, BSM-230K, 2303, 2303K)
- Life Scope L (BSM-2350, BSM-2351, 2353)
- Life Scope P (BSM-4100, BSM-4101, 4111, 4113)
- Life Scope A (BSM-5100, BSM-5105, 5135)
- BSM-3500
- BSM-6000 series (BSM-6301K, BSM-6501K, BSM-6701K)
- Life Scope M (BSM-9510), Life Scope S (BSM-9800), Life Scope TR
- MSM-2301K
- Oxipal P225F
Hamilton
- G5, S1
Always confirm your monitor’s SpO2 connector and technology before ordering.
Use Cases
- Continuous SpO2 monitoring of infants in NICU, PICU and paediatric wards
- Operating theatre and recovery monitoring
- Emergency departments and patient transport
- Biomedical engineering departments restocking disposable sensors for Nihon Kohden monitors
Application and Care
- Apply to clean, dry skin and align the emitter and detector markings opposite each other.
- Wrap the tape snugly without restricting circulation.
- Inspect the application site regularly in line with your facility protocol and reposition as needed.
- Do not clean, sterilise or reprocess; dispose of the sensor after use.
Frequently Asked Questions
What is the Nihon Kohden TL-274T infant SpO2 sensor used for?
It is a disposable adhesive pulse oximetry sensor used to measure oxygen saturation and pulse rate in infants on Nihon Kohden patient monitors.
How many sensors come in one box?
Each box contains 24 disposable infant sensors.
How long is the cable?
The cable is 0.9 metres long and ends in a 9-pin connector.
Which monitors does it work with?
It works with Nihon Kohden Life Scope and BSM series monitors, including BSM-2300, BSM-4100, BSM-5100 and the BSM-6000 series, plus Hamilton G5 and S1.
Can this sensor be reused?
No. It is a disposable sensor and should not be cleaned or reprocessed.
Which part numbers does it cross-reference?
Nihon Kohden TL-274T, TL-274T3, P203D and P203H, Envitec DI-2203-5 and DI-2203-5S, and Unimed U533-16.
