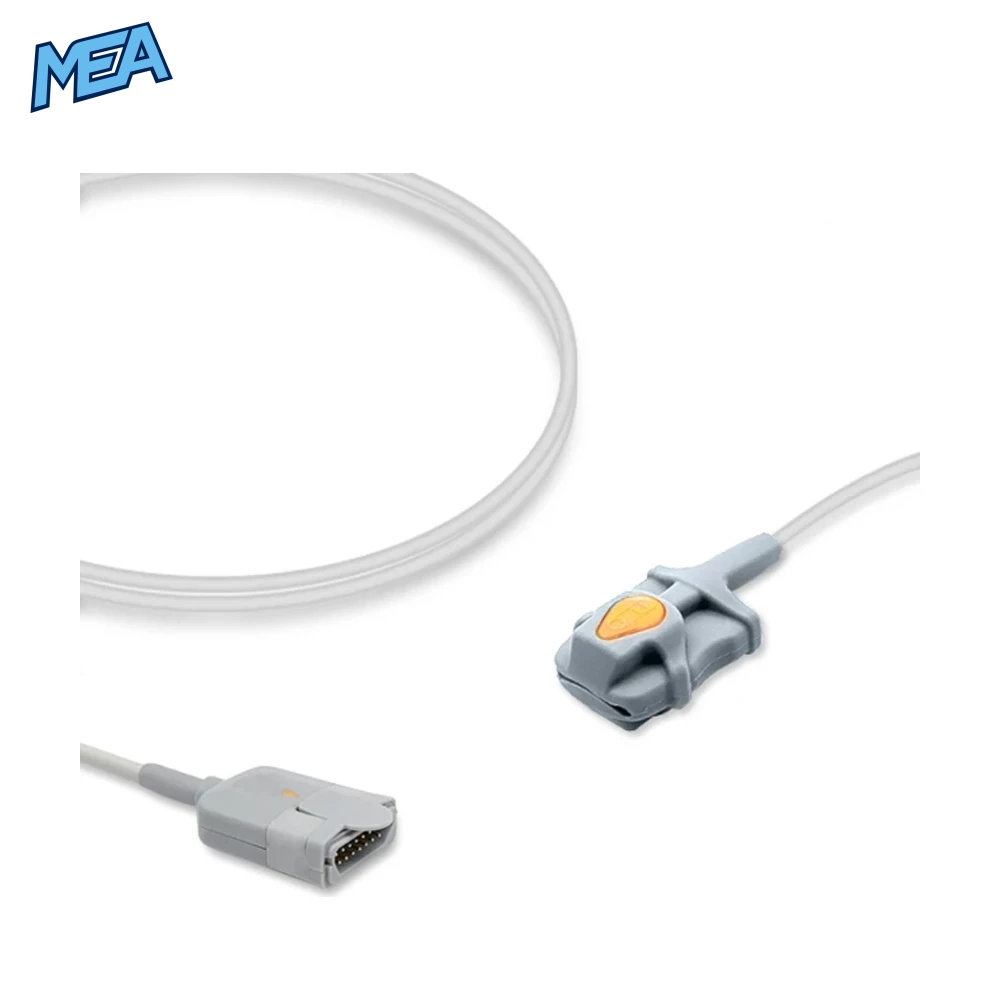

The Masimo 2502 M-LNCS DCIP Pediatric Soft Tip SpO2 Sensor is a new, reusable pulse oximetry sensor with a 1.0m cable and a soft silicone finger tip sized for pediatric patients. It is a replacement sensor built to the Masimo 2502 (M-LNCS DCIP) reference specifications and uses Masimo M-LNCS SpO2 technology to measure oxygen saturation and pulse rate on monitors with an M-LNCS sensor connection.
Key Benefits of This Pediatric Soft Tip SpO2 Sensor
- Comfortable for children: The flexible soft tip boot sits gently on a small finger, with no spring clip pressure.
- Reusable design: Cleaned between patients and used again, lowering cost per patient compared with single-use sensors.
- Direct M-LNCS connection: Plugs into M-LNCS patient cables and monitor ports.
- Short 1.0m lead: A tidy cable length for bedside, transport and spot-check monitoring.
- 12-month warranty: Covered for a full year from purchase.
Features
- Pediatric patient size
- Soft tip (silicone boot) sensor style
- Masimo M-LNCS SpO2 technology
- 1.0m (approx. 3.3 ft) cable
- Reusable lifecycle
- Supplied new, 1 pc per bag
Technical Specifications
| Specification | Detail |
|---|---|
| Reference Part Number | Masimo 2502 (M-LNCS DCIP) |
| SKU | MAS-SPO2-2502-MLNCSDCIP-PED-ST-1M |
| Product Type | |
| Patient Size | Pediatric |
| Sensor Type | Soft Tip |
| SpO2 Technology | Masimo M-LNCS |
| Cable Length | 1.0m |
| Lifecycle | Reusable |
| Condition | New |
| Unit | 1 pc per bag |
| Warranty | 12 Months |
Part Number Cross-Reference
| Brand | Reference Number |
|---|---|
| Masimo | 2502, M-LNCS DCIP |
| Unimed | U103S-203 |
| Praymed | PSD0426-S |
Works With These Monitors
| Brand | Models |
|---|---|
| Biolight | BLT A6, BLT A8, M8500, Q3, Q6, Q7 |
| Masimo | Radius 7 |
Please confirm your monitor uses a Masimo M-LNCS sensor connection before ordering. Contact us with your monitor model if you are unsure.
Use Cases
- Continuous SpO2 monitoring of children in pediatric wards and recovery areas
- Spot-check oxygen saturation in clinics, emergency departments and day surgery
- Replacing a worn or damaged pediatric M-LNCS finger sensor
- Keeping a spare sensor on hand for biomedical engineering teams
Application and Care
- Slide the soft tip over the child’s finger so the emitter and detector sit opposite each other across the nail bed.
- Inspect the sensor and cable before each use and check the site regularly during long monitoring periods.
- Clean and disinfect between patients according to your facility protocol. Do not autoclave or immerse the connector.
Frequently Asked Questions
What patient size is this SpO2 sensor for?
It is a pediatric sensor. The soft tip is sized for a child’s finger.
What is the difference between soft tip and hard shell sensors?
A soft tip sensor uses a flexible silicone boot that slides over the finger, while a hard shell sensor uses a spring-loaded clip. Soft tip sensors are often preferred for children and longer monitoring.
Will it work with an LNCS (non M-LNCS) monitor port?

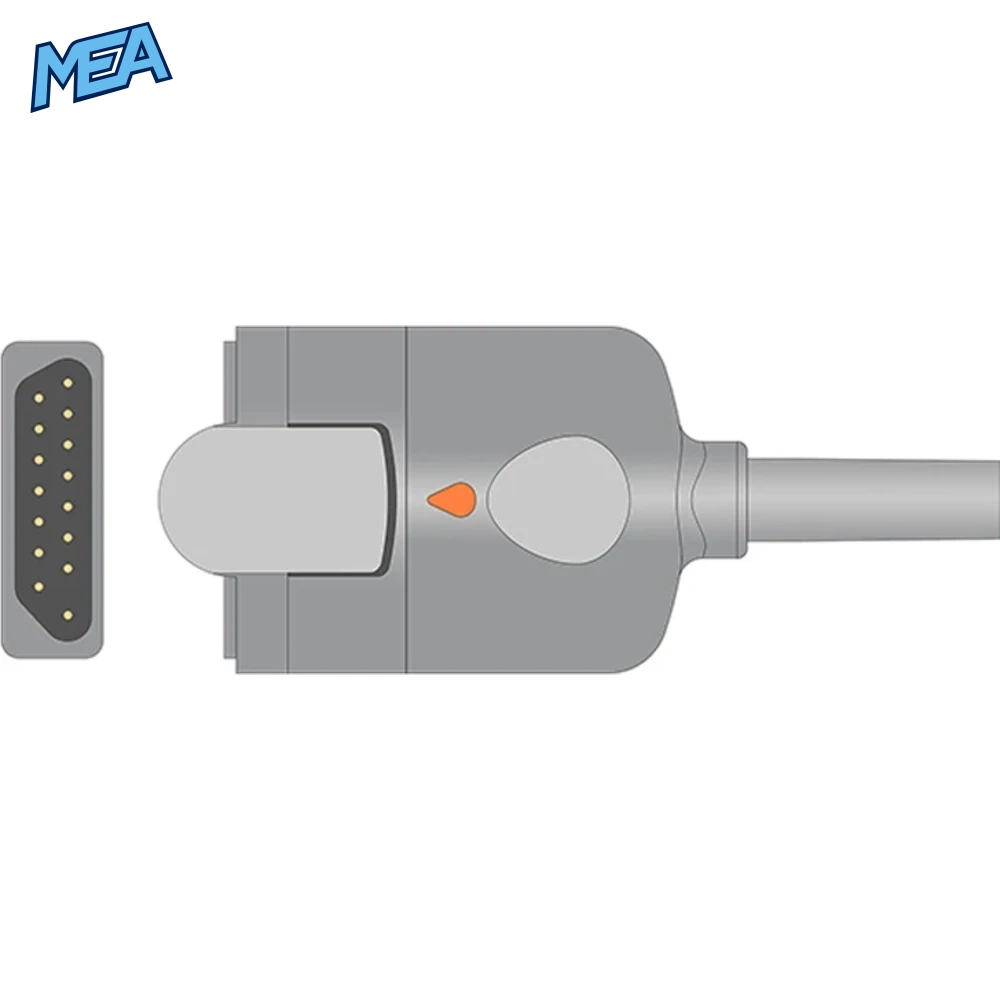

No. This sensor has an M-LNCS connector. LNCS sensors use a different connector, so check your patient cable or monitor port first.
How long is the cable?
The cable is 1.0m long.
Is the sensor reusable and what warranty applies?
Yes, it is reusable and comes with a 12-month warranty.
