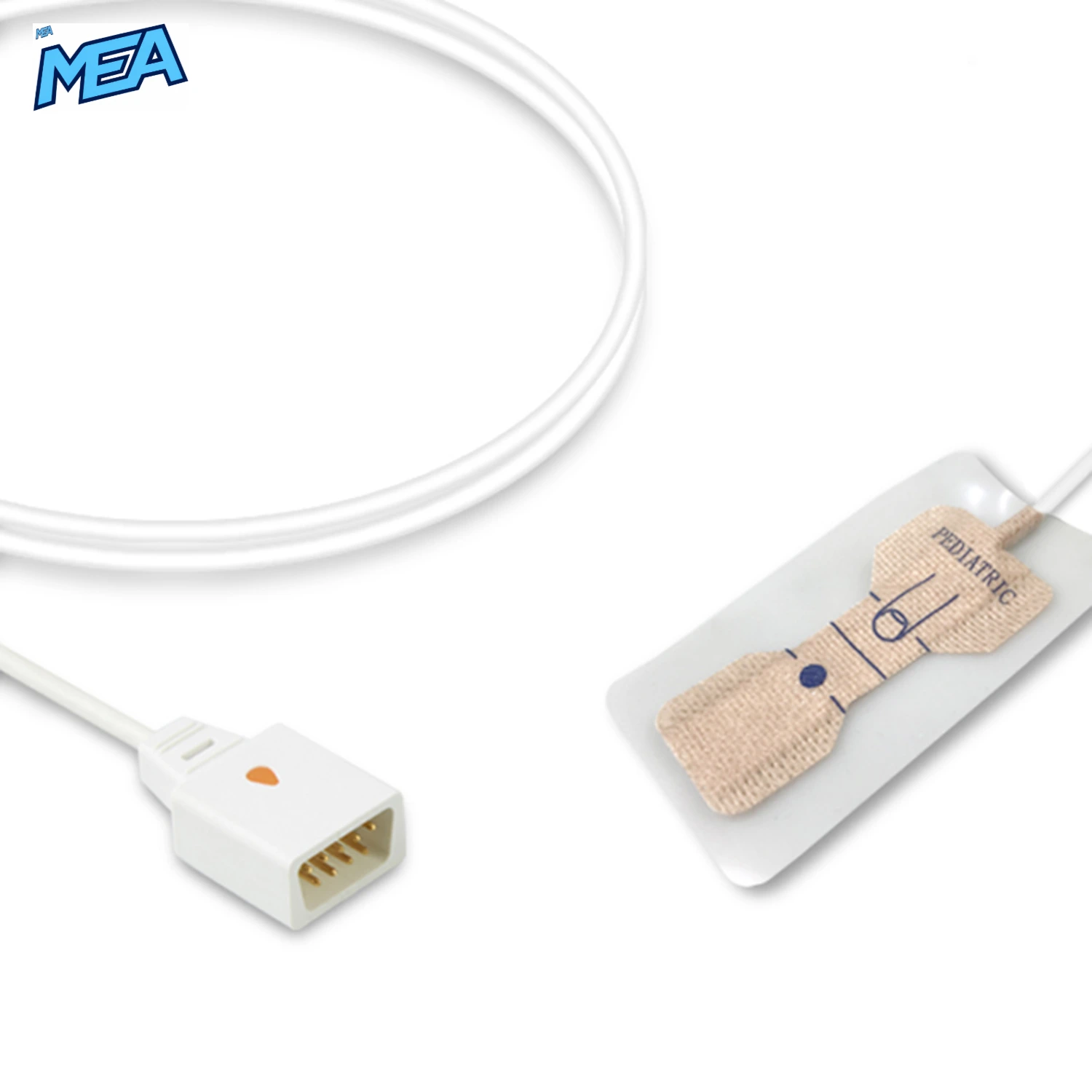

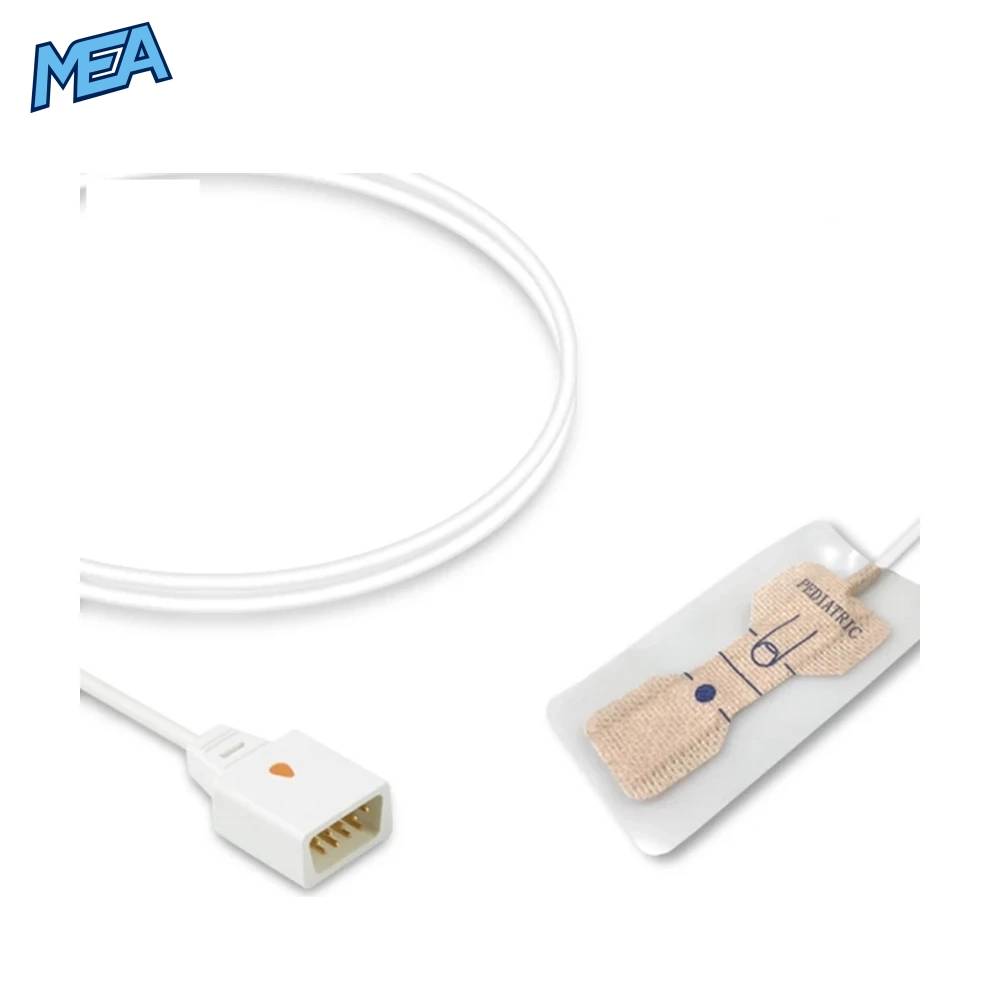

The BCI 1301 SpO2 sensor is a disposable, single-patient-use pulse oximetry sensor with a soft non-woven adhesive wrap, sized for pediatric patients. It has a 0.9m cable with a 9-pin monitor connector and is built to the BCI 1301 reference specifications for monitors and oximeters using BCI (Smiths Medical) SpO2 technology. Each box contains 24 new sensors.
Key Benefits of the BCI 1301 Pediatric SpO2 Sensor
- Single-patient use: A fresh sensor for every child supports infection-control protocols and removes reprocessing between patients.
- Sized for children: The pediatric adhesive wrap is proportioned for smaller fingers, helping the emitter and detector stay aligned.
- Gentle on skin: Breathable non-woven adhesive tape conforms to the application site and suits extended monitoring.
- Economical bulk pack: Supplied as a box of 24 for paediatric wards, theatres, recovery and emergency departments.
- Broad monitor coverage: Works with a wide range of BCI and BCI-technology patient monitors and pulse oximeters.
Pediatric Disposable Pulse Oximeter Sensor Features
- Patient size: Pediatric
- Sensor style: non-woven adhesive wrap
- Cable length: 0.9m (approx. 3 ft)

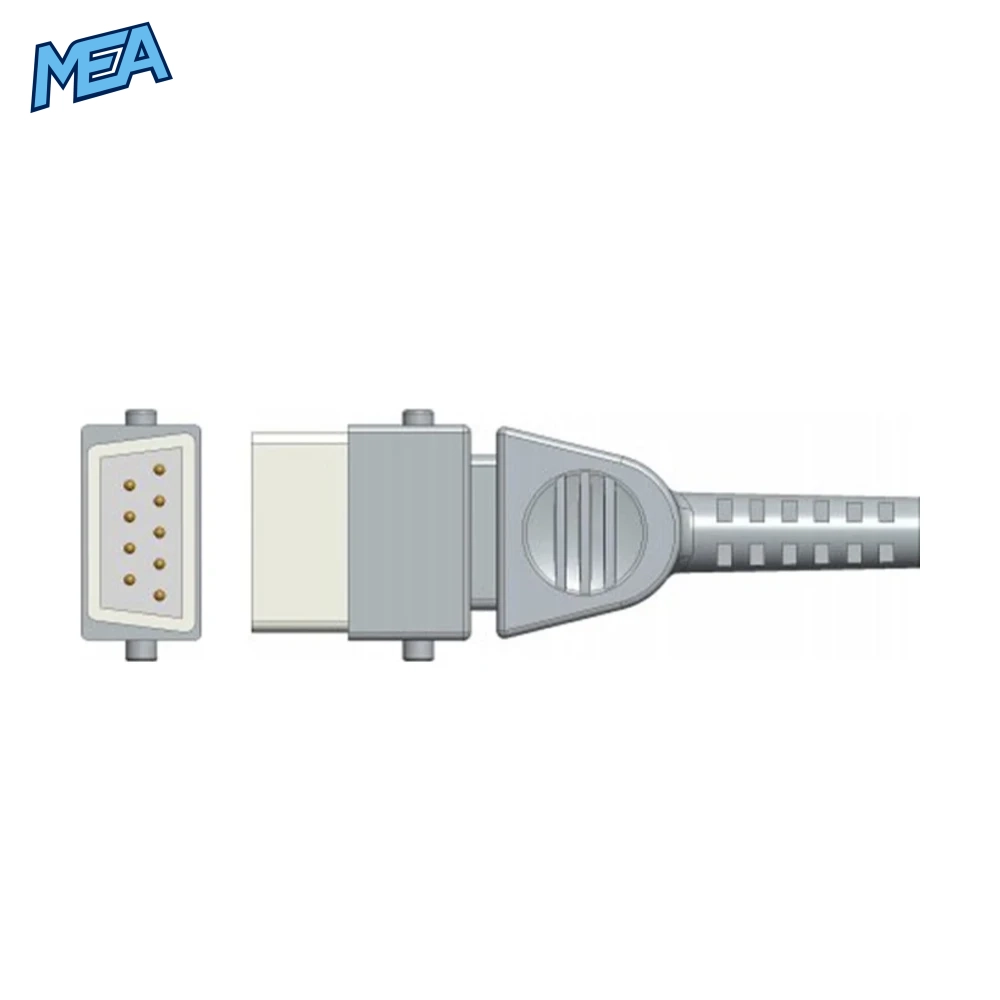

- Monitor-side connector: 9-pin
- SpO2 technology: BCI (Smiths Medical)
- Lifecycle: disposable
- Pack size: 24 sensors per box
BCI 1301 SpO2 Sensor Specifications
| Specification | Detail |
|---|---|
| Reference Part Number | BCI 1301 |
| Product Type | Disposable SpO2 sensor |
| Patient Size | Pediatric |
| Sensor Type | Non-woven adhesive |
| Cable Length | 0.9m |
| SpO2 Technology | BCI (Smiths Medical) |
| Monitor-Side Connector | 9-pin |
| Unit | 24 pcs per box |
| Lifecycle | Disposable, single-patient use |
| Condition | New |
| SKU | BCI-PED-NW-SPO2-9PIN-0.9M |
Part Number Cross-Reference
| Brand | Reference Number |
|---|---|
| BCI | 1301 |
| Envitec | DP-2221-2 |
| Unimed | U523-06 |
| AMC | PR-E610-1001N |
Works With These Monitors and Pulse Oximeters
- BCI: 1301, 1302, 1303, 3100, 3101, 3180, 3300, 3301, 3302, 3303, 3304 (Autocorr), 3400, 3401, 3402 (MiniCorr), 3403, 3404 (Autocorr Plus), 3444, 6100, 8400 / 8401 (Capnocheck II), 9004 (Capnocheck Plus), 9100, 9200 (Advisor), Mini Torr, Mini Torr Plus, Spectro 10, Spectro 20, SPECTRO2 10 / 20 / 30, SurgiVet, Vet/Ox Plus 4600
- Smiths Medical: SurgiVet V3304
- Armstrong: AD-900, AD-1000, AD-2000, AD-3000, AD-4000
- Artema S&W: Diascope
- ChoiceMMed: HCSMD400, MD300A, MD300I, MD300K1, MD300M, MMED6000DP-M3, -M7, -S6, -SF
- CMOS Drake: models with 9-pin connectors
- Datex Ohmeda: 4700
- Digicare: Digimax 2000, Digimax 5500
- Draeger: Oxipac 2000, Oxipac 2500
- Envitec: PulsiQuant 8040
- Goldway: UT4000A
- Infinium: Oxcyon II
- Invacare: 3300nv
- Larsen & Toubro: Cosmic, Galaxy, Planet, Planet 50, Star 50, Star 55, Stellar P
- Mennen Medical: 1300
- RGB: Omicron FT, Omicron Premium
- Spacelabs: PRO2
- Venni: VI-100A, VI-200A
- Weinmann: Oxycount Mini
Please confirm your monitor model and its SpO2 technology before ordering. An SpO2 adapter/extension cable may be required depending on your monitor.
Use Cases
- Continuous SpO2 and pulse rate monitoring in paediatric wards, PICU and recovery
- Operating theatres and anaesthesia for children
- Emergency departments and patient transport
- Day surgery, clinics and sleep studies
- Isolation rooms where single-patient-use sensors are preferred
Application and Care
- Select the application site according to your monitor’s instructions for use for a pediatric patient.
- Apply to clean, dry skin with the emitter and detector aligned opposite each other, then secure the wrap without over-tightening.
- Inspect the site regularly and reposition as clinically required.
- Dispose of the sensor after single-patient use; do not reprocess.
Frequently Asked Questions
What is the BCI 1301 SpO2 sensor used for?
It is a disposable adhesive pulse oximetry sensor used to measure oxygen saturation (SpO2) and pulse rate on pediatric patients with monitors that use BCI SpO2 technology.
How many sensors are in a box?
Each box contains 24 individual disposable sensors.
Is the BCI 1301 pediatric sensor reusable?
No. It is a disposable, single-patient-use sensor and should be discarded after use.
How long is the cable and what connector does it use?
The cable is 0.9m long (approximately 3 ft) and ends in a 9-pin monitor connector.
Which part numbers does it cross-reference to?
BCI 1301, Envitec DP-2221-2, Unimed U523-06 and AMC PR-E610-1001N.
Will it work with Nellcor or Masimo monitors?
No. It is designed for BCI (Smiths Medical) SpO2 technology only.
Related SpO2 Sensors
Need a different patient size for the same monitors?
See the BCI 1302 Adult/Neonate Adhesive SpO2 Sensor 0.9m and the BCI 1303 Infant Adhesive SpO2 Sensor 0.9m. For a reusable option, see the BCI 3043 All Sizes Multi-Y SpO2 Sensor, the BCI 3444 Adult Soft Tip SpO2 Sensor 1.0m or the BCI All Sizes Forehead SpO2 Sensor 1.0m.
