The Woodpecker Ai Ray is a cordless, handheld dental X-ray machine designed for fast, low-radiation intraoral imaging at the chairside. Powered by a high-capacity lithium battery and a 0.4mm focus X-ray tube, it lets dentists capture periapical and bitewing radiographs in seconds without being tied to a wall-mounted generator.
Built around a 2.8-inch capacitive touch screen, a 70kV/3mA X-ray tube and a durable anti-radiation housing, the Ai Ray is designed for general dentists, endodontists, orthodontists and mobile dental practices that need reliable digital radiography without the space, wiring or downtime of a traditional wall-mounted unit.
What Is the Woodpecker Ai Ray Dental X-Ray Machine?
The Woodpecker Ai Ray dental X-ray machine is a portable, battery-operated intraoral X-ray generator that pairs with a supported RVG sensor or phosphor plate to produce digital dental radiographs. Unlike fixed wall-mounted X-ray units, the Ai Ray can be picked up and used at any operatory, making it ideal for clinics with multiple chairs, mobile dental services and practices that want to reduce cabling and installation costs.
Key Benefits of the Ai Ray Handheld X-Ray Unit
Cordless, Chairside Portability
- Handheld design with no wall mounting or arm required
- Moves freely between operatories in multi-chair practices
- Suited to mobile and outreach dental services
Fast, Low-Dose Exposure
- 0.4mm focal spot X-ray tube for sharp image detail
- 70kV tube voltage / 3mA tube current for consistent exposures
- 1.5mmAl total filtration (0.5mmAl additional) supports low patient dose
Long-Lasting, Fast-Charging Battery
- 15,000mAh lithium battery for extended clinical use between charges
- Fast-charging power supply reduces downtime
- Universal 100-240V 50/60Hz power adapter input
Simple Touchscreen Control
- 2.8-inch capacitive touch screen for exposure settings
- Displays kV, mA and exposure time at a glance
- Straightforward controls reduce chairside training time
Ergonomic, Durable Build

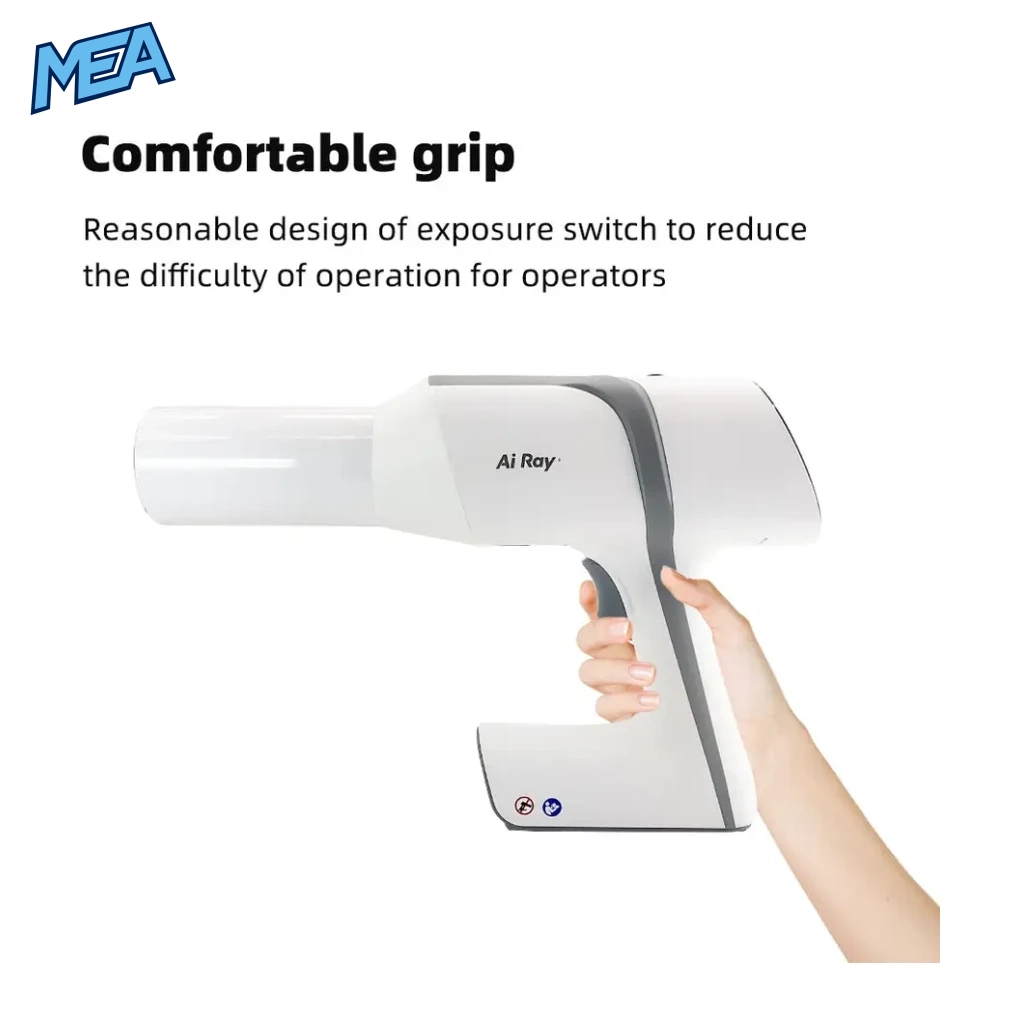

- Reasonable exposure-switch placement for comfortable one-hand operation
- Anti-radiation composite housing
- Rated for long-term clinical service life
Features of the Woodpecker Ai Ray Dental X-Ray Machine
Core Hardware Features
- 0.4mm focus X-ray tube
- 12.5° target angle
- 20cm fixed distance from focus to skin (SSD)
- 6cm ± 0.6cm output radiation field
Power and Battery
- Internal power supply: DC 10.8V
- 15,000mAh lithium battery capacity
- Fast-charging support
- Power adapter input: 100-240V 50/60Hz, 1.5A
Display and Usage Modes
- 2.8-inch capacitive touch screen
- Handheld mode and wired mode usage options
- Real-time display of exposure parameters

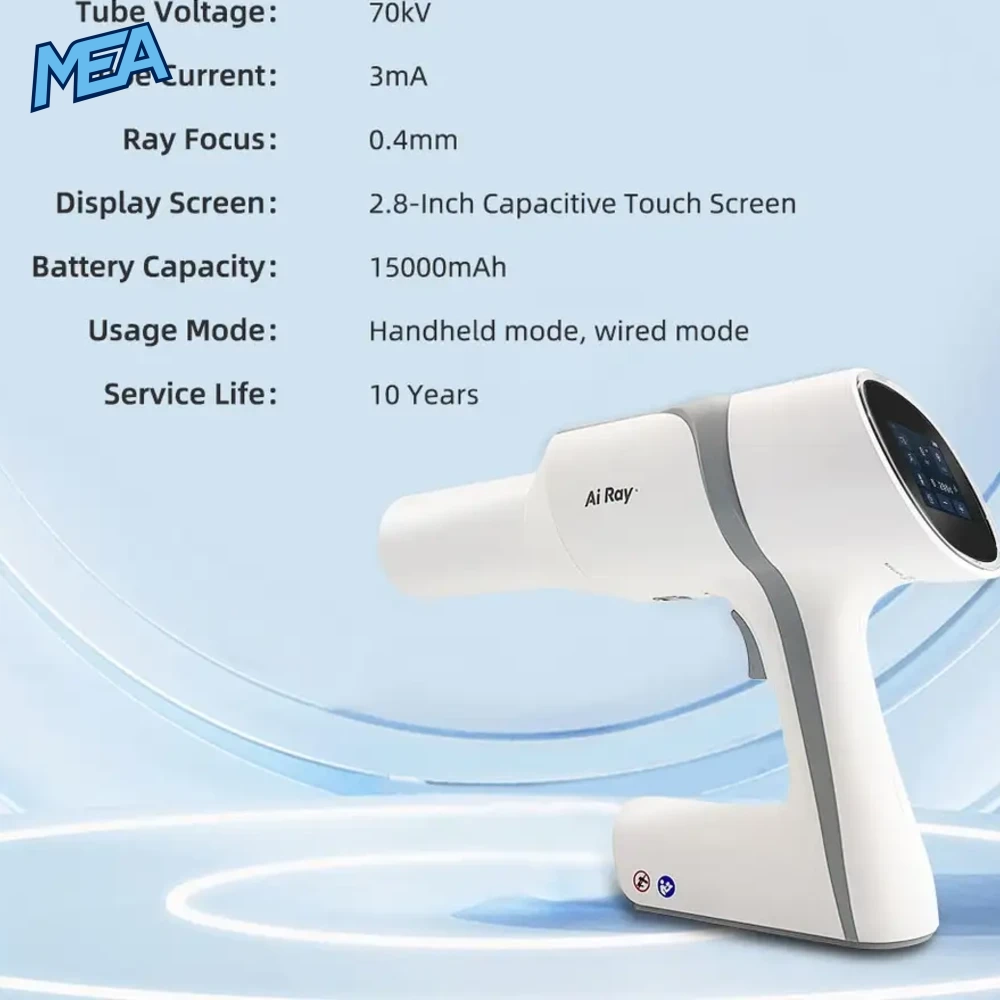

Technical Specifications
| Specification | Detail |
| Brand / Model | Woodpecker Ai Ray |
| Product Type | Handheld Digital Dental X-Ray Machine |
| Tube Voltage | 70kV |
| Tube Current | 3mA |
| Focal Spot (Ray Focus) | 0.4mm |
| Target Angle | 12.5° |
| Distance from Focus to Skin | 20cm |
| Total Filtration | 1.5mmAl / 70kV |
| Additional Filtration | 0.5mmAl / 70kV |
| Output Radiation Field | 6cm ± 0.6cm |
| Display | 2.8-inch capacitive touch screen |
| Battery Capacity | 15,000mAh lithium battery |
| Charging Mode | Fast charging |
| Internal Power Supply | DC 10.8V |
| Power Adapter Input | 100-240V 50/60Hz, 1.5A |
| Usage Mode | Handheld mode, wired mode |
| Housing Material | Anti-radiation composite material |
| Certification | CE, FCC |
| Condition | New |
Who Should Use This Dental X-Ray Machine
General Dentists
Fast periapical and bitewing imaging for routine checkups, cavity detection and periodontal assessment without moving the patient to a fixed X-ray room.
Endodontists
Chairside imaging during root canal treatment for working-length confirmation and post-treatment review.
Orthodontists and Oral Surgeons
Quick pre- and post-procedure radiographs to support treatment planning without scheduling time on a shared wall-mounted unit.
Multi-Chair Clinics and Mobile Dental Services
A single handheld unit can move between operatories or travel with a mobile dental van, reducing the need for multiple fixed installations.
How the Ai Ray Handheld X-Ray Machine Works
1. Position the Unit
Hold the Ai Ray at the correct distance and angle to the treatment area using the fixed 20cm focus-to-skin distance as a guide.
2. Set Exposure Parameters
Use the 2.8-inch touch screen to confirm or adjust kV, mA and exposure time for the region being imaged.
3. Capture the Exposure
Trigger the exposure switch; the 0.4mm focus X-ray tube emits a low-dose beam through the 12.5° target angle and filtration stack.
4. Review the Digital Image
The supported RVG sensor or phosphor plate system captures the image for immediate review on a connected computer or imaging software.
Frequently Asked Questions
What is the Woodpecker Ai Ray dental x-ray machine used for?
It is used to capture intraoral dental radiographs chairside, including periapical and bitewing images, without the need for a fixed wall-mounted X-ray generator.
Is the Woodpecker Ai Ray cordless?
Yes. It runs on a 15,000mAh internal lithium battery and can be operated in handheld mode, as well as a wired mode when connected to power.
How long does the battery last between charges?
The 15,000mAh battery is designed for extended chairside use across multiple patients before it needs recharging, and it supports fast charging to minimise downtime.
What is the focal spot size and why does it matter?
The Ai Ray uses a 0.4mm focal spot X-ray tube. A smaller focal spot generally supports sharper image detail, which can help with diagnostic accuracy.
Does the Ai Ray work with my existing dental sensor?
The Ai Ray is an X-ray generator designed to pair with a supported RVG sensor, such as the Woodpecker i Sensor H2 or the NanoPix RVG dental X-ray sensor, or with a phosphor plate system such as the Woodpecker Free Scan phosphor plate scanner. Confirm fit with your existing sensor or ask us before ordering.
Can I use this dental X-ray machine in Australia?
Yes. The unit accepts a 100-240V 50/60Hz power input and is supplied configured for the Australian market.
Is this a new unit?
Yes, this listing is for a brand new Woodpecker Ai Ray dental X-ray machine.
