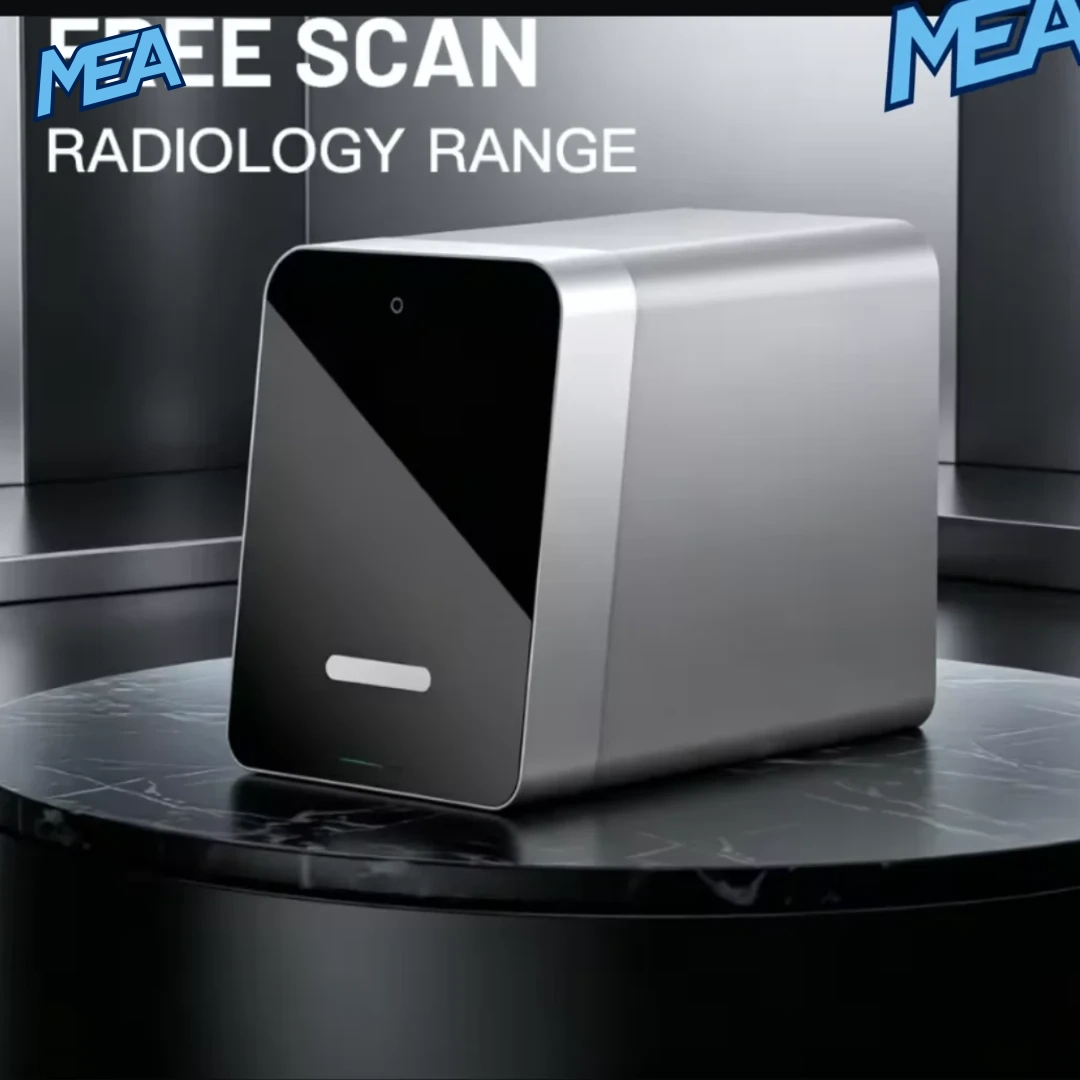

The Woodpecker Free Scan Dental Phosphor Plate Scanner is a high-resolution digital dental imaging system designed for clinics and dental professionals to convert phosphor imaging plates into ultra-clear digital X-ray images with 25μm scanning accuracy, 17LP/mm resolution, and advanced FPGA-based processing for precise diagnostic imaging.
The Woodpecker DTE Free Scan Dental Phosphor Plate Scanner is a next-generation digital dental imaging system designed for high-precision radiographic diagnostics.
Built with ultra-fine 25μm scanning accuracy, this system delivers crystal-clear image output with exceptional detail recognition, making it a powerful solution for clinics, dental hospitals, and diagnostic centres.
Engineered with advanced image processing architecture, FPGA chip integration, and multi-layered structural algorithms, the Free Scan system ensures consistent imaging quality, faster workflow, and improved diagnostic confidence for dental professionals.
With its compact footprint, intelligent automation, and fit with multiple phosphor plate sizes (0–3), this scanner is optimised for efficiency, accuracy, and long-term clinical reliability.
Key Benefits of Woodpecker Free Scan Dental Phosphor Plate Scanner
Ultra-High Precision Dental Imaging
- 25μm scanning accuracy ensures micro-level image clarity
- 17 LP/mm spatial resolution for sharp diagnostic output
- 65,535 grayscale depth for detailed tissue differentiation
Faster Clinical Workflow
- One-touch automatic plate opening system
- Auto relocking within 120 seconds
- Rapid scanning reduces patient waiting time
Compact & Space-Saving Design
- Occupies only 0.046 square metres
- Ideal for small to medium dental clinics
- Lightweight structure for easy installation
Intelligent Imaging System
- FPGA chip-based image processing
- Multi-layer structural imaging algorithm
- Real-time dose analysis for safer diagnostics
Wide Fitment

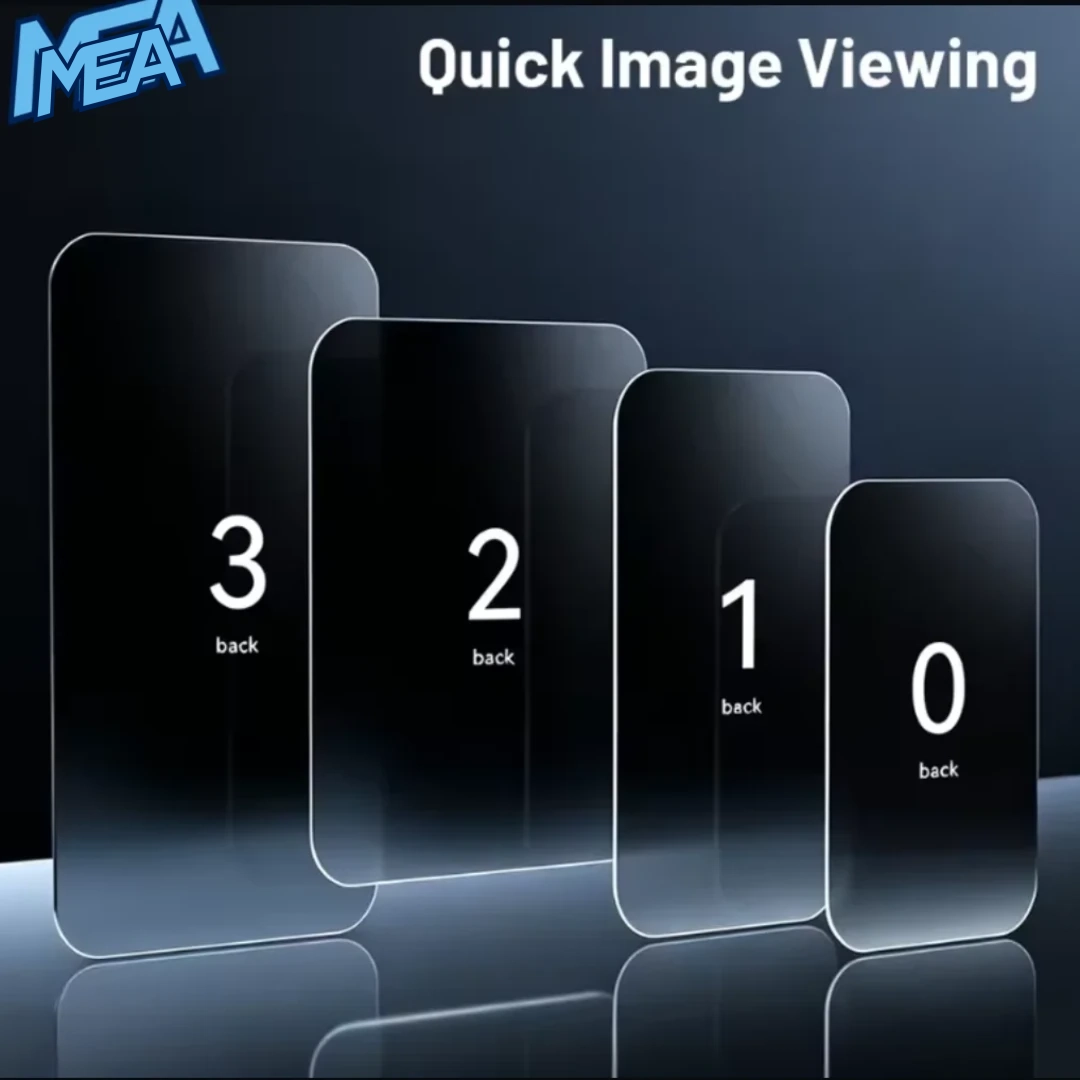

- Supports IP imaging plates sizes 0, 1, 2, and 3
- Fits imported ultra-thin imaging plates
- Dual-device smart connectivity with dedicated software
Advanced Features of Woodpecker Free Scan System
High-Resolution Imaging Engine
The scanner is equipped with a high-performance optical reading system that converts phosphor plate data into precise digital images with minimal distortion. This ensures accurate detection of dental conditions including caries, bone loss, and root structure abnormalities.
FPGA-Based Image Processing
The integrated FPGA chip enhances:
- Speed of image processing
- Noise reduction
- Signal clarity optimisation
- Real-time image enhancement
Multi-Layered Image Algorithm
The system uses a structured algorithm framework that improves:
- Contrast accuracy
- Edge detection
- Image uniformity (<2%)
- Diagnostic precision
Smart Connectivity System
- Dual-device smart pairing capability

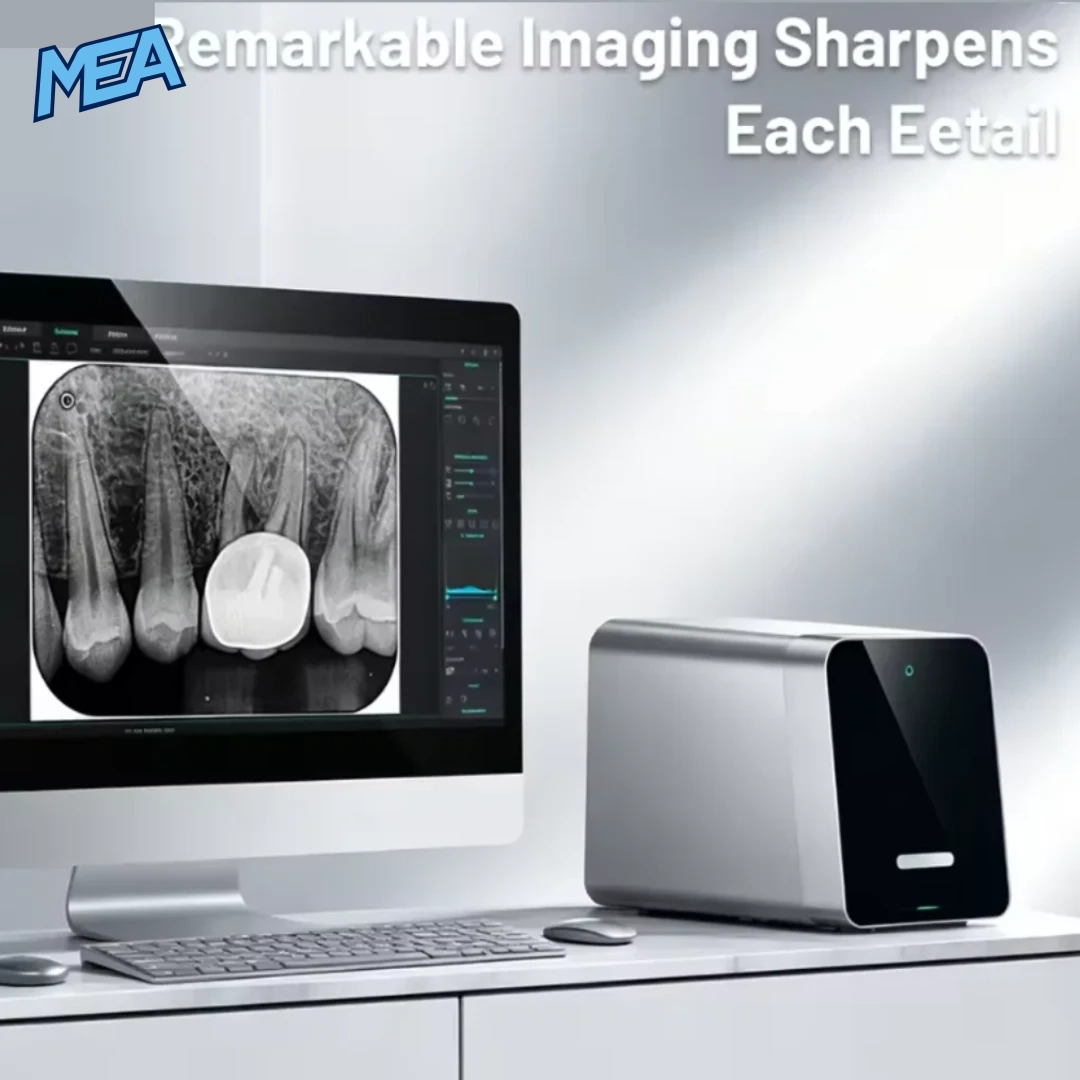

- Seamless integration with dental imaging software
- Real-time data transmission for clinic workflow efficiency
Safety & Dose Optimisation
- Intelligent radiation dose analysis
- Helps clinicians maintain safe imaging standards
- Reduces unnecessary exposure risks
Technical Specifications
| Feature | Specification |
| Product Name | Woodpecker Free Scan Dental Phosphor Plate Scanner |
| Scanning Accuracy | 25μm |
| Resolution | 17 LP/mm |
| Grayscale Depth | 65,535 levels |
| Imaging Plate Fitment | Size 0, 1, 2, 3 |
| Image Uniformity | < 2% |
| Power Input (Main) | ~220V 50Hz |
| Host Power Input | DC 15V 3.2A |
| Dimensions | 280 × 165 × 210 mm |
| Weight | 5.2 kg |
| Imaging Technology | Phosphor Plate (PSP) Digital Scanning |
| Processing Chip | FPGA-based system |
| Design | Silver & Black Compact Body |
| Automation | One-touch open/auto-relock (120 sec) |
Clinical Applications and Use Cases
General Dental Diagnostics
- Routine dental X-ray imaging
- Caries detection
- Periodontal assessment
Endodontics
- Root canal treatment planning
- Apex location analysis
- Root morphology evaluation
Orthodontics
- Teeth alignment planning
- Jaw structure analysis
- Treatment monitoring
Oral Surgery
- Pre-surgical imaging
- Bone density evaluation
- Surgical planning support
Dental Hospitals & Imaging Centres
- High-volume patient scanning
- Multi-user clinic environments
- Digital record integration
Why Choose Woodpecker Free Scan Dental Imaging System?
Superior Diagnostic Accuracy
The combination of 25μm scanning precision and high grayscale depth ensures that even the smallest anatomical details are visible, improving diagnostic confidence.
Efficient Workflow Integration
Its fast scanning system and automatic plate handling significantly reduce operator workload and improve patient throughput.
Reliable Engineering Design
Built with industrial-grade components and FPGA processing, the system is designed for long-term durability in clinical environments.
Compact Professional Build
Despite its advanced capabilities, the device maintains a space-saving design suitable for modern dental setups.
Installation & Operation Overview
- Connect to 220V power supply
- Install-type imaging software
- Insert phosphor plate (Size 0–3)
- One-touch scanning activation
- Automatic image transfer to workstation
The system is designed for plug-and-play deployment with minimal training requirements.
Maintenance & Performance Stability
- Easy-to-clean imaging plate insertion area
- Durable internal optical system
- Stable FPGA-based processing reduces system lag
- Long service life with consistent image output
Frequently Asked Questions
What is the scanning accuracy of Woodpecker Free Scan?
The scanner provides 25μm ultra-high scanning accuracy, ensuring precise and detailed dental imaging results.
What types of imaging plates fit?
It supports IP phosphor plates sizes 0, 1, 2, and 3, making it suitable for different dental imaging needs.
What is the resolution of the system?
The system delivers 17 LP/mm resolution with 65,535 grayscale levels, allowing extremely detailed diagnostic imaging.
Is this system suitable for small dental clinics?
Yes, its compact design (0.046 m² footprint) makes it ideal for both small clinics and large hospitals.
Does it support automated operation?
Yes, it features one-touch automatic opening and 120-second auto relocking, improving workflow efficiency.
What is the power requirement?
- Main input: ~220V 50Hz
- Host input: DC 15V 3.2A
Does it integrate with dental software?
Yes, it supports dual-device smart connection with dedicated imaging software for real-time imaging and diagnostics.
What makes this scanner different from traditional systems?
Its FPGA processing, ultra-thin imaging plate support, and high grayscale depth make it significantly more advanced than conventional dental X-ray scanners.
