The Woodpecker FiP FiG Gutta-Percha Obturation System is a professional-grade, wireless endodontic device designed for precise root canal obturation.Â
It combines a heated down-pack pen (Fi-P) and a backfill gun (Fi-G) to deliver controlled heating, softening, cutting, condensing, and filling of gutta-percha for efficient and predictable root canal treatments.
Why Choose the Woodpecker FiP FiG Obturation System
Modern endodontics demands accuracy, speed, and consistency. This system is engineered to address all three.
Unlike traditional obturation methods, this wireless system enables warm vertical compaction with precise thermal control. It significantly improves the adaptation of gutta-percha to canal walls, reducing voids and enhancing long-term treatment success.
Core Advantages
- Wireless, ergonomic design for unrestricted movement
- Rapid heating (as fast as 15 seconds melting capability)
- Multi-temperature control for clinical flexibility
- High-capacity battery for extended use
- Dual-device system for complete obturation workflow
- Consistent heat distribution for uniform filling

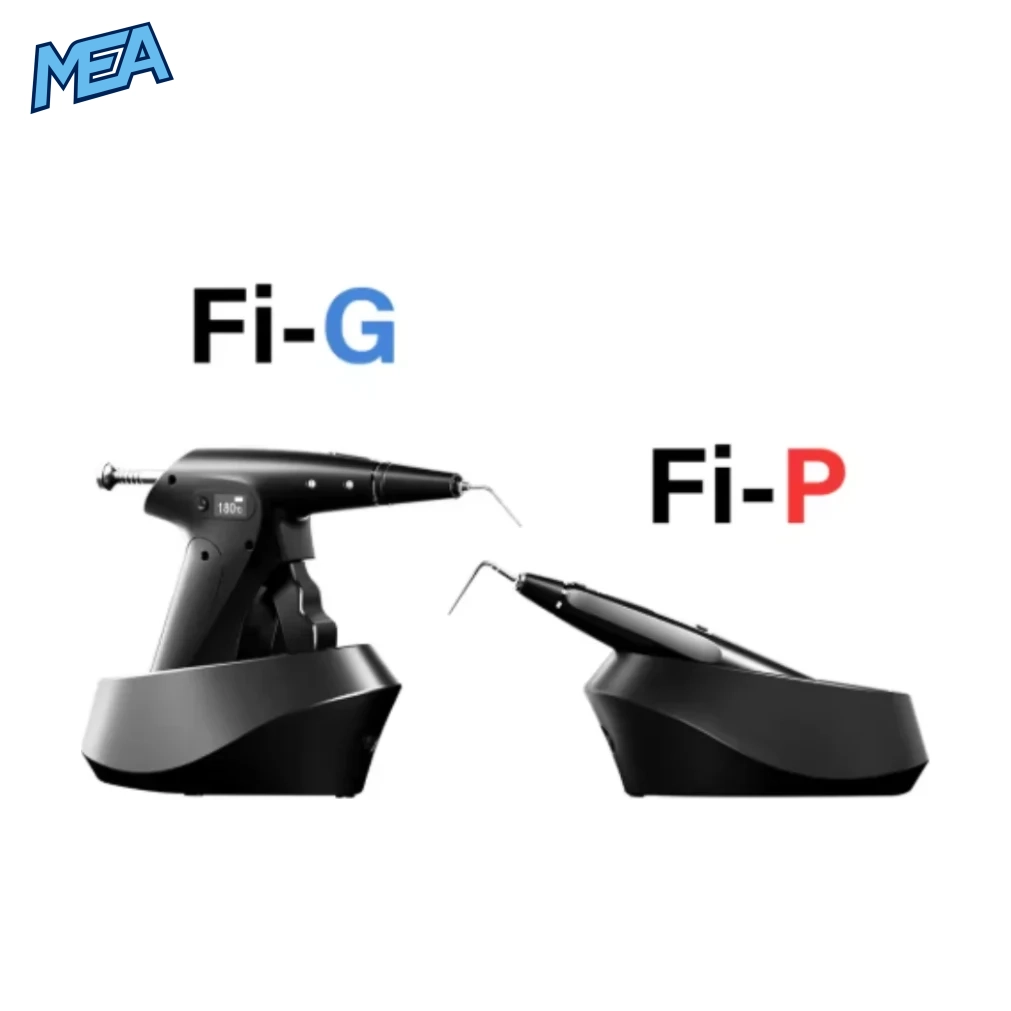

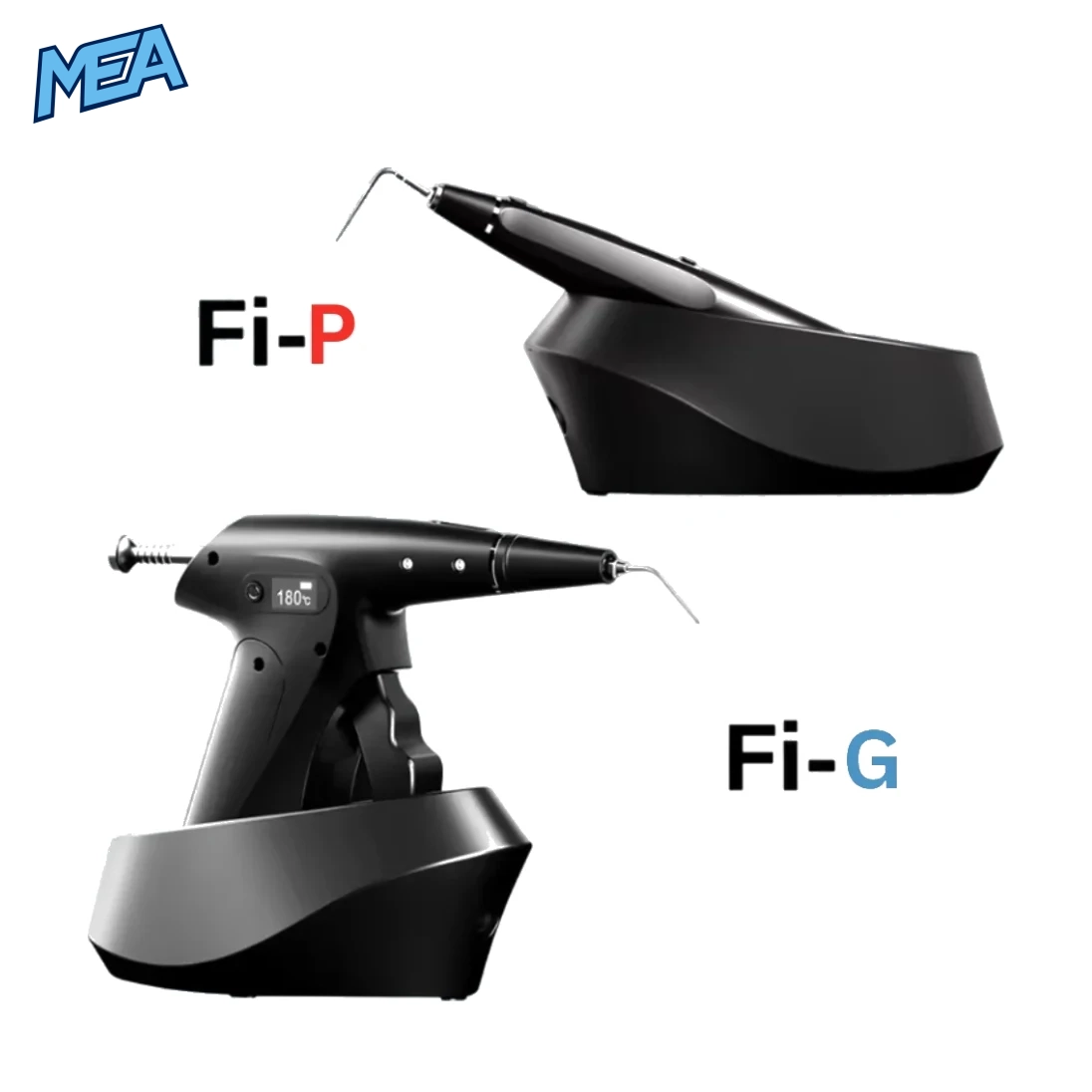

What Is Included in the Fi-P + Fi-G System
The system consists of two coordinated devices:

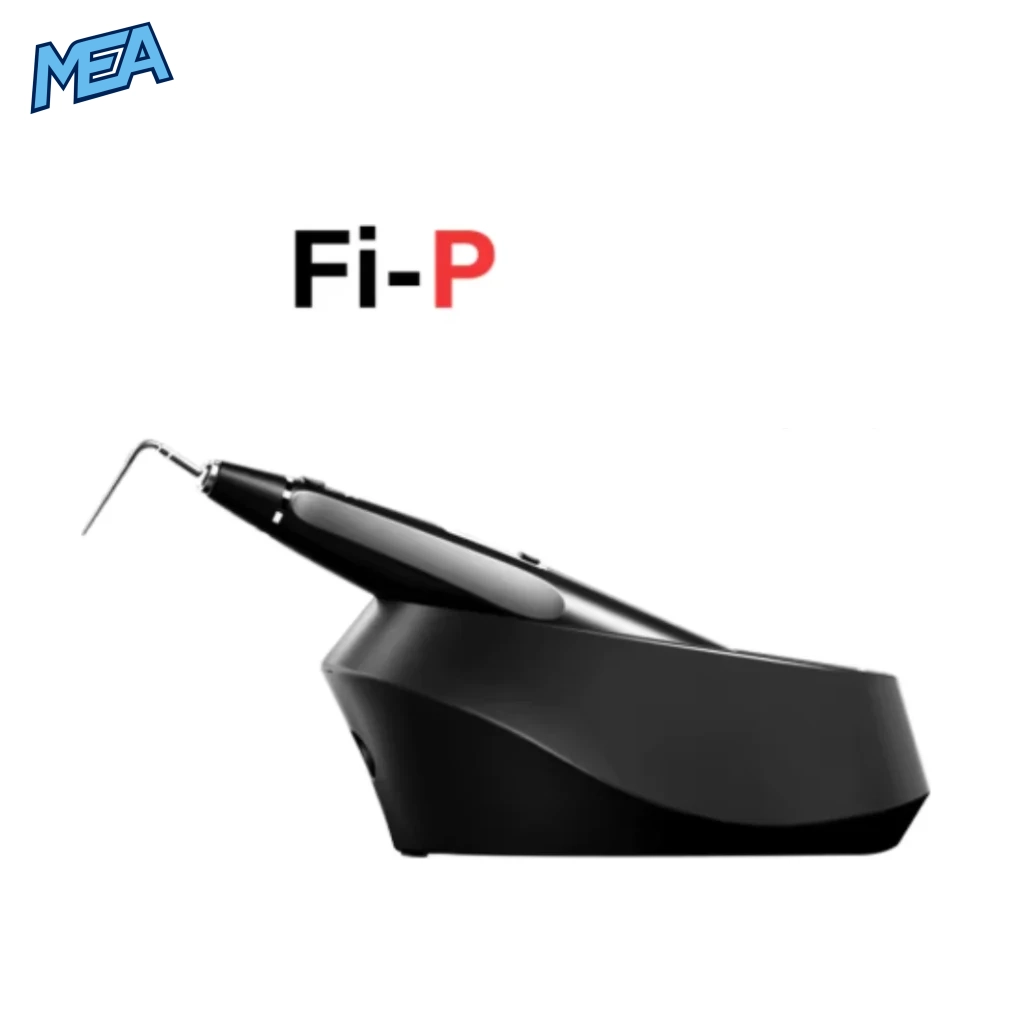

Fi-P (Down-Pack Heating Pen)
Used to cut, soften, and vertically condense gutta-percha within the canal.

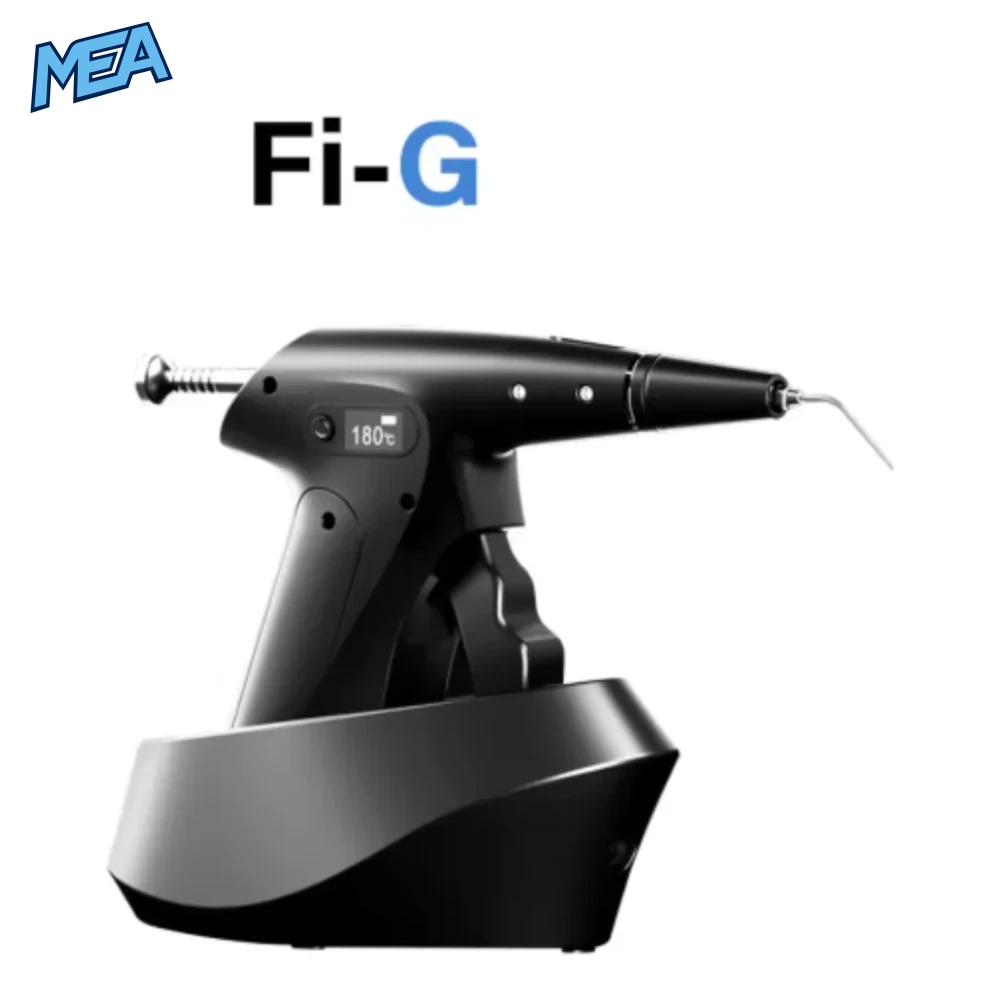

Fi-G (Backfill Obturation Gun)
Used to inject thermoplasticized gutta-percha for backfilling the canal space.
Together, they form a complete obturation solution for root canal therapy.
Key Features of the Woodpecker FiP FiG System
1. Advanced Thermal Control System
The device offers multiple temperature settings:
- 150°C
- 180°C
- 200°C
- 230°C
This allows clinicians to adjust heat levels based on:
- Canal anatomy
- Gutta-percha type
- Treatment technique
Benefit: Prevents overheating while ensuring optimal flow and adaptation.
2. Rapid Heating Technology
The system heats up extremely quickly, allowing immediate clinical use.
- Fi-P delivers near-instant heating for down-pack procedures
- Fi-G melts gutta-percha efficiently within seconds
Clinical Impact:
- Reduces chair time
- Improves workflow efficiency
- Enhances patient experience
3. Wireless and Ergonomic Design
Both units are fully cordless, providing:
- Maximum mobility
- Better control during procedures
- Reduced cable clutter in clinical environments
The lightweight construction minimises hand fatigue during long procedures.
4. High-Capacity Rechargeable Battery
- Battery capacity: 2000mAh
- Charging time: ~2.5 hours
- Usage: Up to 1500 cycles (5 seconds per use)
Benefit: Reliable performance throughout the day without frequent recharging.
5. Multi-Functional Endodontic Capability
The system supports multiple clinical functions:
- Melting
- Softening
- Diffusing
- Cutting
- Condensing
- Backfilling
This eliminates the need for multiple instruments, simplifying procedures.
6. Precision and Consistency in Obturation
Warm gutta-percha techniques improve:
- Canal wall adaptation
- Seal integrity
- Reduction of microleakage
Outcome: Higher success rates in root canal treatments.
Clinical Applications and Use Cases
Endodontic Procedures
This system is ideal for:
- Root canal obturation
- Warm vertical compaction techniques
- Backfilling prepared canals
- Retreatment procedures
Dental Clinics and Hospitals
Perfect for:
- General dentists
- Endodontists
- Multi-chair clinics
- High-volume practices
Advanced Treatment Scenarios
- Curved canals
- Narrow canals
- Complex root anatomies
The controlled heat and flow ensure optimal performance in challenging cases.
Technical Specifications
| Parameter | Fi-P (Heating Pen) | Fi-G (Obturation Gun) |
| Model Number | FiP + FiG | FiP + FiG |
| Function | Down-pack heating & cutting | Gutta-percha injection |
| Temperature Settings | 150°C / 180°C / 200°C / 230°C | 150°C / 180°C / 200°C / 230°C |
| Battery Capacity | 2000mAh | 2000mAh |
| Charging Time | ~2.5 hours | ~2.5 hours |
| Usage Cycles | ~1500 cycles (5s each) | ~1500 cycles (5s each) |
| Power Input | AC 100–240V, 50/60Hz, 800mA | AC 100–240V, 50/60Hz, 800mA |
| Power Output | DC 15V / 1.6A | DC 15V / 1.6A |
| Dimensions | 75.3 × 177.2 × 99.8 mm | 75.3 × 176.0 × 137.2 mm |
| Weight | 275g | 337g–377g |
| Classification | Class II (Adapter) | Class II (Adapter) |
| Material | Medical-grade plastic | Medical-grade plastic |
Benefits for Dental Professionals
Improved Treatment Quality
- Better canal sealing
- Reduced voids
- Enhanced obturation density
Time Efficiency
- Faster procedures
- Reduced patient chair time
- Increased clinic productivity
Ease of Use
- Intuitive controls
- Lightweight design
- Minimal learning curve
Cost Efficiency
- Durable construction
- Long battery life
- Reduced need for multiple devices
How the FiP FiG System Enhances Workflow
Step 1: Down-Pack (Fi-P)
- Heat gutta-percha
- Cut and compact vertically
Step 2: Backfill (Fi-G)
- Inject thermoplasticized gutta-percha
- Fill remaining canal space
Step 3: Final Condensation
- Achieve uniform, dense obturation
Comparison with Traditional Obturation Methods
| Feature | Traditional Method | Fi-P Fi-G System |
| Heat Control | Limited | Precise multi-level |
| Speed | Slow | Fast |
| Adaptation | Moderate | Excellent |
| Ease of Use | Technique-sensitive | User-friendly |
| Consistency | Variable | High |
Safety and Reliability
- Class II electrical safety
- Stable temperature regulation
- Controlled heating to prevent tissue damage
- Durable and clinic-ready design
Frequently Asked Questions
What is the Woodpecker FiP FiG used for?
The system is used for root canal obturation, specifically for heating, softening, and filling gutta-percha into prepared canals to achieve a tight seal.
Is the FiP FiG system wireless?
Yes, both the Fi-P and Fi-G units are completely wireless, powered by rechargeable batteries for maximum flexibility during procedures.
How long does the battery last?
A full charge supports approximately 1500 uses (5 seconds each), making it suitable for full-day clinical use.
What temperature settings are available?
The system offers four preset temperatures:
- 150°C
- 180°C
- 200°C
- 230°C
Is this system suitable for beginners?
Yes. The intuitive controls and ergonomic design make it suitable for both experienced endodontists and general dentists.
What makes this better than cold obturation techniques?
Warm obturation provides:
- Better canal adaptation
- Reduced voids
- Improved long-term success rates
How long does it take to charge?
The device fully charges in approximately 2.5 hours.
Can it be used for complex canals?
Yes, it is highly effective in:
- Curved canals
- Narrow canals
- Multi-rooted teeth
Final Buying Insight
The Woodpecker FiP FiG Gutta Percha Obturation System is a high-performance, clinically reliable solution for modern endodontics.Â
Its combination of precision heating, wireless operation, and multi-function capability makes it a valuable investment for dental professionals seeking efficiency and superior treatment outcomes.
If your goal is to deliver consistent, high-quality root canal treatments with reduced chair time, this system is a strong, future-proof choice.
