The LEPU MEDICAL PC-80B Easy ECG Monitor is a compact handheld electrocardiogram device designed for portable ECG recording, heart-rate monitoring, and real-time wireless data transfer. It features a 2.8-inch colour LCD, multiple measurement methods, quick 30-second ECG measurements, continuous monitoring, onboard data storage, and wireless transfer through a mobile application.
The PC-80B ECG Monitor provides a convenient way to capture and review ECG waveforms outside the traditional bedside monitor environment. Its compact handheld design supports palm, leg, chest, and lead-wire measurements, allowing users to select an appropriate recording method for their application.
The device can display ECG information in real time and transfer measurements wirelessly to a supported mobile application for viewing and storage.
Important: The PC-80B is a medical ECG recording device and should be used according to its manufacturer’s instructions and applicable clinical guidance. It is not a substitute for professional diagnosis or emergency medical care.
Specifications: PC-80B ECG MonitorÂ
| Specification | Details |
| Brand | LEPU MEDICAL |
| Model | PC-80B |
| Product Name | Easy ECG Monitor |
| Product Type | Handheld ECG Monitor |
| Application | ECG / Electrocardiography |
| Display | 2.8-inch colour LCD |
| Measurement Methods | Palm, Leg, Chest, Lead Wire |
| Lead-Wire Configuration | RA, LA, LL |
| Quick Measurement | 30 seconds |
| Continuous Measurement | Yes |
| Measurement Results | 17 types |
| Data Storage | 2700 groups or approximately 22 hours trend |
| Data Transmission | Wireless real-time transfer |
| Mobile Application | ViHealth |
| Mobile Platform | Android / iOS |
| Integration | Communication protocol and SDK available |
| Interface | Mini USB |
| Dimensions | 125 × 70 × 21.5 mm |
| Power | Removable battery |
| Housing Material | Plastic |
| Certification Marking | CE 0123 |
| Included Accessories | Main unit, lead wire, electrode sheet, data cable, packing box |
Key Benefits of the PC-80B ECG Monitor
- Portable handheld design for convenient ECG measurements.
- The 2.8-inch colour LCD provides an integrated display for viewing ECG information.
- Four measurement methods: palm, leg, chest, and lead-wire measurement.
- 30-second quick measurement for rapid ECG recording.
- Continuous measurement for longer monitoring sessions.
- Wireless real-time data transfer to a supported mobile application.
- 2700 groups of recorded data or approximately 22 hours of trend data, according to the supplied specifications.
- Supports Android/iOS application connectivity for real-time display and data storage.
- 17 measurement result types are listed in the supplied product specifications.
- SDK and communication protocol availability can support software integration where applicable.
- Compact housing makes the device suitable for portable ECG applications.
Four ECG Measurement Methods
Palm Measurement
Palm measurement allows ECG acquisition using the user’s hands and the integrated electrodes on the device.
Leg Measurement
The PC-80B can also perform ECG measurements using the leg measurement method, providing another option for acquiring a cardiac waveform.
Chest Measurement
Chest measurement can be used when a chest-contact ECG recording method is preferred.
Lead-Wire Measurement
For lead-wire ECG recording, the supplied lead configuration uses RA, LA, and LL connections.
Display and ECG Recording
The PC-80B features a 2.8-inch colour LCD screen for viewing ECG information directly on the device. It supports both quick and continuous measurement modes.
- Quick measurement: 30 seconds
- Continuous measurement: supported
- Colour display: 2.8-inch LCD
- ECG waveform visualisation: supported
- Heart-rate display: supported
- Internal recording: up to 2700 groups or approximately 22 hours of trend data, based on the supplied specifications
The device images supplied for this product also show ECG readings with displayed heart-rate values and recorded measurement information.
Bluetooth and Mobile App Data Transfer
The Portable Bluetooth ECG Monitor PC-80B supports wireless real-time data transfer to a supported mobile application. The supplied materials identify ViHealth as the application used for real-time display and storage.
This wireless workflow can make it easier to review ECG recordings on a supported smartphone or tablet rather than relying exclusively on the monitor’s built-in display.
Mobile Connectivity Features
- Real-time wireless ECG transfer
- Mobile ECG waveform display
- Data storage through the application
- Android/iOS application support
- Communication protocol and SDK availability for integration
Actual application functionality may depend on the supported software version, smartphone/tablet operating system, and device configuration.

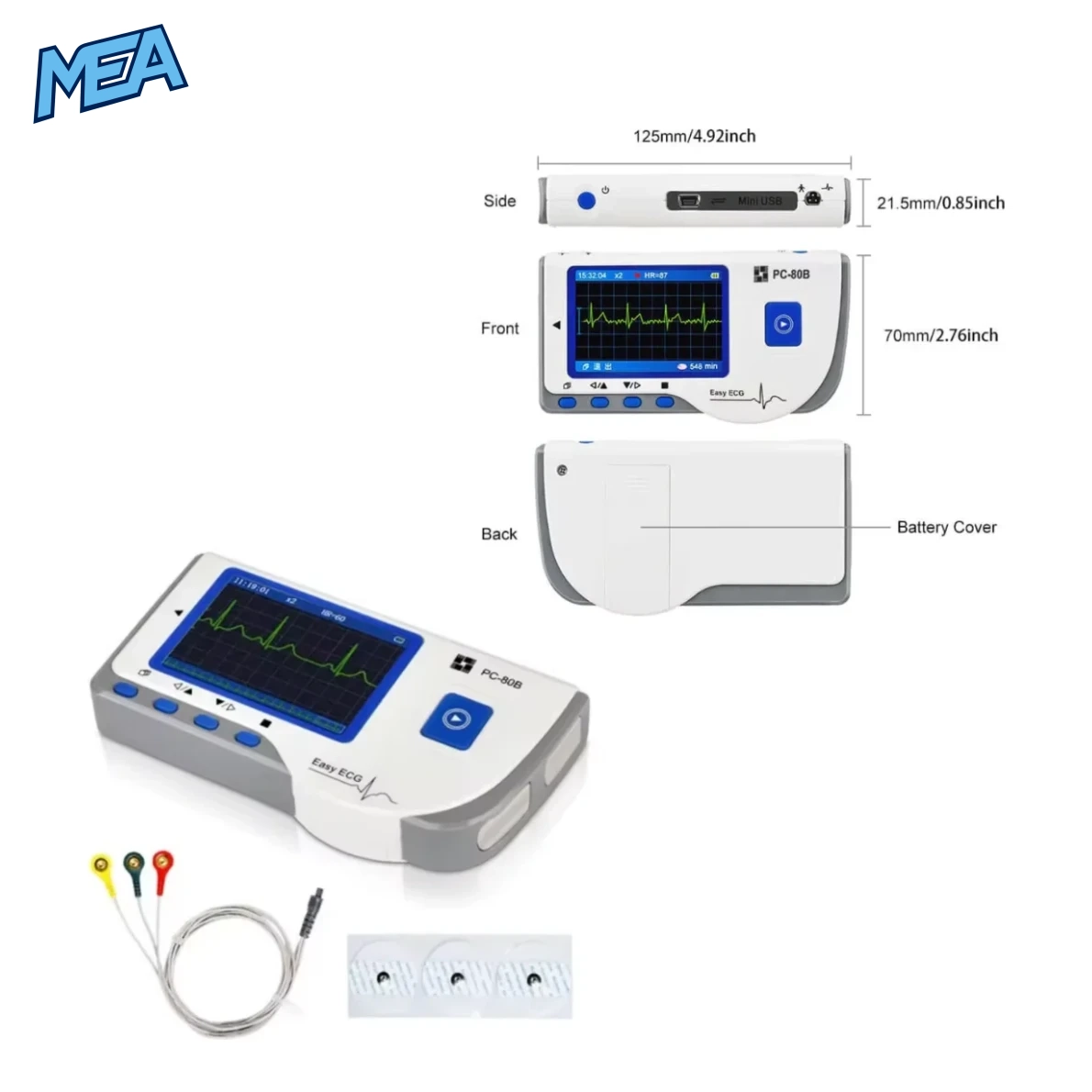

PC-80B Dimensions and Design
The compact PC-80B housing measures approximately:
- Length: 125 mm / 4.92 in
- Width: 70 mm / 2.76 in
- Thickness: 21.5 mm / 0.85 in
The device incorporates a front colour display, measurement electrodes, battery compartment, and Mini USB interface.
Its handheld format makes it practical where portability and quick ECG acquisition are important.

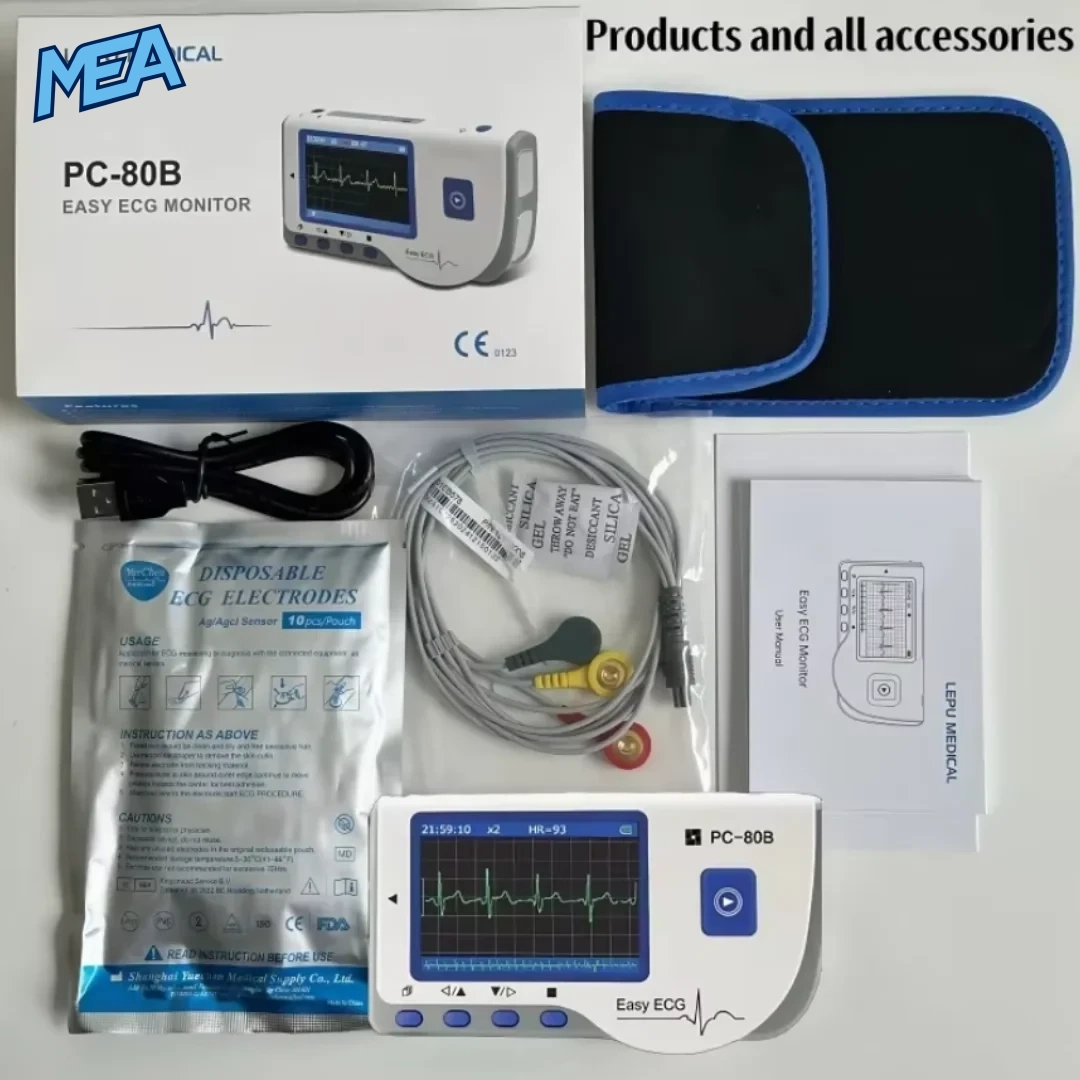

What’s Included
The supplied product configuration includes:
- PC-80B Easy ECG Monitor
- Lead wire
- Electrode sheet
- Data cable
- Main unit
- Packing box
Disposable ECG Electrodes
The supplied electrode information identifies Ag/AgCl sensor disposable ECG electrodes, packaged as 10 pieces per pouch.
For electrode application, the supplied instructions indicate that the skin should be clean, dry, and free from excess oil. Follow the electrode manufacturer’s application, storage, and disposal instructions.
Disposable electrodes should not be reused.
Typical Use Cases
The PC-80B can be considered for applications requiring portable ECG acquisition, including:
- Portable ECG recording
- Clinical ECG screening workflows
- Healthcare facilities
- Physician and hospital use
- Patient monitoring workflows
- ECG data collection
- Mobile ECG assessment
- Research and software-integration applications where supported
The appropriate use of the device depends on local regulations, clinical protocols, and the qualifications of the person operating it.
Important Handling and Storage Information
For the disposable ECG electrodes supplied with the product:
- Use electrodes only as directed by the manufacturer.
- Apply electrodes to clean, dry skin.
- Do not reuse disposable electrodes.
- Keep unused electrodes in their original pouch.
- Follow the stated storage requirements.
- The supplied electrode labeling specifies a recommended storage temperature of 5–30°C (41–86°F).
- Read the applicable instructions before use.
Why Choose the PC-80B Easy ECG Monitor?
The LEPU MEDICAL PC-80B ECG Monitor combines a compact handheld form factor with multiple ECG acquisition methods, a colour display, quick and continuous recording modes, internal data storage, and wireless mobile connectivity. Its combination of portable ECG monitoring and digital data transfer makes it a practical option for healthcare environments and other approved ECG recording applications.
Frequently Asked Questions
What is the PC-80B ECG Monitor?
The PC-80B ECG Monitor is a portable handheld Easy ECG Monitor from LEPU MEDICAL designed for ECG recording and heart-rate monitoring, with a colour LCD and wireless data-transfer capability.
What is the model number of this ECG monitor?
The model number is PC-80B.
Does the PC-80B support Bluetooth?
Yes. The supplied specifications identify wireless real-time data transfer, and the product materials identify ViHealth for real-time ECG display and storage.
What measurement methods does the PC-80B support?
The PC-80B supports palm, leg, chest, and lead-wire ECG measurement.
Does the PC-80B have a colour display?
Yes. It has a 2.8-inch colour LCD screen for viewing ECG information.
How quickly can the PC-80B record an ECG?
The device supports a 30-second quick measurement as well as continuous measurement.
How much ECG data can the PC-80B store?
The supplied specifications state storage of up to 2700 groups of records or approximately 22 hours of trend data.
Can the PC-80B transfer ECG data to a smartphone?
Yes. The supplied product information specifies wireless real-time transfer and Android/iOS application support. The referenced application is ViHealth.
Does the PC-80B support lead-wire ECG measurement?
Yes. The lead-wire configuration shown in the supplied materials includes RA, LA, and LL connections.
What accessories are included with the PC-80B?
The stated package includes the main ECG monitor, lead wire, electrode sheet, data cable, and packing box.
Is the PC-80B suitable for professional healthcare use?
The supplied labeling indicates hospital/physician use. Users should follow the manufacturer’s instructions, applicable regulatory requirements, and appropriate clinical procedures.
Are the ECG electrodes reusable?
No. The supplied electrode instructions identify them as disposable ECG electrodes and state that they should not be reused.
