The CONTEC ABPM50 Ambulatory Blood Pressure Monitor is a compact, portable 24-hour NIBP monitoring device designed to automatically record blood pressure and pulse rate over an extended period. It uses oscillometric measurement technology, stores ambulatory readings, and connects to a PC via USB for data review, trend analysis, annotations, and report printing. It is suitable for hospitals, clinics, and other medical institutions.
Available Options: Monitor with 1 Cuff | Monitor with 3 Cuffs
Key Benefits of the CONTEC ABPM50
- 24-hour ambulatory blood pressure monitoring for continuous and dynamic NIBP assessment
- Records up to 350 groups of automatic ambulatory NIBP data
- Supports automatic and manual blood pressure measurements
- Stores up to 300 groups of manually measured data
- Compact handheld design weighing less than 300 g with battery
- High-definition colour TFT display for easy viewing
- USB connection for transferring measurement data to a PC
- PC software provides data review, trend graphs, analysis, annotations, and report printing
- Supports blood pressure display in mmHg or kPa
- English and Chinese display interface options
- Adjustable automatic measurement intervals of 15, 30, 60, 120, or 240 minutes
- Supports patient ranges including adult, pediatric, and neonate
24-Hour Ambulatory Blood Pressure Monitoring
The ABPM50 24-hour blood pressure monitor is designed for extended NIBP monitoring rather than relying only on individual spot measurements. The device can automatically measure blood pressure at configured intervals and record the results for later review.
The oscillometric upper-arm measurement method provides:
- Systolic blood pressure (SYS)
- Diastolic blood pressure (DIA)
- Pulse rate (PR)
- Measurement time and recorded results
- Configurable automatic measurement intervals
This makes the ABPM50 useful when clinicians need a series of blood pressure readings collected throughout a monitoring period.
CONTEC ABPM50 PC Software
The included PC software extends the functionality of the CONTEC ABPM50 ambulatory BP monitor by allowing recorded NIBP measurements to be transferred through USB.
Software Functions
- Download NIBP measurement results from the monitor
- Review recorded blood pressure data
- Display scoop-shaped trend graphs
- Display filling-type trend graphs
- Generate histograms
- Generate pie charts
- Display correlation line graphs
- Edit individual NIBP records
- Add annotations to measurement results
- Enter basic patient information
- Add doctor’s advice information
- Record NIBP status instructions
- Enter current medication information
- Preview reports before printing
- Print blood pressure monitoring reports
Automatic and Manual Measurement
The ABPM50 supports both automatic and manual measurement modes. Automatic measurements can be configured at different intervals according to the monitoring requirements, while manual measurements can be taken when an additional reading is needed.
Automatic Measurement Intervals
- 15 minutes
- 30 minutes
- 60 minutes
- 120 minutes
- 240 minutes
The monitor can record up to 350 groups of ambulatory NIBP data for one monitoring session.
Display and Data Review
The high-definition colour TFT display provides several ways to review recorded measurements. Data can be viewed through:
- Data list
- Trend graph
- Large-font display
- Alarm and error notifications
- Low-battery indication
- Time display
The device supports mmHg and kPa units and provides selectable Chinese and English display interfaces.
Technical Specifications
| Specification | Details |
| Brand | CONTEC |
| Model | ABPM50 |
| Product Type | 24-Hour Ambulatory Blood Pressure Monitor |
| Monitoring Parameter | NIBP / Blood Pressure |
| Measurement Method | Oscillometric |
| Measurement Position | Upper Arm |
| Patient Range | Adult, Pediatric, Neonate |
| Automatic Measurement Intervals | 15, 30, 60, 120, 240 minutes |
| NIBP Pressure Range | 0–38.67 kPa / 0–290 mmHg |
| NIBP Resolution | 1 mmHg |
| NIBP Accuracy | ±3 mmHg |
| Alarm Parameters | SYS, DIA |
| Inflation | Automatic inflation by force pump |
| Deflation | Automatic multistep deflation |
| Pulse Rate Range | 40–240 bpm |
| Pulse Rate Resolution | 1 bpm |
| Data Storage | Up to 350 groups ambulatory NIBP data |
| Manual Measurement Storage | Up to 300 groups |
| Display | High-definition colour TFT |
| PC Connection | USB |
| PC Software | Data review, analysis, trends and report printing |
| Power Supply | 2 × 1.5V AA alkaline batteries |
| Safety Classification | Internally powered device |
| Applied Part | Type BF, defibrillation protection |
| Dimensions | 128 × 69 × 36 mm |
| Weight | Less than 300 g with battery |
| Operating Temperature | 5°C to 40°C |
| Operating Humidity | 15%–80% RH |
| Operating Atmospheric Pressure | 700–1060 hPa |
| Storage Temperature | -20°C to +55°C |
| Storage Humidity | ≤95% RH |

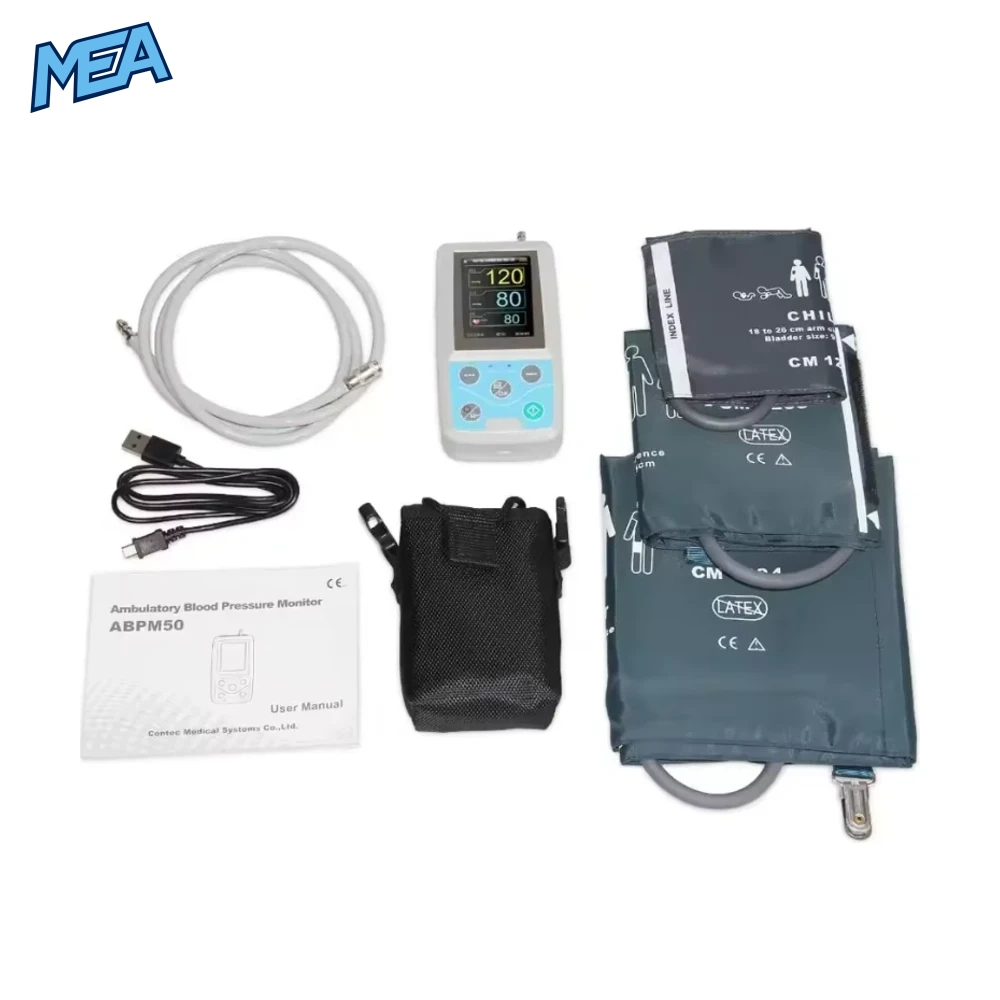

Cuff Options
Choose the configuration that matches your monitoring requirements:
Monitor with 1 Cuff
A single-cuff configuration for users who require the ABPM50 monitor with one blood pressure cuff.
Monitor with 3 Cuffs
A multi-cuff configuration intended for applications requiring multiple cuff sizes. Please select the exact cuff configuration available with your order before purchasing.
Applications and Use Cases
The CONTEC ABPM50 24-hour ambulatory blood pressure monitor can be used in:
- Hospitals
- Medical clinics
- Physician offices
- Outpatient monitoring
- Blood pressure assessment
- Ambulatory NIBP monitoring
- Clinical blood pressure data collection
- Long-duration blood pressure observation
- Medical institutions requiring PC-based NIBP reporting
Why Choose the CONTEC ABPM50?
The ABPM50 combines 24-hour ambulatory blood pressure monitoring, onboard data storage, a colour display, and PC-based reporting in a portable device. Its configurable measurement intervals and automatic/manual measurement modes allow healthcare professionals to collect multiple blood pressure readings over an extended monitoring period.
The USB-connected software is particularly useful when recorded NIBP data needs to be reviewed, analysed, annotated, visualised through graphs, or converted into printable reports.
Frequently Asked Questions
What is the CONTEC ABPM50?
The CONTEC ABPM50 is a portable 24-hour ambulatory blood pressure monitor designed to automatically measure and record non-invasive blood pressure and pulse rate over an extended monitoring period.
Is the ABPM50 a 24-hour blood pressure monitor?
Yes. The ABPM50 is designed for 24-hour ambulatory NIBP monitoring and can record up to 350 groups of ambulatory blood pressure data during one monitoring session.
Does the CONTEC ABPM50 include PC software?
The ABPM50 supports PC software connection through USB. The software can download NIBP results, display trend graphs and charts, edit records, add annotations, and print reports.
How often can the ABPM50 measure blood pressure automatically?
The automatic measurement interval can be configured to 15, 30, 60, 120, or 240 minutes.
What measurement method does the ABPM50 use?
The device uses the oscillometric method with upper-arm blood pressure measurement.
How much data can the ABPM50 store?
The monitor can record up to 350 groups of ambulatory NIBP data and up to 300 groups of manually measured data.
What units does the ABPM50 support?
Blood pressure can be displayed in mmHg or kPa.
Can the ABPM50 measure pulse rate?
Yes. The ABPM50 measures pulse rate within a specified range of 40 to 240 bpm, with a resolution of 1 bpm.
Who can use the ABPM50?
The supplied specifications identify the supported patient range as adult, pediatric, and neonate. The appropriate cuff size should be selected for the patient and application.
What are the available ABPM50 configurations?
This listing offers Monitor with 1 Cuff and Monitor with 3 Cuffs options. Select the desired configuration when ordering.
