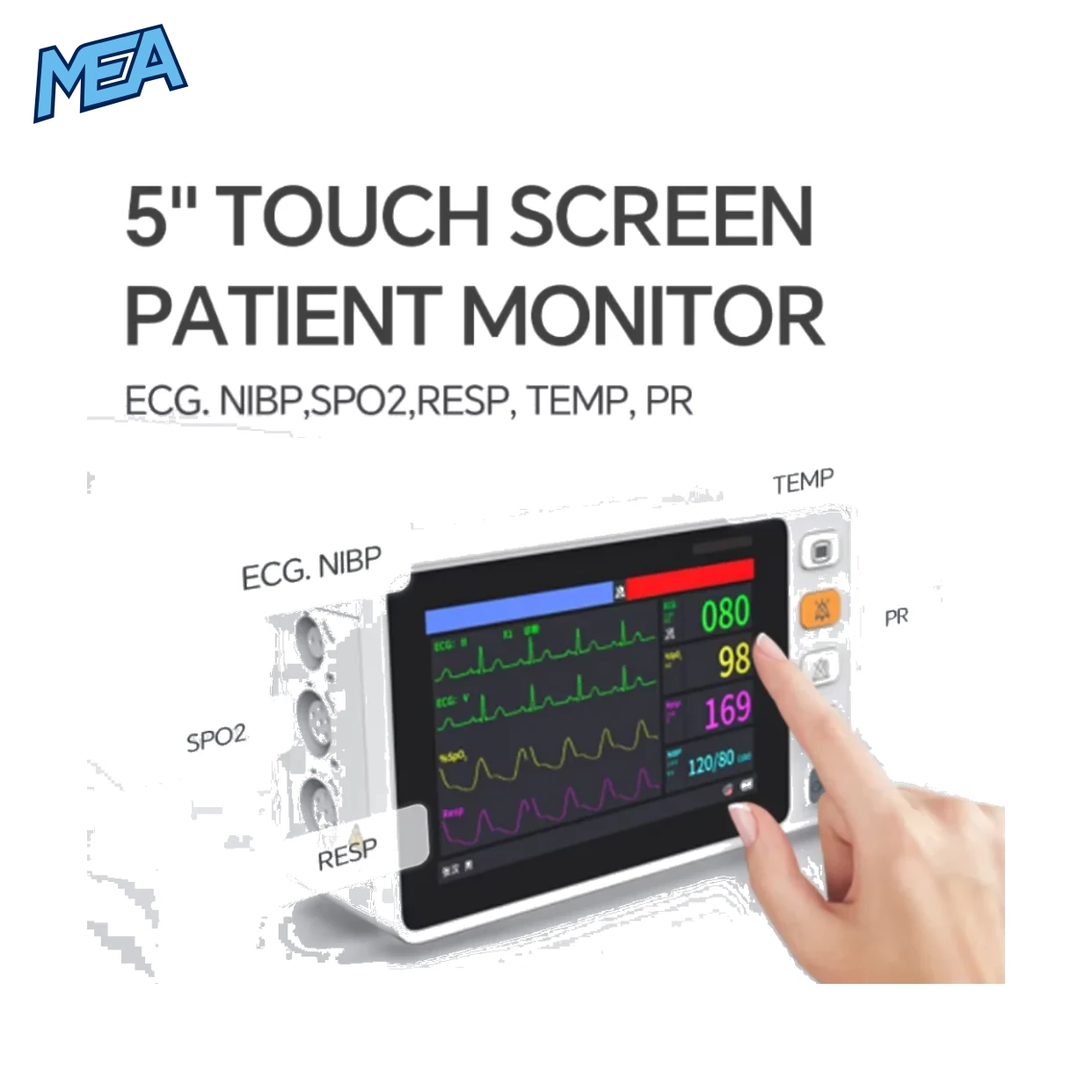

The CONTEC CMS1000 Patient Monitor is a portable 6-parameter vital signs monitoring system designed for continuous monitoring of adult, pediatric, neonatal, and veterinary patients.
Featuring a responsive 5-inch colour touch screen, built-in rechargeable battery, WiFi connectivity, and advanced monitoring technologies, the CMS1000 delivers accurate real-time measurement of ECG, RESP, SpO₂, Pulse Rate, NIBP, and Temperature, with optional CO₂ monitoring.
Ideal for hospitals, clinics, emergency care units, ambulances, veterinary practices, and mobile healthcare environments, this compact monitor combines professional-grade performance with user-friendly operation.
Key Benefits
- Real-time monitoring of six critical physiological parameters
- Suitable for human and veterinary patients
- Supports adult, pediatric, and neonatal monitoring
- Bright 5-inch TFT colour touch screen display
- Built-in rechargeable lithium battery for uninterrupted operation
- WiFi connectivity for Central Monitoring System integration
- Advanced anti-motion and anti-interference SpO₂ technology
- Audible and visual alarm system for patient safety
- Compact and lightweight portable design
- Fanless construction for quieter operation and reduced contamination risk
Comprehensive 6-Parameter Monitoring
ECG Monitoring
Monitor cardiac activity with high-accuracy ECG measurement and waveform display.
Features include:
- 3-lead and 5-lead ECG support
- Real-time heart rate monitoring
- Multi-channel waveform display
- Defibrillation protection
- Surgical unit interference resistance
Respiration Monitoring (RESP)
Track respiratory function continuously with impedance-based respiration measurement.
Capabilities:
- Respiration rate monitoring
- Respiration waveform display
- Apnea detection and alarm
- Accurate respiratory trend analysis
SpO₂ and Pulse Rate Monitoring
The integrated digital pulse oximetry system provides reliable oxygen saturation measurements even under challenging conditions.
Benefits:
- Accurate SpO₂ readings
- Pulse rate monitoring
- Plethysmographic waveform display
- Low perfusion measurement capability
- Anti-motion artifact technology
Non-Invasive Blood Pressure (NIBP)
The oscillometric blood pressure module provides precise measurements for different patient groups.
Measurement Modes:
- Manual Mode
- Automatic Mode
- STAT Mode
Monitored Values:
- Systolic Blood Pressure (SYS)
- Diastolic Blood Pressure (DIA)
- Mean Arterial Pressure (MAP)
Temperature Monitoring
Monitor patient temperature accurately with high-resolution temperature measurement capabilities.
Optional CO₂ Monitoring
For advanced patient assessment, the CMS1000 supports optional capnography monitoring.
Measures:
- End-Tidal CO₂ (EtCO₂)
- Inspired CO₂ (INSCO₂)
- Airway Respiration Rate (AwRR)
Designed for Human and Veterinary Healthcare
The CMS1000 platform is available for both human and veterinary applications.
Human Patient Monitoring
Suitable for:
- Hospitals
- Intensive Care Units
- Emergency Rooms
- Outpatient Clinics
- Recovery Rooms
- Ambulances
Veterinary Patient Monitoring
Ideal for:
- Veterinary Clinics
- Animal Hospitals
- Surgical Procedures
- Pet Recovery Monitoring
- Mobile Veterinary Services
Advanced Features
Smart Touch Screen Interface
The 5-inch colour TFT LCD provides intuitive operation and clear visibility of patient data.
Features include:
- Touch screen operation
- Multi-language support
- Large-font display mode
- Customisable waveform layouts
- Adjustable parameter display settings
Intelligent Alarm System
Built-in audible and visual alarms help clinicians respond quickly to patient condition changes.
Trend Data Storage
Store and review patient monitoring history for better clinical decision-making.
Wireless Monitoring Capability
Integrated WiFi enables connection to a Central Monitoring System for network-based patient management.
Long Battery Runtime
The built-in rechargeable lithium battery supports portable operation during patient transport and power interruptions.
Technical Specifications
| Specification | Details |
| Product Model | CMS1000 |
| Brand | CONTEC |
| Monitor Type | Multi-Parameter Patient Monitor |
| Display Size | 5-Inch Colour TFT LCD Touch Screen |
| Patient Types | Adult, Pediatric, Neonatal, Veterinary |
| Parameters Monitored | ECG, RESP, SpO₂, PR, NIBP, TEMP |
| Optional Parameter | CO₂ Monitoring |
| ECG Leads | 3-Lead and 5-Lead |
| Heart Rate Range | 15–350 bpm |
| Respiration Rate Range | 0–150 rpm |
| SpO₂ Range | 0–100% |
| Pulse Rate Range | 25–250 bpm |
| NIBP Range | 0–300 mmHg |
| Temperature Range | 0–50°C |
| Connectivity | WiFi |
| Alarm System | Audible and Visual |
| Data Storage | Trend Data and Alarm Events |
| Battery Type | Built-In Rechargeable Lithium Battery |
| Power Supply | AC 100V–240V, 50/60Hz |
| Safety Class | Class II |
Package Contents

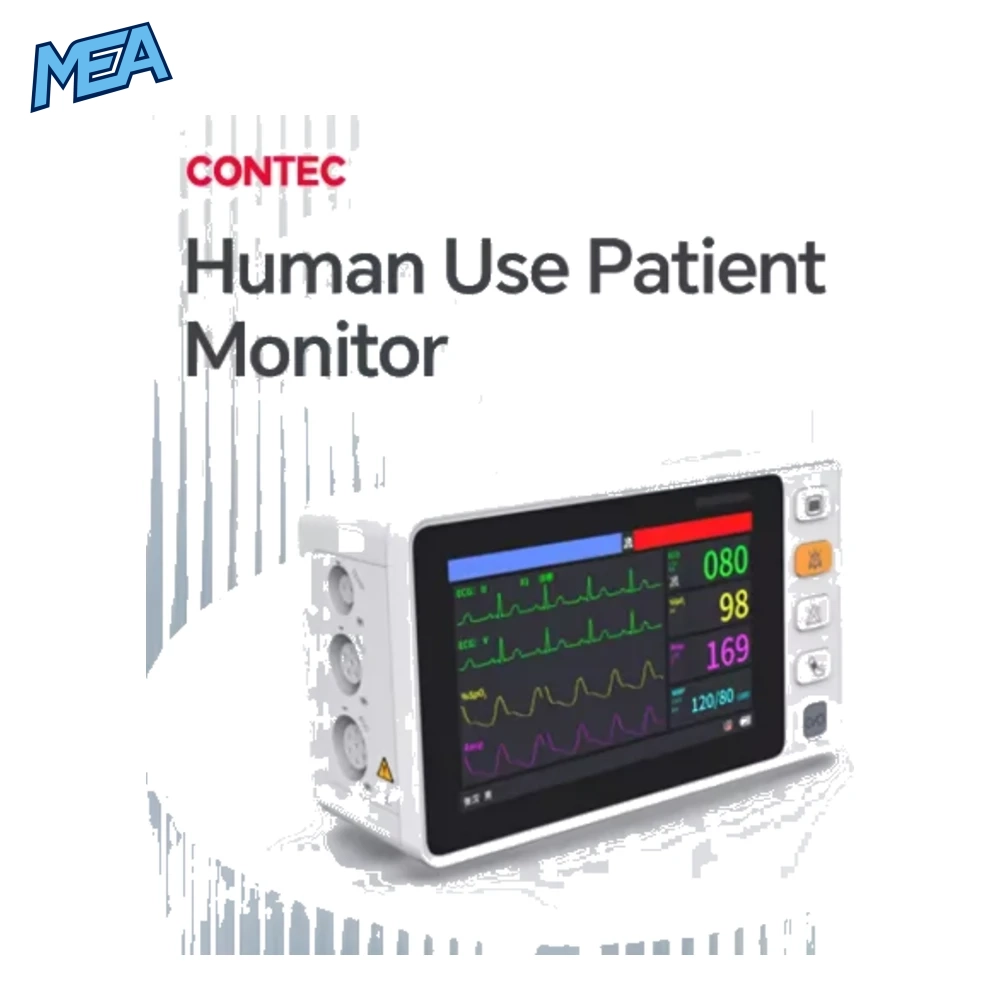

Human Version (CMS1000)
- Adult Finger SpO₂ Probe
- Adult NIBP Cuff
- NIBP Extension Tube
- ECG Lead Cable
- ECG Electrodes
- Temperature Probe
- Power Cord
- User Manual

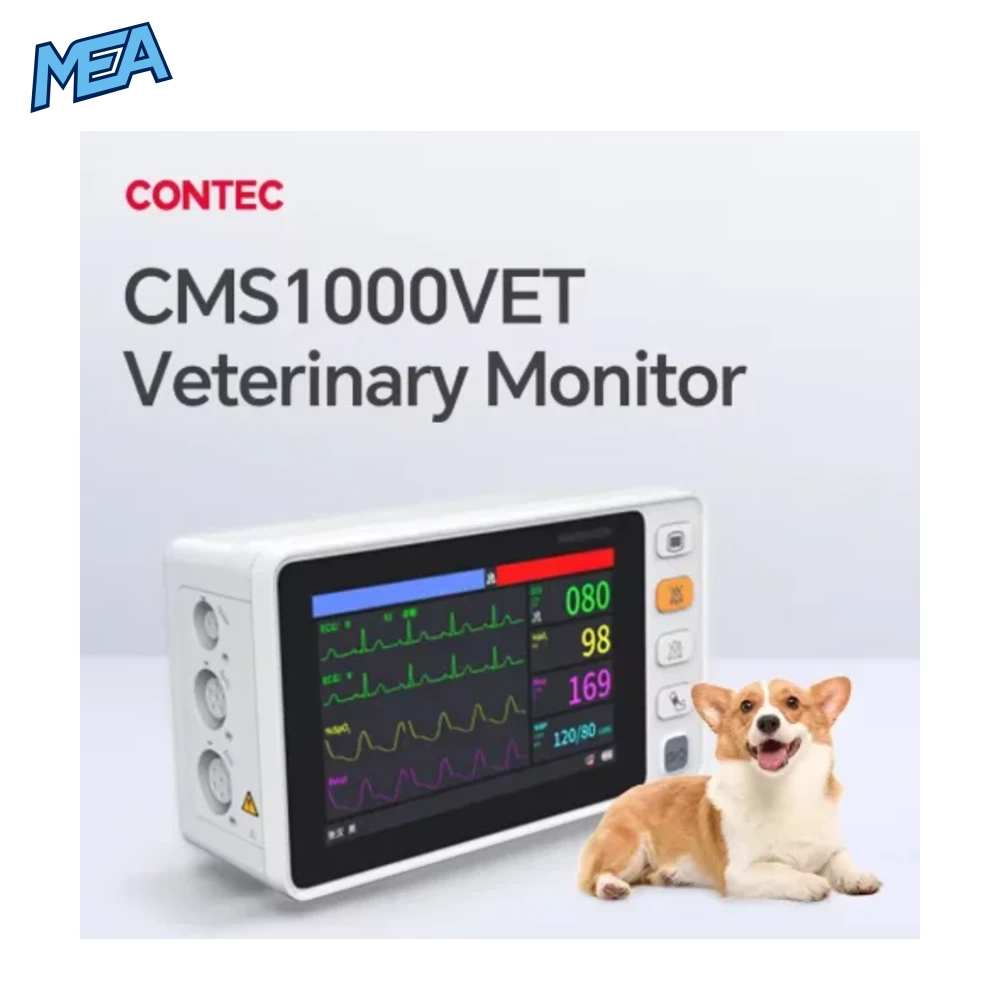

Veterinary Version (CMS1000VET)
- Veterinary Finger SpO₂ Probe
- SpO₂ Extension Cable
- Veterinary NIBP Cuff
- NIBP Extension Tube
- ECG Lead Cable
- ECG Electrodes
- Temperature Probe
- Power Cord
- User Manual
Applications
The CONTEC CMS1000 Portable Patient Monitor is suitable for:
- Intensive Care Monitoring
- Emergency Patient Assessment
- Clinical Observation
- Veterinary Monitoring
- Ambulance and Transport Monitoring
- Surgical Recovery Monitoring
- General Ward Monitoring
- Outpatient Care Facilities
Frequently Asked Questions
What parameters does the CONTEC CMS1000 monitor?
The CMS1000 monitors ECG, respiration rate, oxygen saturation (SpO₂), pulse rate, non-invasive blood pressure (NIBP), and temperature. Optional CO₂ monitoring is also available.
Is the CMS1000 suitable for veterinary use?
Yes. The CMS1000VET version is specifically configured for veterinary applications and includes animal supported accessories.
Can the monitor operate during power outages?
Yes. The built-in rechargeable lithium battery allows continuous monitoring when external power is unavailable.
Does the CMS1000 support WiFi connectivity?
Yes. The monitor can connect to a Central Monitoring System through WiFi for network-based patient monitoring.
Can it monitor pediatric and neonatal patients?
Yes. The device supports adult, pediatric, and neonatal patient monitoring with appropriate settings and accessories.
Is CO₂ monitoring included?
CO₂ monitoring is available as an optional feature depending on the configuration selected.
Where is the CMS1000 commonly used?
The monitor is commonly used in hospitals, clinics, emergency departments, ambulances, recovery rooms, veterinary hospitals, and mobile healthcare settings.
Order the CONTEC CMS1000 Patient Monitor Today
The CONTEC CMS1000 Touch Screen Patient Monitor combines portability, advanced monitoring technology, and reliable performance in one compact device.
Whether for human healthcare or veterinary practice, it delivers accurate real-time vital sign monitoring to support informed clinical decisions and improved patient care.
