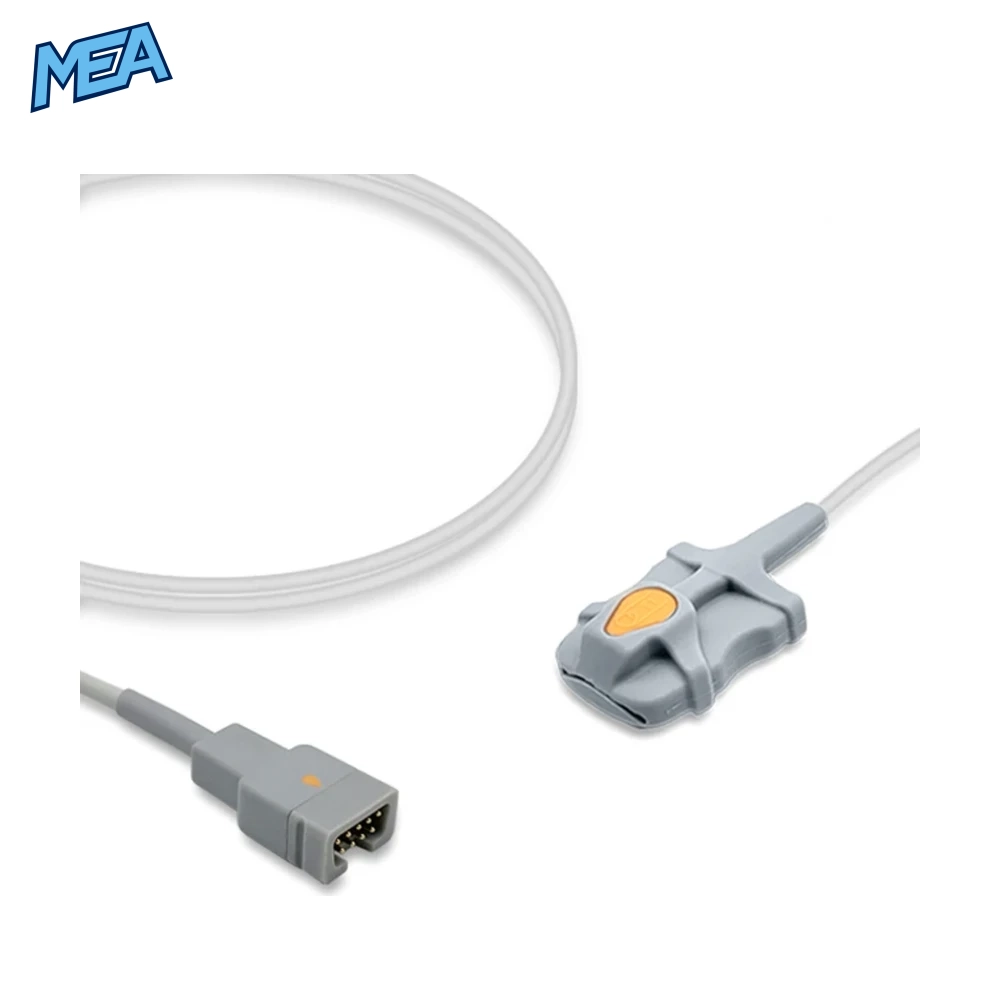

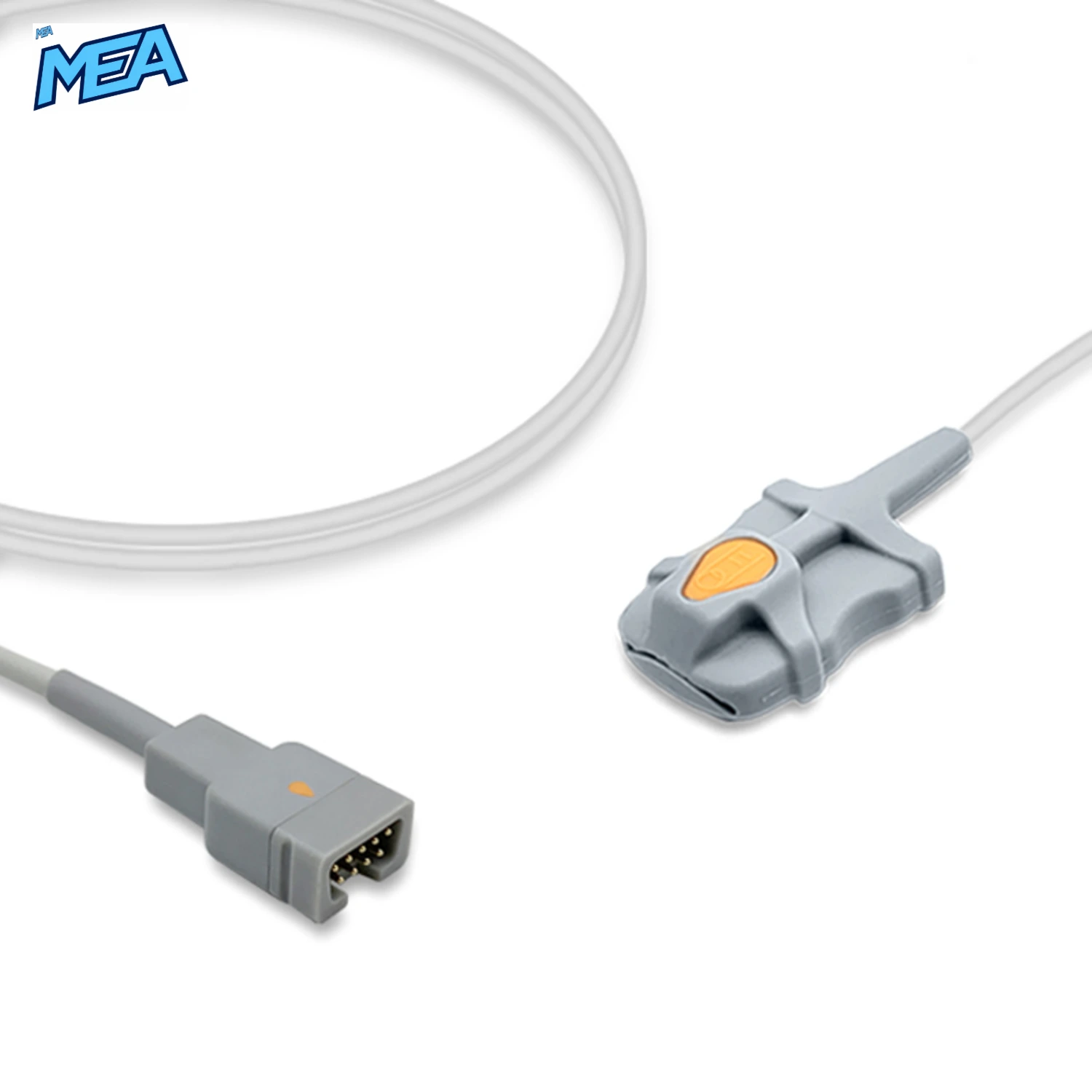

Novametrix Adult Soft Tip SpO2 Sensor 1.0m (Dixtal 9168-00 Reference 9-Pin Reusable New)

The Novametrix Adult Soft Tip SpO2 Sensor 1.0m is a new, reusable pulse oximetry finger sensor built to the Dixtal 9168-00 reference specifications for monitors using Novametrix SpO2 technology. It has a soft silicone finger boot, a 1.0 m (3.3 ft) cable and a 9-pin connector, and it works with Novametrix 512, 513, 715 and MARS oximeters, Respironics 920 series, Healthdyne Tidal Wave Sp and Generra 710 monitors for adult oxygen saturation and pulse rate monitoring.

Key Benefits of This Novametrix Soft Tip Pulse Oximeter Sensor

• Comfort for longer monitoring: The soft silicone tip surrounds the finger without spring pressure, which suits extended spot-check or continuous use.
• Reusable and economical: One sensor can be cleaned and reused across many patients, lowering cost per use versus single-patient adhesive sensors.
• Direct connection: The 9-pin plug connects to Novametrix-technology SpO2 inputs with no adapter cable required on the listed models.
• Short, tidy cable: The 1.0 m lead is convenient for handheld and bedside oximeters where a long cable gets in the way.
• 12-month warranty

Features

• Adult soft tip (silicone boot) finger sensor
• Novametrix SpO2 technology

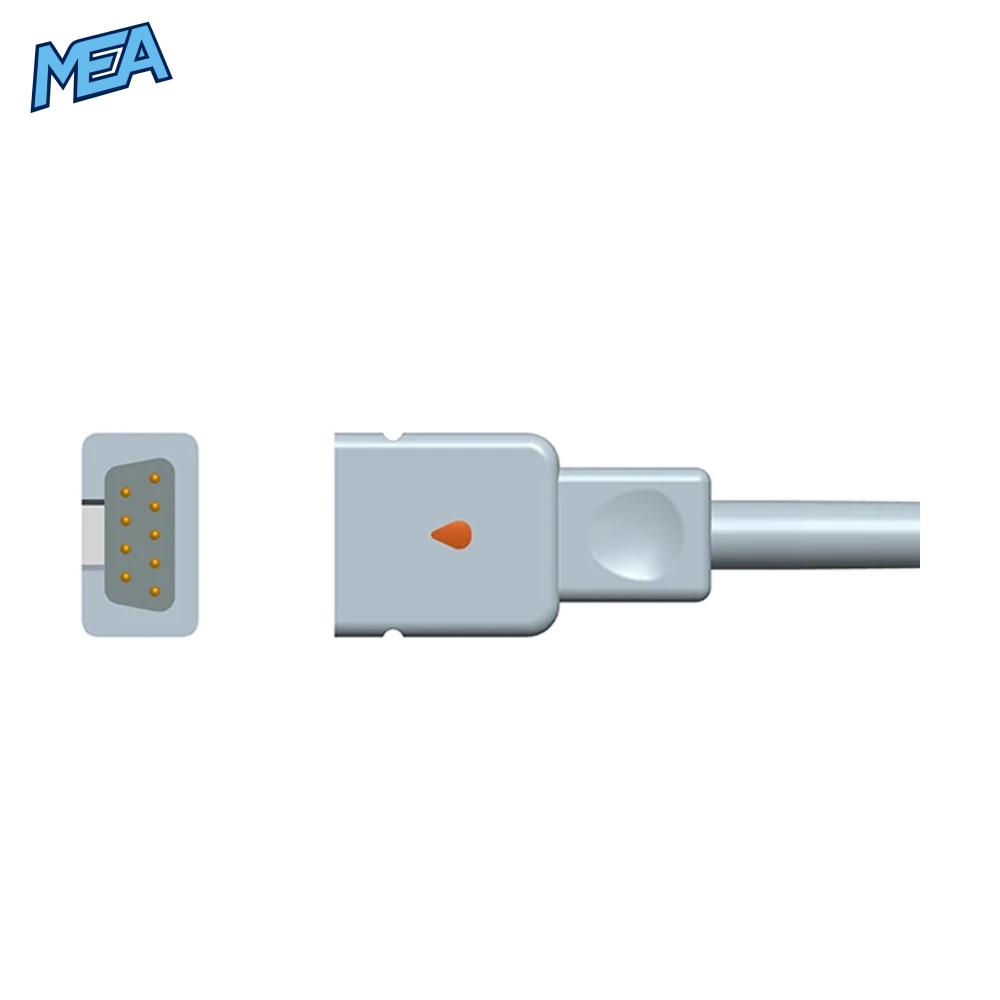

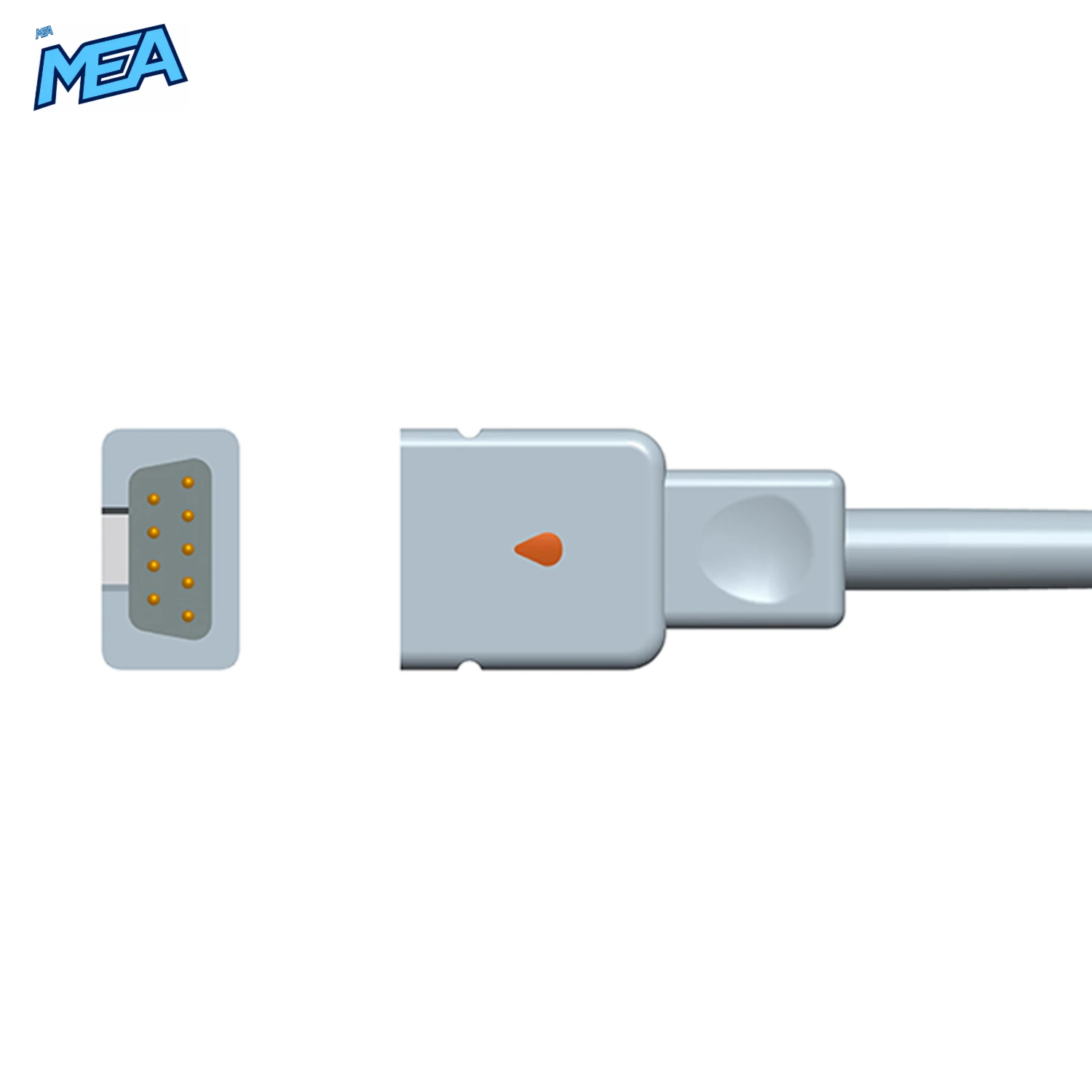

• 9-pin connector
• 1.0 m / 3.3 ft cable length
• Reusable lifecycle, latex-free silicone contact surface
• Supplied new, 1 piece per bag

Technical Specifications

Part Number Cross-Reference

Note: the original Dixtal 9168-00 is a hard shell finger clip. This sensor offers the same connection and Novametrix technology in a soft silicone tip design.

Works With These Monitors and Oximeters

Please confirm your monitor model and SpO2 technology before ordering.

Use Cases

• Adult SpO2 and pulse rate monitoring in hospitals, clinics and sleep labs
• Replacement sensor for Novametrix and Respironics 920-series pulse oximeters
• Capnography/oximetry combination monitors such as the Healthdyne Tidal Wave Sp
• Biomedical engineering stock for sensor replacement and repair

Application and Care

• Slide the adult finger fully into the silicone boot with the cable running along the top of the finger.
• Check the site regularly and reposition during long monitoring periods.
• Wipe clean between patients with a soft cloth and 70% isopropyl alcohol or a mild disinfectant; do not autoclave or immerse the connector.

Frequently Asked Questions

Which monitors does this Novametrix adult soft tip SpO2 sensor work with?

It works with Novametrix 512, 513, 715 and MARS, Respironics 920, 920M and 920M Plus, Healthdyne Tidal Wave 710Sp and 715Sp, and Generra 710.

What part number does this sensor cross-reference?

It is built to the Dixtal 9168-00 reference in a soft tip style, and also cross-references Unimed U403S-73 and Praymed PSC0062-S.

Is this sensor reusable?

Yes. It is a reusable silicone soft tip sensor that can be cleaned and used on multiple adult patients.

How long is the cable and what connector does it use?

The cable is 1.0 m (3.3 ft) long and ends in a 9-pin connector for Novametrix-technology SpO2 inputs.

What is the difference between a soft tip and a hard shell SpO2 sensor?

A soft tip sensor uses a flexible silicone boot that is gentler for long monitoring, while a hard shell sensor is a spring-loaded finger clip that is quicker for spot checks.

Is the sensor new and does it include a warranty?

Yes. It is supplied new with a 12-month warranty.
