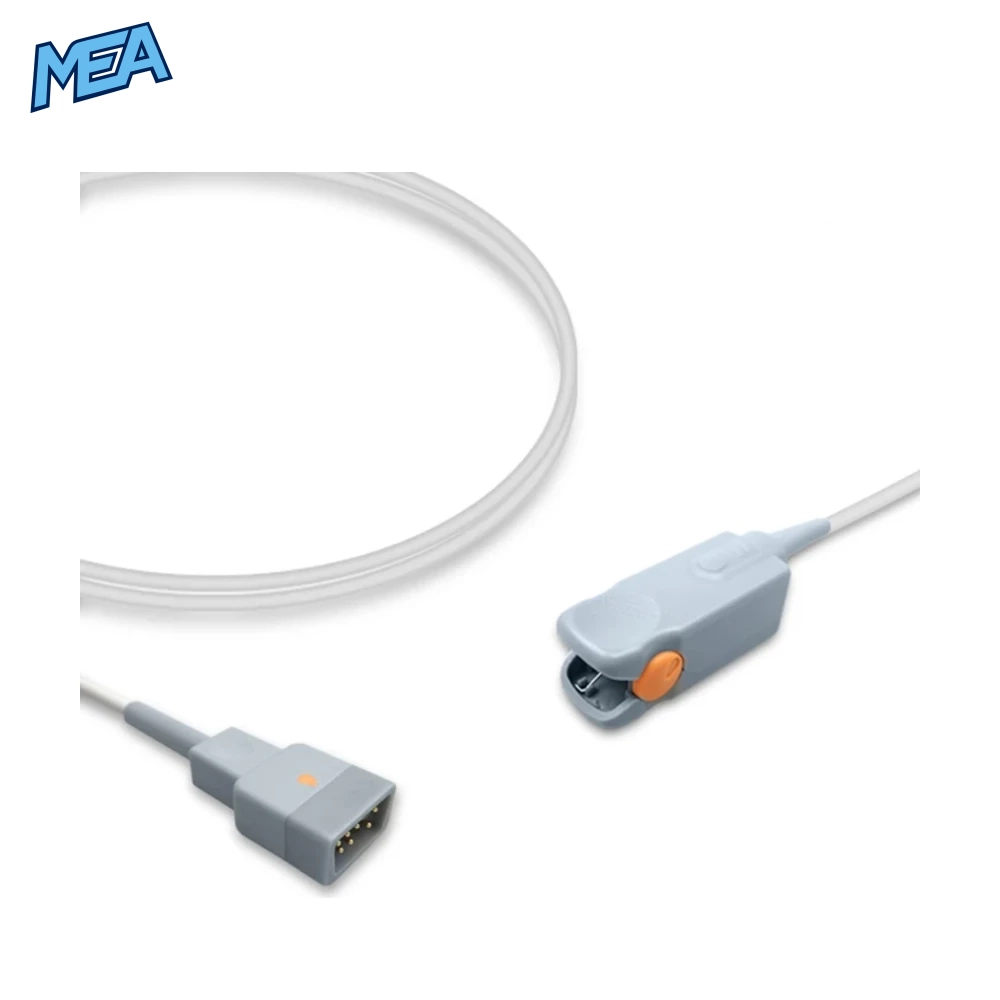

Datex Ohmeda Pediatric Hard Shell SpO2 Sensor 1.0m (9 Pin Reusable New)

The Datex Ohmeda Pediatric Hard Shell SpO2 Sensor 1.0m is a new, reusable finger clip pulse oximetry sensor built to work with Datex Ohmeda patient monitors that use Datex Ohmeda SpO2 technology. It has a pediatric-sized hard shell clip, a 1.0 metre (3.3 ft) cable and a 9-pin connector, and it measures oxygen saturation (SpO2) and pulse rate in children during spot checks and continuous monitoring.

Key Benefits of This Pediatric SpO2 Sensor

• Sized for children: The pediatric clip is proportioned for smaller fingers, helping the sensor seat correctly for a stable reading.
• Reusable design: The hard shell housing is wiped clean between patients, reducing the cost per use compared with single-patient sensors.
• Direct connection: The 9-pin connector plugs into the SpO2 input or extension cable of supported Datex Ohmeda monitors.
• Short 1.0m cable: Keeps the bedside tidy and suits use with an extension cable or close-range monitoring.
• 12-month warranty: Supplied new with warranty cover for peace of mind.

Features of the Datex Ohmeda Pediatric Finger Clip Sensor

• Pediatric hard shell (finger clip) sensor style
• Datex Ohmeda SpO2 technology
• 9-pin connector
• 1.0m (3.3 ft) cable length
• Reusable, multi-patient use
• CE certified
• Supplied as 1 piece per bag

Technical Specifications

Part Number Cross-Reference

Works With These Datex Ohmeda Monitors

• AS/3, CS/3, System 5
• Capnomac Ultima
• Cardiocap I, Cardiocap II, Cardiocap/5
• CG/2S, CH-RS, CH/2S, CH/S
• Light Monitor
• M-Estpr module
• Oscar II, OSP-200, SAF-F
• Satellite, Satellite Plus II, Satellite Trans, Trans Plus
• ULTS00, ULTSIO, ULTSVI, ULTSVO

Please confirm your monitor model and connector before ordering. If you are unsure, contact us with your monitor model and we will check the fit for you.

Use Cases

• Pediatric wards and children’s hospitals
• Anaesthesia and recovery (PACU) monitoring
• Emergency departments and patient transport
• Day surgery, clinics and outpatient spot checks
• Biomedical engineering departments stocking replacement sensors

Application and Care

• Place the clip on a clean, dry finger with the cable running along the back of the hand.
• Check the site regularly and move the sensor periodically during long monitoring sessions.
• Clean the sensor surface between patients following your facility’s protocol. Do not immerse or autoclave.
• Inspect the cable and connector before each use and replace the sensor if damaged.

Frequently Asked Questions

Which monitors does this pediatric SpO2 sensor work with?

It works with Datex Ohmeda monitors using Datex Ohmeda SpO2 technology, including AS/3, CS/3, System 5, Cardiocap I, II and /5, Capnomac Ultima, Light Monitor, Oscar II and the Satellite series.

Is this sensor reusable?

Yes. It is a reusable hard shell finger clip sensor intended for multi-patient use with cleaning between patients.

How long is the cable?

The cable is 1.0 metre (3.3 ft) long. A 3.0m pediatric version is also available if you need more reach.

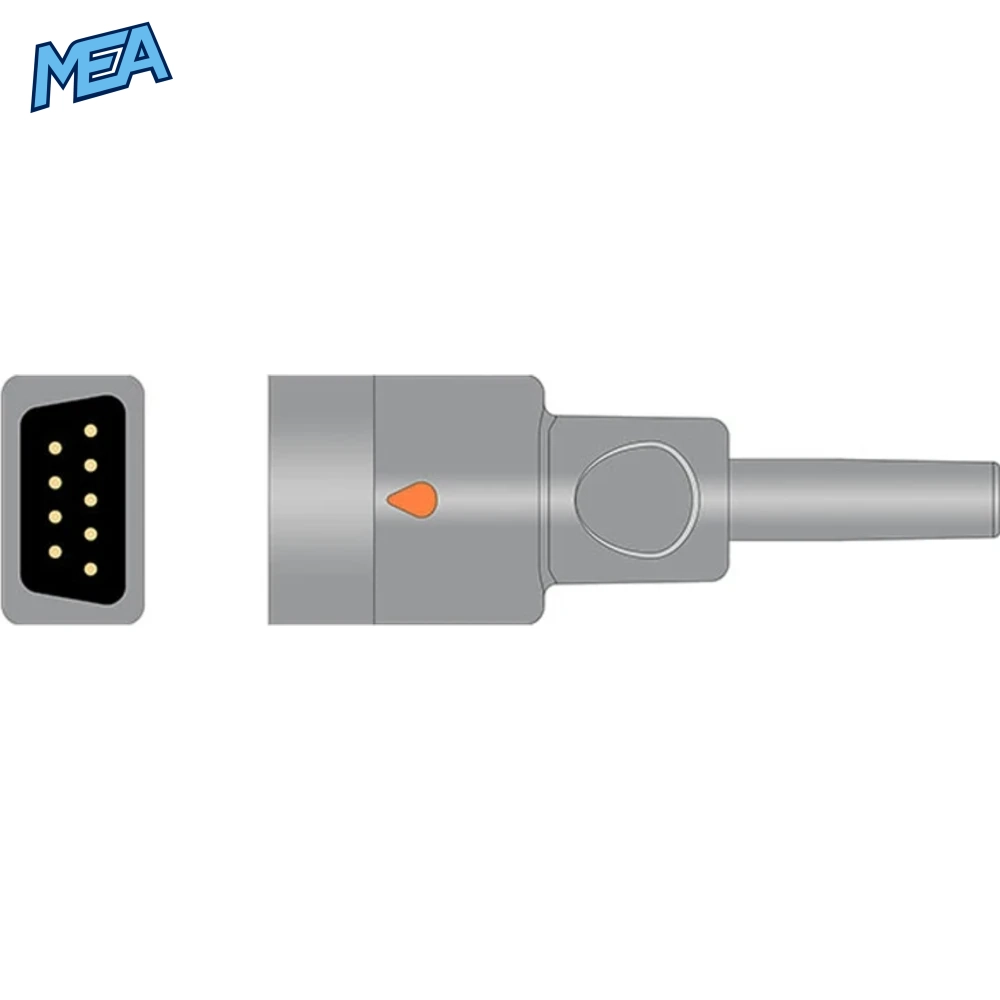

What connector does it have?

It has a 9-pin connector for Datex Ohmeda monitors and extension cables.

What patient size is it designed for?

It is designed for pediatric patients. Adult and neonate sensors for the same monitors are listed separately.

Is the sensor new and does it include a warranty?

Yes. The sensor is supplied new with a 12-month warranty.
