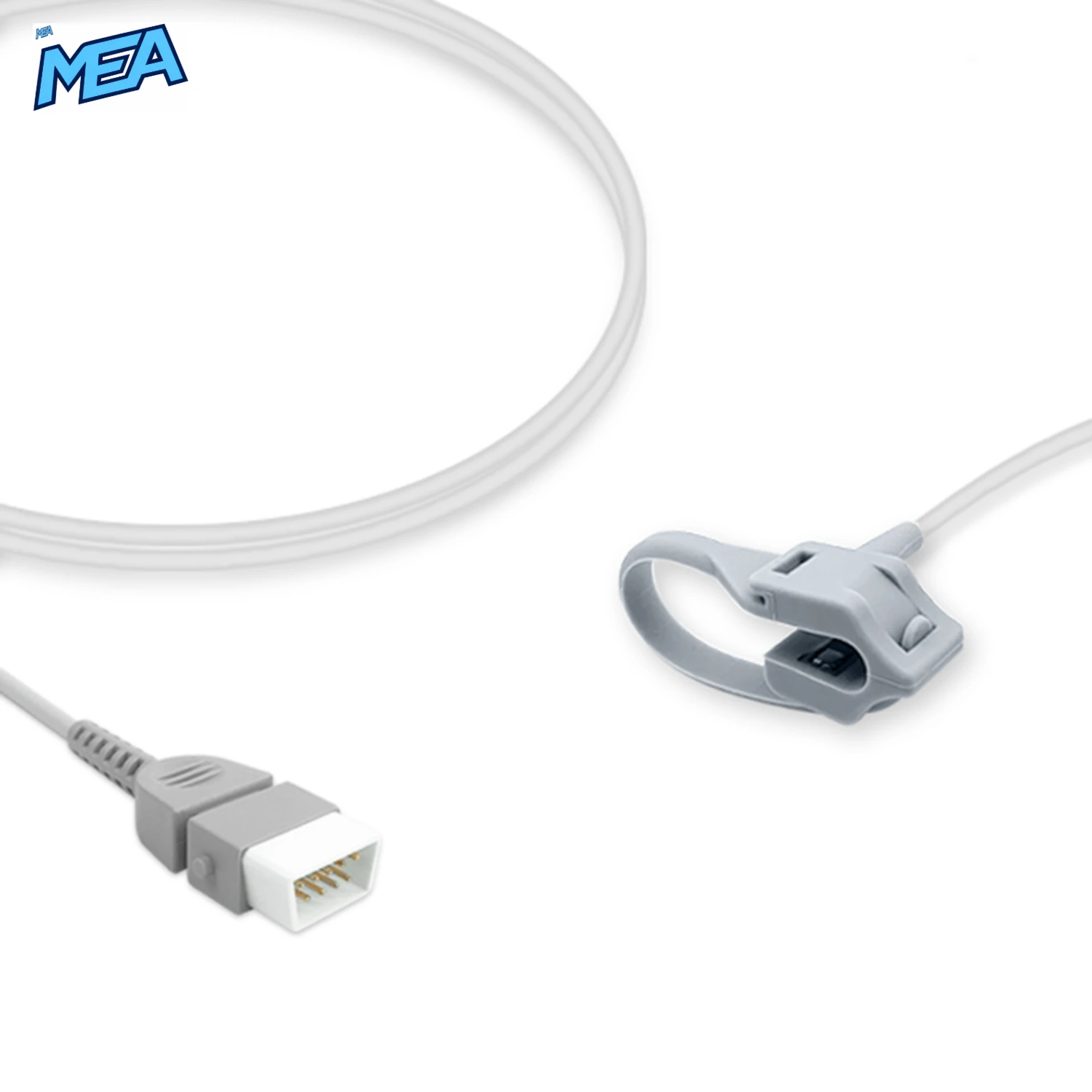

The BCI 3026 Neonate Wrap SpO2 Sensor is a reusable pulse oximetry probe built to the BCI 3026 reference specifications for oximeters and patient monitors that use BCI (Smiths Medical) SpO2 technology.

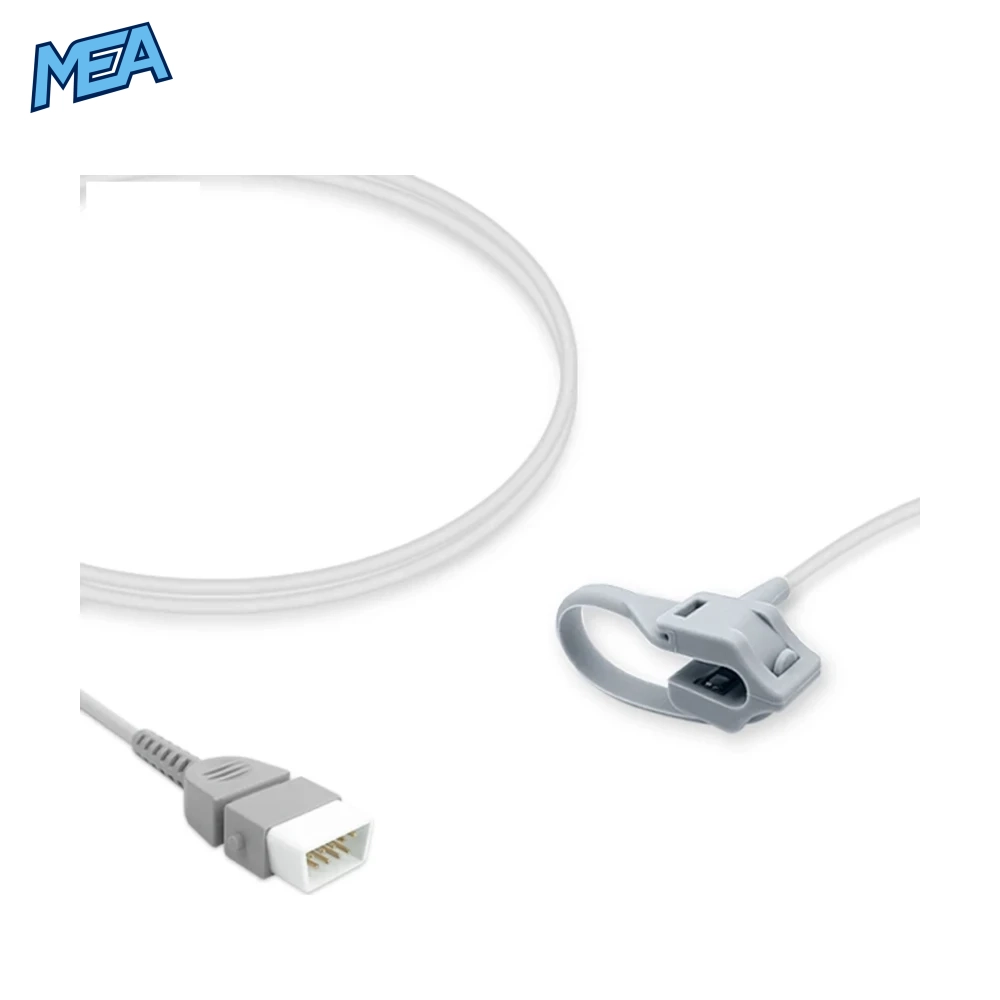

It measures functional oxygen saturation (SpO2) and pulse rate on newborn patients. A soft, flexible wrap secures around the foot or hand, and a 1.0m (3.3 ft) cable with a 9-pin connector plugs straight into supported BCI-technology devices.
Key Features of the BCI 3026 Neonatal Wrap Sensor
- Neonate wrap design a flexible strap wraps around a newborn’s foot or hand, where finger clips are too large to fit securely.
- BCI SpO2 technology built to work with oximeters and monitors that use BCI (Smiths Medical) SpO2 technology.
- 1.0m (3.3 ft) cable a short lead suited to handheld, tabletop and cot-side oximeters positioned close to the patient.

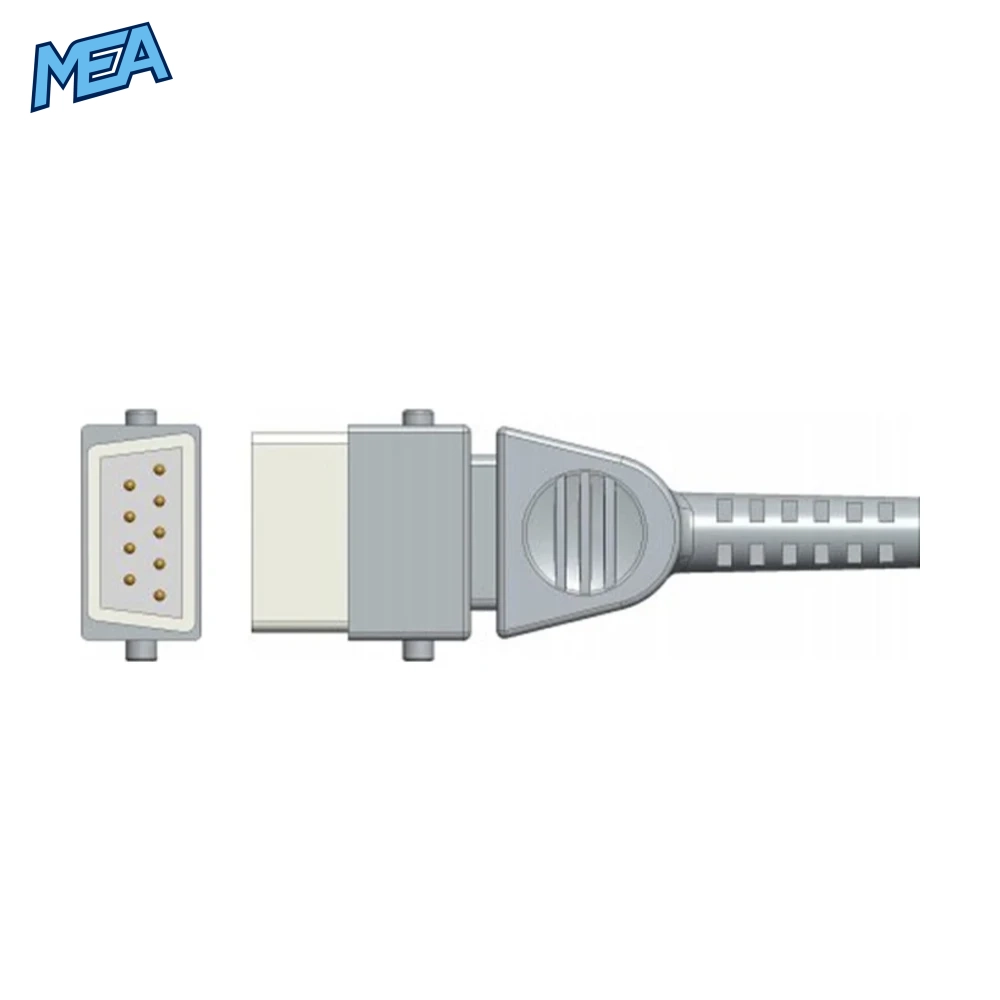

- 9-pin connector connects directly to supported devices without an adapter cable.
- Reusable and wipe-clean designed for multi-patient use with cleaning between patients.
- , supplied brand new with a 12-month warranty.
Benefits of a Reusable Neonate SpO2 Wrap Probe
- Secure fit on very small patients the adjustable wrap holds the emitter and detector in alignment on tiny limbs.
- Gentle on delicate skin no adhesive is needed to keep the sensor in place.
- Lower cost per use one reusable sensor can be cleaned and used again instead of opening a new single-use probe for each patient.
- Keeps BCI oximeters in service a dependable spare for BCI, SurgiVet and other BCI-technology units.
BCI 3026 Neonate Wrap SpO2 Sensor Specifications
| Product | Neonate Wrap SpO2 Sensor |
|---|---|
| Reference Part Number | BCI 3026 |
| SpO2 Technology | BCI (Smiths Medical) |
| Patient Size | Neonate |
| Sensor Type | Wrap |
| Cable Length | 1.0m (3.3 ft) |
| Connector | 9-pin |
| Lifecycle | Reusable |
| Condition | New |
| Package | 1 pc per bag |
| Warranty | 12 months |
Cross-Reference Part Numbers
| Brand | Reference Number |
|---|---|
| BCI | 3026 |
| Unimed | U303-06, U603-06 |
| Praymed | PSE0076-S |
Monitors and Oximeters This Sensor Works With
- BCI: 1301, 1302, 1303, 3100, 3101, 3180, 3300, 3301, 3302, 3303, 3304, 3304 (Autocorr), 3400, 3401, 3402 (MiniCorr), 3403, 3404, 3404 (Autocorr Plus), 3444, 6100, 8400/8401 (Capnocheck II), 9004 (Capnocheck Plus), 9100, 9200 (Advisor), Autocorr, Mini Torr, Mini Torr Plus, Spectro 10, Spectro 20, SPECTRO2 10/20/30, SurgiVet, Vet/Ox Plus 4600
- Smiths Medical: SurgiVet V3304
- Armstrong: AD-900, AD-1000, AD-2000, AD-3000, AD-4000
- Artema S&W: Diascope
- ChoiceMMed: HCSMD400, MD300A, MD300I, MD300K1, MD300M, MMED6000DP-M3, MMED6000DP-M7, MMED6000DP-S6, MMED6000DP-SF
- CMOS Drake: all models with 9-pin connectors
- Datex Ohmeda: 4700
- Digicare: Digimax 2000, Digimax 5500
- Draeger: Oxipac 2000, Oxipac 2500
- Envitec: PulsiQuant 8040
- Goldway: UT4000A
- Infinium: Oxcyon II
- Invacare: 3300nv
- Larsen & Toubro: Cosmic, Galaxy, Planet, Planet 50, Star 50, Star 55, Stellar P
- Mennen Medical: 1300
- RGB: Omicron FT, Omicron Premium
- Spacelabs: PRO2
- Venni: VI-100A, VI-200A
- Weinmann: Oxycount Mini
Always confirm your monitor model and connector before ordering. Contact us with your device model if unsure.
Typical Use Cases
- Spot-check and continuous SpO2 and pulse rate monitoring in neonatal units and special care nurseries
- Newborn observation in maternity, postnatal and paediatric wards
- Neonatal transport and retrieval with handheld BCI oximeters
- Anaesthesia and recovery monitoring on combined capnography/oximetry units (Capnocheck, Advisor)
- Small-patient veterinary monitoring on SurgiVet and Vet/Ox systems
Application, Care and Cleaning
How to Apply the Wrap Sensor
- Wrap the sensor around the foot or hand so the light emitter and detector sit directly opposite each other.
- Fasten the strap snugly but not tightly; circulation must not be restricted.
- Check the site regularly and reposition the sensor in line with your clinical protocol.
Cleaning Between Patients
- Disconnect the sensor from the monitor before cleaning.
- Wipe the wrap and cable with 70% isopropyl alcohol or a mild hospital-grade disinfectant and allow to dry fully.
- Do not immerse, autoclave or sterilise with high-temperature methods.
- Inspect the cable and connector regularly and retire the sensor if damaged.
Frequently Asked Questions
What is the BCI 3026 Neonate Wrap SpO2 Sensor used for?
It is a reusable pulse oximetry probe that measures oxygen saturation (SpO2) and pulse rate on neonates using monitors with BCI (Smiths Medical) SpO2 technology.
Where is the wrap sensor placed on a newborn?
It is normally wrapped around the foot or the hand, with the emitter and detector aligned opposite each other.
What connector and cable length does it have?
A 9-pin connector on a 1.0m (3.3 ft) cable that plugs directly into supported devices.
Which monitors does it work with?
It works with BCI 3304 Autocorr, 3404 Autocorr Plus, Capnocheck II, Capnocheck Plus, Advisor 9200, SurgiVet V3304 and the other models listed above.
Will it work with Nellcor or Masimo monitors?
No. It is designed for BCI (Smiths Medical) SpO2 technology only. For Nellcor systems, see the Nellcor OXI-A/N Neonate Wrap SpO2 Sensor 1.0m.
Is the sensor new and under warranty?
Yes.
