The Woodpecker O Star Dental Curing Light is a professional-grade, high-intensity LED curing device designed for fast and efficient polymerization of dental resins.Â
It features a wide-spectrum 385–515nm LED light source, multiple curing modes, wireless operation, and up to 3000 mW/cm² light intensity.Â
This dental curing lamp is widely used for restorative dentistry, orthodontic bracket bonding, and composite resin treatments, delivering consistent curing performance with deep penetration and minimal light loss.
Overview of Woodpecker O Star Dental Curing Light
The Woodpecker O Star Dental Curing Light LED Machine is a next-generation dental polymerization device engineered for modern restorative and orthodontic workflows. Built with advanced optical technology and ergonomic design, it ensures fast curing times, improved clinical efficiency, and reliable resin bonding outcomes.
Designed by Woodpecker, a globally recognised leader in dental equipment manufacturing, the O Star curing light combines high power output, intelligent modes, and precision wavelength control to meet diverse clinical requirements.
This device is especially suitable for:
- General dentistry clinics
- Orthodontic practices
- Cosmetic dentistry procedures
- Dental hospitals and surgical centres
With its wireless design, OLED display, and 360° rotatable head, it provides both flexibility and precision during clinical procedures.
Key Features of Woodpecker O Star Dental Curing Light
1. Ultra-High Light Intensity (Up to 3000 mW/cm²)
The O Star curing light delivers an exceptionally powerful output of up to 3000 mW/cm², enabling:
- Rapid resin polymerization
- Deep curing penetration
- Reduced chair time
- Improved workflow efficiency
This high-performance output ensures that even thick composite layers are cured effectively in seconds.
2. Wide-Spectrum LED Technology (385–515nm)
The device uses a broad-spectrum blue LED light source that covers 385nm to 515nm, allowing fit with:
- Camphorquinone (CQ) resins
- TPO-based materials
- Ivocerin photoinitiators
This makes the O Star a universal curing solution for most modern dental composite materials.
3. 7 Intelligent Working Modes
The curing light offers 7 clinical modes designed for different treatment needs:
Normal Mode
- 1000–1200 mW/cm²
- Ideal for standard restorations and fillings
High Mode
- 1800–2000 mW/cm²
- Fast curing for routine dental procedures
Turbo Mode
- 2700–3000 mW/cm²
- Ultra-fast curing (1–3 seconds applications)
Ortho Mode
- Optimised for orthodontic bracket bonding
- Strong penetration for metal and ceramic brackets
Soft Mode
- Gradual light increase (0–1200 mW/cm²)
- Reduces polymerization shrinkage
Pulse Mode
- Intermittent light cycle
- Minimises heat generation and patient discomfort
Check Mode
- Diagnostic purple light
- Used for detecting caries, cracks, and calculus
4. Wireless & Portable Design
The O Star curing lamp is powered by a rechargeable lithium battery (2000mAh), eliminating cable restrictions.
Benefits:
- Fully wireless operation
- Easy handling during procedures
- Improved mobility in clinical environments
- Reduced clutter on dental workstation

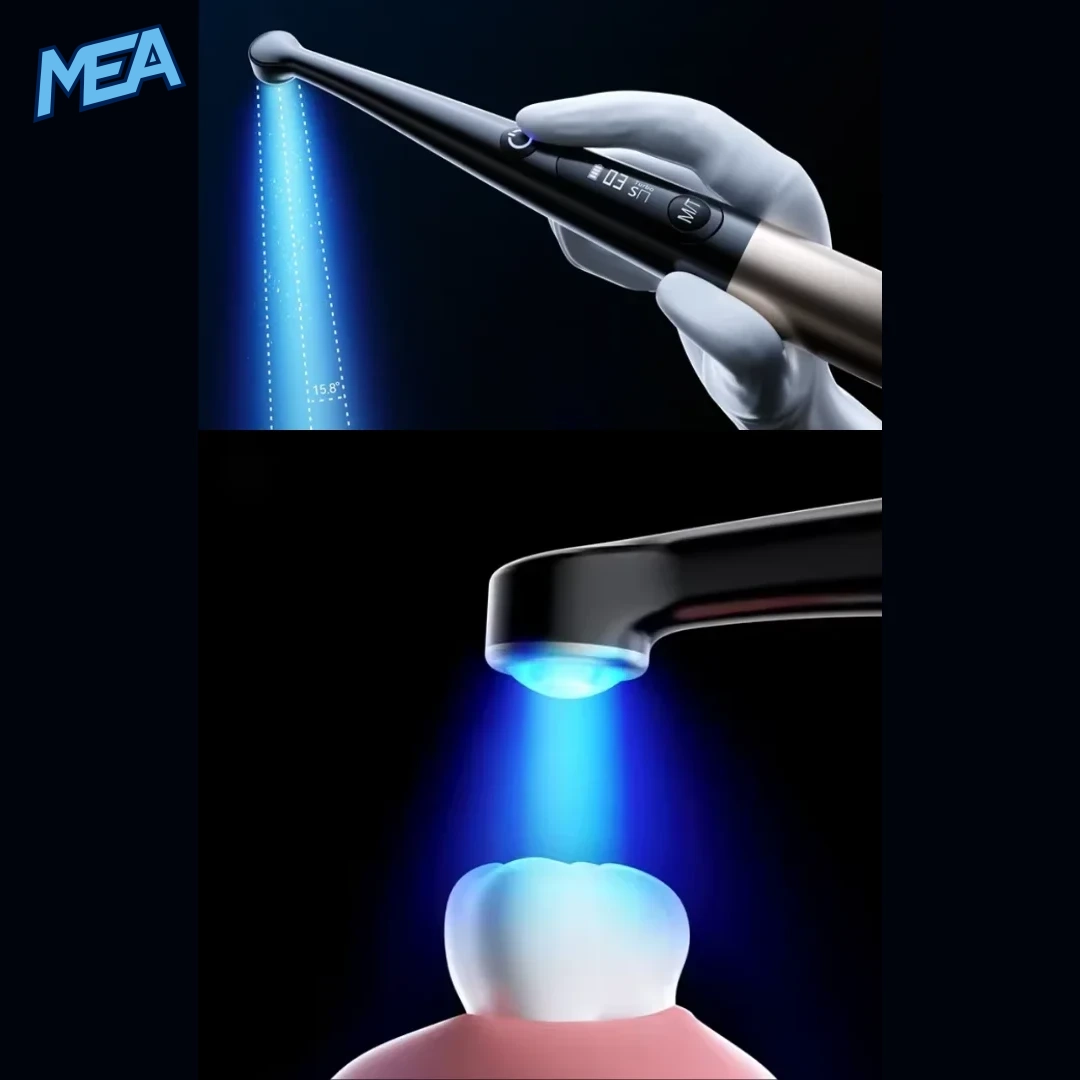

5. 360° Rotatable Light Head
The curing head can rotate 360 degrees, enabling:
- Easy access to posterior teeth
- Flexible angulation during procedures
- Better intraoral visibility
- Reduced operator strain

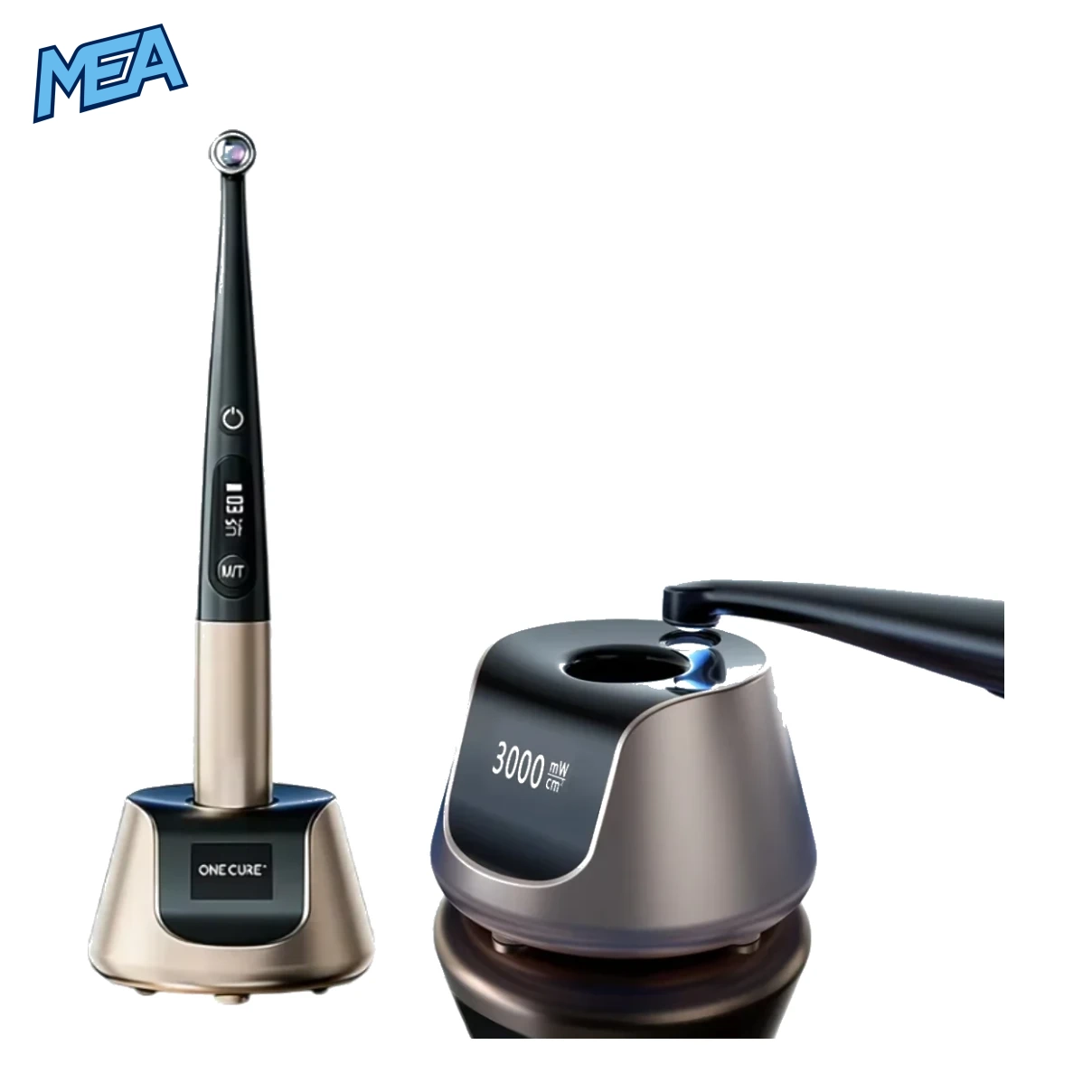

6. Built-in Light Meter Charging Base
The charging station includes an integrated light intensity meter, ensuring:
- Accurate output calibration
- Consistent curing performance
- Long-term device reliability
7. Ergonomic Metal Body Design
- Full metal construction
- Lightweight (108g)
- Anti-shock durability
- Comfortable grip for long procedures
This ensures fatigue-free operation even during extended clinical use.
Technical Specifications
| Feature | Specification |
| Product Name | Woodpecker O-Star Dental Curing Light |
| Model Number | O-Star |
| Light Source | High Power Blue LED |
| Wavelength Range | 385nm – 515nm |
| Light Intensity | Up to 3000 mW/cm² |
| Power Output | 10W LED |
| Battery Type | Rechargeable Lithium (18500) |
| Battery Capacity | 2000 mAh |
| Device Weight | 108 g |
| Main Unit Size | 23mm × 23mm × 204mm |
| Curing Distance | Up to 5 cm |
| Head Rotation | 360° |
| Charging Input | 100–240V ~ 50/60Hz |
| Output Adapter | 5V / 1A |
| Duty Cycle | 20 sec ON / 20 sec OFF |
| Display | OLED Screen |
| Modes | 7 Clinical Modes |
| Safety Class | Class II |
| Certification | CE, 3C |
Clinical Applications of O Star Dental Curing Light
The Woodpecker O-Star is designed for a wide range of dental procedures:
1. Composite Restorations
- Tooth fillings
- Cavities restoration
- Direct composite bonding
2. Orthodontic Applications
- Bracket bonding
- Adhesive curing
- Rapid orthodontic setups
3. Cosmetic Dentistry
- Veneer bonding
- Whitening resin activation
- Aesthetic restorations
4. Endodontic & Surgical Procedures
- Light-activated sealants
- Resin-based dental cement curing
5. Diagnostic Use (Check Mode)
- Caries detection
- Crack identification
- Calculus visualisation
Benefits of Woodpecker O-Star Curing Light
1. Faster Clinical Workflow
High-intensity output reduces curing time significantly, improving patient turnover.
2. Superior Polymerization
Deep and uniform curing reduces:
- Weak bonding
- Material shrinkage
- Restoration failure
3. Multi-Material Fitment
Fits all modern dental resin systems.
4. Enhanced Patient Comfort
Pulse mode reduces heat buildup, ensuring comfortable procedures.
5. Cost-Effective Investment
Durable design and long battery life reduce maintenance costs.
Why Choose Woodpecker O-Star Dental Curing Light?
Woodpecker has established itself as a trusted global dental equipment brand with over:
- 16+ years of innovation
- 38 national patents
- 1.5 million+ units sold worldwide
The O-Star curing light represents:
- Advanced engineering
- Clinical reliability
- Professional-grade performance
It is widely used in modern dental clinics for its precision, speed, and versatility.
How to Use the Woodpecker O-Star Curing Light
- Select the appropriate curing mode
- Position the light 1–5 cm from the restoration area
- Activate the curing cycle
- Maintain recommended exposure time
- Allow cooling between cycles if needed
Maintenance & Safety Guidelines
- Always charge fully before clinical use
- Avoid direct eye exposure to LED light
- Use protective curing glasses
- Clean lens regularly for optimal output
- Store in a dry, dust-free environment
Frequently Asked Questions
What is the model number of Woodpecker O-Star curing light?
The official model is O-Star, commonly referenced as Woodpecker O-Star Dental Curing Light.
What is the wavelength range of this curing lamp?
It operates in a 385nm to 515nm wide spectrum, making it suitable for most dental resins.
Is the O-Star curing light wireless?
Yes, it is fully wireless and battery-operated with a rechargeable lithium battery.
How strong is the light intensity?
The device delivers up to 3000 mW/cm², which is suitable for rapid curing.
Can it be used for orthodontic bonding?
Yes, it includes a dedicated Ortho Mode specifically designed for bracket bonding.
Does it support all resin materials?
Yes, its wide-spectrum LED supports CQ, TPO, and Ivocerin-based resins.
What is the battery capacity?
It has a 2000mAh rechargeable lithium battery with safety protections.
Is it suitable for professional dental clinics?
Yes, it is designed for professional clinical and hospital use.
Order Now with Fast Australia Shipping
The Woodpecker O-Star Dental Curing Light LED Machine is a highly advanced, versatile, and reliable curing solution for modern dentistry.Â
With its 3000 mW/cm² power output, 7 intelligent modes, wide-spectrum LED, and wireless ergonomic design, it significantly enhances clinical efficiency and treatment quality.
It is an ideal choice for dentists seeking speed, accuracy, and long-term durability in restorative and orthodontic procedures.
