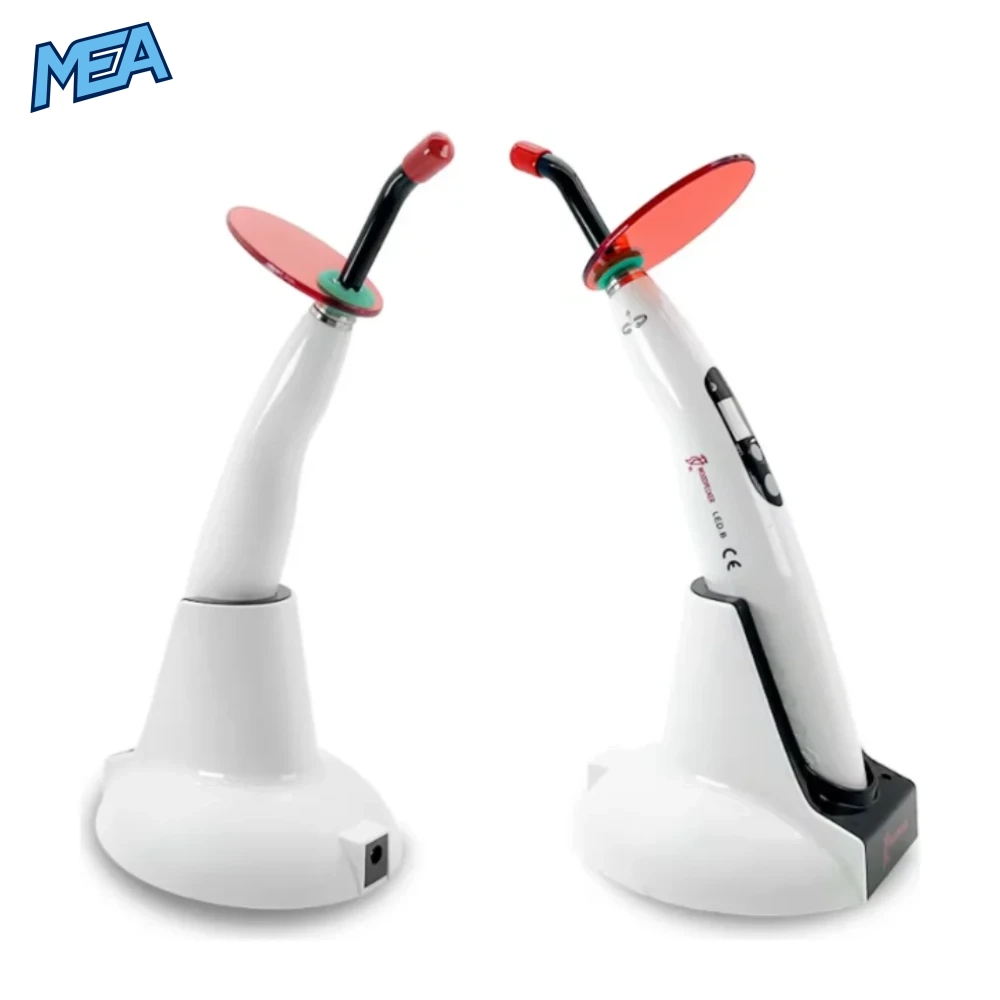

The Woodpecker LED B Dental Curing Light is a cordless LED polymerization lamp designed for dental procedures that require the curing of light-activated restorative materials. It uses blue LED light, a rechargeable 2000mAh lithium battery, selectable 5-, 10-, 15-, and 20-second curing cycles, and a lightweight wireless design for convenient chairside operation.
The Woodpecker LED B combines a compact handpiece with a rechargeable battery system to provide convenient, cordless operation in the dental clinic. Its blue-light LED source is designed for curing appropriate light-cured dental materials, while the selectable operating times allow the clinician to choose a curing cycle according to the material and clinical procedure.
With its lightweight construction, autoclavable optical fibre and rechargeable battery, the LED.B is suitable for routine restorative and adhesive dental applications where a portable LED curing light is required.
Technical Specifications
| Specification | Details |
| Product Name | Woodpecker LED.B Dental Curing Light |
| Brand | Woodpecker |
| Model | LED.B |
| Product Type | LED Dental Curing Light |
| Light Source | Blue LED |
| Wavelength | 420–480 nm |
| Light Output | 1000–1200 mW/cm² |
| Battery | Rechargeable lithium-ion |
| Battery Capacity | 2000mAh |
| Power Input | AC 100–240V, 50/60Hz |
| Working Modes | 5, 10, 15 and 20 seconds |
| Dimensions | 31 × 34 × 260 mm |
| Net Weight | Approximately 145g |
| Optical Fibre | Autoclavable |
| Maximum Continuous Operation | Up to 200 seconds |
| Overheat Protection | Yes |
| Operation | Cordless / rechargeable |
| Warranty | 1 year |
| Shelf Life | 3 years |
| Instrument Classification | Class II |
| Packing | 1 unit/box |
Key Benefits of the Woodpecker LED B
- Cordless operation: Rechargeable battery eliminates the need for a power cable during routine use.
- 2000mAh rechargeable battery: Designed for repeated chairside operation between charges.
- Four curing-time settings: Selectable 5, 10, 15 and 20-second working modes.
- Blue LED light source: Provides the optical output required for suitable light-activated dental materials.
- Compact and lightweight: Handpiece design supports convenient handling during dental procedures.
- Autoclavable optical fibre: The supplied optical fibre can be sterilised at high temperature according to the specified conditions.
- Overheat protection: Built-in protection helps control excessive heat during operation.
- Automatic charging system: The rechargeable battery can be charged using the supplied charger.
- Wide charging input: Charger input is specified for AC 100–240V, 50/60Hz.
- Long operating capability: The supplied specifications state that more than 430 ten-second curing cycles can be achieved from a full battery charge under the specified conditions.
Features: LED.B Dental Curing Light
Blue LED Polymerization Light
The Woodpecker LED B uses a blue LED light source with a specified wavelength range of 420–480 nm. This makes the unit suitable for curing dental materials specifically formulated for activation within the appropriate light spectrum.
Four Working Time Modes
The curing light provides four preset operating times:
- 5 seconds
- 10 seconds
- 15 seconds
- 20 seconds
These selectable cycles give dental professionals flexibility when working with different light-curing procedures and material instructions.
Rechargeable Wireless Design
The LED B uses a 2000mAh rechargeable lithium-ion battery, allowing the handpiece to be used without a continuous power connection. This cordless configuration helps reduce cable obstruction around the dental operating area.
Lightweight Handpiece
The supplied specifications list a net weight of approximately 145g, making the curing light relatively lightweight for routine chairside handling.
Autoclavable Optical Fibre
The optical fibre is specified as autoclavable at temperatures up to 135°C and pressure up to 0.22 MPa, subject to the manufacturer’s stated sterilisation conditions.
Overheat Protection
The Woodpecker LED B incorporates an overheat-protection function and is specified to support continuous operation for up to 200 seconds.
What Is the Woodpecker LED B Used For?
The Woodpecker LED B curing light is intended for dental applications involving light-activated restorative and adhesive materials. Typical applications may include:
- Curing suitable dental composite materials
- Polymerizing light-cured restorative materials
- Light-curing adhesive and bonding materials where indicated by the material manufacturer
- Routine restorative dentistry procedures
- Chairside dental procedures requiring a cordless LED curing lamp
Important Clinical Note
Curing time and light intensity requirements can vary between dental materials. Always follow the instructions supplied by the manufacturer of the specific restorative, bonding or adhesive material being used.
Package Contents
The standard package described for this product includes:
- 1 × Woodpecker LED B Curing Light
- 1 × 2000mAh rechargeable battery
- 1 × Charger
- 1 × Charger socket
Why Choose a Cordless Dental Curing Light?
A cordless curing lamp can make routine dental procedures more convenient by reducing cable clutter and allowing the clinician to position the handpiece freely around the treatment area. The rechargeable battery system also makes the device practical for repeated chairside use.
The Woodpecker LED B combines these advantages with selectable curing times, a blue LED light source, a lightweight handpiece and an autoclavable optical fibre.
Frequently Asked Questions
What is the Woodpecker LED B?
The Woodpecker LED B is a cordless LED dental curing light designed to polymerize appropriate light-activated dental materials.
What is the wavelength of the LED.B curing light?
The supplied product specifications state a wavelength range of 420–480 nm.
What is the light output of the Woodpecker LED B?
The provided specifications list a light output of approximately 1000–1200 mW/cm².
Does the Woodpecker LED B use a rechargeable battery?
Yes. The LED.B uses a rechargeable 2000mAh lithium-ion battery.
What curing times are available?
The unit provides four preset curing times: 5, 10, 15 and 20 seconds.
Is the Woodpecker LED B cordless?
Yes. The curing light operates using its rechargeable battery, allowing cordless chairside use.
Can the optical fibre be sterilised?
Yes. The supplied specifications state that the optical fibre is autoclavable up to 135°C and 0.22 MPa, following the applicable sterilisation procedure.
Does the LED.B have overheat protection?
Yes. The product specifications include an overheat-protection function and state that the device can operate continuously for up to 200 seconds.
What voltage does the charger support?
The supplied specifications state that the charging input supports AC 100–240V, 50/60Hz, making the charging system suitable for the stated electrical input range.
Is this Woodpecker LED B a teeth-whitening lamp?
No. The LED.B is a dental curing light, not a dedicated teeth-whitening device. Its primary purpose is the polymerization of appropriate light-activated dental materials.
