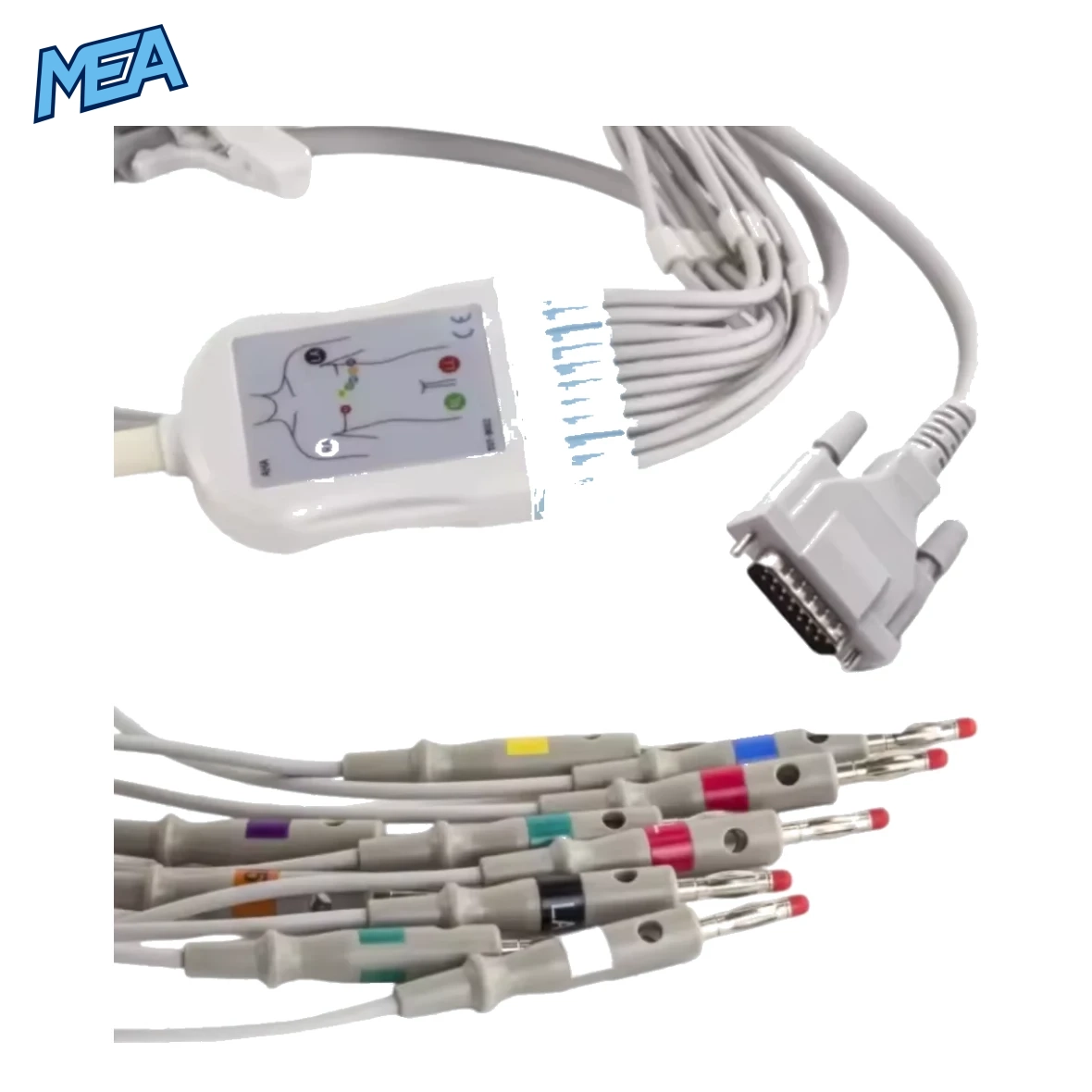

The Schiller ECG 10 Lead EKG Cable is a high-precision medical patient cable designed for reliable cardiac signal transmission in diagnostic ECG systems.Â
It fits multiple ECG machines including Schiller Plus models, Bionet CardioTouch, Mortara ELI series, Welch Allyn CP series, BLT Biolight systems, and Esaote devices.Â
Built with durable TPU material and a 15-pin short-screw connector, this cable ensures stable 12-channel ECG performance for accurate and consistent heart monitoring in clinical environments.
Key Features of Schiller ECG 10 Lead EKG Cable
Wide Multi-Brand Fitment
This ECG cable is engineered to work seamlessly with multiple leading ECG systems, reducing the need for multiple proprietary cables.
supported systems include:
- Schiller Plus series (AT1, AT2, AT4, AT10, AT101, AT102, AT104, AT110, AT5, AT6, AT60, C6, CS6, MS2010, MS2015)
- Bionet CardioTouch ECG machines
- Mortara ELI series (150, 210, 230, 250, 350)
- Welch Allyn CP series (10, 20, 50, 150, 250)
- BLT Biolight ECG devices (BTL-08)
- Esaote 30/50 series (including veterinary models)
Stable 12-Channel ECG Signal Transmission
Designed for clinical precision, the cable ensures:
- Low-noise ECG signal transfer
- Stable waveform output
- Reduced interference during diagnostics
- Accurate cardiac rhythm monitoring
Medical-Grade TPU Construction
The cable is made from high-quality TPU (Thermoplastic Polyurethane), offering:
- High flexibility for clinical handling
- Resistance to bending fatigue
- Long operational lifespan
- Comfortable patient use during long ECG sessions

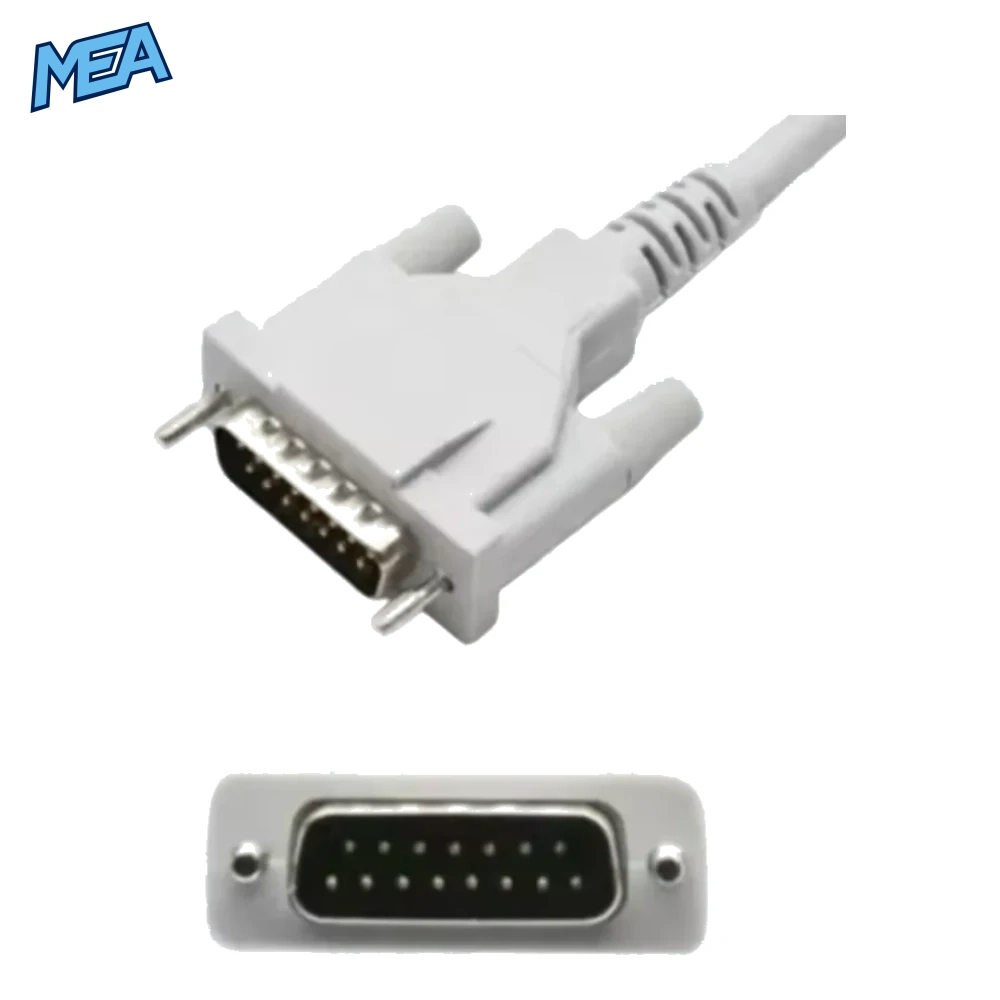

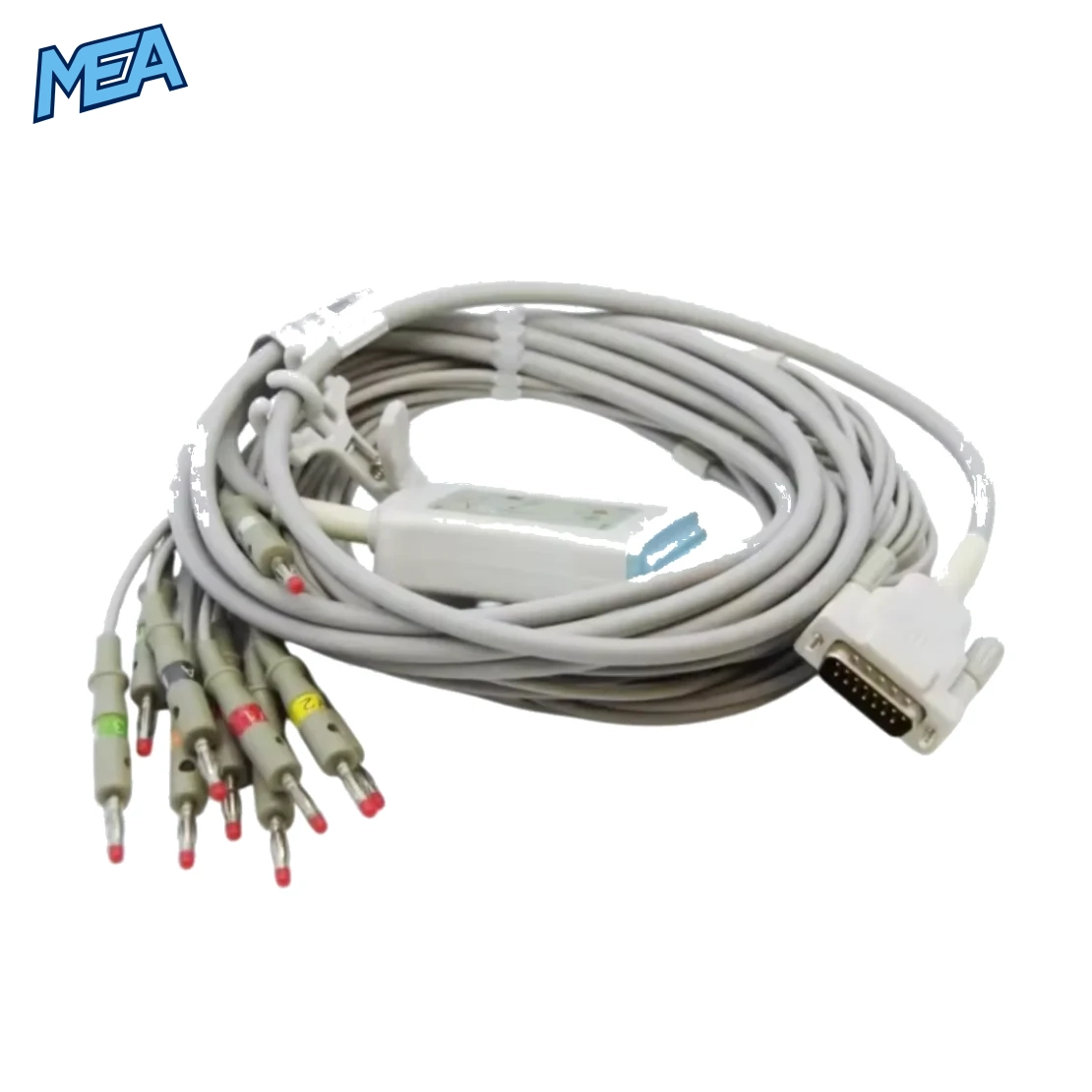

15-Pin Short Screw Connector
The robust 15-pin connector with short screws ensures:
- Secure and stable connection to ECG devices
- Reduced risk of disconnection during testing
- Improved durability in high-use environments
Adult Patient Size Design
Optimised for adult ECG procedures, ensuring:
- Proper lead distribution
- Comfortable placement on patients
- Reliable diagnostic accuracy
Medical Resistance Standard (10K Ohm)
The cable includes a 10K Ohm resistance design, which helps maintain:
- Electrical safety standards
- Signal accuracy
- Device fit across brands
Technical Specifications
| Specification | Details |
| Product Name | Schiller ECG 10 Lead EKG Cable |
| Function | ECG / EKG Signal Transmission |
| Patient Type | Adult |
| Number of Pieces | 1 Unit |
| Cable Material | TPU (Thermoplastic Polyurethane) |
| Cable Length | 3.5 metres |
| Connector Type | 15-Pin Short Screw Plug |
| Resistance | 10K Ohm |
| Channel Support | 12-Channel ECG Systems |
| Fitment | Schiller, Bionet, Mortara, Welch Allyn, BLT Biolight, Esaote |
| Usage Type | Diagnostic ECG Patient Cable |
| Condition | brand-new Cable |
Clinical Applications & Use Cases
The Schiller ECG 10 Lead EKG Cable is designed for professional medical environments where accuracy and reliability are critical.
Hospitals and Cardiology Departments
- Routine ECG monitoring
- Cardiac stress testing
- Emergency cardiac diagnostics
Diagnostic Laboratories
- ECG waveform analysis
- Patient heart rhythm recording
- Multi-channel ECG assessments
Emergency Care Units (ER/ICU)
- Rapid cardiac evaluation
- Continuous monitoring in critical care
Private Clinics
- General cardiology diagnostics
- Routine health checkups
Veterinary ECG Systems (Esaote fit)
- Animal cardiac monitoring (selected models)
Benefits of Using Schiller ECG Fits These Cable
Cost-Effective OEM Replacement
Avoid expensive OEM replacements without compromising performance. This-type ECG cable delivers professional-grade quality at a reduced cost.
Multi-Device Flexibility
One cable supports multiple ECG machines, making it ideal for:
- Multi-brand hospitals
- Equipment upgrades
- Replacement inventory optimisation
Reliable Signal Accuracy
Ensures clean ECG readings essential for:
- Accurate diagnosis
- Clinical decision-making
- Patient monitoring reliability
Durable Clinical Build
Designed for repeated hospital use with:
- High-flex insulation
- Anti-crack TPU jacket
- Long-term durability under daily medical usage
Easy Integration
Plug-and-play fit reduces setup time and ensures immediate usability in clinical workflows.
Why Choose This Schiller ECG 10 Lead Cable?
Unlike generic ECG cables, this model is specifically engineered for multi-brand ECG fit with Schiller Plus and leading global ECG systems.
Key Advantages:
- Wide fit across top ECG brands
- Stable 12-channel output performance
- Medical-grade safety standards
- Durable TPU construction for extended use
- Secure 15-pin screw connector system
- Optimised for hospital-grade environments
Installation & Usage Guidelines
Step-by-Step Usage:
- Turn off ECG machine before connecting the cable
- Insert the 15-pin connector securely into the ECG port
- Attach patient leads according to standard ECG placement
- Turn on the machine and verify signal calibration
- Begin ECG recording
Maintenance Tips:
- Clean cable with medical-grade disinfectant wipes
- Avoid excessive bending or twisting
- Store in a dry, dust-free environment
- Inspect connectors regularly for wear
Frequently Asked Questions
Which ECG machines fit this cable?
It fits Schiller Plus series, Bionet CardioTouch, Mortara ELI series, Welch Allyn CP series, BLT Biolight, and Esaote ECG machines.
Does this cable support 12-channel ECG systems?
Yes, it is designed for 12-channel ECG signal transmission, ensuring accurate multi-lead diagnostics.
What is the cable length?
The cable length is 3.5 metres, providing flexibility in clinical setups.
What material is used in this ECG cable?
It is made from medical-grade TPU (Thermoplastic Polyurethane) for durability and flexibility.
Can this cable be used in emergency rooms?
Yes, it is suitable for ICU, ER, and emergency cardiac monitoring environments.
What type of connector does it use?
It uses a 15-pin short screw connector for secure and stable device connection.
Is it suitable for veterinary ECG machines?
Yes, it fits selected Esaote veterinary ECG systems.
