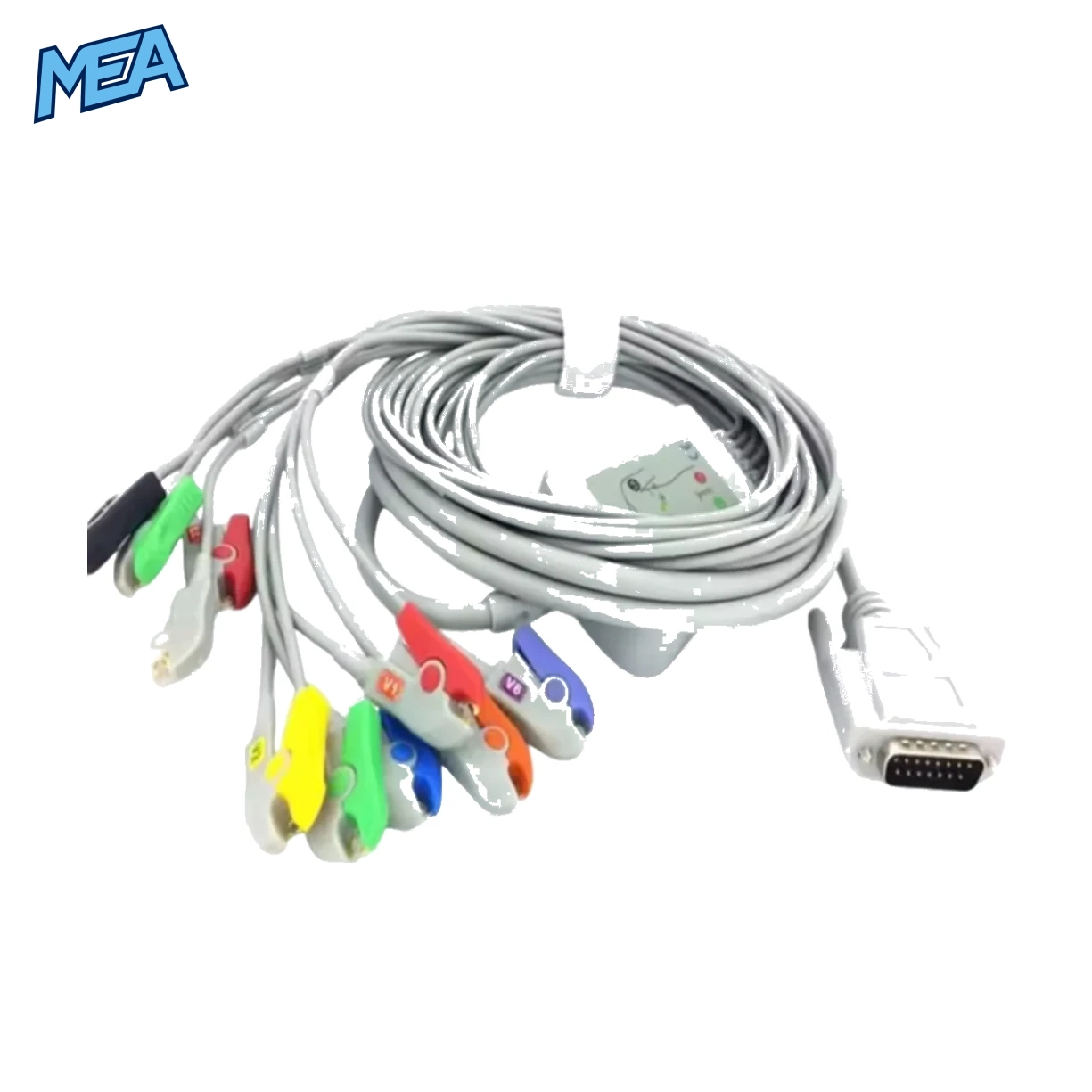

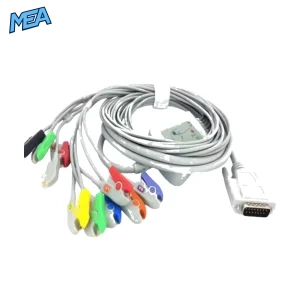

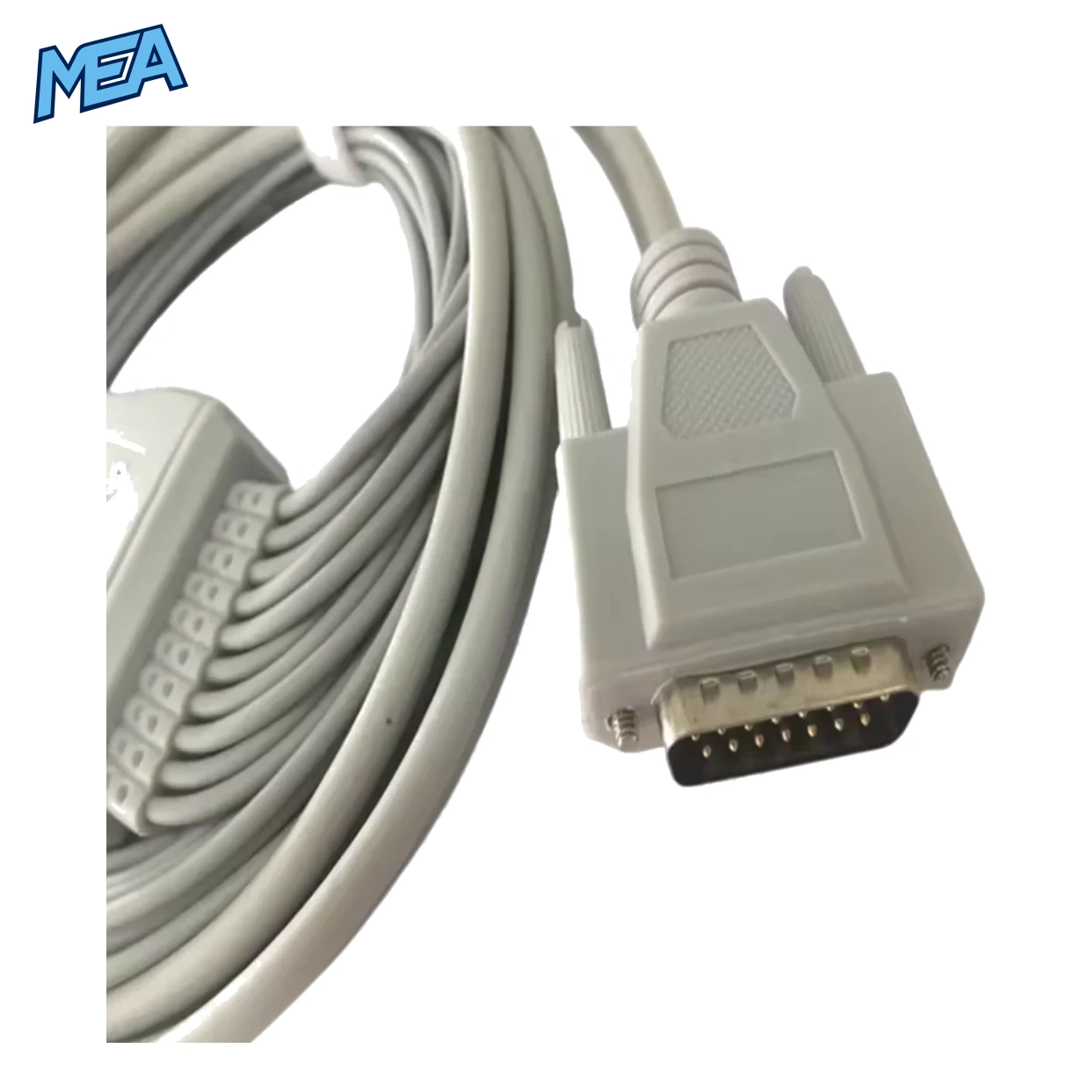

Nihon Kohden ECG-1250,ECG-1350 ECG EKG Cable with Leadwires 10 Leads Medical ECG Cable Clips End TPU

The Nihon Kohden ECG 10-lead cable is a patient interface cable that connects ECG monitoring devices to electrode leadwires placed on the patient’s body.

It is responsible for transmitting electrical signals generated by the heart to the ECG machine for analysis and waveform display.

This cable is widely used in clinical environments where precision and consistency in cardiac monitoring are essential.

It is designed for use with multiple Nihon Kohden ECG systems including ECG-1250, ECG-1350, ECG-9101, ECG-9130, ECG-9132, ECG-9620, ECG-901 series, ECG-903 series, and more.

Key Features of Nihon Kohden ECG Cable 10 Lead

1. Dual Standard Support (AHA & IEC)

This ECG cable is available in two electrode labeling standards:

• AHA Standard (V1–V6)
• IEC Standard (C1–C6)

This allows healthcare professionals to select the configuration based on institutional protocols or regional medical standards.

2. 10-Lead High-Precision Signal Transmission

The 10-lead configuration enables comprehensive cardiac monitoring by capturing electrical activity from multiple angles of the heart. This improves diagnostic accuracy in:

• Arrhythmia detection
• Myocardial ischemia analysis
• Routine ECG testing
• Emergency cardiac assessment

3. Medical-Grade TPU Cable Jacket

The cable is constructed using TPU (Thermoplastic Polyurethane), which provides:

• High flexibility for patient movement
• Strong resistance to twisting and bending
• Long operational lifespan in clinical environments
• Smooth surface for easy cleaning and disinfection

4. Multi-System Device Support

This ECG cable is designed for a wide range of Nihon Kohden and supported ECG systems, including:

• ECG-1250
• ECG-1350
• ECG-9101
• ECG-9130 / ECG-9130P
• ECG-9132
• ECG-9620
• ECG-901 / ECG-901A
• ECG-903 / ECG-903A
• ECG-923 / ECG-923A
• ECG-1026
• SE-100
• CONTEC8000
• ECG1201
• PEA-1110 (No resistor versions)

This wide fit makes it suitable for multi-device hospital environments.

5. Secure Clip-End Leadwires

The cable comes with clip-end leadwires designed for secure attachment to electrodes, reducing signal loss and ensuring stable ECG waveform readings during patient movement.

6. Stable and Noise-Free Signal Output

Advanced internal conductor shielding minimises interference, ensuring:

• Clean ECG waveform output
• Reduced signal distortion
• Reliable monitoring in high-electromagnetic environments

Applications and Use Cases

The Nihon Kohden ECG 10-lead cable is suitable for a variety of clinical and diagnostic applications:

Hospital Cardiology Departments

• Routine ECG testing
• Cardiac condition monitoring
• Pre-surgery evaluations

Emergency & ICU Monitoring

• Continuous cardiac monitoring
• Critical care patient observation
• Emergency response ECG recording

Diagnostic Laboratories

• Stress testing support
• Cardiac screening programs
• Preventive health assessments

Outpatient Clinics

• General ECG examinations
• Follow-up cardiac evaluation

Multi-Device Medical Facilities

• Standardised ECG cable usage across different Nihon Kohden models
• Easy device interchangeability

Specifications

Benefits of Using This ECG Cable

Accurate Cardiac Monitoring

Ensures precise transmission of cardiac signals for reliable diagnostic interpretation.

Durable Clinical Performance

TPU material ensures long-term use in demanding hospital environments.

Flexible Multi-Standard Support

Supports both AHA and IEC systems, reducing the need for multiple cable types.

Wide Fits These Models

Reduces procurement complexity by supporting multiple Nihon Kohden ECG systems.

Improved Workflow Efficiency

Quick electrode attachment and stable signal output improve clinical workflow speed.

Why This ECG Cable Is Important in Cardiology Diagnostics

Electrocardiography is a critical diagnostic tool for detecting heart abnormalities. A high-quality ECG cable ensures that electrical signals from the heart are transmitted without distortion.

This Nihon Kohden 10-lead cable plays a key role in:

• Ensuring waveform accuracy
• Reducing signal noise
• Supporting clinical decision-making
• Enhancing patient monitoring reliability

Installation & Usage Guidelines

• Connect the main ECG cable securely to the ECG device port
• Attach leadwires to corresponding electrodes based on AHA or IEC standard
• Ensure proper skin contact for accurate readings
• Avoid cable twisting during operation
• Clean and disinfect after each use according to hospital protocols

Maintenance & Care Instructions

To extend product lifespan:

• Store in a dry, temperature-controlled environment
• Avoid excessive bending or pulling
• Clean using medical-grade disinfectants
• Inspect connectors regularly for wear
• Do not expose to direct heat or chemical corrosion

Frequently Asked Questions

What is the Nihon Kohden ECG 10 Lead Cable used for?

It is used to connect ECG machines to patient electrodes for monitoring heart electrical activity and producing ECG waveforms.

Which ECG machines are supported by this cable?

It supports multiple models including ECG-1250, ECG-1350, ECG-9101, ECG-9130, ECG-9132, ECG-9620, ECG-901, ECG-903, SE-100, and others.

What is the difference between AHA and IEC standards?

AHA uses V1–V6 labeling while IEC uses C1–C6 labeling. Both represent different electrode placement standards used globally.

What material is used in this ECG cable?

It is made from TPU (Thermoplastic Polyurethane), which offers flexibility, durability, and medical-grade safety.

Is this cable suitable for hospital use?

Yes, it is designed specifically for clinical environments including hospitals, ICUs, and diagnostic centres.

Does this cable support multi-lead ECG monitoring?

Yes, it supports 10-lead ECG monitoring for comprehensive cardiac analysis.

Are clip-end leadwires included?

Yes, the cable includes clip-end leadwires for secure electrode connection.
