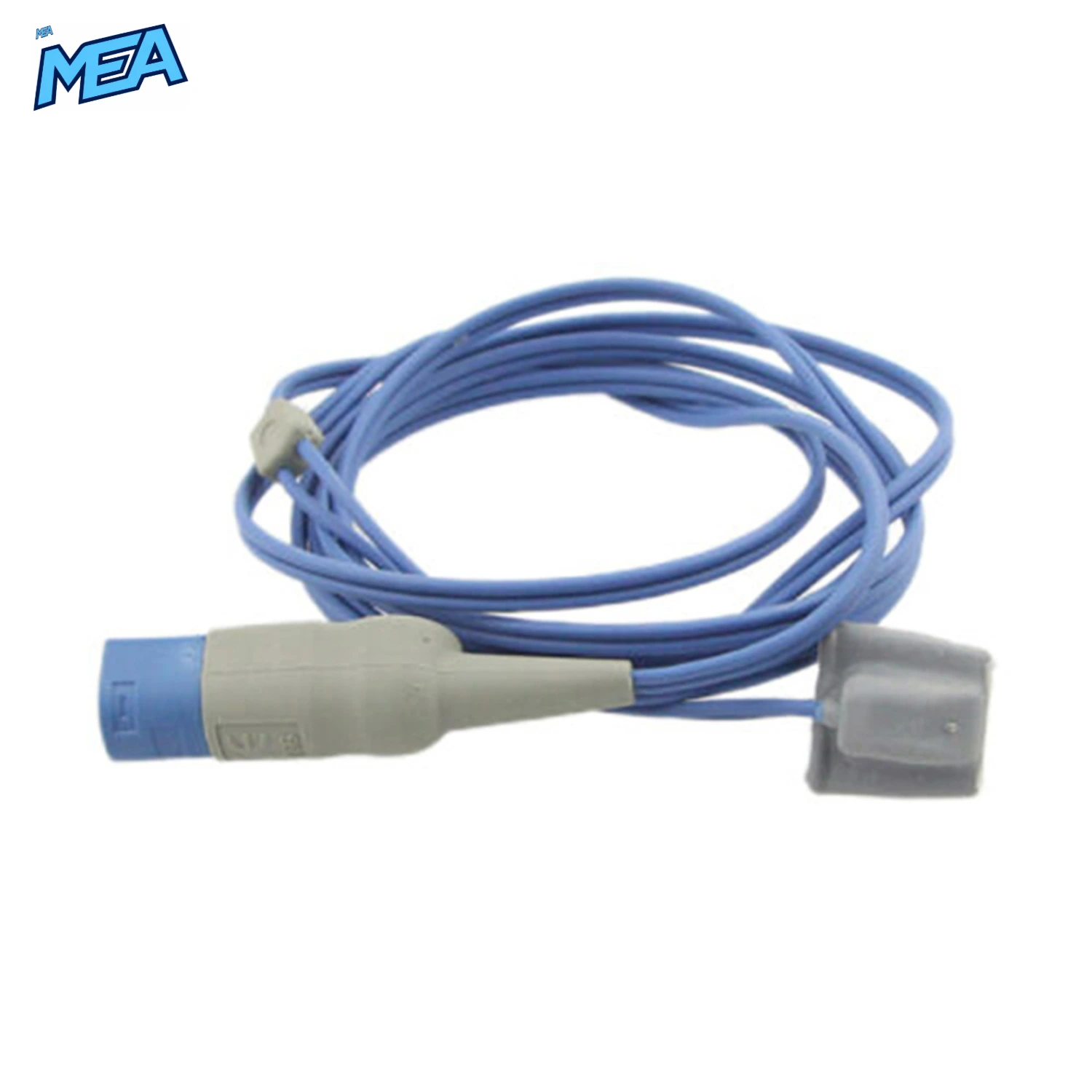

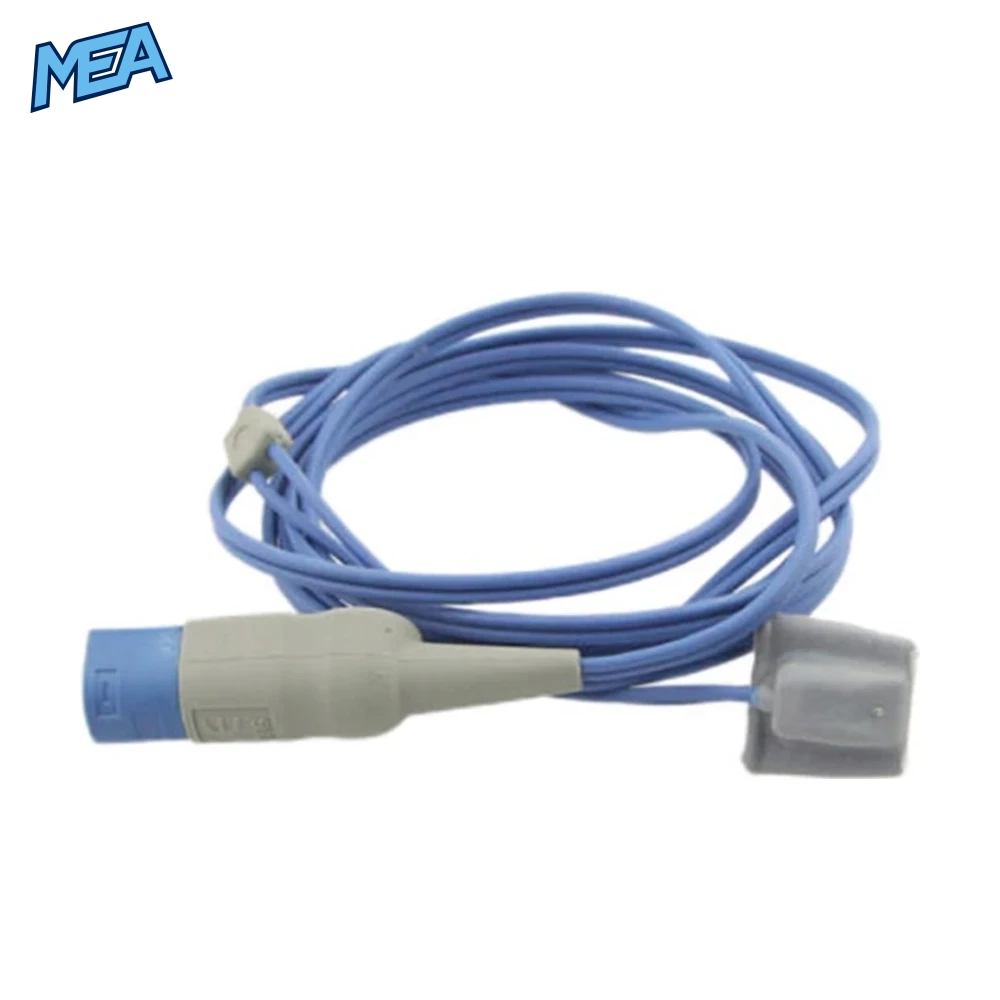

Philips M1195A Infant SpO2 Sensor 1.5m (Soft Tip 8 Pin Reusable New)

The Philips M1195A infant SpO2 sensor is a new and original reusable soft tip pulse oximetry sensor with a 1.5m cable and an 8-pin D-type connector, also identified by Philips part number 989803103261. It measures blood oxygen saturation (SpO2) and pulse rate on infants weighing 4 to 15 kg when connected to Philips IntelliVue, SureSigns, HeartStart and Avalon monitors that use the Philips 8-pin SpO2 input.

Key Benefits of the Philips M1195A Infant Pulse Oximetry Sensor

• Original Philips part: A new, original M1195A sensor, so fit and performance match what your Philips monitor was designed for.
• Sized for infants: The small soft tip suits patients of 4 to 15 kg and holds on little fingers without a spring clip.
• Gentle on delicate skin: Soft, even pressure makes it well suited to longer monitoring periods.
• Reusable and economical: Cleans between patients, lowering cost per use versus single-use adhesive sensors.
• Direct connection: The 8-pin plug connects straight to Philips monitors and SpO2 modules with no adapter cable.
• Practical 1.5m cable: Enough reach for cots, bassinets and bedside monitors without excess slack.

Features of the M1195A Reusable Infant SpO2 Probe

• Infant soft tip (glove-style) sensor
• Patient weight range 4 to 15 kg
• 8-pin D-type keyed connector
• 1.5m (approx. 4.9 ft) cable length
• Reusable, multi-patient use after cleaning
• Supplied as 1 piece per box

Technical Specifications

Part Number Reference

Works With These Philips Monitors

This infant SpO2 probe works with equipment that uses the Philips 8-pin SpO2 input, including:

• IntelliVue: MP2, MP5, MP5SC, MP5T, MP20, MP20 Junior, MP30, MP40, MP50, MP60, MP70, MP80, MP90, MX100, MX400, MX430, MX450, MX500, MX550, MX600, MX700, MX800, X2, X3, XG50
• SureSigns: VM1, VM4, VM6, VM8, VS2, VS2+, VS3, VS4, VSi
• HeartStart: MRx, XL, XLT, 4000
• Avalon fetal monitors: FM20, FM30, FM40, FM50
• Modules and legacy monitors: M3001A, M3002A (MMS X2), M3000A, M1020A, M1020B, M3046A (M3/M4), Viridia 24C, C1, C3
• Other brands: Goldway G40, Mindray V12, Solaris NT2A and NT2C

Always confirm your monitor’s SpO2 input and connector before ordering.

Use Cases

• Continuous or spot-check SpO2 monitoring of infants in paediatric wards and clinics
• Emergency departments, recovery and step-down units
• Patient transport with portable Philips monitors
• Biomedical engineering departments keeping original spare sensors on hand

Application and Care

How to apply

• Slide the soft tip over the infant’s finger so the light emitter and detector sit opposite each other.
• Route the cable along the back of the hand and check for a stable waveform on the monitor.
• Inspect the site regularly and reposition as directed by your clinical protocol and the monitor’s instructions for use.

Cleaning

• Disconnect from the monitor before cleaning.
• Clean and disinfect between patients following the Philips instructions for use and your facility’s protocol, then allow to dry fully.
• Do not autoclave or steam sterilise.

Frequently Asked Questions

What is the Philips M1195A infant SpO2 sensor?

The Philips M1195A is a reusable infant soft tip pulse oximetry sensor with a 1.5m cable and 8-pin connector. It measures SpO2 and pulse rate on infants of 4 to 15 kg on Philips monitors.

Which monitors does the Philips M1195A work with?

It works with Philips monitors that use the 8-pin SpO2 input, including IntelliVue MP and MX series, X2 and X3, SureSigns VM and VS series, HeartStart MRx and XL, and Avalon FM20 to FM50.

What patient weight is the M1195A designed for?

It is designed for infants weighing 4 to 15 kg. For neonates choose a wrap sensor, and for older children choose a pediatric sensor.

How long is the Philips M1195A cable?

The cable is 1.5 metres, approximately 4.9 feet.

Is 989803103261 the same as M1195A?

Yes. 989803103261 is the Philips 12-digit part number for the M1195A infant SpO2 sensor.

Can the M1195A be reused on multiple patients?

Yes. It is a reusable sensor and should be cleaned and disinfected between patients.

Related SpO2 Sensors

Need a different size or style?

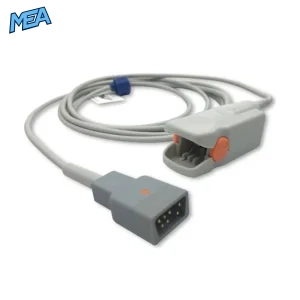

See the Philips M1133A Disposable SpO2 Sensor 0.9m, the Philips Pediatric Hard Shell SpO2 Sensor 3.0m, the Masimo LNCS Infant Soft Tip SpO2 Sensor 1.0m or the Nonin 8000SS Infant Soft Tip SpO2 Sensor 1.0m.
