Orthopedic Medical Drill Electric Micro Bone Drill Orthopedics Veterinary Surgical Instruments

A micro bone drill is a compact, battery-powered surgical power tool used by orthopedic surgeons and veterinary surgeons to drill precise holes in small and delicate bone structures.

Designed for procedures that demand accuracy, control, and minimal tissue trauma, this orthopedic power drill delivers reliable performance in hand, foot, maxillofacial, small-animal, and other fine orthopedic surgeries.

It is fully autoclavable, cordless for easy maneuverability in the operating room, and supplied as a complete surgical kit ready for sterilisation and immediate clinical use.

Why Choose This Electric Micro Bone Drill

• Precision drilling for small bones with a clamping range of 0.4–4mm, ideal for delicate orthopedic and veterinary work
• Cordless, battery-operated design for unrestricted movement during surgery
• Autoclavable up to 135°C, meeting standard surgical sterilisation protocols
• Low noise operation (≤63 dB) for a quieter, more controlled OR environment
• Reliable torque output (≥0.75 N·m) for consistent drilling through cortical and cancellous bone
• Dual battery system included, allowing continuous use with a spare battery on charge
• Reversible rotation control for both forward drilling and reverse bit extraction
• Complete surgical case system with a perforated sterilising tray for safe storage and transport

Key Features of the Orthopedic Bone Drill

Compact, Ergonomic Handpiece

The lightweight stainless steel handpiece is designed for a secure, fatigue-free grip during extended procedures, giving surgeons precise control over drilling depth and angle.

Adjustable Rotation Direction

A rotate-button mechanism on the handpiece lets the operator switch between forward and reverse (OFF position included), simplifying pin and screw work.

Interchangeable Drill Chuck

The keyed drill chuck accepts drill bits from 0.4mm to 4mm in diameter, making the tool versatile across a wide range of small-bone and micro-orthopedic applications.

Dual Rechargeable Battery System

Two 1500mAh batteries are included so one can always be charging while the other is in use, minimising downtime during surgery.

Full Sterilisation Fitment

The handpiece, drill chuck, and sterilising channel are all autoclave-safe at 135°C, and the tool ships in a perforated stainless steel sterilisation case designed for standard sterilisation cycles.

Technical Specifications

Standard Package Configuration

• 1x Handpiece
• 1x Drill chuck
• 1x Sterilising channel
• 2x Batteries
• 1x Charger
• 1x Key (chuck key)
• 1x Aseptic transfer kit
• 1x Carton box or Sterilising case (buyer’s choice)

Packaging Options

Buyers can select between two packaging formats at checkout:

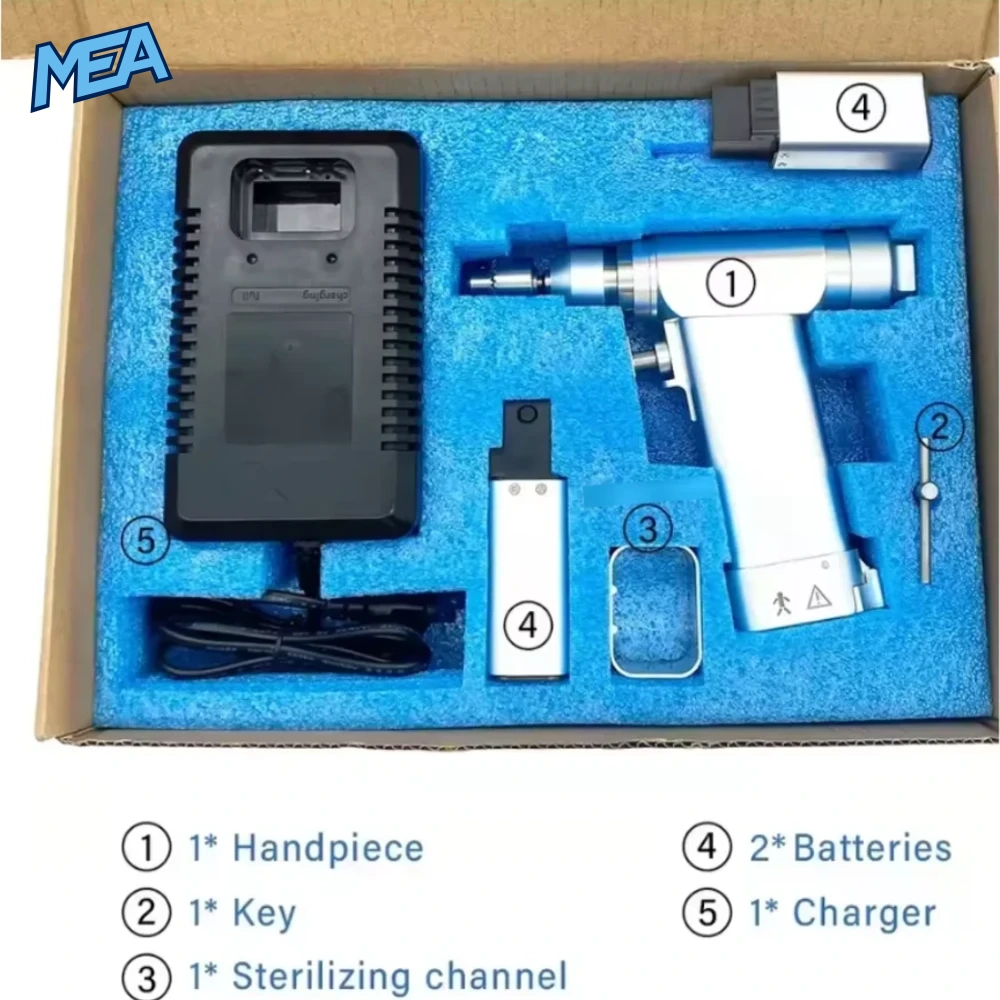

• Carton Box Packaging standard cardboard box with foam insert, suitable for storage and transport

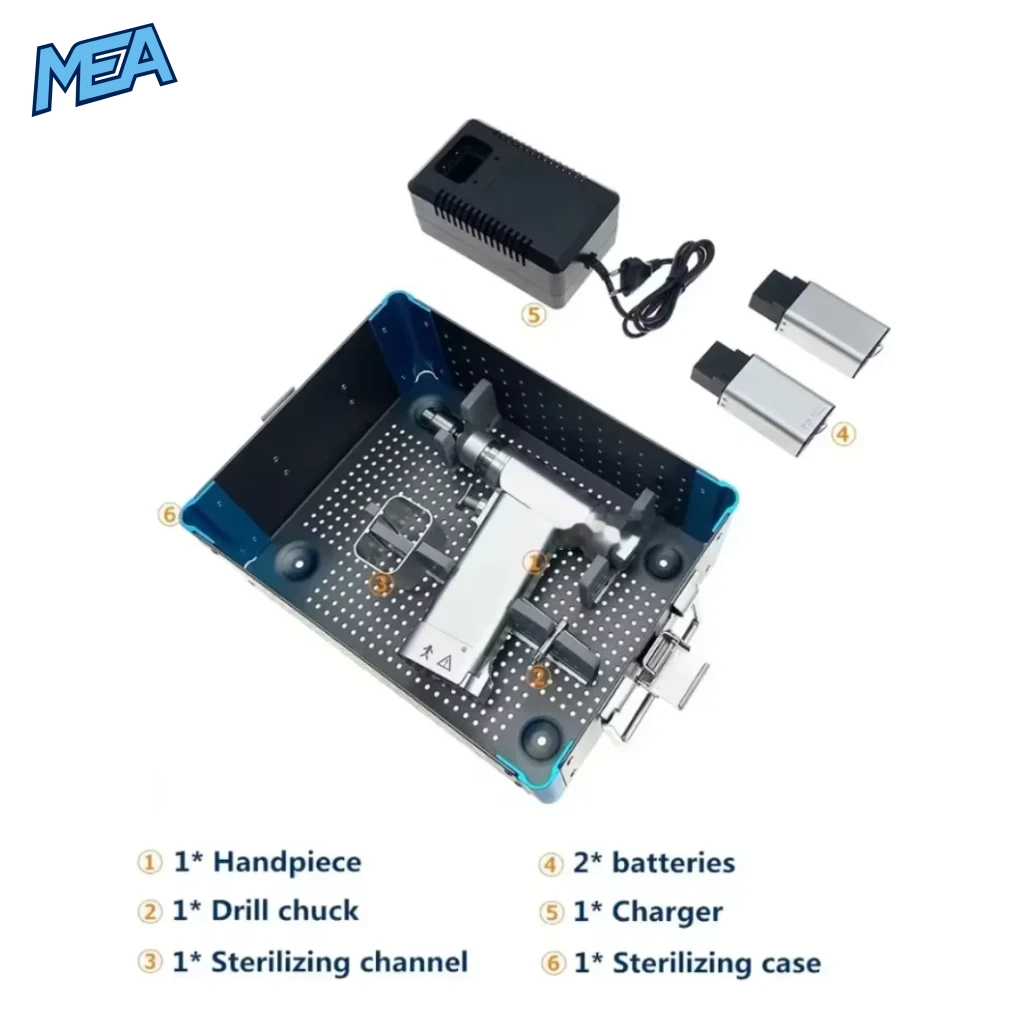

• Sterilised Box Packaging a perforated stainless steel sterilisation case (275 x 210 x 105mm) designed for direct use in autoclave sterilisation cycles

Common Use Cases

• Small bone and hand/foot orthopedic surgery
• Maxillofacial and craniofacial procedures
• Veterinary orthopedic surgery on small and medium animals
• Pin, wire, and small screw placement
• Laboratory and research bone-drilling applications

Frequently Asked Questions

What is the drill bit size range for this micro bone drill?

The drill chuck accepts bits ranging from 0.4mm to 4mm in diameter, suitable for fine orthopedic and veterinary drilling tasks.

Is this bone drill autoclavable?

Yes. The handpiece, drill chuck, and sterilising channel can be sterilised at temperatures up to 135°C, and the unit is supplied with a dedicated sterilising case.

How many batteries come with the drill, and how long do they last per charge?

The kit includes two 1500mAh batteries, allowing one to be used while the other charges, ensuring continuous operation during longer procedures.

What speed and torque does this orthopedic drill deliver?

The drill operates at 0–1200 RPM with a torque output of at least 0.75 N·m, sufficient for controlled drilling through small bone structures.

Can the drill direction be reversed?

Yes. A rotate-button control on the handpiece allows the operator to switch between forward and reverse rotation, as well as an OFF position.

What is included in the standard package?

Each order includes one handpiece, one drill chuck, one sterilising channel, two batteries, one charger, one chuck key, one aseptic transfer kit, and your choice of a carton box or sterilising case.

Is this drill suitable for veterinary surgery?

Yes. Its compact size, precise chuck range, and low-noise operation make it well suited for small-animal orthopedic procedures in addition to human orthopedic and maxillofacial surgery.

What is the noise level during operation?

The drill operates at ≤63 dB, providing a quieter alternative to standard pneumatic surgical drills.
