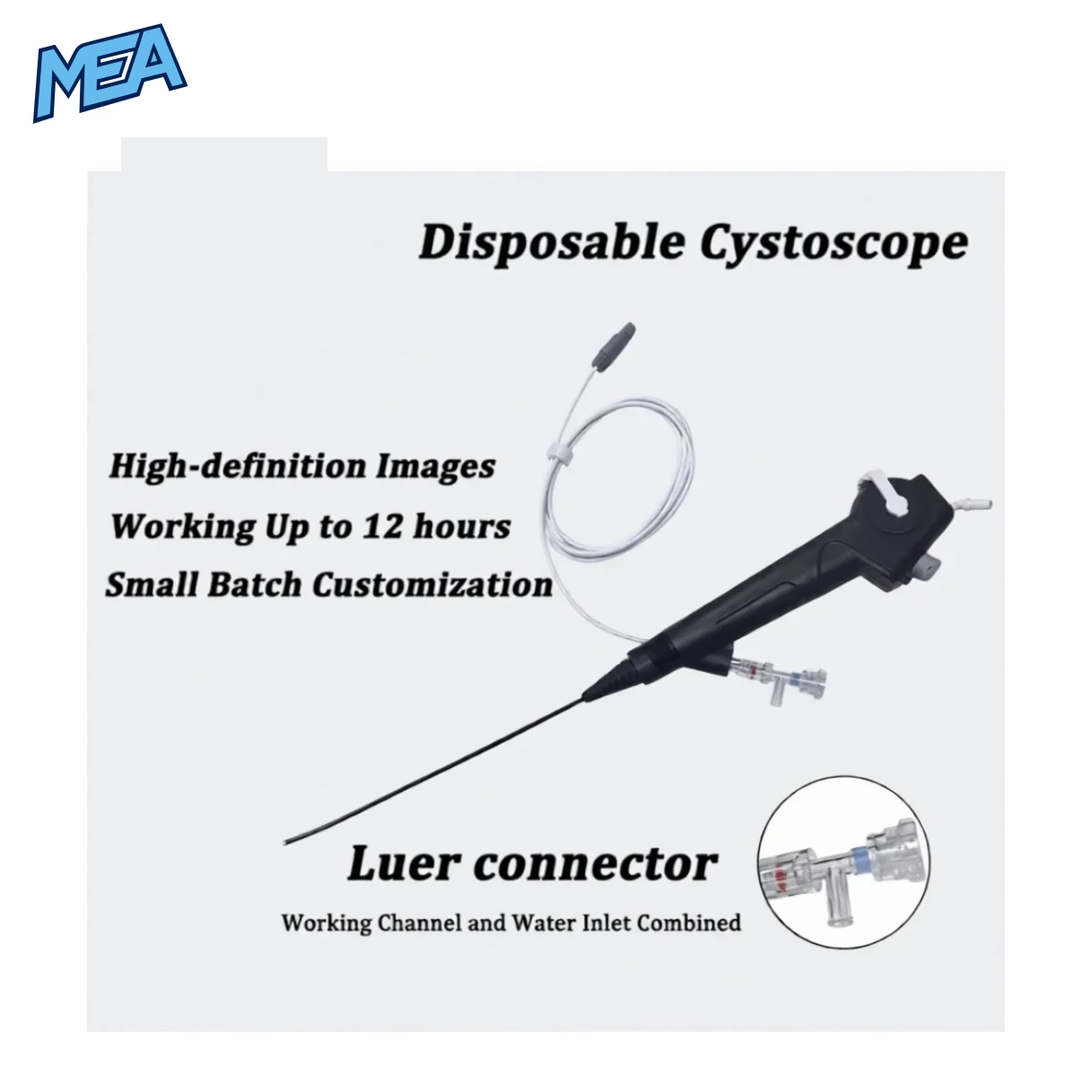

The 4.8mm and 5.4mm Veterinary Flexible Digital Cystoscope is a portable USB endoscopy system designed for veterinary urology, minimally invasive animal diagnostics, and endoscopic examination procedures.
Featuring a CMOS digital imaging sensor, 400×400 pixel resolution, 180° articulation, and multiple working channel options, this veterinary endoscope delivers clear visualisation and flexible maneuverability for clinics, hospitals, and animal surgical environments.
Engineered for veterinarians and animal healthcare professionals, this portable cystoscope supports examination and diagnostic procedures in dogs, cats, horses, rabbits, reptiles, hamsters, goats, and other animals.
The lightweight flexible insertion tube and USB-type digital imaging system make it ideal for mobile veterinary practice, surgical applications, and routine endoscopic diagnostics.
Key Advantages
- Portable and lightweight veterinary endoscopy solution
- Flexible insertion tube for easier navigation
- High-quality CMOS imaging sensor
- USB digital connectivity for convenient image viewing
- 180° articulation for enhanced maneuverability
- Multiple outer diameter and working channel options
- Suitable for small and large animal applications
- Real-time 30fps imaging performance
- Wide field of view for accurate diagnostics
- Easy operation for veterinary clinics and hospitals
Advanced Veterinary Endoscopy Imaging System
This veterinary digital cystoscope uses advanced CMOS sensor technology to provide stable image transmission and clear visualisation during endoscopic procedures.
The 400×400 pixel imaging resolution supports detailed inspection of internal anatomical structures, making the device suitable for veterinary urology, bladder examination, minimally invasive diagnostics, and surgical support procedures.
High-Definition Digital Imaging
The integrated digital camera system provides:
- Smooth real-time imaging
- Enhanced tissue visibility
- Reduced image distortion
- Consistent frame rate performance
- Reliable diagnostic visualisation
The 30fps frame rate ensures smooth live imaging during procedures, allowing veterinarians to perform examinations with confidence and precision.
Designed for Veterinary Surgical and Diagnostic Applications
This portable veterinary cystoscope is widely used for:
Veterinary Urology Procedures
- Bladder examination
- Urethral inspection
- Urinary tract diagnostics
- Stone evaluation
- Catheter guidance
- Tissue inspection
Veterinary Surgical Assistance
- Minimally invasive procedures
- Internal visualisation during surgery
- Diagnostic endoscopy
- Foreign object inspection
- Surgical navigation support
Animal Hospital and Clinical Applications
- Routine diagnostic examinations
- Emergency veterinary procedures
- Portable field diagnostics
- Mobile veterinary services
- Veterinary teaching institutions
- Research laboratories
Flexible Endoscope Design for Better Maneuverability
The flexible insertion tube improves navigation within anatomical pathways while minimising trauma and discomfort during procedures.
180° Rotating Angle
The bidirectional articulation system enables:
- Improved procedural control
- Better viewing access
- Enhanced navigation in confined anatomy
- Greater examination precision
- Efficient maneuverability
This makes the system especially effective for veterinary urology and minimally invasive diagnostics.
Multiple Diameter and Working Channel Configurations
The device is available in several configurations to accommodate different animal sizes and procedural requirements.
Version Options
Version A
- Outside Diameter: 3.8mm
- Working Channel: 1.4mm
- Sensor: OVM6946
- Field of View: 120°
- Depth of Field: 5–50mm
Version B
- Outside Diameter: 4.8mm
- Working Channel: 2.4mm
- Sensor: OVM6946
- Field of View: 120°
- Depth of Field: 5–50mm
Version C
- Outside Diameter: 5.1mm
- Working Channel: 2.2mm
- Sensor: OV9734FPC
- Field of View: 140°
- Depth of Field: 5–100mm
Version D
- Outside Diameter: 5.2mm
- Working Channel: 2.2mm
- Sensor: OV9734
- Field of View: 140°
- Depth of Field: 5–100mm
Version E
- Outside Diameter: 5.4mm
- Working Channel: 3.0mm
- Sensor: OVM6946
- Field of View: 120°
- Depth of Field: 5–50mm
Portable USB Veterinary Endoscope System
The USB-type digital output allows convenient connection to supported display systems and computers for live viewing and image capture.
Benefits of USB Connectivity
- Easy digital integration
- Real-time viewing capability
- Portable operation
- Simplified data management
- Convenient clinical workflow
- Fast setup and operation
The portable design makes this system suitable for clinics, mobile veterinary services, and field operations.
Wide fit with Multiple Animal Types
This veterinary flexible endoscope is suitable for a broad range of animals and species.
Supported Target Species
- Dogs
- Cats
- Horses
- Rabbits
- Goats
- Hamsters
- Rats
- Reptiles
Its multiple diameter options allow veterinarians to select the appropriate scope size depending on the species and procedural requirements.
Features: Veterinary Flexible Cystoscope
High Flexibility
The flexible insertion tube improves access during diagnostic and surgical procedures.
CMOS Digital Sensor
Advanced CMOS imaging delivers stable image quality and reliable visualisation.
Wide Viewing Angle
120° to 140° field of view provides enhanced procedural visibility.
Portable Construction
Compact and lightweight design supports mobility and convenient transport.
Easy Operation
User-friendly handling simplifies veterinary endoscopy procedures.
Multi-Channel Options
Different working channel diameters support varied procedural tools and applications.
Benefits for Veterinary Professionals
Improved Diagnostic Accuracy
Enhanced imaging quality helps veterinarians identify abnormalities more effectively.
Reduced Procedure Complexity
Flexible articulation improves procedural handling and access.
Increased Clinical Efficiency
Portable setup and USB integration streamline workflow and reduce setup time.
Better Animal Care
Minimally invasive visualisation may help reduce procedural discomfort.
Versatile Veterinary Usage
Suitable for both small and large animal examinations.
Specifications: Veterinary Flexible Digital Cystoscope
| Specification | Details |
| Product Type | Veterinary Flexible Digital Cystoscope |
| Application | Surgical, Veterinary Hospital |
| Imaging Technology | CMOS Sensor |
| Resolution | 400 × 400 Pixels |
| Frame Rate | 30fps |
| Working Length | 380mm |
| Rotating Angle | 180° |
| Operating Voltage | DC 36V or Less |
| Field of View | 120° / 140° |
| Depth of Field | 3–50mm / 5–100mm |
| USB Connectivity | Yes |
| Endoscope Type | Flexible Portable Endoscope |
| Target Animals | Dog, Cat, Horse, Rabbit, Goat, Hamster, Rat, Reptile |

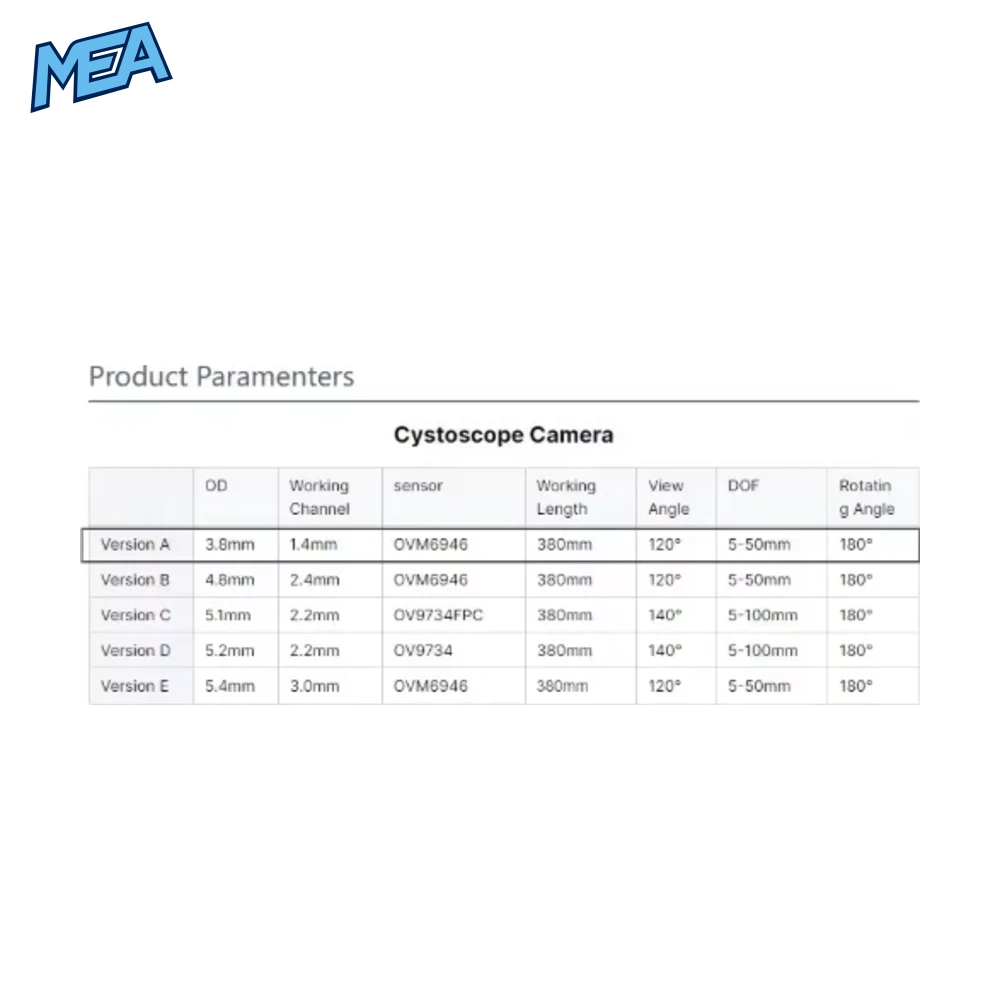

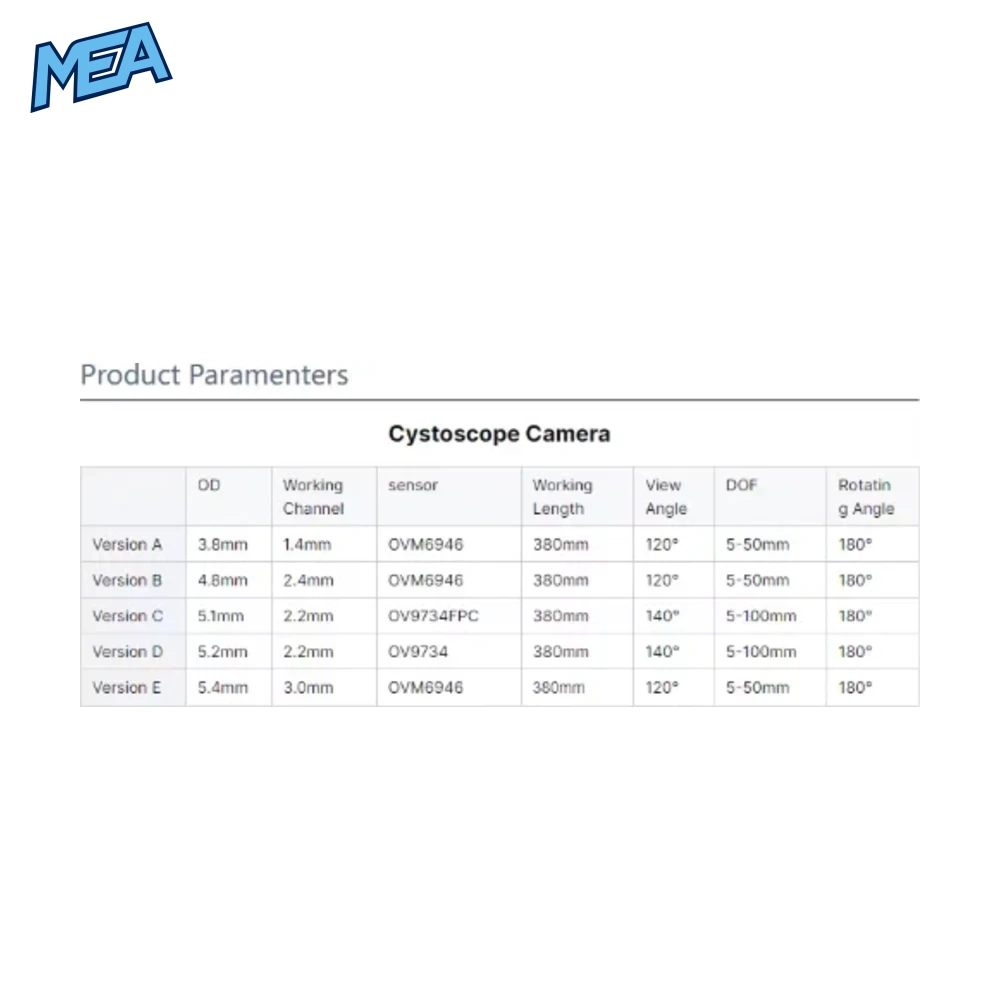

Detailed Technical Configuration Table
| Version | OD | Working Channel | Sensor | View Angle | DOF | Rotation |
| A | 3.8mm | 1.4mm | OVM6946 | 120° | 5–50mm | 180° |
| B | 4.8mm | 2.4mm | OVM6946 | 120° | 5–50mm | 180° |
| C | 5.1mm | 2.2mm | OV9734FPC | 140° | 5–100mm | 180° |
| D | 5.2mm | 2.2mm | OV9734 | 140° | 5–100mm | 180° |
| E | 5.4mm | 3.0mm | OVM6946 | 120° | 5–50mm | 180° |
Ideal Use Cases
Veterinary Clinics
Perfect for daily diagnostic procedures and minimally invasive examinations.
Animal Hospitals
Suitable for advanced veterinary imaging and surgical assistance.
Mobile Veterinary Services
Portable design supports field diagnostics and remote veterinary care.
Veterinary Research
Useful for laboratory and research-based animal examinations.
Educational Institutions
Excellent training tool for veterinary teaching environments.
What Makes This Veterinary Endoscope Different?
Unlike conventional rigid veterinary scopes, this flexible digital cystoscope offers:
- Better anatomical access
- Easier maneuverability
- Portable USB operation
- Multiple scope diameter options
- Enhanced procedural flexibility
- Improved handling during examinations
Its flexible architecture and digital imaging capabilities make it a practical solution for modern veterinary diagnostics.
Frequently Asked Questions
What is a veterinary flexible digital cystoscope?
A veterinary flexible digital cystoscope is a portable endoscopic imaging device used for examining the urinary tract, bladder, and internal anatomical structures in animals using a flexible insertion tube and digital camera system.
Which animals can this veterinary endoscope be used for?
This portable veterinary cystoscope is suitable for dogs, cats, horses, rabbits, goats, reptiles, hamsters, rats, and other animals depending on the selected diameter version.
What is the resolution of this veterinary digital cystoscope?
The system uses a CMOS sensor with 400×400 pixel resolution for real-time veterinary imaging and diagnostic procedures.
Does this veterinary endoscope support USB connectivity?
Yes. The device features USB digital connectivity for convenient image transmission and viewing.
What is the working length of the cystoscope?
The working length is 380mm across all versions.
What is the rotating angle of the endoscope?
The flexible articulation system supports 180° rotation for enhanced maneuverability during procedures.
Which version is best for small animals?
Smaller diameter versions such as Version A (3.8mm) and Version B (4.8mm) are commonly suitable for smaller animals and more delicate procedures.
Can this device be used for veterinary surgery?
Yes. The system is suitable for surgical assistance, minimally invasive diagnostics, and internal visualisation procedures.
Is the veterinary cystoscope portable?
Yes. The lightweight portable construction makes it ideal for mobile veterinary services and clinic use.
What is the field of view of the endoscope?
Depending on the version selected, the field of view ranges from 120° to 140°.
