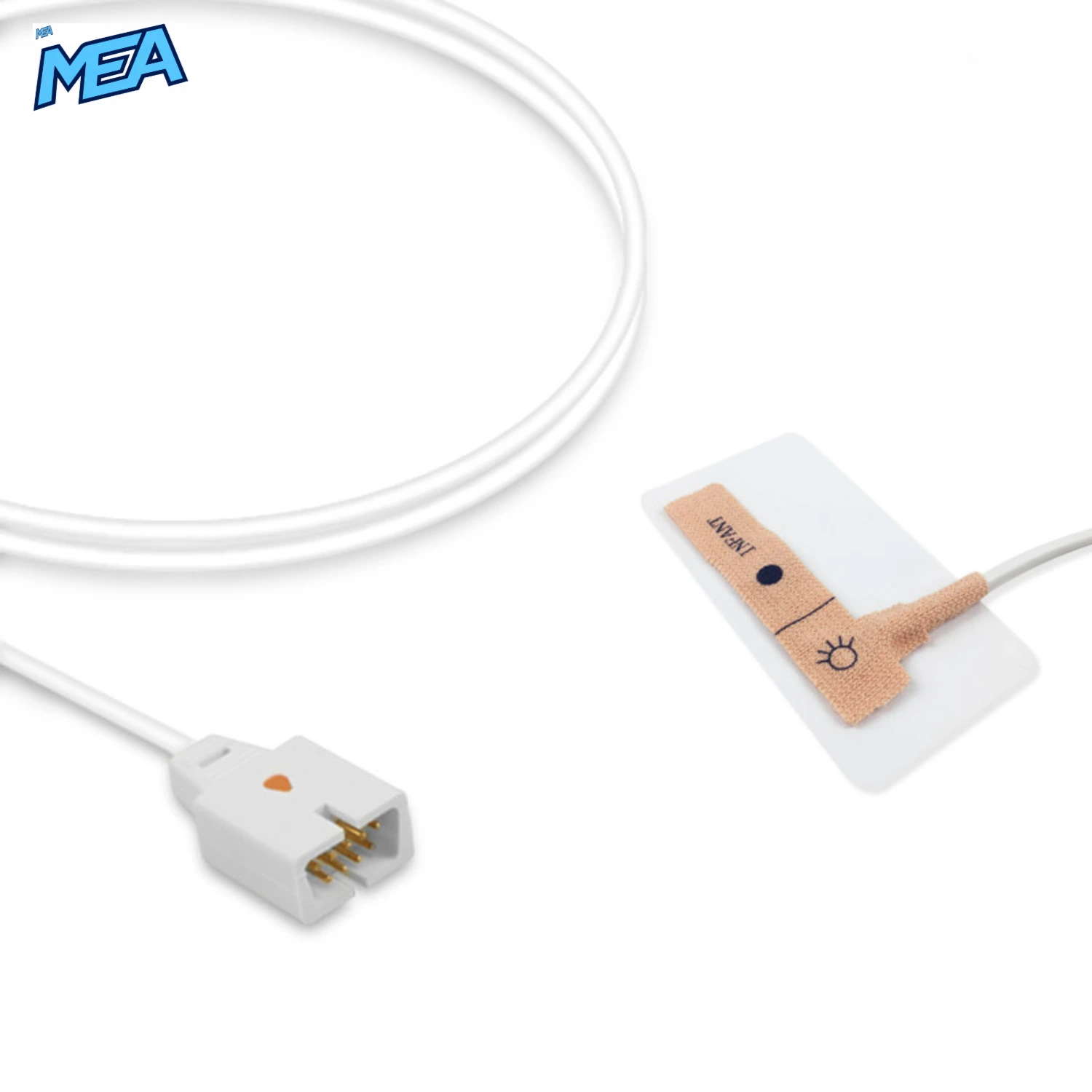

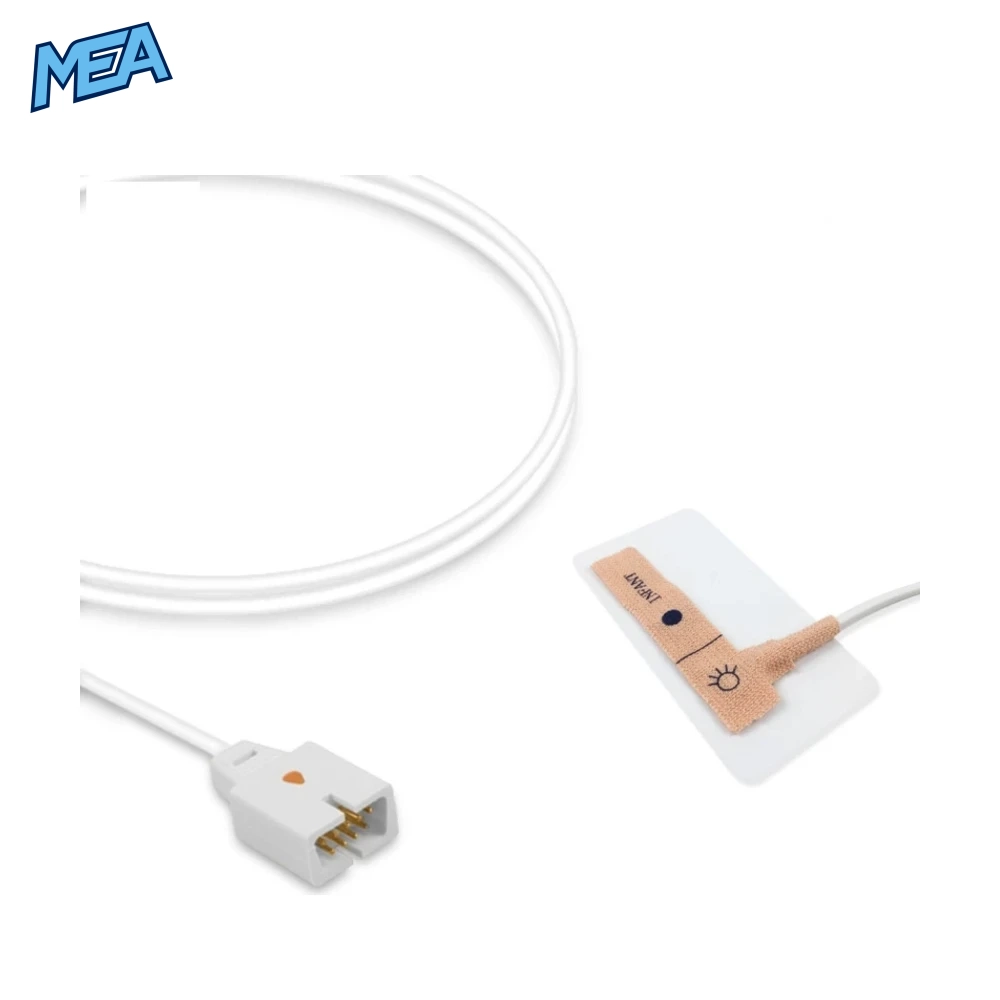

The Nellcor I20 Infant SpO2 Sensor is a single-patient-use, non-woven adhesive pulse oximetry sensor with a 0.9m cable and 9-pin connector, built to the Nellcor I20 reference specifications for monitors that use Nellcor Oxismart (non-OxiMax) SpO2 technology. It is supplied new in a box of 24 sensors and is sized for infant patients.
Why Choose This Infant Adhesive SpO2 Sensor
- Sized for infants: A slim adhesive wrap designed for small digits and feet, where clip-style sensors do not sit securely.
- Soft non-woven adhesive: Breathable, flexible fabric tape that conforms to the application site and helps hold the optics in alignment during movement.
- Single-patient use: Each sensor is used on one patient and then discarded, supporting infection-control protocols in neonatal, paediatric and emergency settings.
- Box of 24: Economical ward-pack quantity for high-turnover departments.
- Wide monitor coverage: Works with a broad range of Nellcor Oxismart-based patient monitors and pulse oximeters from multiple manufacturers.
Key Features of the Nellcor I20 Infant Pulse Oximeter Sensor
- Patient size: Infant
- Sensor style: Non-woven adhesive wrap
- SpO2 technology: Nellcor Oxismart (non-OxiMax)

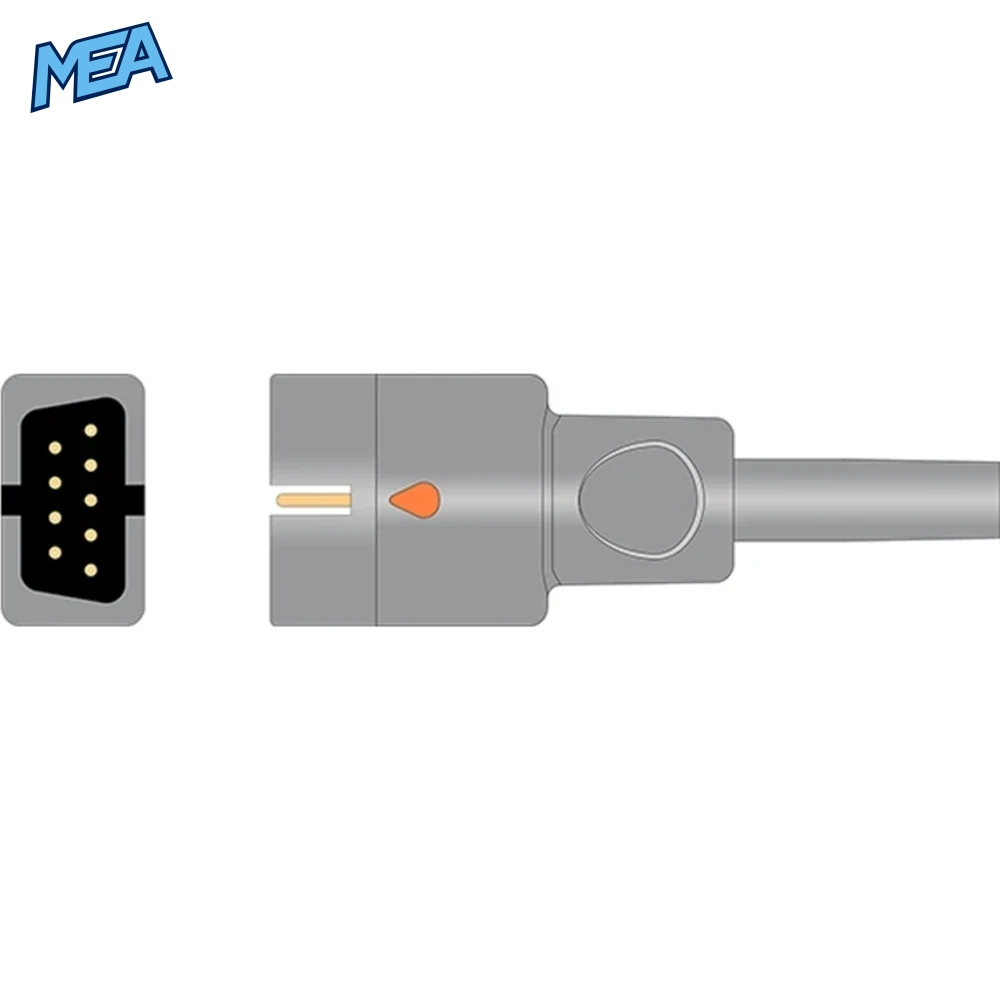

- Connector: 9-pin
- Cable length: 0.9m (approx. 3 ft)
- Lifecycle: Disposable, single-patient use
- Pack size: 24 sensors per box
Technical Specifications
| Specification | Detail |
|---|---|
| Product | Infant Non-Woven Adhesive SpO2 Sensor |
| Reference Model | Nellcor I20 |
| SKU | NEL-I20-INF-NW-NONOX-9PIN-0.9M |
| Patient Size | Infant |
| Sensor Type | Non-woven adhesive |
| SpO2 Technology | Nellcor Oxismart (non-OxiMax) |
| Connector | 9-pin |
| Cable Length | 0.9m (approx. 3 ft) |
| Lifecycle | Disposable (single-patient use) |
| Unit | 24 pcs per box |
| Condition | New |
Part Number Cross-Reference
This sensor is built to the reference specifications of the following part numbers:
| Brand | Reference Number |
|---|---|
| Nellcor | I20 |
| Philips | M1132A, 989803128541 |
| Mindray | 521I, 009-005085-00 |
| Edan | 01.57.040198 |
| Envitec | DI-2211-5, DI-2411-5 |
| Mediaid | CST034-2123 |
| AMC | PR-E620-1011N, PR-E620-1013N |
| Unimed | U533-01 |
Works With These Patient Monitors
- Nellcor: N 3000, N 390, NPB 3930, NPB 75
- Mindray: BeneHeart D3, D6; BeneVision ePM 10, ePM 10 Neo, ePM 10M, ePM 12, ePM 12M, ePM 15; BeneVision N1, N12, N12 Neo, N15, N15 Neo, N15 OR, N17, N17 Neo, N19, N22; BeneVision TMS-6016, TMS30 / VS900, uMEC 10, uMEC 12, VS-600, VS-900, VS-900 Neo; MEC 1200, Passport, Spectrum
- Philips: M1350C, M1722A, M3927, M3929A, Merlin Systems
- GE Healthcare / Marquette: 511, 556, SOLAR Series, Dash 3000, PDM Module, Solar 8000M
- Datascope: BeneVision TMS60, DPM6
- Datex Ohmeda: Vitalmax 800 Series (black, Nellcor SpO2)
- Edan: iM3, iM8, M9
- Spacelabs: 90351-0/6, 90369, 91369
- BCI: 3300, Mini Torr Plus
- Welch Allyn: Atlas (Nellcor SpO2)
- Others: Bionics BPM-200, Bistos BT-720, Colin BP-88S, Huntleigh SC1000, Ivy Biomedical 405D, Lumeon Hand-held Oximeter
Always confirm that your monitor uses Nellcor Oxismart (non-OxiMax) SpO2 technology with a 9-pin sensor connection before ordering.
Use Cases
- Continuous or spot-check SpO2 and pulse rate monitoring of infants
- Neonatal and paediatric wards, NICU / PICU step-down and emergency departments
- Operating theatres, recovery and patient transport
- Clinics and facilities that require single-patient-use sensors for infection control
Application and Care
- Apply to clean, dry skin with the emitter and detector aligned opposite each other, following your monitor’s instructions for use.
- Check the application site regularly and reposition as required by your clinical protocol.
- Do not clean, sterilise or reuse; discard after single-patient use.
- Store in the original packaging in a cool, dry place.
Frequently Asked Questions
What is the Nellcor I20 infant SpO2 sensor used for?
It is a disposable adhesive pulse oximetry sensor used to measure blood oxygen saturation (SpO2) and pulse rate on infant patients with monitors that use Nellcor Oxismart technology.
Does this sensor work with Nellcor OxiMax monitors?
No. This sensor is for Nellcor Oxismart (non-OxiMax) systems. For OxiMax monitors, choose an OxiMax sensor such as the Nellcor MAX-I infant sensor.
How many sensors are in a box?
Each box contains 24 individually usable infant non-woven adhesive SpO2 sensors.
What is the cable length and connector type?
The cable is 0.9m (approx. 3 ft) long and ends in a 9-pin connector.
Can the sensor be reused?
No. It is a single-patient-use sensor and should be discarded after use on one patient.
Which part numbers does it cross-reference?
Nellcor I20, Philips M1132A / 989803128541, Mindray 521I / 009-005085-00, Edan 01.57.040198, Envitec DI-2211-5 / DI-2411-5, Mediaid CST034-2123, AMC PR-E620-1011N / PR-E620-1013N and Unimed U533-01.
Related SpO2 Sensors
Need a different size or technology?
See the Nellcor MAX-I Infant OxiMax Adhesive SpO2 Sensor 0.9m, the Nellcor MAX-A Adult Adhesive SpO2 Sensor 0.9m, the reusable Nellcor OXI-A/N Neonate Wrap SpO2 Sensor 1.0m (Oxismart), the Masimo 2319 LNCS Inf-3 Infant Adhesive SpO2 Sensor and the Nihon Kohden TL-274T Infant Adhesive SpO2 Sensor.
