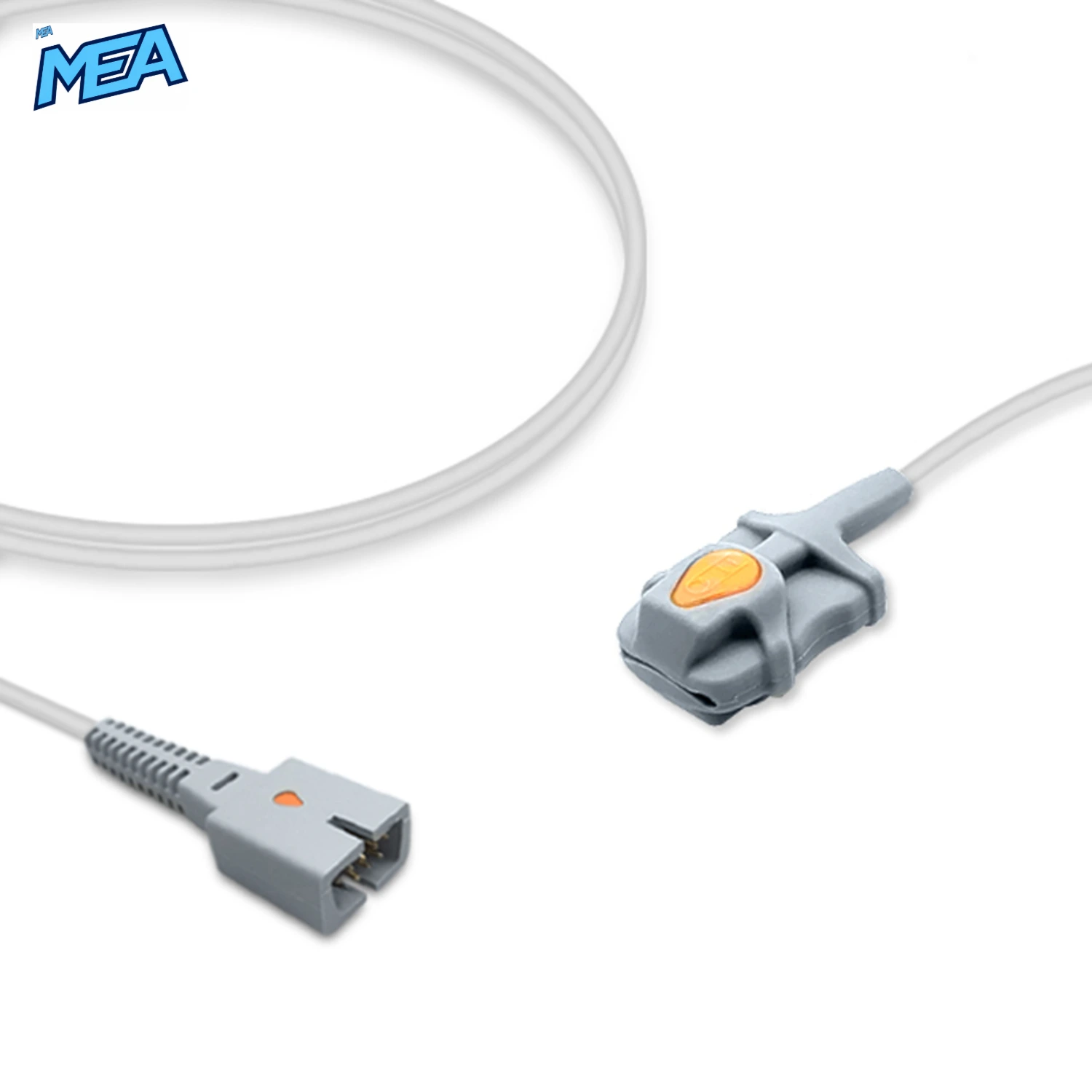

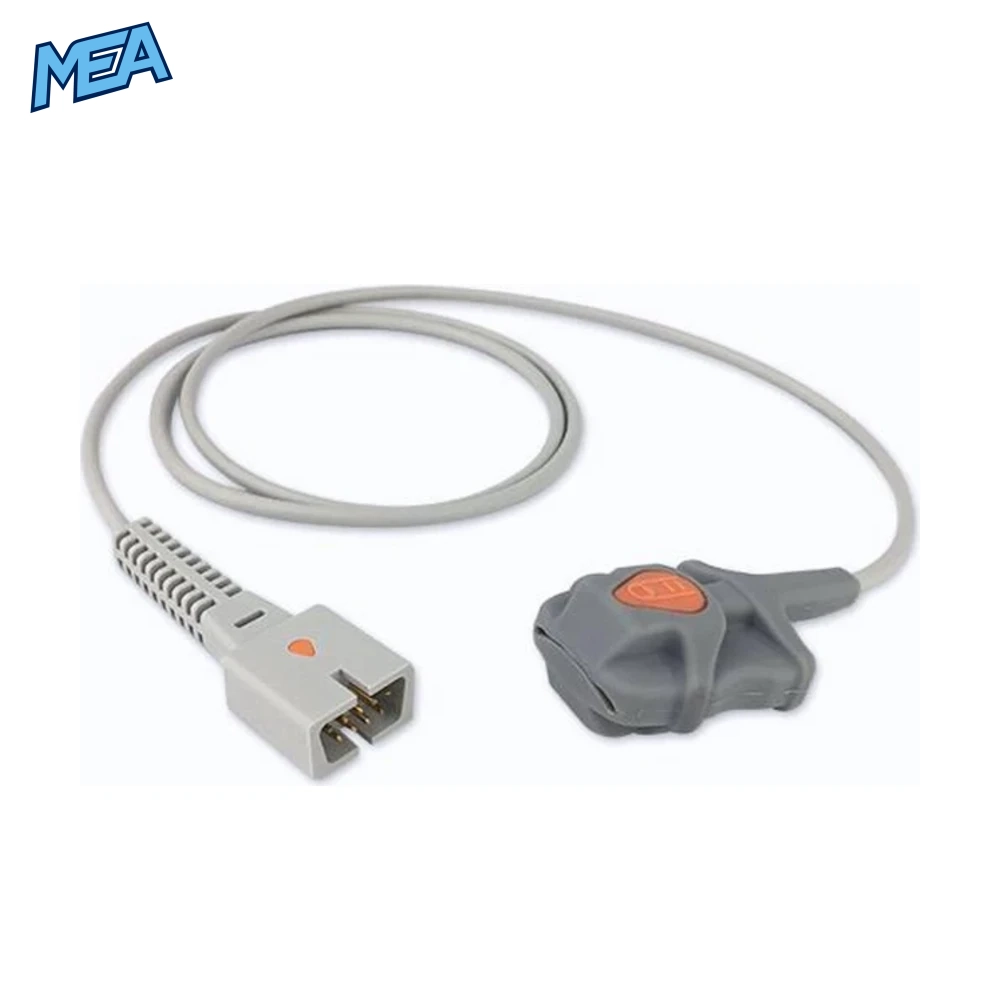

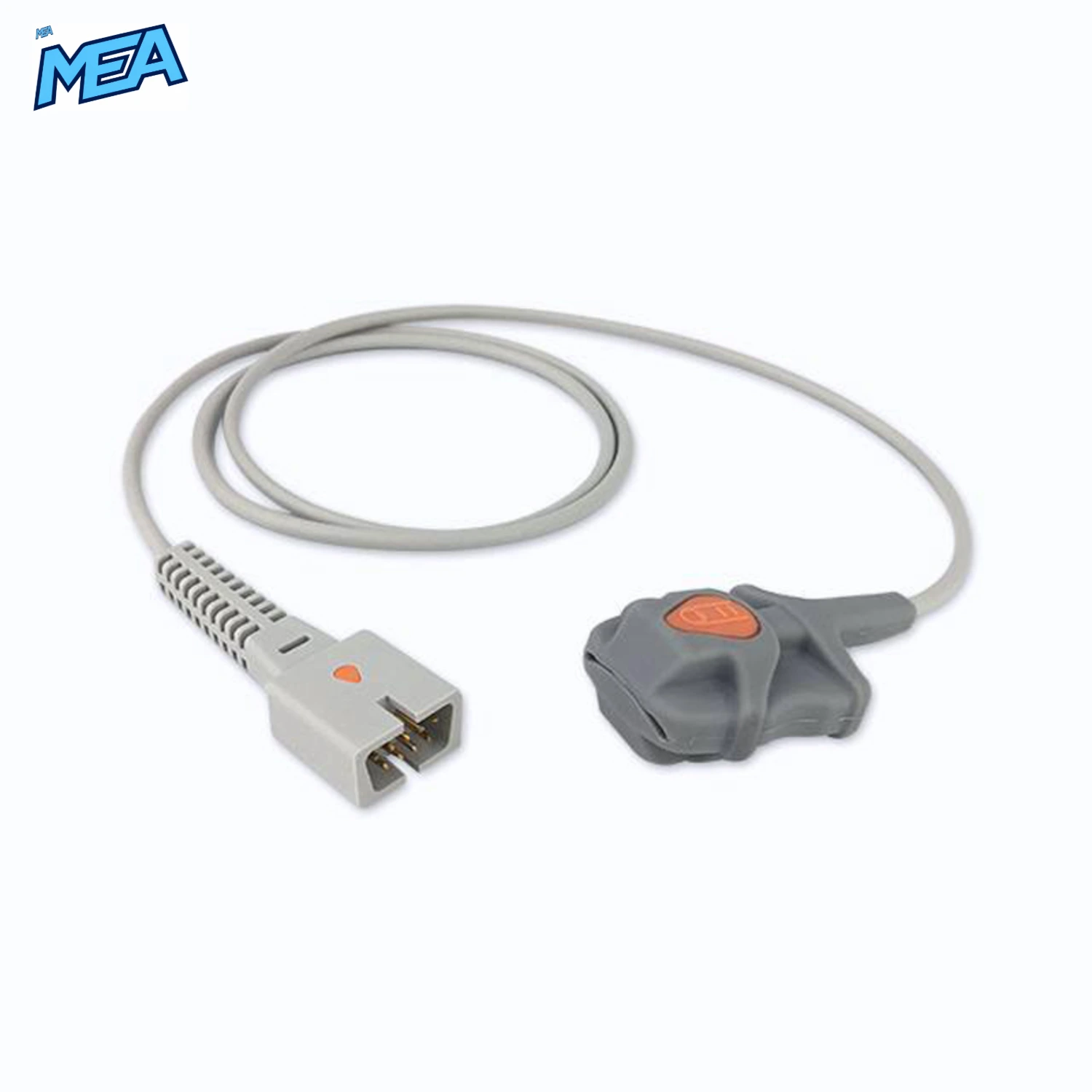

The Nellcor FLEXMAX-P Pediatric Soft Tip SpO2 Sensor is a new, reusable pulse oximetry finger sensor with a 1.0m (3.3ft) cable and a 9 pin connector, built to the Nellcor FLEXMAX-P (Non-OxiMax) reference specifications. It uses Nellcor Oxismart technology and works with patient monitors and pulse oximeters that have a Nellcor Oxismart (Non-OxiMax) SpO2 input, measuring oxygen saturation and pulse rate on pediatric patients.
Key Benefits of This Pediatric Soft Tip Pulse Oximeter Sensor
- Gentle on small fingers: The flexible silicone soft tip sleeve holds the finger without the spring pressure of a clip sensor, which suits longer monitoring periods.
- Sized for children: The pediatric sleeve positions the emitter and detector correctly on smaller fingers for a stable signal.
- Reusable and economical: One sensor can be cleaned and used across many patients, lowering the cost per use compared with single-patient sensors.
- Short 1.0m cable: Keeps bedside, transport and spot-check setups tidy; pair with an extension cable where more reach is needed.
- Peace of mind:
Features of the Nellcor Oxismart Pediatric SpO2 Finger Sensor
- Patient size: Pediatric
- Sensor type: Soft Tip (silicone finger sleeve)
- SpO2 technology: Nellcor Oxismart (Non-OxiMax)

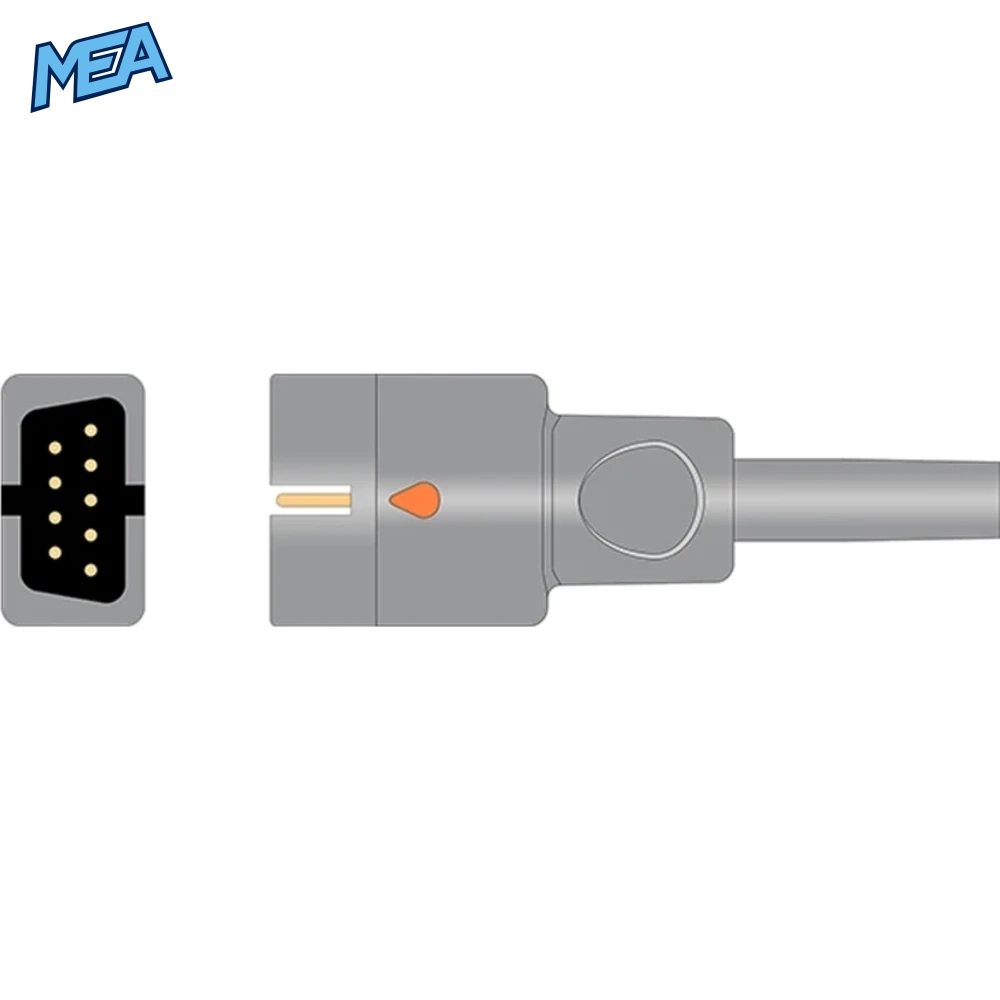

- Connector: 9 pin D-type
- Cable length: 1.0m (3.3ft)
- Lifecycle: Reusable
- Latex-free silicone sleeve, easy to wipe clean between patients
Technical Specifications
| Specification | Detail |
|---|---|
| Product | Pediatric Soft Tip SpO2 Sensor |
| Reference Model | Nellcor FLEXMAX-P (Non-OxiMax) |
| SKU | NEL-PED-ST-SPO2-NONOX-9PIN-1M |
| SpO2 Technology | Nellcor Oxismart (Non-OxiMax) |
| Patient Size | Pediatric |
| Sensor Type | Soft Tip |
| Connector | 9 pin |
| Cable Length | 1.0m (3.3ft) |
| Lifecycle | Reusable |
| Condition | New |
| Unit | 1 pc per bag |
| Warranty | 12 Months |
Part Number Cross-Reference
This sensor is built to the reference specifications of the following part numbers:
| Brand | Reference Number |
|---|---|
| Nellcor | FLEXMAX-P (Non-OxiMax); D-YSPD (note: the original D-YSPD is a hard shell OxiMax sensor) |
| Philips | M1192T, 989803128611 |
| Mindray | 512G-30-45709, 512G-30-90607 |
| Datascope | 512G-30-90607 |
| Draeger | 2606486 |
| Edan | 02.01.210121-11, 02.01.210121-12, M15-040160, SH5.DB9 |
| Envitec | RM-3212-9, RM-3212-9plus, RS-3212-9, RS-3212-9plus |
| Cardell | 3-009-0021 |
| AMC | PR-A800-1011N |
| Praymed | PSD0010-S |
| Unimed | U103S-01 |
Works With These Monitors
- Nellcor: N 3000, N 390, NPB 3930, NPB 75
- Mindray: BeneHeart D3, D6; BeneVision ePM 10, ePM 10 Neo, ePM 10M, ePM 12, ePM 12M, ePM 15; BeneVision N1, N12, N12 Neo, N15, N15 Neo, N15 OR, N17, N17 Neo, N19, N22; BeneVision TMS-6016, TMS30 / VS900, uMEC 10, uMEC 12, VS-600, VS-900, VS-900 Neo; MEC 1200, Passport, Spectrum
- Datascope: BeneVision TMS60, DPM6
- Philips: M1350C, M1722A, M3927, M3929A, Merlin Systems
- GE Healthcare / Marquette: 511, 556, SOLAR Series, Dash 3000, PDM Module, Solar 8000M
- Edan: iM3, iM8, M9
- Spacelabs: 90351-0/6, 90369, 91369
- BCI: 3300, Mini Torr Plus
- Others: Bionics BPM-200, Bistos BT-720, Colin BP-88S, Huntleigh SC1000, Ivy Biomedical 405D, Lumeon Hand-held Oximeter, Welch Allyn Atlas (Nellcor SpO2)
Always confirm that your monitor’s SpO2 module uses Nellcor Oxismart (Non-OxiMax) technology and a 9 pin sensor input before ordering.
Use Cases
- Continuous SpO2 and pulse rate monitoring in pediatric wards and pediatric intensive care
- Emergency departments, recovery rooms and day surgery units
- Spot-check oximetry in clinics and outpatient settings
- Biomedical engineering departments keeping spare sensors for Oxismart-based monitors
Application and Care
- Slide the child’s finger fully into the soft tip sleeve so the fingertip sits over the sensor window, with the cable running along the back of the hand.
- Check the site regularly and move the sensor to another finger as directed by your clinical protocol.
- Clean between patients by wiping with a soft cloth dampened with 70% isopropyl alcohol or a mild detergent solution; allow to dry fully.
- Do not immerse the connector, autoclave, or sterilise with steam or ethylene oxide.
Frequently Asked Questions
What is the Nellcor FLEXMAX-P Pediatric Soft Tip SpO2 Sensor used for?
It is a reusable finger sensor that measures blood oxygen saturation (SpO2) and pulse rate in pediatric patients when connected to a monitor with Nellcor Oxismart (Non-OxiMax) SpO2 technology.
Is this sensor OxiMax or Non-OxiMax?
This sensor is Non-OxiMax and uses Nellcor Oxismart technology. It is not intended for monitors that require an OxiMax sensor with a memory chip. Check the SpO2 technology of your monitor before ordering.
Which monitors does this pediatric soft tip sensor work with?
It works with Oxismart-based monitors including Nellcor N 3000, N 390, NPB 3930 and NPB 75, Mindray BeneVision, BeneHeart, MEC 1200 and Passport models, Philips M1350C and M1722A, GE Solar and Dash 3000, Edan iM3, iM8 and M9, and Spacelabs 90369 and 91369.
What connector and cable length does it have?
The sensor has a 9 pin connector and a 1.0m (3.3ft) cable. It plugs directly into a 9 pin Oxismart SpO2 port or into a matching SpO2 extension cable.
Can this pediatric SpO2 sensor be reused and how is it cleaned?
Yes. It is a reusable sensor. Wipe the silicone sleeve and cable with 70% isopropyl alcohol or a mild detergent solution between patients and let it dry. Do not immerse or autoclave it.
