The Masimo 2318 LNCS Pdtx-3 pediatric SpO2 sensor is a single-patient-use, non-woven adhesive pulse oximetry sensor built to the Masimo 2318 (LNCS Pdtx-3) reference specifications.
It uses Masimo LNCS technology, has a 0.9m (3 ft) cable, is packed 20 sensors per box, and is supplied brand new for continuous oxygen saturation (SpO2) and pulse rate monitoring on pediatric patients.
Why Choose This LNCS Pdtx-3 Pediatric Disposable SpO2 Sensor
- Sized for children: The pediatric adhesive wrap is shaped for small fingers, giving a secure fit and stable readings on active young patients.
- Soft non-woven adhesive: Breathable, skin-friendly tape holds the emitter and detector in position with minimal irritation.
- Single-patient use: A fresh sensor for every child supports infection-control protocols and removes reprocessing time.
- Masimo LNCS technology: Works with Masimo LNCS patient cables and LNCS-enabled monitors, defibrillators and pulse oximeters.
- Cost-effective bulk pack: 20 sensors per box for paediatric wards, theatre, ED and ambulance stock.
Key Features of the Pediatric Adhesive Pulse Oximeter Sensor
- Built to the Masimo 2318 LNCS Pdtx-3 reference specifications

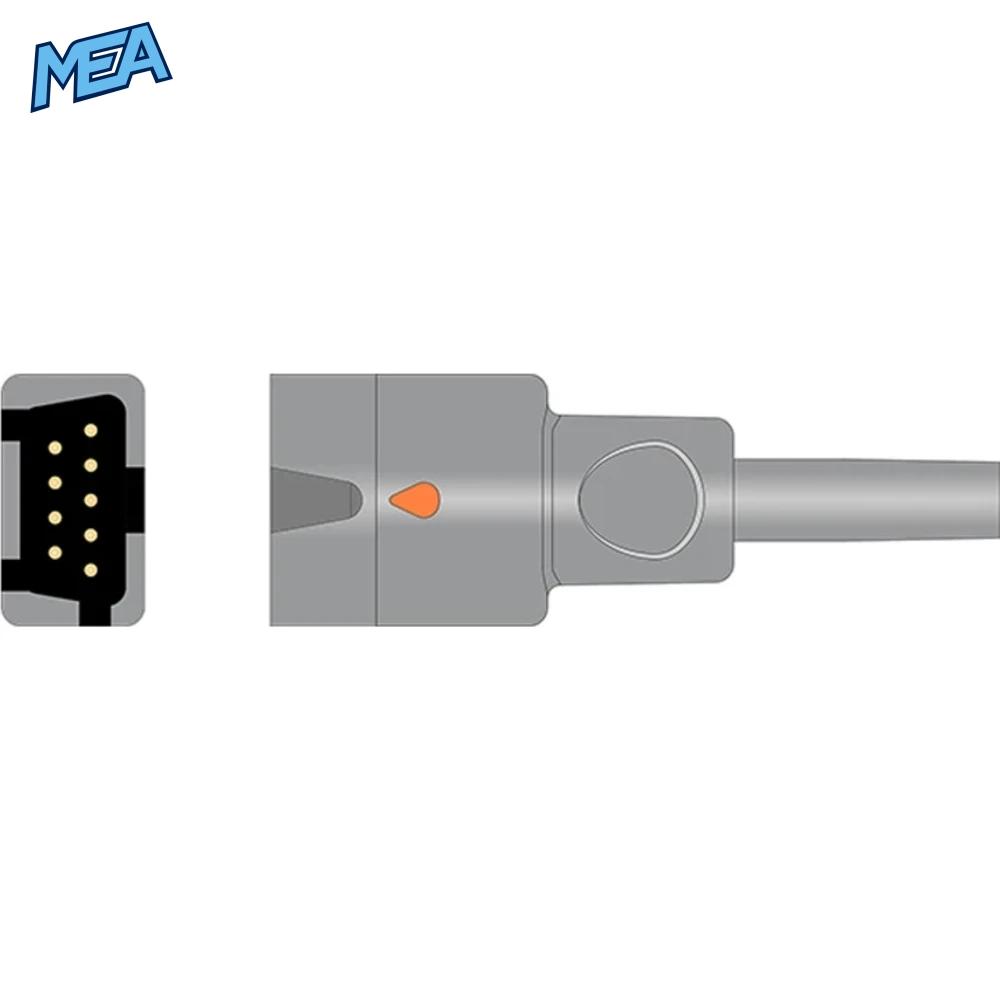

- 0.9m (3 ft) sensor cable with LNCS-style connector

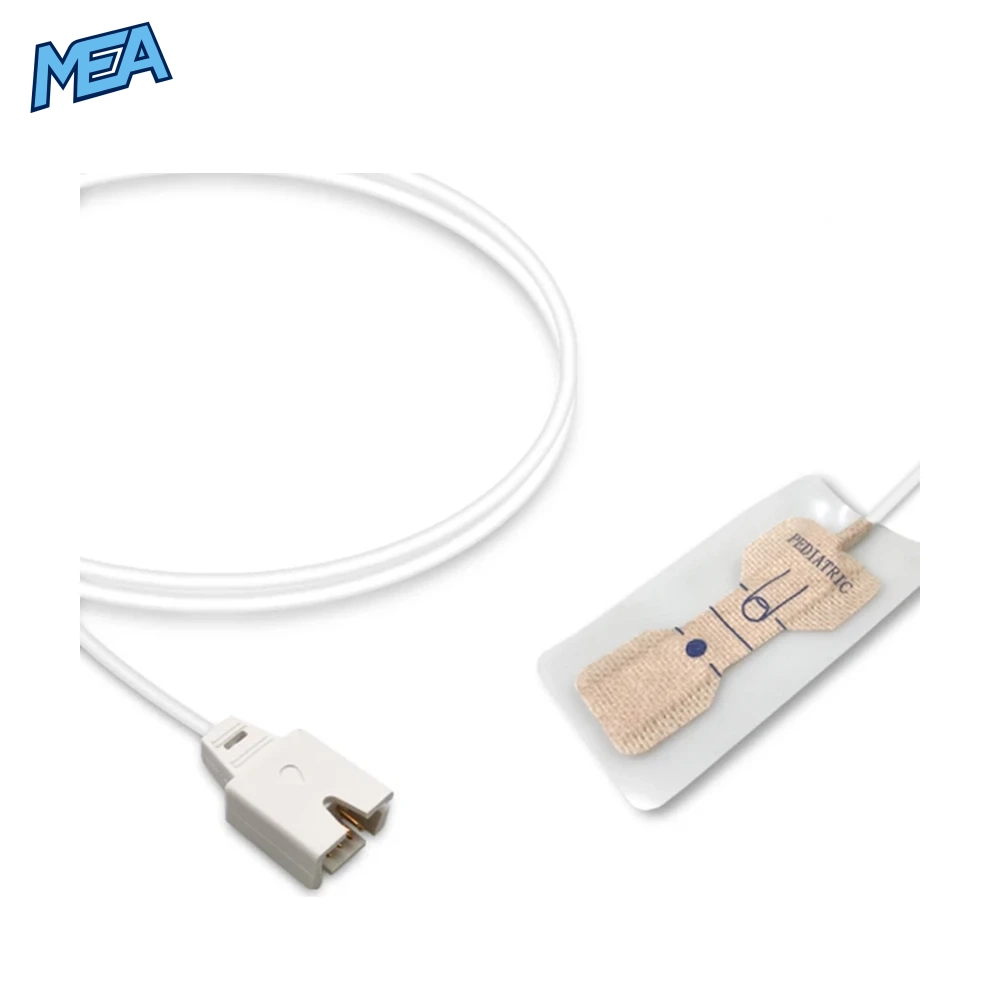

- Non-woven adhesive wrap printed “PEDIATRIC” with finger-placement and LED alignment marks
- Lightweight, low-profile design that stays in place during movement
- Condition: New
Masimo 2318 Pediatric SpO2 Sensor Specifications
| Specification | Detail |
|---|---|
| Reference Model | Masimo 2318 (LNCS Pdtx-3) |
| SpO2 Technology | Masimo LNCS |
| Patient Size | Pediatric |
| Sensor Type | Non-woven adhesive |
| Lifecycle | Disposable (single-patient use) |
| Cable Length | 0.9m (approx. 3 ft) |
| Pack Quantity | 20 pcs per box |
| Condition | New |
Cross-Reference Part Numbers
This sensor matches the following OEM and industry reference numbers:
| Brand | Reference Number |
|---|---|
| Masimo | 2318 (LNCS Pdtx-3), 2602 (LNCS Pdtx-3), 1860 (LNCS Pdtx – OEM version uses an 18 in cable), 1775 |
| Marquette | 2027254-001 |
| Datascope | 0600-00-0122, 520P-30-64201 |
| Draeger | MP00793 |
| Philips | 989803148241 |
| Physio-Control | 11171-000020 |
Works With These Monitors and Devices
Masimo & Patient Monitors
- Masimo: Pronto 7, Rad-5, Rad-57, Rad-87, Rad-8, Radical-7
- GE Healthcare: Carescape B650, B850, V100; B40, B125, B125M; Dash Series; Dinamap ProCare, Pro 300V2, ProSeries V2, V300; SOLAR Series; TRAM 450SL
- Marquette: Dash 2000/2500/3000/4000/5000, Eagle, i/9500, Solar 7000/8000/8000M, TRAM 451 & TRAM Modular, PDM Module
- Datascope / Mindray: Accutorr Plus, Accutorr 3/7, Passport 2/2LT/XG/8/12/V, DPM4/6/7, Spectrum, Spectrum OR, Trio, Duo, PM 6000–9000, BeneView T1/T5/T8, BeneHeart D6, TM80
- Philips: IntelliVue MX700 (Masimo Rainbow)
- Draeger: Infinity M540, Narkomed 6400
- Datex Ohmeda: S/5, Giraffe Infant Warmer
Defibrillators & Vital Signs Monitors
- Physio-Control: Lifepak 11, 12, 15, 20, 20E
- Zoll: E Series, M Series, R Series, X Series
- Welch Allyn: 1500, Propaq CS, Propaq LT, Spot Vital Signs LXi, Spot Vital Signs 42MTB-E1
- Others: Bitmos SAT 800/801/805/816 & satPuls, Comen K12 Pro, Invivo Escort II, Mennen Horizon XVu, Respironics Alice 5
Always confirm your monitor runs Masimo LNCS SpO2 and uses a matching LNCS patient cable before ordering.
Clinical Use Cases
- Paediatric ward and paediatric ICU continuous SpO2 monitoring
- Operating theatre and post-anaesthesia (PACU) monitoring for children
- Emergency department and ambulance/paramedic transport with Lifepak or Zoll defibrillators
- Spot-checks and overnight monitoring with Masimo Rad-series pulse oximeters
- Paediatric sleep studies and respiratory care
How to Apply the Pediatric Adhesive SpO2 Sensor
- Choose a finger (or toe) with good perfusion and clean, dry skin.
- Remove the backing and place the fingertip on the printed finger outline so the emitter and detector sit directly opposite each other.
- Wrap the adhesive snugly without over-tightening, then connect to the LNCS patient cable.
- Check the site regularly and replace the sensor when adhesion weakens or per your facility protocol.
Frequently Asked Questions
What is the Masimo 2318 LNCS Pdtx-3 sensor used for?
It is a disposable adhesive pulse oximetry sensor for measuring oxygen saturation (SpO2) and pulse rate on pediatric patients connected to Masimo LNCS-enabled monitors.
How many sensors come in one box?
Each box contains 20 single-patient-use sensors.
What is the cable length?
The sensor cable is 0.9m (approximately 3 ft).
Is this sensor reusable?
No. It is designed for single-patient use and should be discarded after use on one patient.
Do I need a patient cable?
Most LNCS monitors connect this sensor through a Masimo LNCS patient/extension cable. Check your monitor’s SpO2 port before ordering.
What is the difference between LNCS Pdtx-3 and LNCS Pdtx?
Both are pediatric adhesive sensors. The Pdtx-3 (2318) has a 0.9m (3 ft) cable, while the LNCS Pdtx (1860) OEM version uses a shorter 18-inch cable.
Is the product new?
