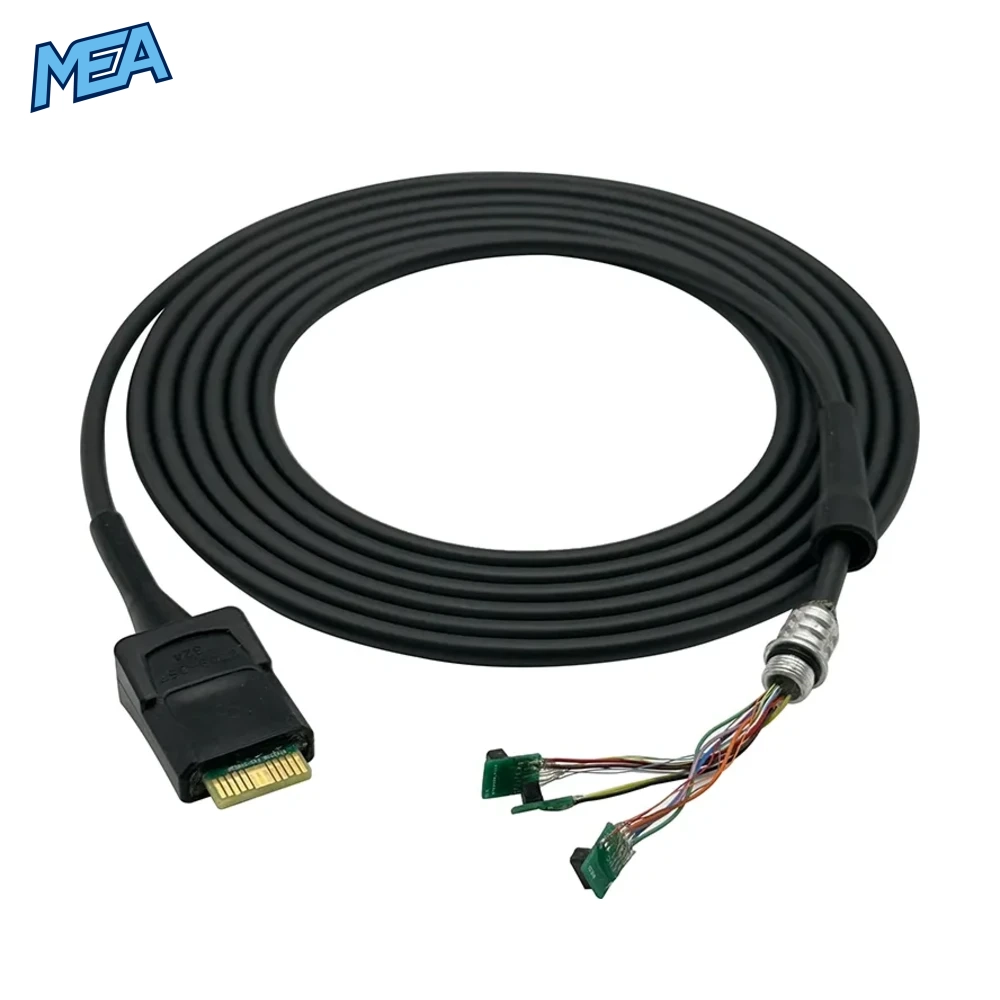

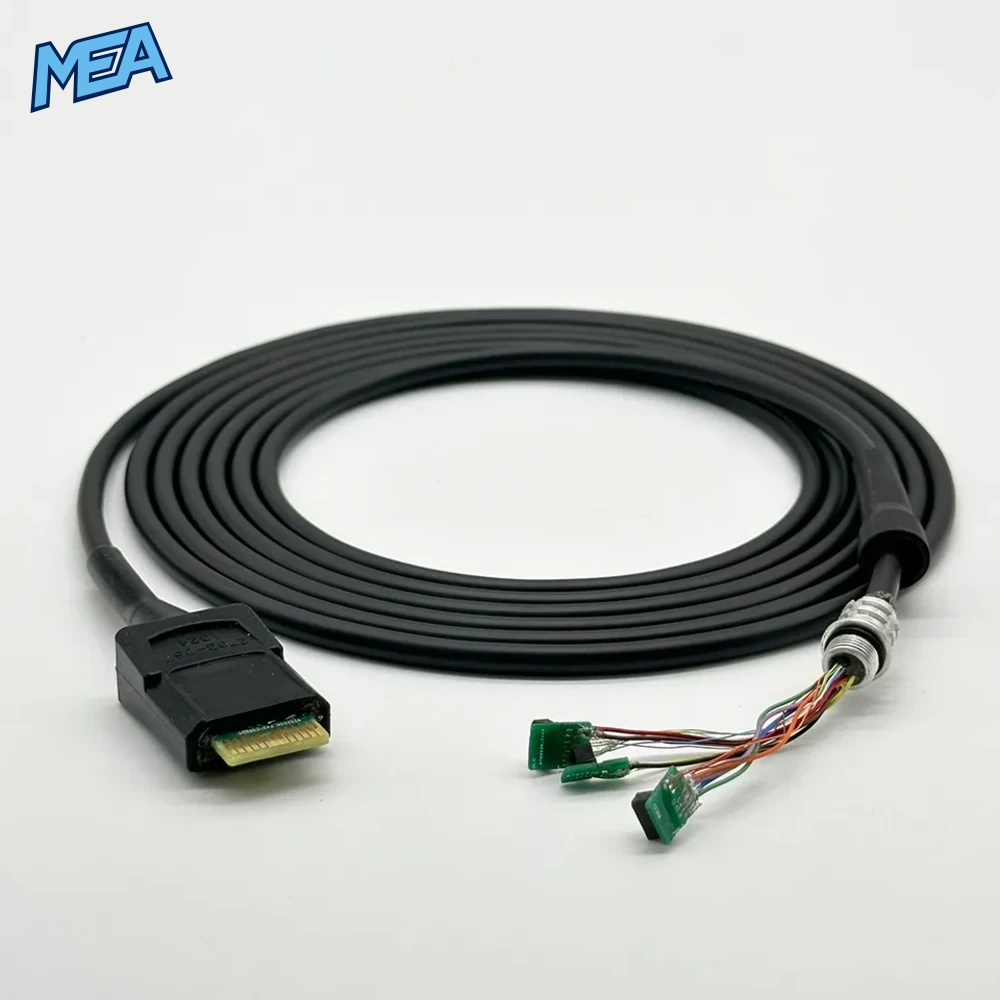

The Karl Storz 20212130 camera head cable is a new cable assembly for the Karl Storz Telecam endoscope camera head, reference 20212130. It carries the video signal and power between the camera head and the camera control unit, and is fitted during camera head repair when the original cable is cut, kinked, cracked or producing an intermittent image.

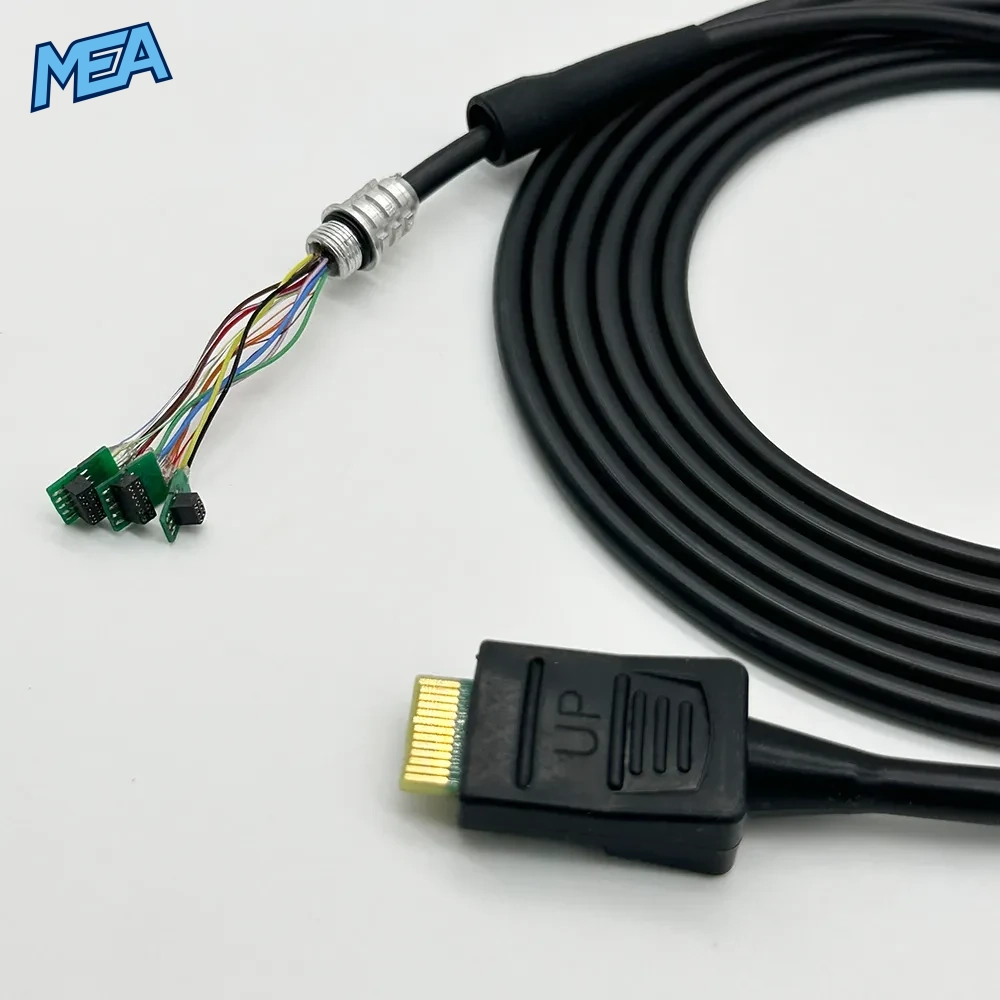

One end is a moulded black plug with a gold-plated card-edge contact, marked UP for correct orientation. The other end has a metal strain-relief fitting and colour-coded leads pre-terminated on small circuit-board connectors, ready to be installed inside the camera head housing by a service technician.
Key Benefits of This Telecam Camera Cable
- Restores a faulty camera head: A damaged cable is one of the most common causes of image flicker, colour loss, lines or a blank screen on an endoscopy camera.
- Lower cost than a new camera head: Replacing only the cable keeps the existing 20212130 camera head in service.
- Pre-terminated leads: Colour-coded wires arrive already fitted to their board connectors, reducing bench time.
- Gold-plated contacts: The card-edge plug uses gold-plated contact fingers for a dependable, low-resistance connection.
- Clear orientation marking: The plug is marked “UP” so it is inserted the right way round.
- Brand new: Supplied new and unused, one cable per pack.
Features of the 20212130 Endoscope Camera Cable
Control-Unit Plug
Moulded black plug with a gold-plated card-edge contact and an “UP” orientation mark, with a flexible moulded strain relief where the cable enters the plug.
Camera-Head End

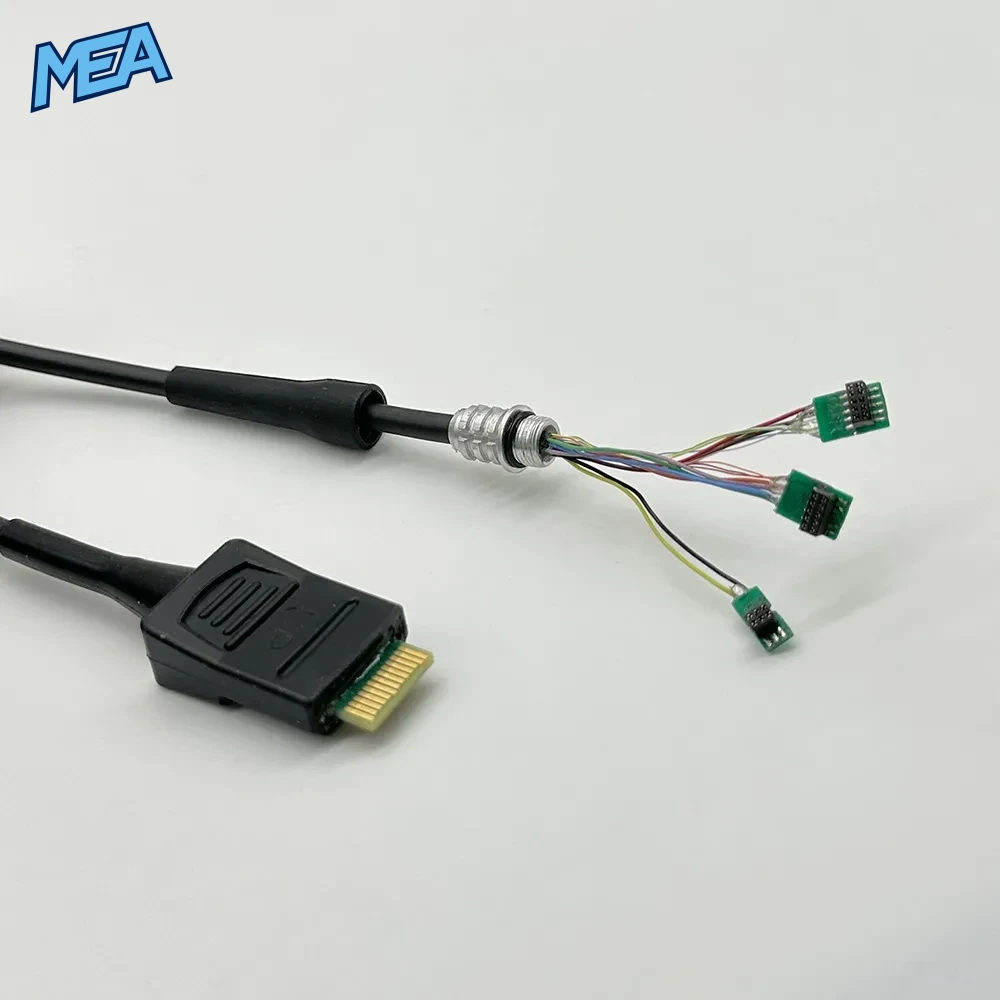

Metal threaded strain-relief fitting with a group of colour-coded leads terminated on small green circuit-board connectors, plus a moulded bend-protection sleeve behind the fitting.
Flexible Black Cable Jacket

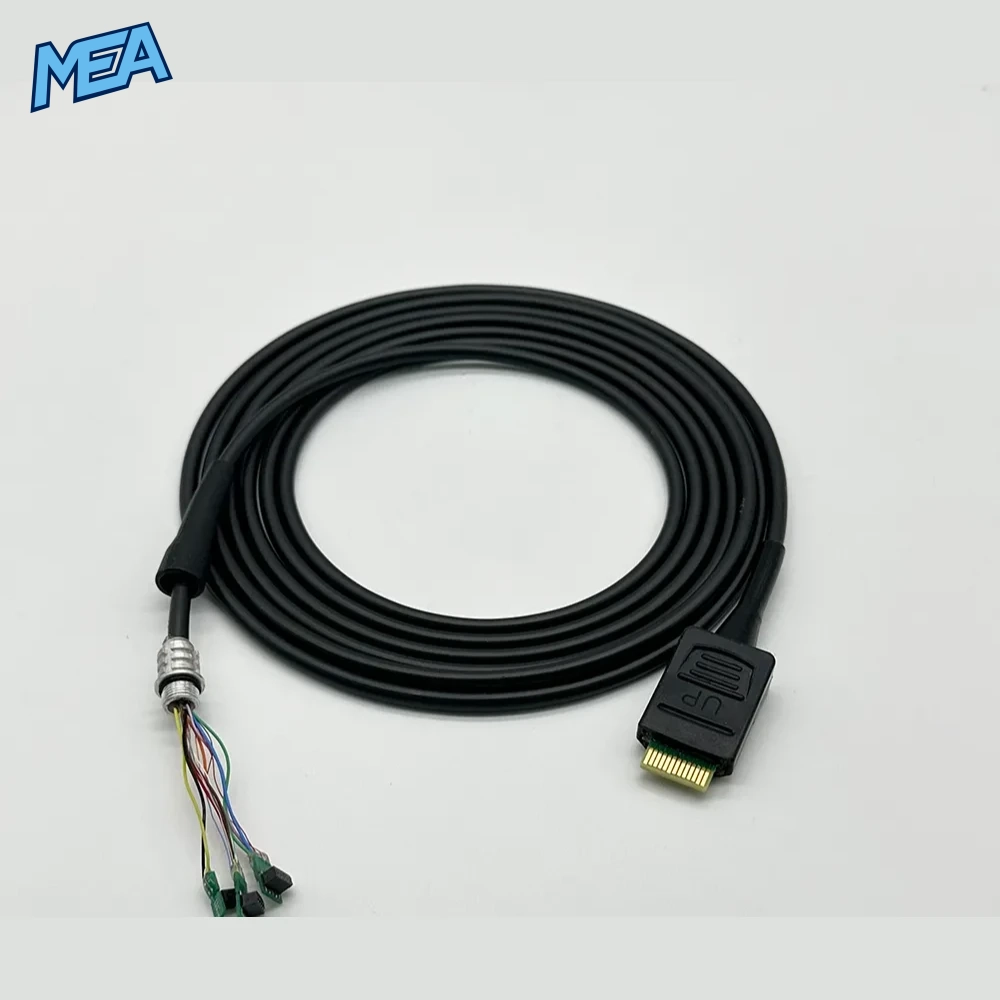

Smooth black plastic outer jacket that coils easily for storage and handles routine movement around the endoscopy tower.
Product Specifications
| Specification | Details |
| Product Type | Endoscope camera head cable |
| Part Reference | 20212130 |
| For Use With | Karl Storz Telecam camera head 20212130 |
| Control-Unit End | Moulded plug with gold-plated card-edge contact, marked “UP” |
| Camera-Head End | Metal strain-relief fitting with colour-coded leads on circuit-board connectors |
| Jacket Material | Plastic |
| Colour | Black |
| Condition | New |
| Pack Quantity | 1 cable |
| Package Size | Approx. 30 x 12 x 8 cm |
| Package Weight | Approx. 1 kg |
| Installation | Internal fitting by a qualified endoscopy / biomedical technician |
20212130 vs 20212030: Which Telecam Cable Do You Need?
Karl Storz Telecam one-chip camera heads were produced in two video-standard versions. 20212130 is the NTSC camera head and 20212030 is the PAL camera head. Check the reference printed on your camera head before ordering. If your head is the PAL version, see the Karl Storz Telecam camera cable 20212030 PAL instead.
Common Use Cases
- Repair of a Telecam 20212130 camera head with a damaged or intermittent cable
- Endoscope camera refurbishment and reconditioning
- Biomedical engineering and hospital workshop spares
- Veterinary and day-surgery clinics maintaining existing Telecam equipment
Signs a Camera Head Cable Needs Replacing
- Image drops out or flickers when the cable is moved
- Horizontal lines, noise or loss of colour on the monitor
- Visible cuts, cracks or flattened sections in the jacket
- Bent, worn or corroded contacts on the plug
- Loose or split strain relief at either end
Installation and Care
- This is an internal repair part. Fitting requires opening the camera head and should be done by a trained technician.
- Match each lead to its original position and test image quality before returning the camera to clinical use.
- Reseal and leak-test the camera head according to your service procedure after the cable is replaced.
- Coil the cable loosely in use and storage. Avoid tight bends, crushing and pulling on the cable itself.
Frequently Asked Questions
What is the Karl Storz 20212130 camera head cable used for?
It replaces the cable on a Karl Storz Telecam 20212130 camera head, restoring the connection between the camera head and the camera control unit.
Is this a complete camera head?
No. This listing is for the cable assembly only. The camera head, coupler and control unit are not included.
Can I install the cable myself?
The cable is fitted inside the camera head, so installation should be carried out by a qualified endoscopy repair or biomedical technician.
Will this cable work on a 20212030 PAL camera head?
This listing is for the 20212130 reference. For a PAL head, order the 20212030 PAL cable listed separately on our site.
Is the cable new or refurbished?
The cable is supplied brand new.
How many cables are included?
One cable per order quantity.
How do I confirm this is the right part?
Check that your camera head is marked 20212130 and compare your existing plug and camera-head connectors with the product photos. Contact us before ordering if you are unsure.
