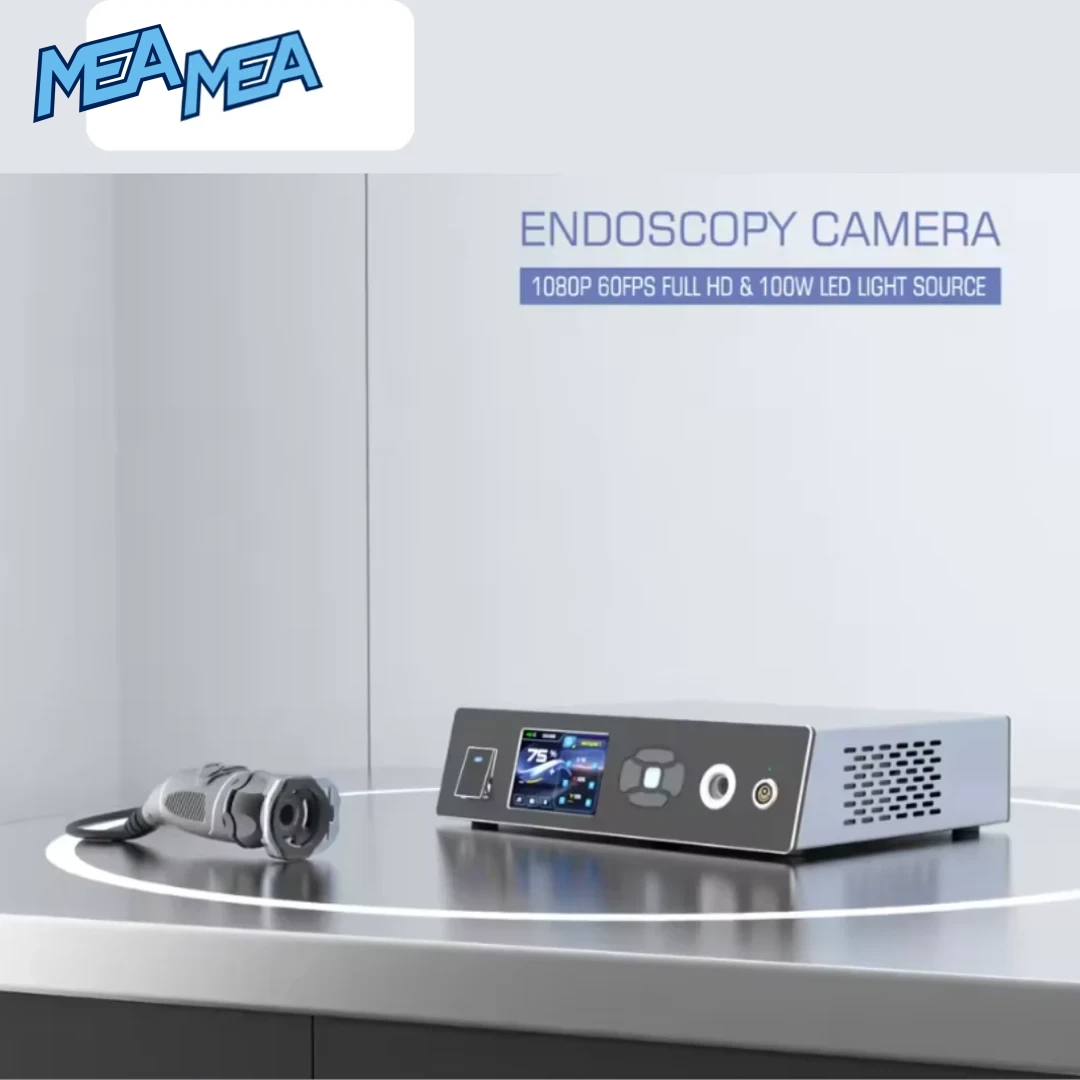

The 1080P Medical Endoscope Camera System is a professional surgical imaging solution designed to deliver real-time Full HD visualisation for endoscopic procedures. It combines a Sony Exmor 1/1.8-inch CMOS sensor, 3G-SDI video transmission, adjustable image controls, and a 100W CREE LED light source to provide bright, detailed illumination for clinical and surgical visualisation.
Professional Full HD Endoscopy Imaging
This medical endoscope camera system is designed for applications where clear, low-latency visualisation is essential. The camera captures up to 3.75 million effective pixels at 1952(H) × 1113(V) and uses a Sony Exmor CMOS sensor with 3.75 μm pixels for enhanced image acquisition, particularly in demanding illumination conditions.
3G-SDI Real-Time Video Transmission
The integrated Korean Eyenix processor is designed for high-speed image processing and real-time 3G-SDI output, helping provide responsive visualisation during endoscopic procedures.
Key imaging features include:
- 1080P Full HD image resolution
- 3G-SDI real-time video output
- 3.75M effective pixels
- 1952(H) × 1113(V) image resolution
- Sony Exmor 1/1.8-inch CMOS sensor
- 3.75 μm pixel size
- Adjustable colour and brightness
- Low-latency image processing
- SNR below 32 dB
100W CREE LED Medical Light Source
The integrated 100W CREE LED light source provides high-intensity illumination for endoscopic visualisation. The system is specified with up to 5,500,000 lux output, a 5000K colour temperature, and CRI 92, helping produce bright and natural-looking illumination.
The LED light source is designed for long-term operation with a stated lifespan of up to 50,000 hours, reducing the need for frequent lamp replacement.
High-Intensity Surgical Illumination
Benefits include:
- 100W CREE LED illumination
- Up to 5,500,000 lux stated output
- 5000K colour temperature
- CRI 92
- Up to 50,000-hour stated LED lifespan
- Adjustable illumination and image parameters
- Designed for demanding endoscopic visualisation
Surgical-Ready Camera and Optical System
The camera system incorporates a 22 mm lens and a 2.5 m autoclavable optical fibre cable. The soft-wire construction provides flexibility when positioning the camera and optical components during procedures.
The system is designed around a 32 mm endoscope eyepiece interface, with the supplied specifications stating support for commonly used Storz, R.Wolf, and Olympus endoscope configurations.
Important: Always verify the exact endoscope interface and sterilisation requirements before use with a specific instrument or procedure.
Autoclavable Optical Fibre Cable
The included 2.5 m optical fibre cable is specified as autoclavable, making it suitable for workflows where reusable optical components require sterilisation between procedures.
Smart Touchscreen Control
The system features a glove-operable IPS touchscreen intended to make image adjustments easier during clinical workflows.
Users can configure and recall image settings through customisable presets, allowing frequently used parameters to be stored for faster setup.
Customisable Imaging Controls
The control system includes:
- Glove-operable IPS touchscreen
- 178° viewing angle
- Wet-hand operation support
- 8 customisable image presets
- Renamable scene presets
- Parameter memory
- 4 programmable console keys
- 4 programmable handpiece keys
Multiple Video Output Options
The endoscope camera system provides flexible connectivity for clinical displays and recording equipment. Its supplied configuration includes HDMI-related accessories for connecting supported external devices.
Multi-Display Connectivity
The package includes adapters intended to support connections such as:
- Medical monitor
- Computer
- Android phone
- HDMI display equipment
- USB-based recording or capture equipment
The actual supported resolution, recording functionality, and device fit depend on the connected equipment and adapters used.
Specifications: Medical Endoscope Camera System
| Specification | Details |
| Product Type | Medical Endoscope Camera System |
| Image Resolution | 1080P |
| Effective Pixels | 3.75M pixels |
| Image Pixels | 1952(H) × 1113(V) |
| Image Sensor | Sony Exmor 1/1.8-inch CMOS |
| Pixel Size | 3.75 μm |
| Lens | 22 mm |
| Video Interface | FHD 3G-SDI |
| Light Source | 100W CREE LED |
| Maximum Stated Illumination | 5,500,000 lux |
| Colour Temperature | 5000K |
| Colour Rendering Index | CRI 92 |
| LED Lifespan | Up to 50,000 hours |
| Signal-to-Noise Ratio | <32 dB |
| Optical Fibre Cable | 2.5 m |
| Optical Fibre Cable Type | Autoclavable |
| Wire Type | Soft wire |
| Input Voltage | AC 100–240V, 50–60Hz |
| Touchscreen | IPS |
| Viewing Angle | 178° |
| Camera/Endoscope Interface | Φ32 mm eyepiece specification |
| Package Weight | 4.5 kg |
| Package Dimensions | 385 × 280 × 150 mm |

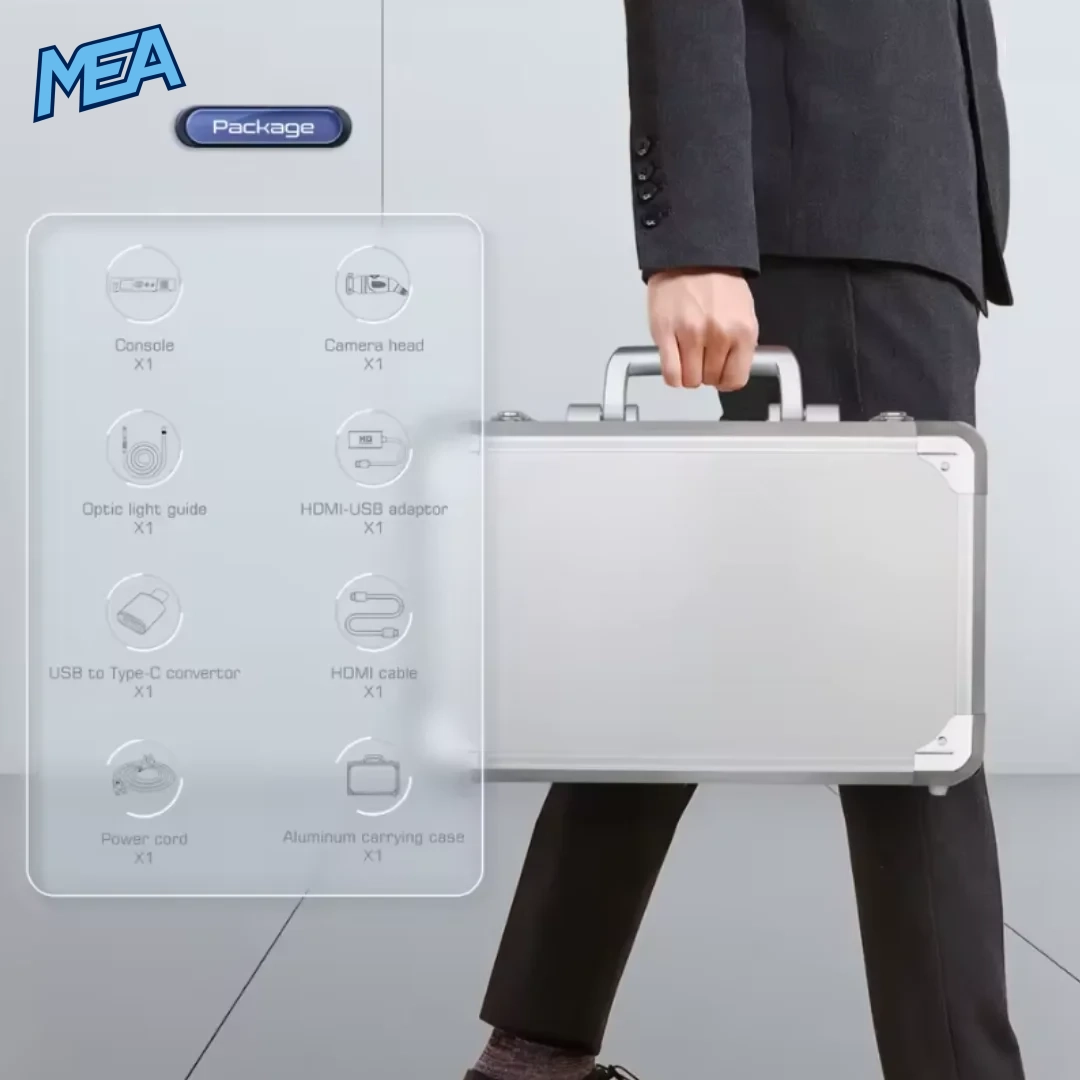

Package Contents
Each system is supplied with the following components:
- 1 × Console
- 1 × Camera head
- 1 × Optical light guide
- 1 × HDMI-to-USB adapter
- 1 × USB-to-Type-C converter
- 1 × HDMI cable
- 1 × Power cord
- 1 × Aluminium carrying case
Medical and Clinical Applications
The 1080P medical endoscope camera system is intended for professional endoscopic visualisation where Full HD imaging and high-intensity illumination are required.
Potential applications include:
- ENT endoscopy
- Clinical endoscopic visualisation
- Rigid endoscopic procedures
- Surgical imaging
- Veterinary endoscopy
- Diagnostic visualisation
- Endoscope-assisted examination
- Medical image display and documentation
Note: The appropriate application depends on the connected endoscope, clinical protocol, regulatory requirements, and qualified professional use.
Key Benefits
High-Definition Visualisation
The 1080P imaging system and Sony Exmor CMOS sensor provide detailed visualisation for endoscopic workflows.
Bright 100W Illumination
The CREE LED light source provides high-intensity illumination without relying on conventional short-life bulbs.
Real-Time 3G-SDI Output
3G-SDI connectivity supports high-speed transmission for supported professional video equipment.
Flexible Image Adjustment
Colour, brightness, presets, and programmable controls allow operators to configure the system for different visualisation requirements.
Portable Professional Package
The included aluminium carrying case provides a practical way to transport the complete camera system and its accessories.
Why Choose This 1080P Endoscope Camera System?
For clinical and professional users seeking a Full HD medical endoscopy camera, this system combines high-resolution imaging, 3G-SDI transmission, a high-output 100W LED light source, touchscreen controls, customisable presets, and an autoclavable optical fibre cable in one portable package.
Its combination of 1080P imaging, Sony Exmor CMOS technology, 100W LED illumination, and professional video connectivity makes it a versatile solution for endoscopic visualisation in ENT, surgical, and veterinary environments.
Frequently Asked Questions
What is a 1080P medical endoscope camera system?
A 1080P medical endoscope camera system is a professional imaging platform that converts the optical view from an endoscope into Full HD video for viewing on a supported display or recording device. This system combines a 1080P camera, 3G-SDI video output, and a 100W LED illumination source.
What resolution does this endoscopy camera provide?
The system provides 1080P Full HD imaging with 3.75 million effective pixels and an image format of 1952(H) × 1113(V).
What type of image sensor does the camera use?
The camera uses a Sony Exmor 1/1.8-inch CMOS sensor with a specified 3.75 μm pixel size.
What type of light source does this endoscope system use?
It uses a 100W CREE LED light source with a stated maximum illumination of up to 5,500,000 lux, 5000K colour temperature, and CRI 92.
Does the system support 3G-SDI?
Yes. The supplied specifications identify FHD 3G-SDI as the video interface for real-time video transmission.
Is the optical fibre cable autoclavable?
Yes. The included 2.5 m optical fibre cable is specified as autoclavable. Follow the manufacturer’s validated sterilisation procedure and temperature limits before processing the cable.
Can this camera system be used for ENT procedures?
Yes. The system is designed for professional endoscopic visualisation and is suitable for ENT applications when paired with an appropriate endoscope and used according to applicable clinical and regulatory requirements.
Can this system be used for veterinary endoscopy?
The supplied product specifications identify veterinary surgery as an intended application. Veterinary use should be performed with appropriate veterinary endoscopic equipment and according to applicable professional requirements.
What power supply does the system require?
The system accepts AC 100–240V at 50–60Hz, making it suitable for use across regions with different mains-voltage standards, subject to the appropriate power cord and local requirements.
What is included with the medical endoscope camera system?
The package includes the console, camera head, optical light guide, HDMI-to-USB adapter, USB-to-Type-C converter, HDMI cable, power cord, and aluminium carrying case.
