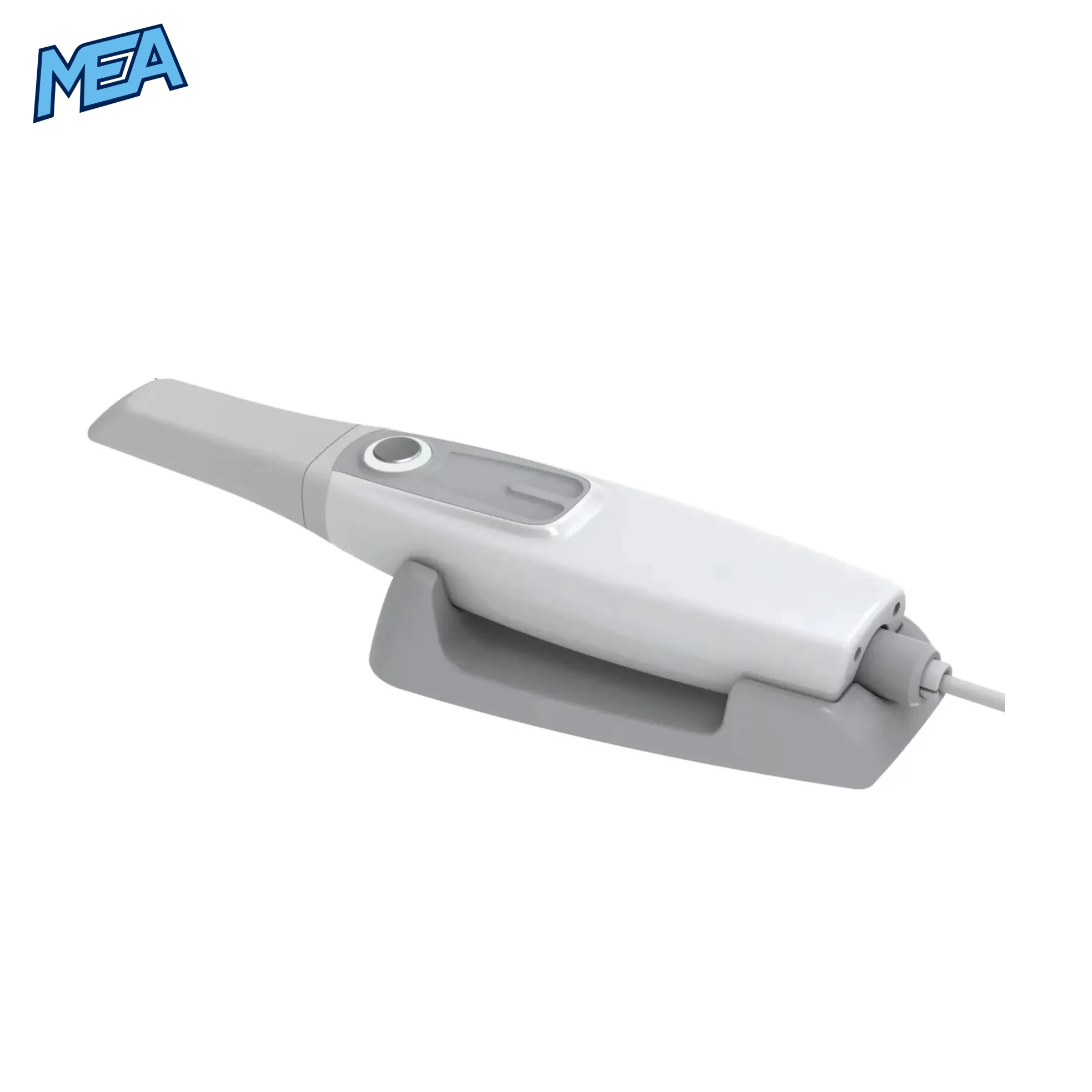

The Runyes 3DS V3 Pro intraoral scanner is a lightweight, pen-style 3D dental scanner that captures true-colour digital impressions directly in the patient’s mouth.
It delivers crown accuracy under 10 μm and full-arch accuracy under 20 μm, scans a full arch with occlusion in about 90 seconds, and exports open STL, OBJ and PLY files to exocad, 3Shape and other CAD/CAM design software.
The scanner ships with free acquisition software, an anti-fog heated tip, three autoclavable tips and a protective carry case.
Key Benefits of This Digital Intraoral Scanner
- Replace messy impressions: Capture precise 3D models chairside without trays, putty or alginate, improving patient comfort.
- Clinical-grade accuracy: <10 μm for single crowns and <20 μm for full arches supports crowns, bridges, inlays, onlays and implant restorations.
- Fast chairside workflow: Single arch in about 30 s, full arch with occlusion in about 90 s.
- Open system, no lock-in: STL / OBJ / PLY output works with exocad, 3Shape and any lab or in-house CAD/CAM or 3D printing workflow.
- Free software, no annual licence fee for the included 3D acquisition software.
- Calibration free: Ready to scan out of the box, reducing daily setup time.

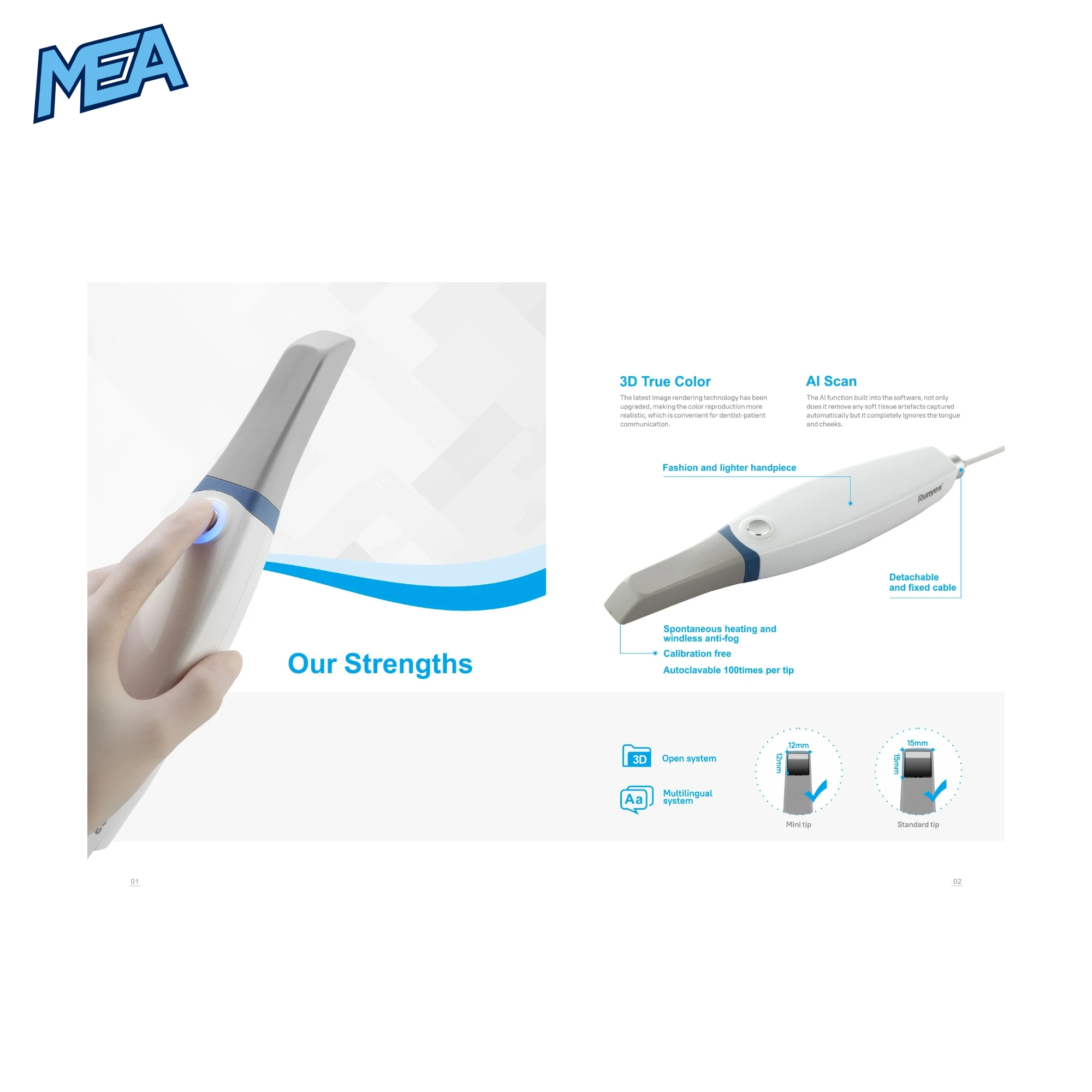

Features of the 3D Dental Scanner
Handpiece Design
- Ergonomic pen-type handpiece weighing just 210 g for fatigue-free scanning.
- One-touch illuminated control button.
- Detachable and fixed cable options; USB 3.0 / Type-C connection with Type-C to USB converter included.
Imaging Technology
- Advanced CMOS image sensor for sharp, high-resolution capture.
- 3D True Colour rendering for realistic shade display and clearer dentist–patient communication.
- AI Scan automatically removes soft-tissue artefacts such as tongue and cheeks.
- Built-in automatic tip heating for anti-fog scanning and consistently clear data.
- Real-time synchronised image and video preview to guide tip positioning.

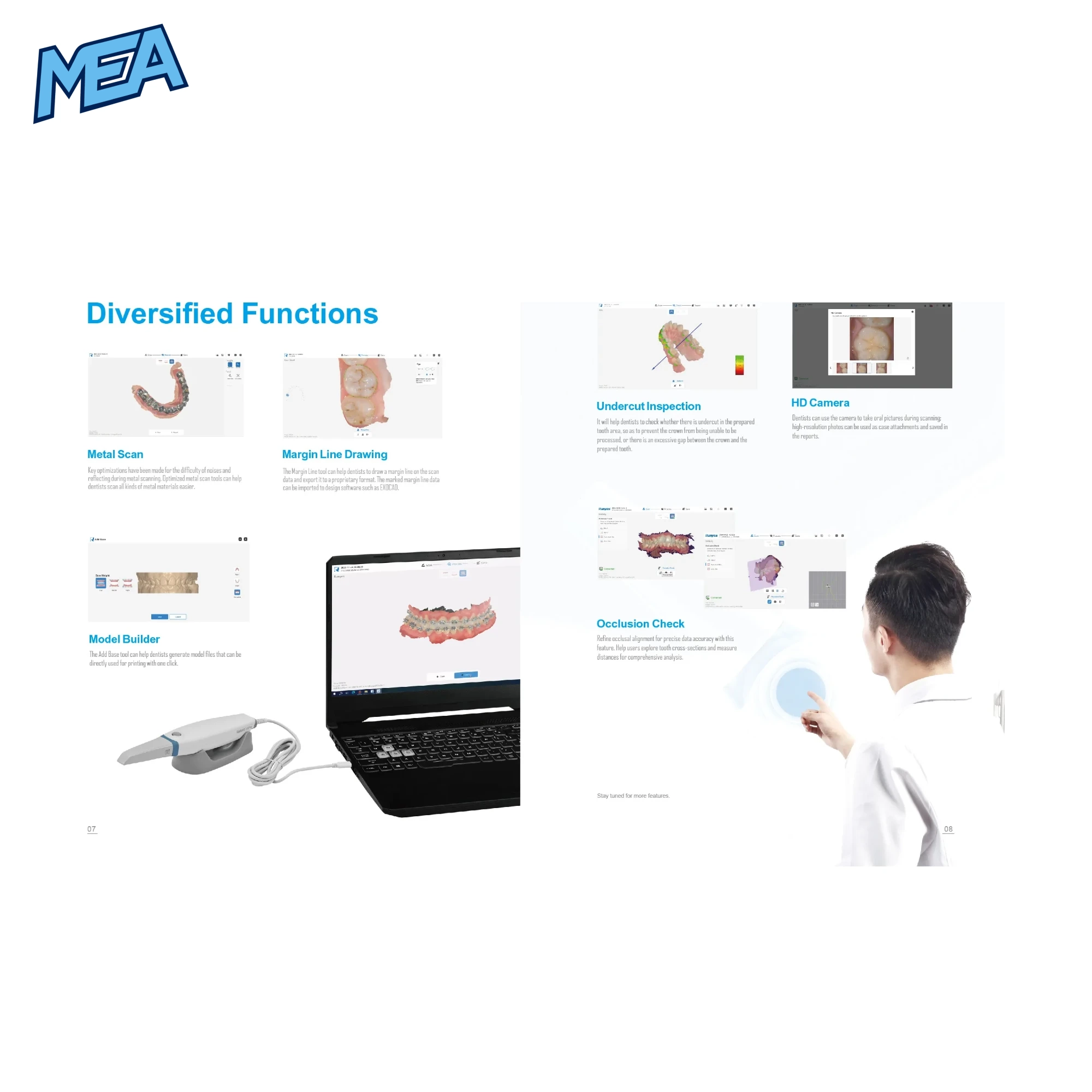

Software & Complete Ecosystem
- Metal scan, margin line creation, model builder, undercut inspection, occlusion check and HD camera view.
- Area Lock and View Lock tools to protect captured data while rescanning.
- Scan body matching for implant cases and automatic oral health report generation for patient education.
- Cloud sharing for sending cases to your dental lab.
- Multilingual interface including English, French, Spanish, Portuguese, Italian, Greek, Polish, Romanian, Japanese and Korean.
Tips & Infection Control
- Standard tip (15 × 15 mm scan area) and Mini tip (12 × 12 mm scan area) for posterior and paediatric access.
- Each tip is autoclavable up to 100 cycles (121 °C / 16 min or 134 °C / 4 min).
Intraoral Scanner Specifications
| Specification | Details |
|---|---|
| Brand / Model | Runyes 3DS V3 Pro (Version 3.0 Pro) |
| Product Type | 3D Intraoral Scanner / Digital Impression System |
| Condition | New |
| Handpiece Dimensions (L × W × H) | 240 × 49.5 × 30.5 mm |
| Handpiece Weight | 210 g |
| Standard Tip Size | 79 × 19.7 × 15.8 mm |
| Mini Tip Size | 80 × 16 × 11 mm |
| Scan Area | 15 × 15 mm (Standard) / 12 × 12 mm (Mini) |
| Depth of Field | 15 mm |
| Accuracy | Crown < 10 μm; Full arch < 20 μm |
| Scan Speed | Single arch ≈ 30 s; Full arch with occlusion ≈ 90 s |
| Calibration | Calibration free |
| Tip Sterilisation | Autoclavable up to 100 times (121 °C 16 min / 134 °C 4 min) |
| Output Formats | STL, OBJ, PLY |
| Connection | USB 3.0 / Type-C |
| Certification | CE |
| Shipping Weight / Case Size | Approx. 2 kg / 44 × 33 × 18 cm |
Recommended Computer Requirements
| Component | Minimum |
|---|---|
| Operating System | Windows 10 / 11 Professional or Enterprise (64-bit) |
| Processor | Intel Core i7-11800H or higher |
| Graphics | NVIDIA GeForce RTX 3060 or higher (3060 Ti, 3070, 3080); AMD graphics not supported |
| Video Memory | 6 GB or more |
| RAM | 16 GB or more |
| Storage | 512 GB SSD or more |
| Display | 1920 × 1080, 60 Hz |
| Interface | USB 3.0 or higher |

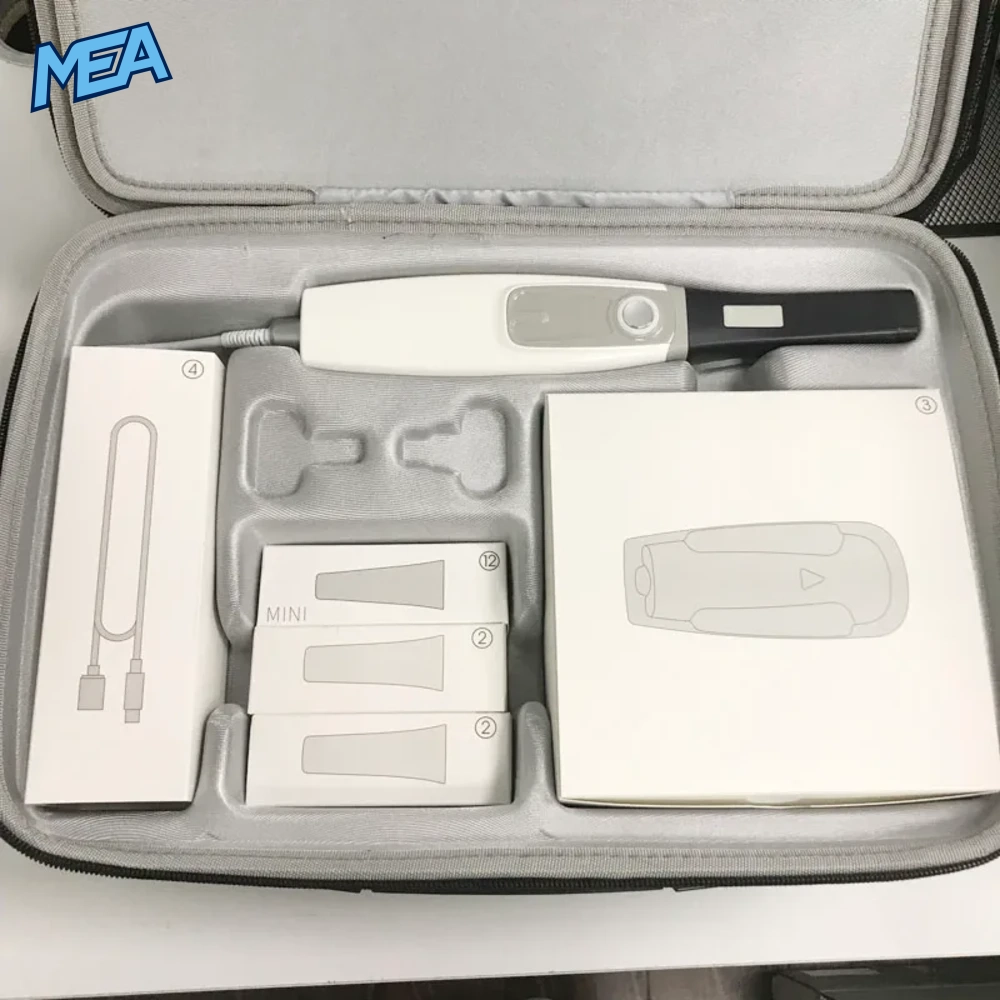

What’s in the Box
- 1 × Scanner handpiece (with protective tip and cable)
- 1 × Type-C to USB converter
- 1 × Handpiece base / cradle
- 3 × Scanner tips (2 × Standard, 1 × Mini)
- 1 × USB drive with acquisition software
- 1 × Protective carry case
Note: computer, laptop and scanner cart are not included.
Use Cases for the Digital Impression Scanner
Restorative Dentistry
Scan preparations for crowns, bridges, veneers, inlays and onlays and send STL files straight to your lab or chairside milling unit.
Implant Dentistry
Scan body matching streamlines digital implant impressions and custom abutment planning.
Orthodontics & Clear Aligners
Capture full-arch models with occlusion for aligner planning, retainers and study models.
Dental Labs & Education
Digitise plaster models and typodonts, and use true-colour scans and printed oral health reports for case presentation.
Frequently Asked Questions
What is an intraoral scanner used for?
An intraoral scanner optically captures the 3D geometry of teeth and gums to create a digital impression that replaces conventional putty impressions for CAD/CAM crowns, bridges, implants and aligners.
How accurate is the Runyes 3DS V3 Pro?
It is specified at under 10 μm accuracy for single crowns and under 20 μm for full-arch scans.
Does this intraoral scanner work with exocad and 3Shape?
Yes. It is an open system that exports STL, OBJ and PLY files, which can be imported into exocad, 3Shape and other dental design software.
Is there a software subscription fee?
No. The 3D acquisition software is included free on the supplied USB drive.
Does the scanner need calibration?
No. The V3 Pro is calibration free and ready to scan after software installation.
How many times can the scanner tips be sterilised?
Each tip can be autoclaved up to 100 times at 121 °C for 16 minutes or 134 °C for 4 minutes.
Can it scan plaster models?
Yes. In addition to intraoral scanning, it can digitise plaster models and typodonts for lab and teaching use.
Is a computer included?
No. You need a Windows 10/11 64-bit PC with an Intel Core i7-11800H or better, NVIDIA RTX 3060 or better graphics and 16 GB RAM.
Related Digital Dentistry Equipment
Complete your digital workflow with a mobile oral scanner cart or a dental scanner cart with drawer, add diagnostic imaging with the Woodpecker Ai Ray handheld dental X-ray, compare with the Medit i600 intraoral scanner, or keep conventional backup with DMG Silagum VPS impression material.
