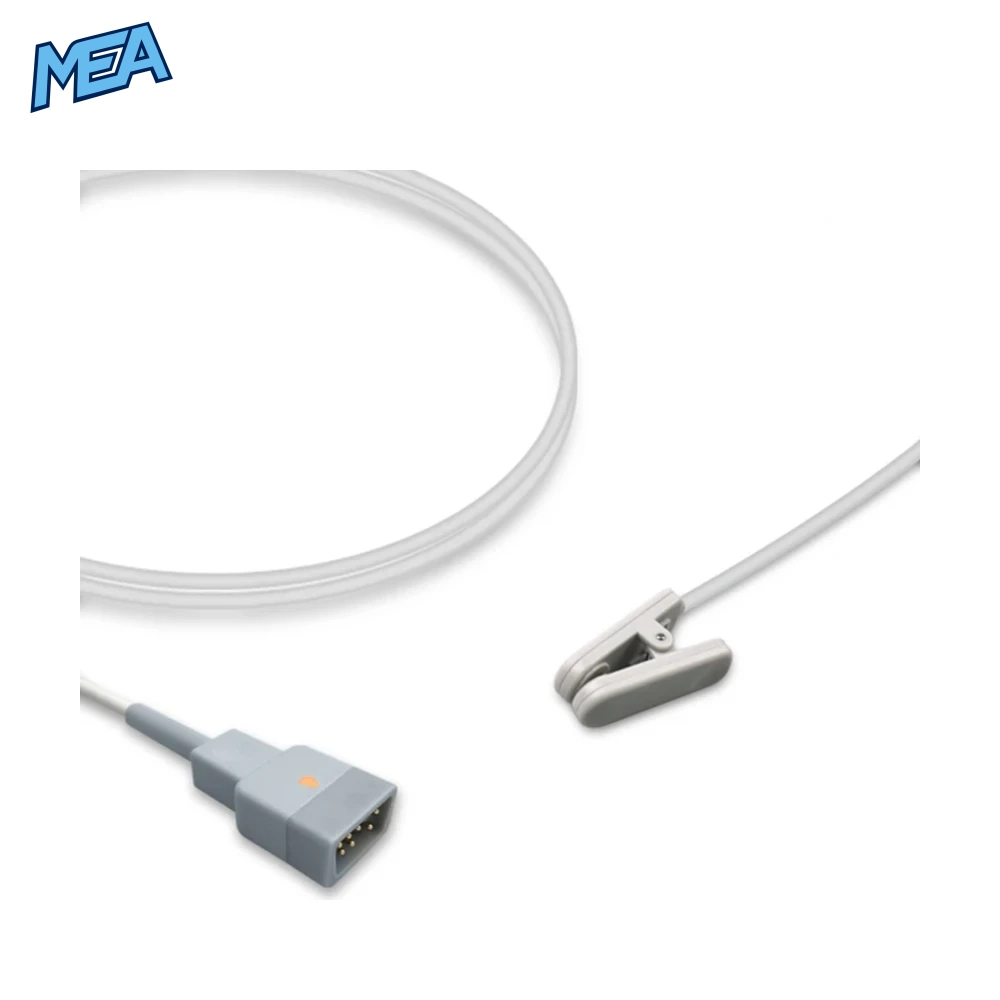

Datex Ohmeda OXY-E-DB Adult Ear Clip SpO2 Sensor 1.0m (9 Pin Reusable New)

The Datex Ohmeda OXY-E-DB adult ear clip SpO2 sensor is a reusable pulse oximetry sensor with a 1.0m cable and a 9-pin connector that clips to the earlobe to measure oxygen saturation (SpO2) and pulse rate on Datex Ohmeda patient monitors. This brand-new sensor is built to the OXY-E-DB reference specifications and uses Datex Ohmeda SpO2 technology, making it a practical choice when finger sites are unavailable or poorly perfused.

Key Benefits of the OXY-E-DB Ear Clip Pulse Oximetry Sensor

• Alternative monitoring site: The earlobe gives a dependable reading when fingers are cold, injured, bandaged or subject to motion.
• Reusable design: Lowers cost per patient compared with single-use adhesive sensors.
• Direct connection: The 9-pin plug matches Datex Ohmeda monitors that accept OXY-E-DB style sensors.
• Short 1.0m lead: Reduces cable clutter at the bedside, in theatre and during transport.
• Peace of mind: Supplied new with a 12-month warranty.

Features

• Adult ear clip sensor style with a lightweight spring clip
• Datex Ohmeda SpO2 technology

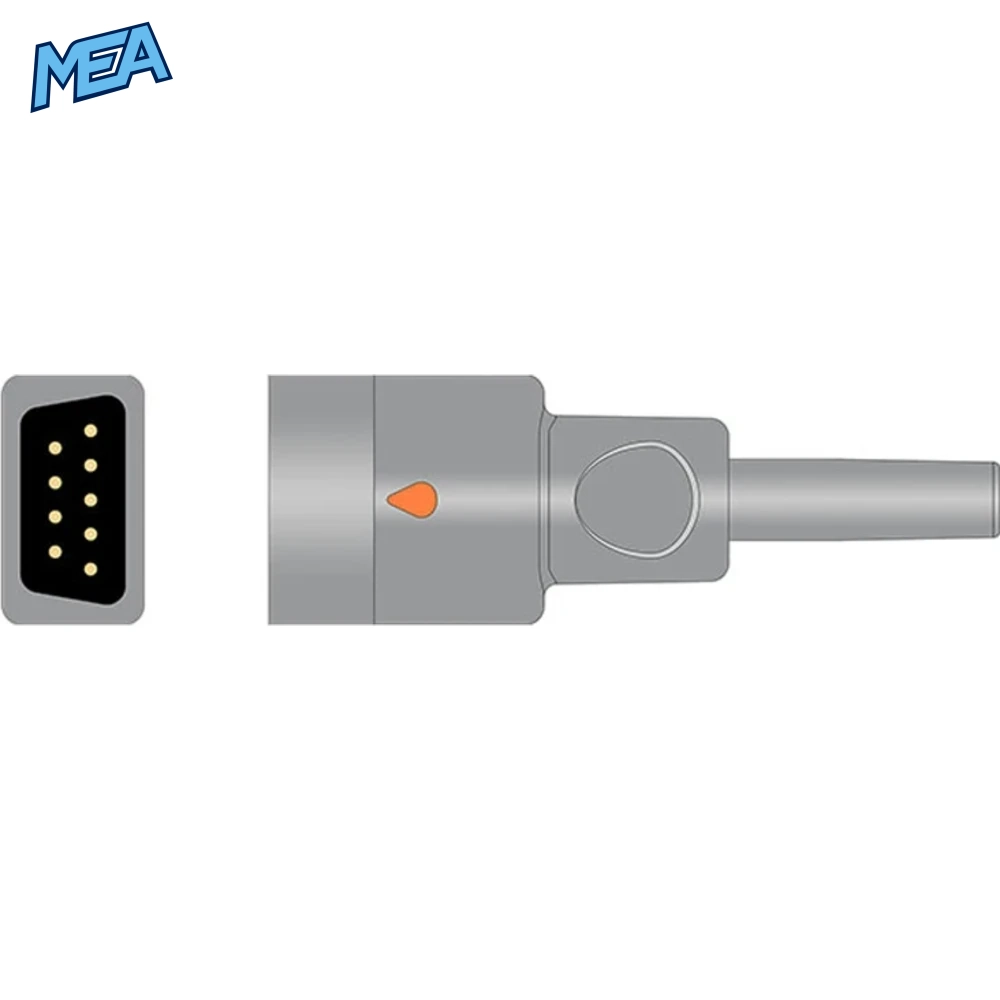

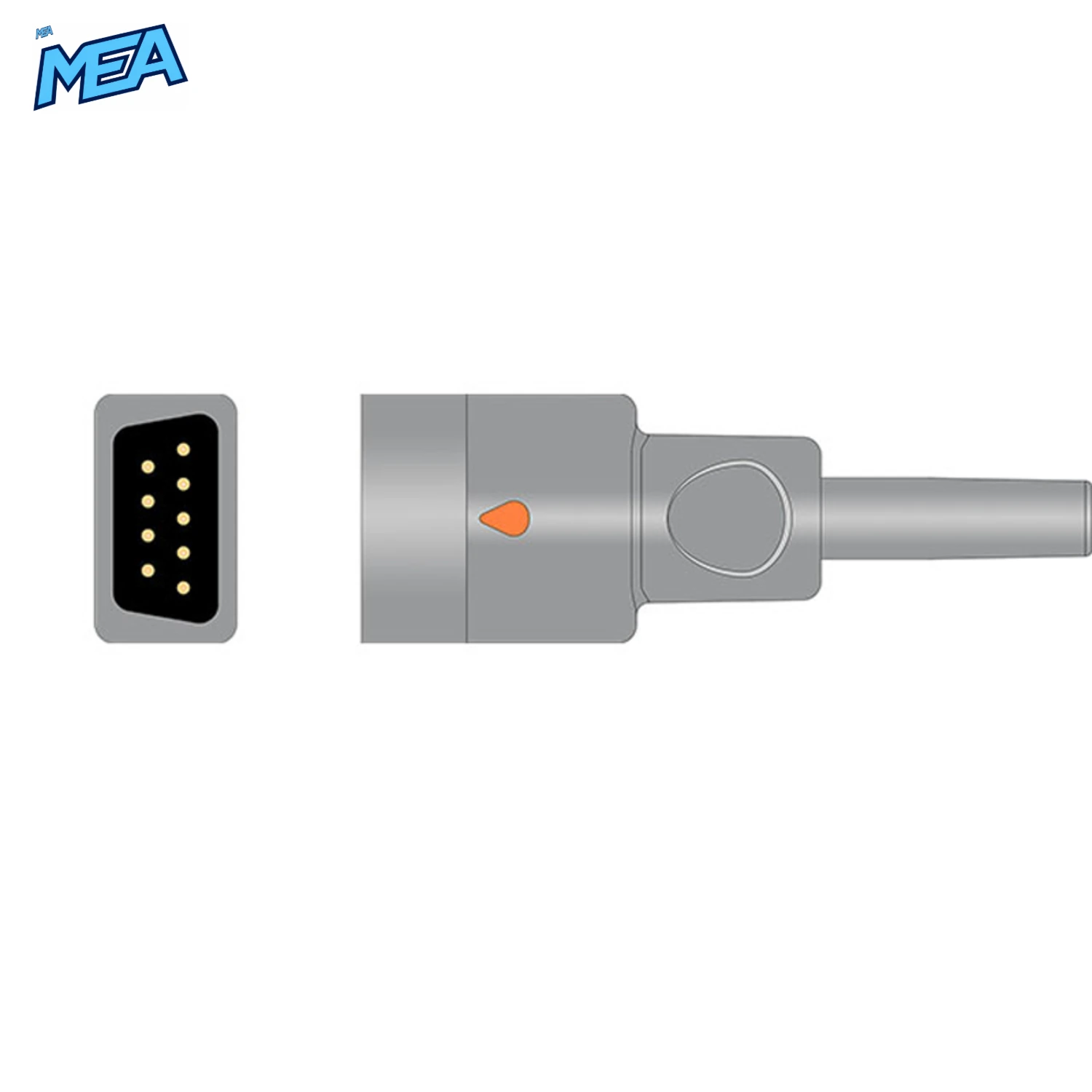

• 9-pin D-type monitor connector with orientation marker
• 1.0m (3.3 ft) flexible grey cable
• Reusable lifecycle – wipe clean between patients

Technical Specifications

Part Number Cross-Reference

Works With These Datex Ohmeda Monitors

• AS/3, CS/3, System 5
• Cardiocap I, Cardiocap II, Cardiocap/5
• Capnomac Ultima (ULTS00, ULTSIO, ULTSVI, ULTSVO)
• CG/2S, CH/S, CH/2S, CH-RS
• Light Monitor, M-ESTPR module, Oscar II, OSP-200, SAF-F
• Satellite, Satellite Plus II, Satellite Trans, Trans Plus

Always confirm the reference number and connector on your existing sensor before ordering.

Use Cases

• Anaesthesia and operating theatre monitoring
• Recovery, ICU and general ward spot checks or continuous monitoring
• Patients with low peripheral perfusion, nail polish or finger injuries
• Biomedical engineering departments replacing worn or damaged sensors

Application and Care

• Clip the sensor onto the fleshy part of the earlobe; gently rub the lobe first to improve perfusion.
• Route the cable so it does not pull on the clip.
• Clean between patients by wiping with a soft cloth and a mild disinfectant such as 70% isopropyl alcohol. Do not immerse, autoclave or soak.
• Inspect the cable and clip before each use and replace if damaged.

Frequently Asked Questions

What is the Datex Ohmeda OXY-E-DB ear clip SpO2 sensor used for?

It measures blood oxygen saturation and pulse rate at the earlobe of adult patients connected to Datex Ohmeda monitors that accept OXY-E-DB style 9-pin sensors.

Which monitors does this ear clip sensor work with?

It works with Datex Ohmeda AS/3, CS/3, System 5, Cardiocap I, II and /5, Capnomac Ultima, Satellite series, Light Monitor, Oscar II and OSP-200 monitors, among others listed above.

How long is the cable?

The cable is 1.0 metre (about 3.3 feet) long.

When should I choose an ear clip sensor instead of a finger sensor?

Choose an ear clip when finger readings are unreliable due to poor circulation, cold hands, movement, or when the hands are not accessible during a procedure.

Can the sensor be reused?

Yes. It is a reusable sensor and can be wiped clean and disinfected between patients.
