Orthopedic Instruments Set All In Cruciate Ligament Reconstruction Instrument Set

The All-in Cruciate Ligament Reconstruction Instrument Set is a complete stainless steel orthopedic instrument system designed for ACL (Anterior Cruciate Ligament) and PCL (Posterior Cruciate Ligament) reconstruction surgery.

 This precision-calibrated surgical kit combines femoral and tibial localizers, drill sleeves, retro drills, a guide wire, and a flat shovel in a single autoclavable sterilisation tray giving orthopedic surgeons an efficient, all-in-one solution for cruciate ligament repair procedures.

Built from high-quality surgical-grade stainless steel, every instrument in this set features precise millimetre calibration markings, ensuring accurate tunnel positioning and depth measurement during arthroscopic knee ligament reconstruction.

Key Benefits of This ACL/PCL Instrument Set

• All-in-one system eliminates the need for multiple separate kits during cruciate ligament surgery
• Precise calibration on every localizer and drill sleeve for accurate, repeatable measurements
• High-quality stainless steel construction for durability and corrosion resistance
• Autoclavable and reusable, reducing per-procedure instrument costs
• Organised sterilisation tray for safe storage, transport, and rapid intraoperative access
• Colour-coded guide wires for quick visual identification during surgery

Features

Precision-Calibrated Localizers

The set includes four curved localizers ACL femoral, ACL tibia, PCL femoral, and PCL tibia each engraved with clear depth markings (ranging from 45mm to 125mm) for accurate anatomical positioning during tunnel placement.

All-in Drill Sleeves

Two calibrated drill sleeves (125mm) guide drill bits with precision, minimising soft tissue damage and improving tunnel accuracy.

Retro Drills (7mm, 8mm, 9mm)

Colour-coded retro drills allow surgeons to create femoral and tibial tunnels from an outside-in or inside-out approach, depending on surgical technique.

Threading Guide Wire (Φ2.5mm)

A precision guide wire supports accurate drill and instrument placement throughout the procedure.

Flat Shovel (4mm)

Used for soft tissue management and clearing debris during tunnel preparation.

Cruciate Ligament Localizer Handle

An ergonomic black-handled localizer with an integrated ruler scale (45mm–115mm) allows fine adjustment and stable control during measurement.

Technical Specifications

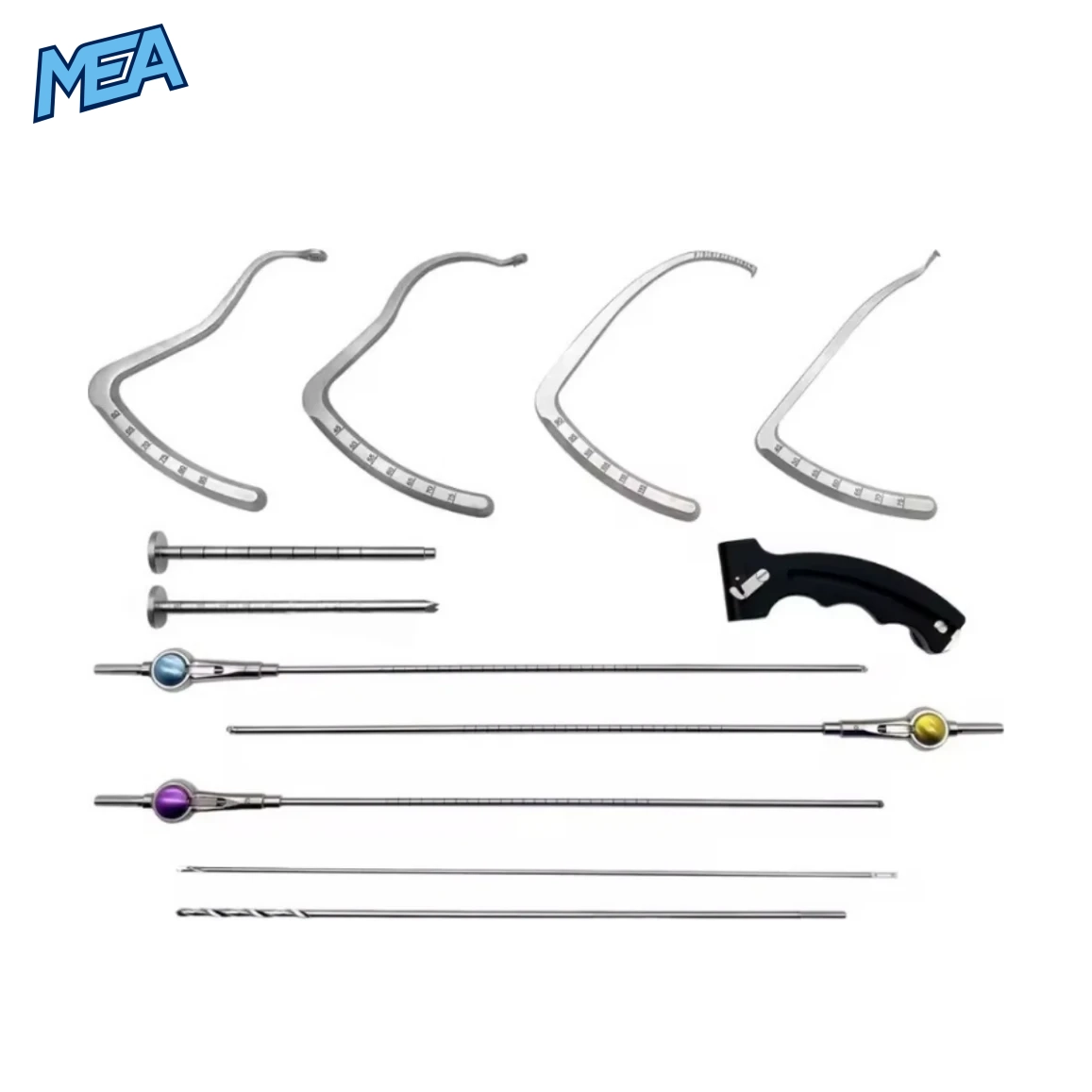

What’s Included in the Set

1. All-in Cruciate Ligament Localizer (with handle)
2. All-in Drill Sleeve (x2, 125mm)
3. All-in PCL Tibia Localizer (125mm)
4. All-in PCL Femoral Localizer (125mm)
5. All-in ACL Femoral Localizer (125mm)
6. All-in ACL Tibia Localizer (125mm)
7. Retro Drill 7mm
8. Retro Drill 8mm
9. Retro Drill 9mm
10. Threading Guide Wire Φ2.5mm
11. Flat Shovel 4mm
12. Sterilisation Box (335 x 220 x 35mm)

Common Use Cases

• Arthroscopic ACL reconstruction procedures
• Arthroscopic PCL reconstruction procedures
• Femoral and tibial tunnel localization and drilling
• Teaching hospitals and orthopedic training labs
• Sports medicine and knee ligament repair clinics
• Orthopedic surgical instrument tray standardisation

Frequently Asked Questions

What is an All-in Cruciate Ligament Reconstruction Instrument Set used for?

 It is used during knee arthroscopic surgery to precisely locate, measure, and drill femoral and tibial tunnels for ACL and PCL graft placement.

What material is the instrument set made from?

The complete set is manufactured from high-quality surgical-grade stainless steel for strength, corrosion resistance, and long-term reuse.

Is this instrument set reusable?

Yes. All instruments are autoclavable and designed for repeated sterilisation and reuse across multiple procedures.

What sizes of retro drills are included?

The set includes three retro drill sizes: 7mm, 8mm, and 9mm, allowing surgeons to select the appropriate diameter for tunnel preparation.

Does the set come with a sterilisation case?

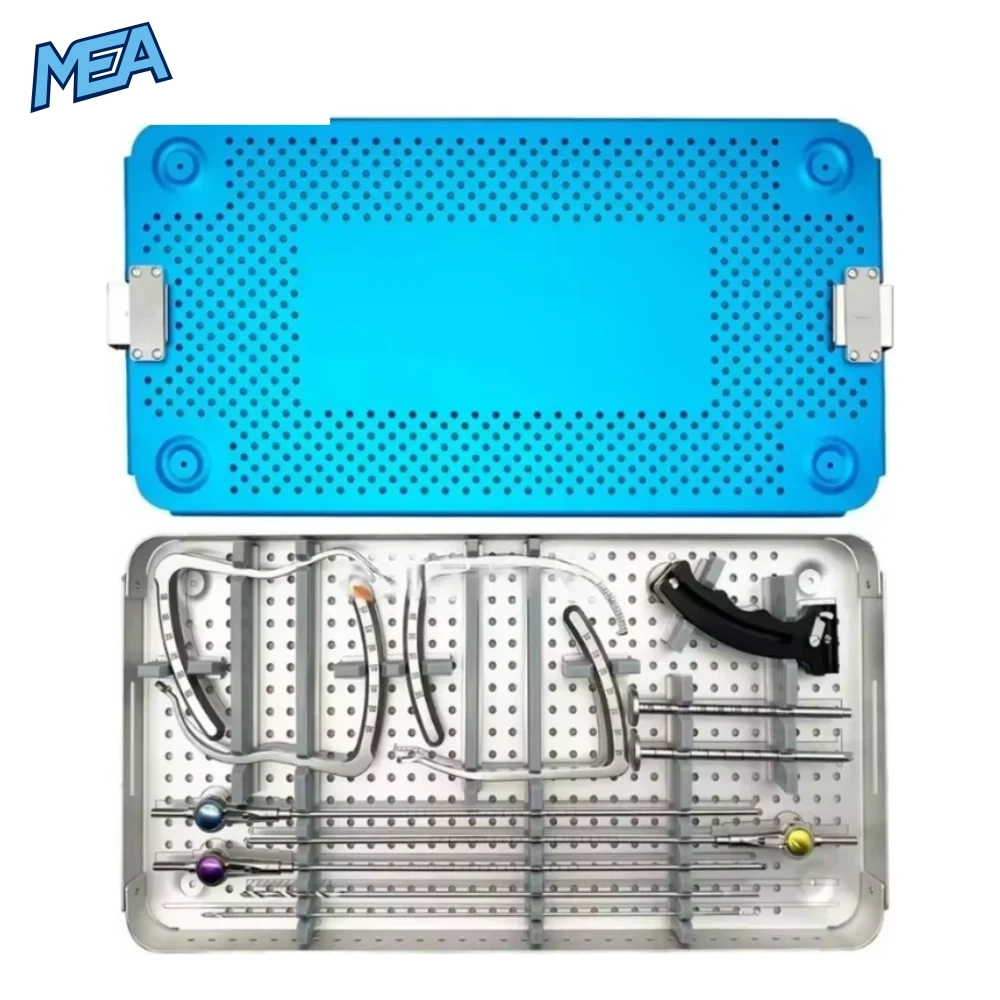

Yes, the set is supplied in a perforated stainless sterilisation tray with a blue lid measuring 335mm x 220mm x 35mm for safe autoclave processing and storage.

What is the calibration range of the localizers?

The localizers are calibrated from 45mm up to 125mm, covering standard femoral and tibial measurement ranges used in ACL/PCL reconstruction.

Is this set suitable for both ACL and PCL surgery?

 Yes, the kit includes dedicated femoral and tibial localizers for both ACL and PCL reconstruction techniques.

How many pieces come in the packaging?

The set is packaged as 1 complete set (1SET), including all localizers, drill sleeves, retro drills, guide wire, flat shovel, and the sterilisation case.
