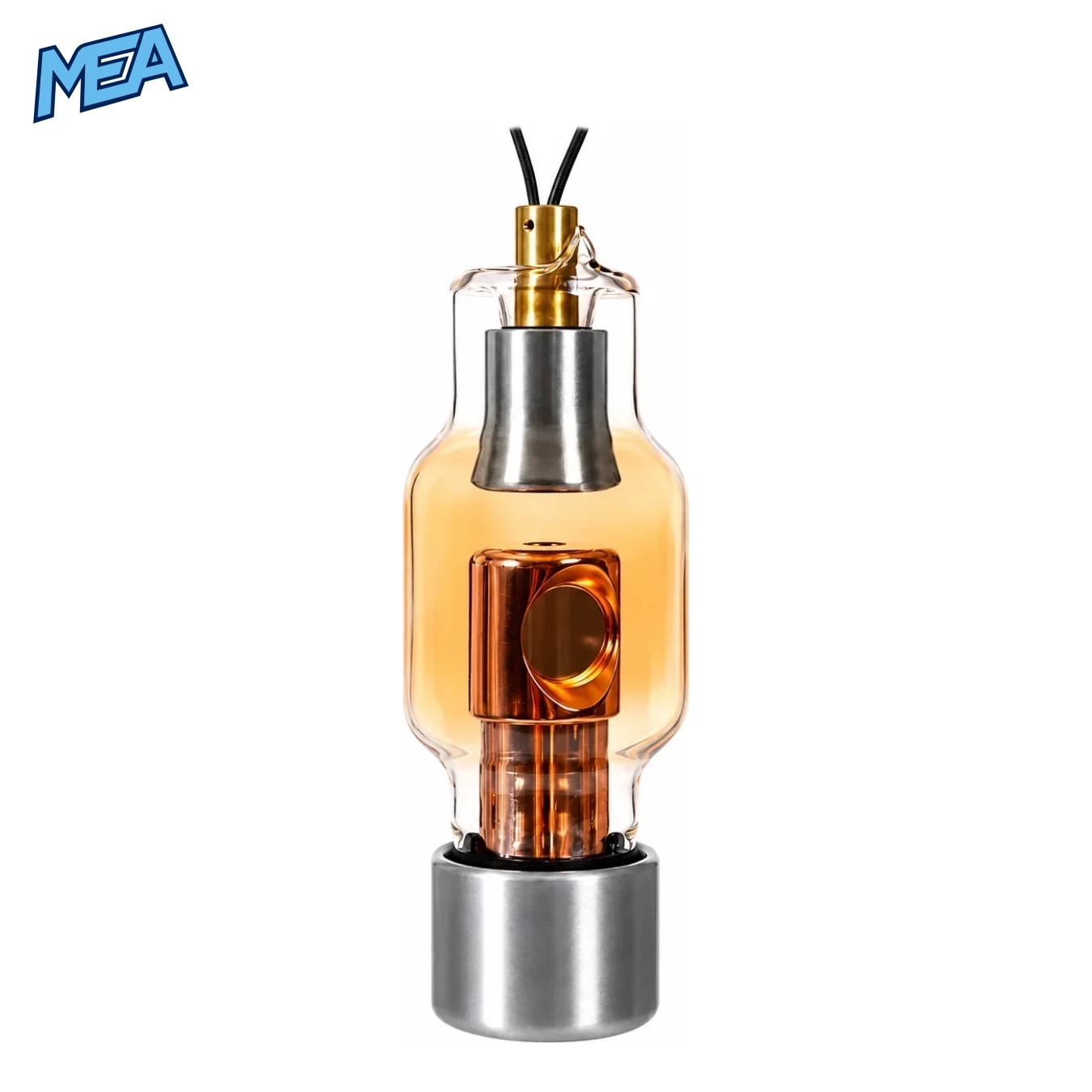

The 160KV X-ray tube is a new, wear-resistant, stationary-anode glass tube insert used as a standard spare tube in portable industrial X-ray generators and non-destructive testing (NDT) machines. It is rated for a maximum tube voltage of 160 kV and is available in two tube-current versions, 1.0 mA and 2.0 mA, so you can match the replacement to the rating of your existing generator.
Why Choose This 160KV Industrial X-Ray Tube
- Restores a worn generator: Replaces an aged or failed tube insert instead of replacing the whole portable X-ray unit.
- Two current ratings: 160KV 1.0mA and 160KV 2.0mA options cover the common portable flaw-detector configurations.
- Wear-resistant construction: Copper anode block and sealed glass envelope built for repeated industrial exposure cycles.
- Standard spare-tube format: Compact glass-bulb design with a threaded metal anode base for direct mounting in the tube head.
- Brand new: Supplied unused, ready for installation by a qualified technician.
Features of the Glass X-Ray Generator Tube
Stationary Anode Design
- Fixed copper anode with hooded beam window for a directional X-ray beam.

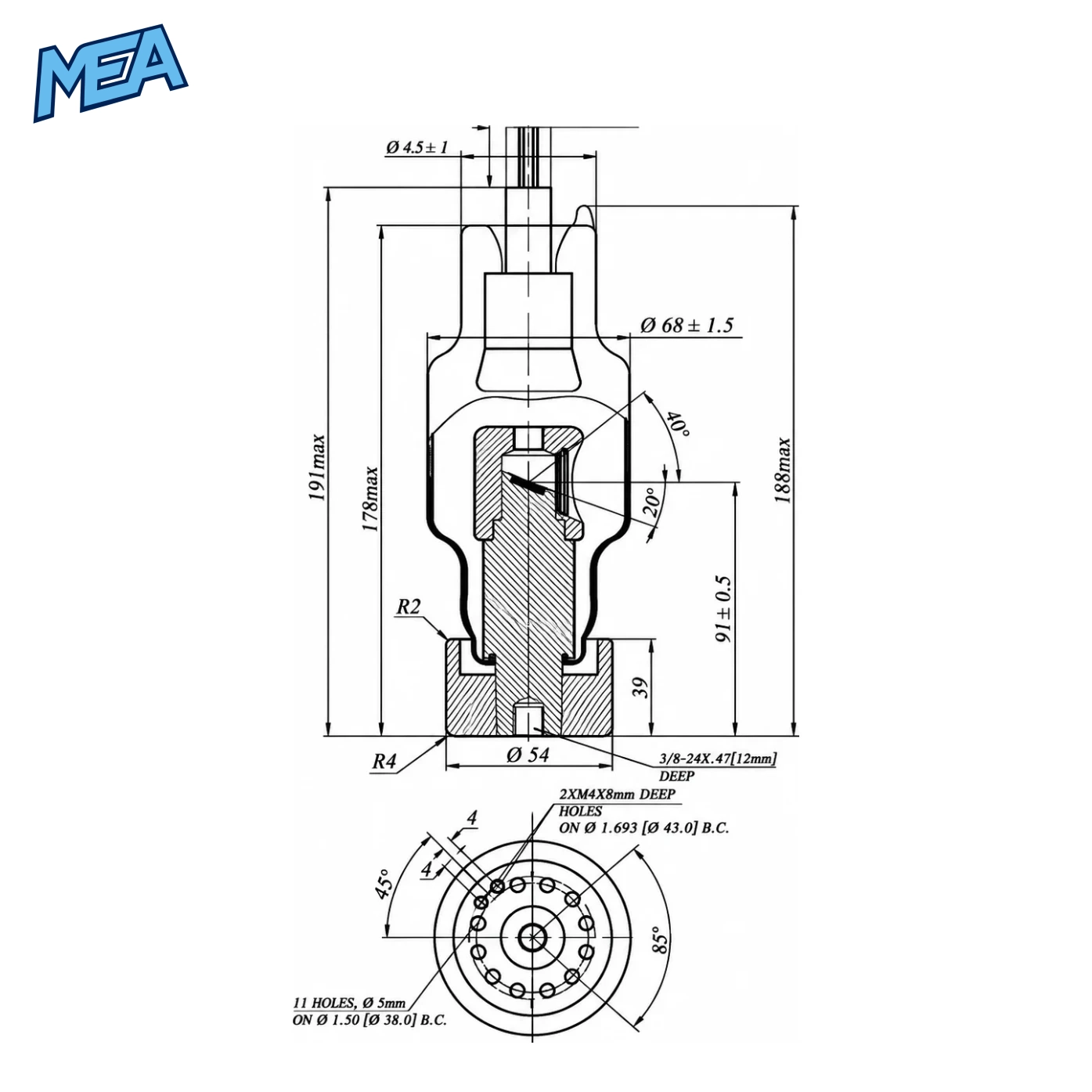

- Target angle of 20° with an approximately 40° beam aperture, as shown on the dimensional drawing.
Glass Envelope and Mounting Base
- Clear glass vacuum envelope, Ø68 ± 1.5 mm at the bulb.

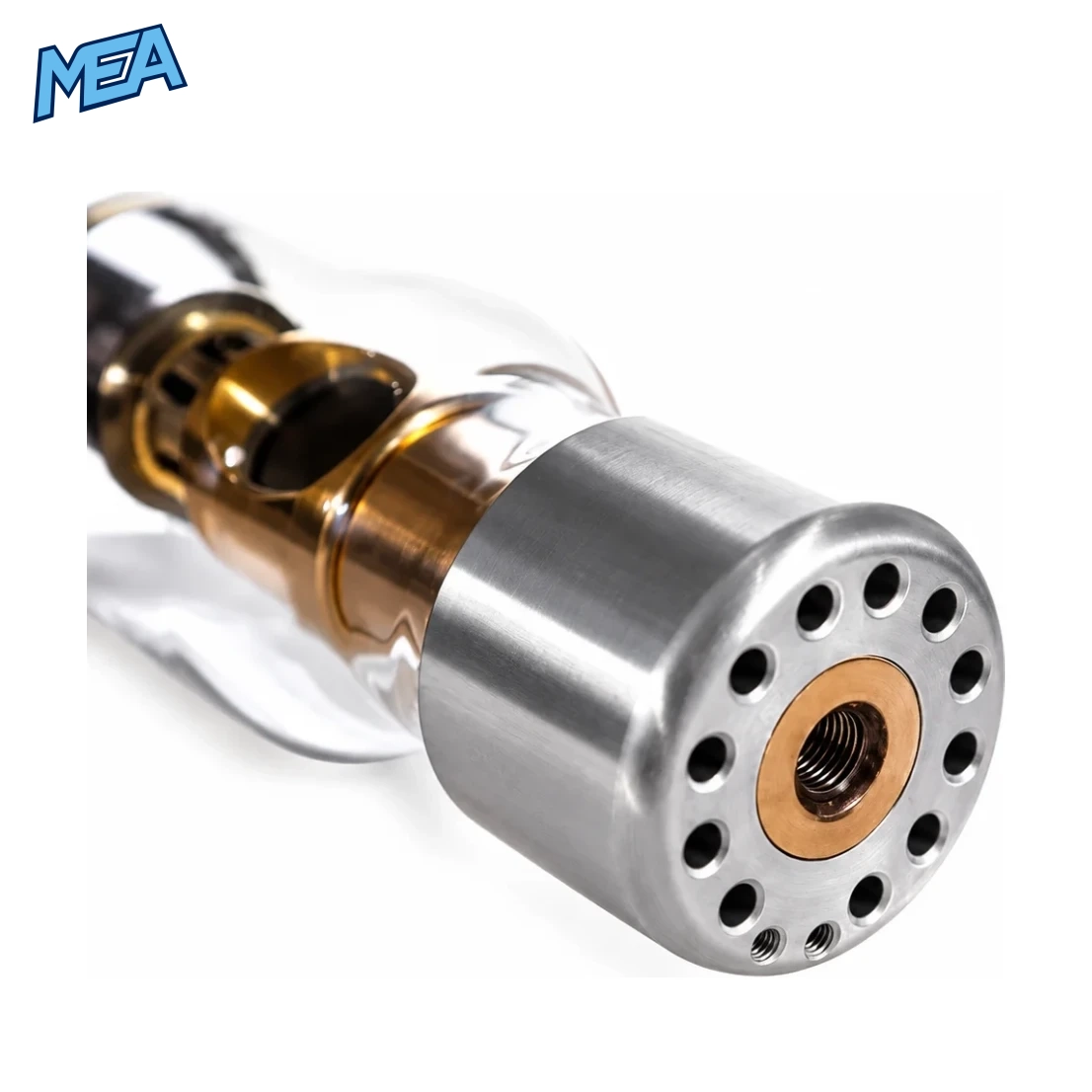

- Ø54 mm metal anode base with a central 3/8-24 threaded hole.
- Base face has 11 holes of Ø5 mm on a Ø38 mm bolt circle and 2 x M4 holes (8 mm deep) on a Ø43 mm bolt circle.
- Two cathode lead wires at the top of the tube for filament connection.
160KV X-Ray Tube Specifications
| Specification | Detail |
|---|---|
| Product type | Glass X-ray tube insert (spare tube) |
| Maximum tube voltage | 160 kV |
| Tube current options | 1.0 mA or 2.0 mA |
| Anode type | Stationary (fixed) copper anode |
| Target angle | 20° |
| Beam aperture | Approx. 40° |
| Envelope | Glass |
| Overall length | 191 mm max |
| Glass bulb diameter | Ø68 ± 1.5 mm |
| Cathode end diameter | Ø45 ± 1 mm |
| Anode base diameter / height | Ø54 mm / 39 mm |
| Focal spot height from base | 91 ± 0.5 mm |
| Centre mounting thread | 3/8-24 |
| Base hole pattern | 11 x Ø5 mm on Ø38 mm B.C.; 2 x M4 x 8 mm deep on Ø43 mm B.C. |
| Application | Portable industrial X-ray generators, NDT flaw detectors |
| Condition | New |
Available Variants
- 160KV 1.0mA : New
- 160KV 2.0mA : New
Use Cases for a Portable NDT X-Ray Tube
- Replacement tube for portable industrial X-ray flaw detectors.
- Weld inspection on pipelines, pressure vessels and steel structures.
- Casting and component radiography in workshops and on site.
- Service stock for X-ray equipment repair technicians.
Installation and Handling
- Installation must be carried out by a qualified X-ray service technician; the tube operates at high voltage inside an insulated, shielded tube head.
- Check the dimensions, base pattern and current rating against your original tube before ordering.
- Handle the glass envelope with clean gloves and avoid mechanical shock.
- Season (condition) the new tube according to your generator manufacturer’s procedure before full-power use.
- This tube is intended for industrial radiography equipment, not for medical diagnostic use.
Frequently Asked Questions
What is a 160KV X-ray tube used for?
A 160KV X-ray tube generates the X-ray beam inside a portable industrial X-ray generator. It is used for non-destructive testing such as weld, casting and pipeline inspection.
What is the difference between the 1.0mA and 2.0mA versions?
Both versions are rated to 160 kV. The difference is the rated tube current: 1.0 mA or 2.0 mA. Choose the version that matches the rating of the tube you are replacing.
How do I know this spare tube fits my machine?
Compare your original tube with the specification table: 191 mm maximum length, Ø68 mm glass bulb, Ø54 mm anode base, 3/8-24 centre thread and the base hole pattern. Contact us with your machine model if you are unsure.
Is this X-ray tube new or used?
This listing is for a brand-new tube only.
Does the tube include a housing or high-voltage generator?
No. This is the glass tube insert only. The housing, insulation, high-voltage transformer and controller are not included.
