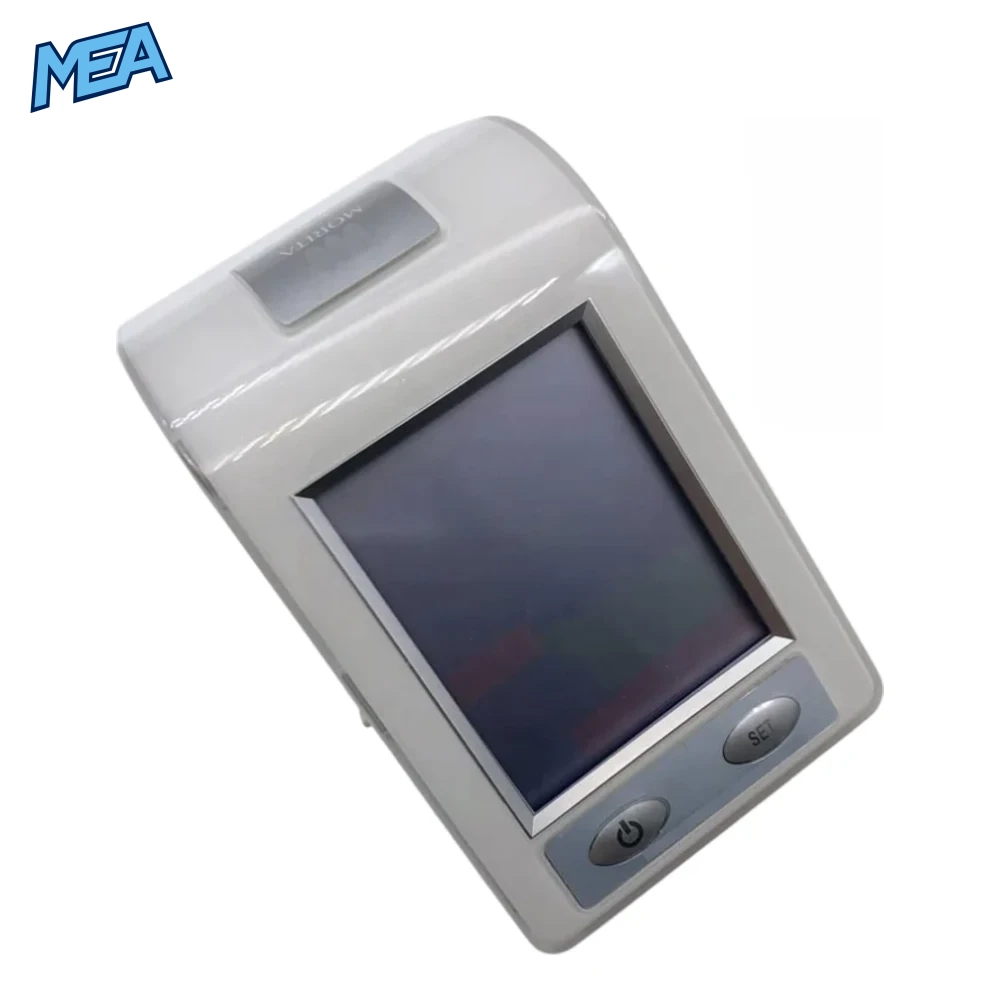

Root ZX Mini Apex Locator Dental Equipment

The Root ZX Mini is a handheld electronic root canal measuring device built for general dentists and endodontists. It belongs to the Root ZX family of apex locators, a design credited with popularising the frequency-ratio measuring method now used across most modern apex locating instruments.

The unit reads the electrical resistance difference between the periodontal ligament and the oral mucosa as a file advances down the canal, then displays the file’s position on its LCD screen with a visual and audible indicator as it approaches the apical foramen.

The housing carries the Morita nameplate. This listing is for the apex locator unit only; it is supplied as new, unused stock.

Specifications: Root ZX Mini Apex Locator

Key Features of the Root ZX Mini Apex Locator

Compact, Portable Design

The Root ZX Mini is built as a small handheld console rather than a full chairside cabinet unit, so it sits easily on a bracket table or trolley and can be moved between operatories.

LCD Screen With Visual and Audible Apex Indication

A built-in LCD display shows the file’s progress toward the apex, with an on-screen indicator and audible alert as the file nears and reaches the apical foramen.

Metal-and-Plastic Construction

The housing combines a metal faceplate with a durable plastic body, balancing everyday clinical durability with a lightweight, easy-to-handle unit.

Low Power Consumption

Rated at just 0.2W power draw (DC 4.5V), the unit is designed for efficient, low-cost operation with extended time between charges or battery changes.

Class II Medical Device, CE Certified

The Root ZX Mini is classified as a Class II medical instrument and carries CE certification, with compliance to the GB15979-2002 electrical safety standard for medical devices.

How the Root ZX Mini Apex Locator Works

Like other Root ZX-series locators, the Root ZX Mini uses multi-frequency electronic impedance measurement. Two frequencies are passed through the file and the surrounding tissue; the ratio between the resulting readings changes predictably as the file tip nears the apical constriction, which the device translates into a position reading on the display.

Typical Working Length Sequence

1. Attach the lip clip and file holder/probe cable to the unit
2. Insert the file into the canal and advance slowly
3. Watch the LCD progress indicator as the file approaches the apex
4. Note the working length reading at the apical constriction
5. Confirm with a periapical radiograph as part of standard clinical protocol

Clinical Applications

Working Length Determination

Establishes canal working length before shaping and obturation in standard root canal treatment.

Endodontic Retreatment

Assists in re-establishing an accurate working length in previously treated canals.

General and Family Dental Practice

Suited to general dentists performing routine endodontic procedures alongside specialist referral cases.

Benefits for Dental Practices

• Chairside working-length readings without waiting on additional radiographs
• Compact footprint that suits practices with limited operatory bench space
• Low power consumption for efficient day-to-day use
• CE-certified Class II device built to the GB15979-2002 electrical safety standard
• Straightforward, single-purpose interface with minimal setup

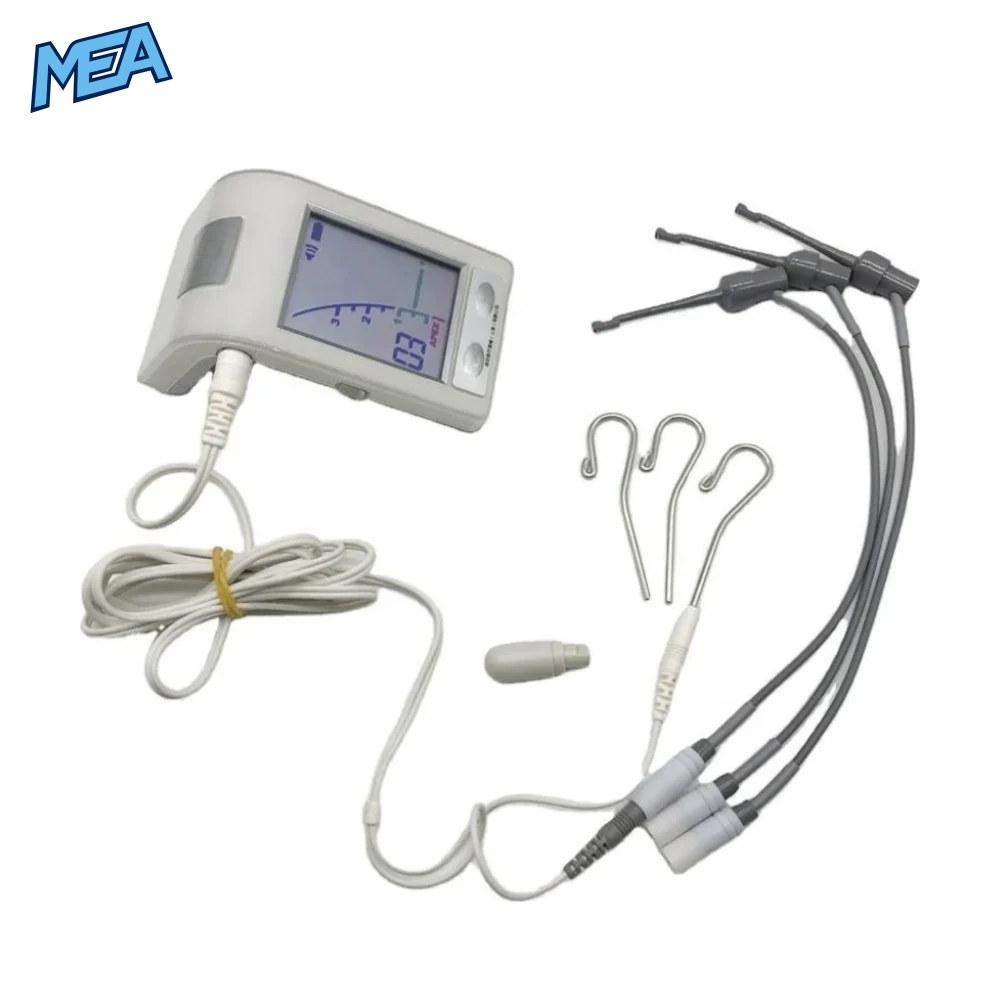

What’s Included

• 1 x Root ZX Mini apex locator unit
• 1 x File holder / probe cable
• 1 x Lip clip

Root ZX Mini VS Other Apex Locators

Compared with a combined endo motor with built-in apex locator such as the Woodpecker Endo Radar Pro, the Root ZX Mini is a dedicated, standalone measuring device rather than a shaping instrument.

Practices that already own a separate endodontic motor often prefer a compact standalone locator like this one for chairside length checks, while those comparing dedicated units may also look at the Woodpecker Woodpex V apex locator as a large-screen alternative.

If you need a replacement measuring cable rather than a full unit, see the Dentsply Propex II measuring cable.

Frequently Asked Questions

What is the Root ZX Mini Apex Locator used for?

It is used to measure the working length of a root canal electronically during root canal (endodontic) treatment, so the clinician knows how far to prepare and fill the canal.

How does the Root ZX Mini measure the apex?

It uses multi-frequency electronic impedance measurement, reading the change in electrical resistance as a file approaches the apical constriction, and displays the result on its LCD screen with a visual and audible signal.

Does the Root ZX Mini replace the need for X-rays?

It reduces how often a working-length radiograph is needed during treatment, but it is intended to be used alongside standard radiographic protocols, not as a full replacement for diagnostic imaging.

Is the Root ZX Mini suitable for a general dental practice?

Yes. It is designed as a straightforward, single-purpose chairside tool suited to general dentists and endodontists performing routine and retreatment root canal procedures.

Is the Root ZX Mini CE certified?

Yes, it is a Class II medical device with CE certification, built to the GB15979-2002 electrical safety standard for medical equipment.

What is the power consumption of the Root ZX Mini?

The unit is rated at DC 4.5V with power consumption of 0.2W or less, designed for efficient day-to-day clinical use.

What warranty is included with the Root ZX Mini?

The unit is covered by a 1-year warranty

Order the Root ZX Mini Apex Locator

The Root ZX Mini Apex Locator is a compact, CE-certified electronic root canal measuring device built for accurate, chairside working-length determination. Backed by a 1-year warranty and shipped new from Medical Equipments Australia, it suits general dental practices and endodontic clinics looking for a dedicated, easy-to-use apex locator.
